Heavy Duty Pallet Racking System: Engineered for High-Volume Warehouse Storage

Standard storage options won't work when your warehouse moves thousands of boxes every day. Heavy Pallet Racking is the foundation of modern high-volume warehousing. It gives big operations the structural strength and vertical room optimization they need. These specially designed systems turn ordinary storage into smart infrastructure that can hold up to 2000 kg per box and make the most of every cubic meter of space. I've seen how the right racking system changes business efficiency and throughput capacity. This is something I've seen firsthand while working with Fortune 500 makers and transportation providers.

Understanding Heavy Duty Pallet Racking Systems

Heavy Pallet Racking systems are different from other types of storage because of how well they are designed and how much weight they can hold. These systems are made from hot-rolled structural steel and have strong C-channel uprights and strengthened beams. They are designed to handle heavy loads at different heights in buildings. The open design layout lets you see your goods right away and gives forklifts direct access to all storage areas.

Core Design Specifications and Load Capacities

Industrial pallet racking is only strong if the right materials are used and the planning is done correctly. Steel parts are put through a lot of tests to make sure they meet international safety standards and last a very long time. For most uses, upright frames are between 3 and 12 meters high. However, when combined with automated recovery systems, ultra-high setups can go up to 30 meters. The beam's weight limit depends on its length and shape, but most of them can hold between 1500 kg and 2500 kg per level. Strength and freedom are both provided by the bolted connection system. This lets warehouse managers change plans as product needs change.

The flexibility of these devices makes them especially useful for high-throughput tasks. Since the height of each bay can be changed separately, you can store both heavy car parts (2000 kg) and lighter gadgets in the same structure. This flexibility is very important for companies that make a lot of different products or for delivery centers that serve a lot of different types of customers.

Industry Applications Across Manufacturing and Logistics

Different industries have very different storage needs, but beam-style racking works well for all of them. Fast-moving consumer goods (FMCG) businesses like how easy it is to pick up items that they need quickly, while automakers count on the ability to carry big loads like engine blocks and transmission assemblies. The open design lets air flow around temperature-sensitive goods in cold storage facilities, and pharmacy operations appreciate the clean, washable surfaces that support strict cleanliness rules.

Manufacturers of electronics often use a mix of industrial selective pallet racks and custom designs to store large parts and stage final goods. The building machinery industry needs very high load rates. Parts like steel fabrications and hydraulic cylinders need systems that are designed to handle the maximum weight. Heavy industry and steel work put a lot of stress on these systems because they have to store a lot of raw materials and finished goods, which would be too much for smaller systems.

Heavy Duty Pallet Racking Safety and Maintenance Best Practices

There is no value in a storage system that puts security at risk or needs a lot of downtime. There are risks that come with industrial storing that must be taken into account during installation and care of Heavy Pallet Racking.

Professional Installation Requirements

The process of putting things together requires accuracy and skill. Even though fixed construction seems simple, the right way to put it requires knowing how to distribute loads, figure out the floor's capacity, and take earthquake safety into account in the right places. Anchor points need to be correctly chosen based on the load estimates and width of the concrete slab. Column guards should be put in place at ground level where truck traffic poses a crash risk, and end-of-aisle barriers add extra safety to areas with a lot of traffic.

Working with construction teams that have a lot of experience can help you avoid mistakes that cost a lot of money and hurt the structure. When bolts aren't tightened properly, uprights aren't lined up right, or anchors aren't strong enough, they can create risky situations that aren't obvious at first but become serious dangers when operational loads are applied.

Inspection Schedules and Maintenance Protocols

Setting up a thorough checking program saves both employees and goods. Visual checks should be done once a month to look for signs of damage from impacts, bent parts, and weak connections. Professional checks once a year use laser alignment tools and load testing equipment to do a more in-depth analysis. Keeping records of these checks makes an audit trail that shows that OSHA rules and insurance rules were followed.

Damaged parts need to be fixed right away; never assume that bent beams or uprights can still hold the same amount of weight. When you replace parts, they should exactly match the originals because putting together parts from different makers can cause interface problems that weaken the system. With the right training, warehouse workers can spot possible problems before they become issues.

Comparing Heavy-Duty Pallet Racking Solutions to Alternative Storage Systems

Knowing your storage options helps you get the most out of both your cash investments and your operations. Each type of Heavy Pallet Racking system has its own strengths that make it better for certain types of goods and ways of handling them.

Selective Racking Versus High-Density Configurations

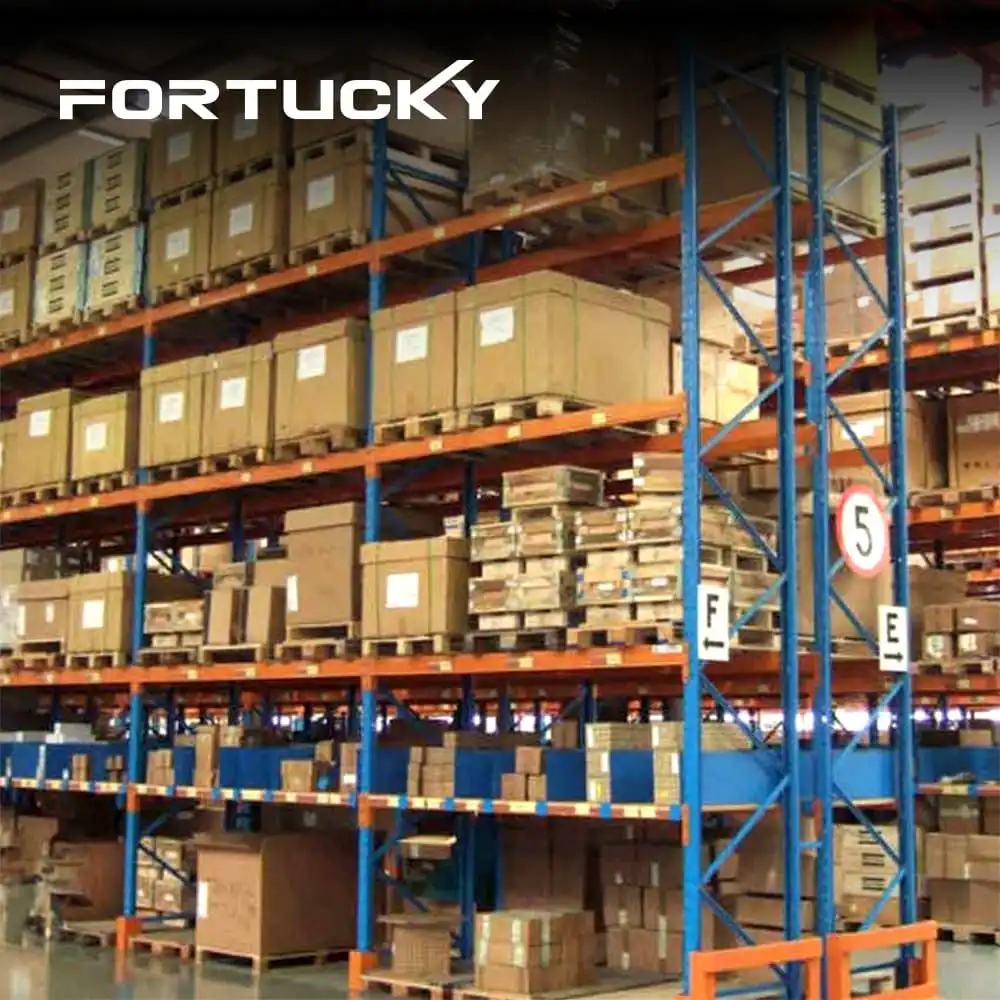

With selective beam racking, mobility is a top priority—every pallet spot is easy for a forklift to get to without having to move other items. This works great for operations with a lot of different SKUs where picking speed is more important than maximum density. This method is usually preferred by warehouses that complete orders for online shopping or distribution centers that help store networks because it gets rid of the problems that come with blocked storage lanes.

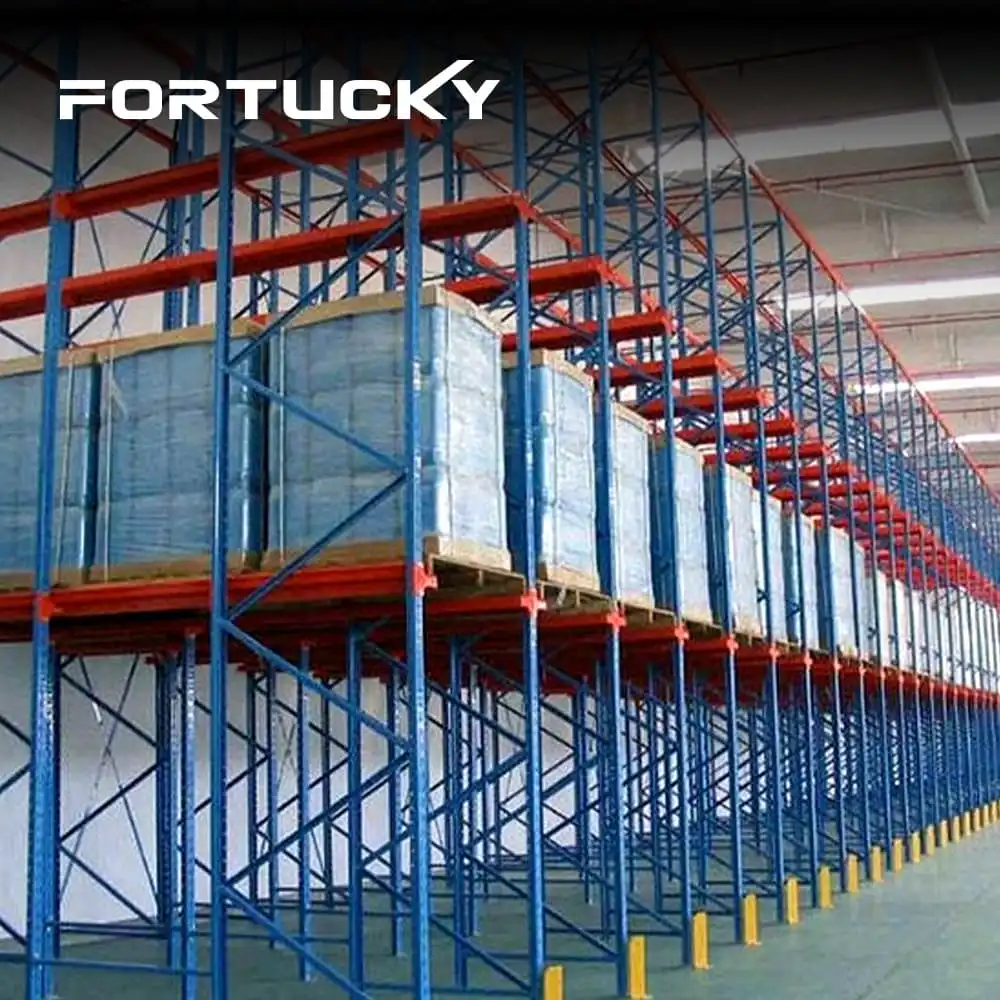

For more storage space, drive-in and push-back methods store more than one load deep in each lane, which makes them less accessible. When you need to store a lot of the same items that don't change often, like seasonal inventory or production parts bought in bulk, these layouts work well. The cost is longer recovery times and an inventory flow called LIFO (last-in, first-out) that doesn't work for all businesses.

Modular Flexibility and Scalability Advantages

The products in a modern warehouse are always changing, and so are the amounts of orders. As a business grows, it needs infrastructure that can adapt to new needs. This problem is solved by modular racking systems, which have parts that can be moved around and adjusted without having to replace the whole system. Most of the time, adding height by using higher uprights, extending rows with more bays, or changing beam levels to fit different load sizes can be done at night or on the weekend without stopping business.

When compared to fixed systems that become useless as business needs change, this freedom offers a lot of long-term value. Moving systems from one facility to another or selling off parts that aren't being used is a way to recover capital investment that fixed structures can't match.

​​​​​​​How to Choose and Procure Heavy-Duty Pallet Racking for Your Business

In order to choose the best heavy-duty pallet racking storage option, you need to carefully consider factors that affect both short-term and long-term performance.

Evaluating Load Requirements and Warehouse Dimensions

First, write down what kind of storage space you actually need—not what you think you need—using numbers. Weigh typical pallet loads when they are set up in their most compact form, measure the dimensions of each pallet, including any overhang, and figure out how many storage spaces are needed based on growth forecasts. Floor plans should show where columns are, how wide doors are, fire systems, and any utility lines that might get in the way of planning the layout.

The vertical capacity is based on the height of the ceiling, but building rules may limit the heights that can be reached without special tools. Reach trucks can easily go up to 10 meters with standard configurations, but very narrow aisle (VNA) versions with wire guidance can go up to 14 meters or more. Ultra-high systems that are higher than 15 meters usually have automatic stacker cranes that don't need to be operated by hand at all.

Supplier Selection and After-Sales Support

The connection with the vendor is just as important as the goods. Reliable providers offer full support, from planning the structure to coordinating the installation and providing ongoing service. Ask for examples from businesses that do similar work and make sure the provider has experience with the needs of your industry. For pharmaceutical and food-grade uses, different things need to be thought about than for industry or car manufacturing.

Fortucky gives a lot of proven experience to this very important decision-making process. We know how hard it is to run a high-volume warehouse because we've worked with over 1,000 customers around the world, including Mercedes-Benz, BMW, CATL, and Huawei, all of which are leaders in their fields. Our engineering team carefully examines the site, uses 3D modeling tools to make layout plans that work best, and gives clear project timelines from placing the order to the final check.

Our competitive benefits go beyond the standard of our products and include the whole experience of our customers. We can get help to you quickly when you need it because our native service networks cover Asia, Europe, and the Americas. Deep customization options make sure that solutions exactly meet your business needs instead of causing you to make compromises around standard setups. Fast shipping plans keep project delays to a minimum, and high cost-effectiveness makes the most of your money without sacrificing quality or safety.

Maximizing Warehouse Efficiency with Heavy-Duty Pallet Racking

Putting in good Heavy Pallet Racking systems is only the beginning. For operations to run smoothly, they need to be strategically put in place in a way that makes the most of all their features.

Strategic Load Placement and Weight Distribution

Putting loads in the right way improves both safety and speed. Things that are heavier should be put on lower floors, where they lower the center of gravity and make it easier for normal forklifts to move them. Upper levels can hold SKUs that are lighter and move faster because the shorter horizontal trip lengths make up for the longer vertical lift time. This design also keeps things from falling apart completely, which can happen when top-heavy structures become unstable during earthquakes or machine impacts.

By spreading out the goods across the building, you can keep it from accumulating too much weight in one place, which could damage the floor. When designing a building, structural engineers figure out the highest floor loads that can be put on it. However, problems can happen when weight is concentrated in one area, even if the total weight stays within the limits. These problems can be avoided by distributing heavy materials and cutting down on forklift journey time by putting frequently used goods close to shipping areas.

Integration with Warehouse Management Systems

Digital systems that keep track of where products are, find the best ways for picking, and handle restocking cycles are becoming more and more important in modern warehouses. A good shelving system works well with warehouse management systems (WMS) because it has clear location numbers and can scan barcodes. The width of the aisles must be big enough to fit reading equipment, and the lighting should get rid of shadows that make it hard to read barcodes.

The next step in this merging is automated storage and retrieval systems (AS/RS), which use computer-controlled cranes to do all the picking and storing. For these setups, the alignment of the racks needs to be very exact, and the automation equipment needs to connect to the racks at certain places. Even though they require a big investment in capital, AS/RS setups provide great flow in high-volume operations where the cost of labor and the need for accurate picking make the automation worth it.

Conclusion

Choosing the right Heavy Pallet Racking system has a big effect on how well the warehouse works, how safe it is, and how much it costs to run in the long run. These engineered solutions give high-volume buildings the structural capacity, vertical room optimization, and operating freedom they need. Businesses in the logistics and industrial sectors can turn their storage infrastructure into a competitive benefit by carefully analyzing load needs, working with experienced suppliers, and putting in place strategic layout designs. Investing in good processes pays off in the form of higher productivity, lower labor costs, and capacity that can be expanded as your business grows.

FAQ

1. What is the maximum weight capacity for heavy pallet racking systems?

Standard Heavy Pallet Racking setups can hold between 1500 kg and 2000 kg per pallet spot. However, bigger loads can be handled by special designs. Capacity varies depending on the length of the beam, the shape of the uprights, and how the system is designed as a whole. Always look at the technical specs and don't go over the rated capacities. Overloading is dangerous and voids structural warranties.

2. Can heavy pallet racking be customized for unusual warehouse layouts?

Yes, one of the best things about flexible racking systems is that they can be easily customized. Manufacturers can change the heights, widths, and lengths to fit around building columns, level floors, or connect to existing infrastructure. Custom powder coating fits the color schemes of businesses, and specialized tools meet specific operating needs.

3. How often should industrial racking systems be inspected?

Visual checks done once a month by trained warehouse workers should find any clear damage or safety issues. Professional checks done once a year with special tools give full evaluations of the structure. Facilities that get a lot of traffic or work with big loads may need professional checks more often to make sure they stay safe.

Partner with Fortucky for Premium Heavy Pallet Racking Solutions

Fortucky offers complete storage options that are designed to work with high-volume warehouses in the logistics and industrial industries. Our Heavy Pallet Racking systems have strong frames and can be set up in a variety of ways to meet your specific needs. As the world's largest provider of heavy pallet racks, we support operations around the world with regional service networks that offer quick responses and expert technical help. Our clever production sites that are connected to 5G make sure that the quality is always the same, and our experienced research and development team is always coming up with new ideas that make things safer and better. Email our engineering team at sales@fortuckyrobot.com to talk about how you want to improve your business and get detailed specs that are made to fit your needs. With quick delivery times, low prices, and full support after the sale, Fortucky is ready to turn your storage system into a significant advantage.
