How to Optimize Warehouse with Drive In Racks

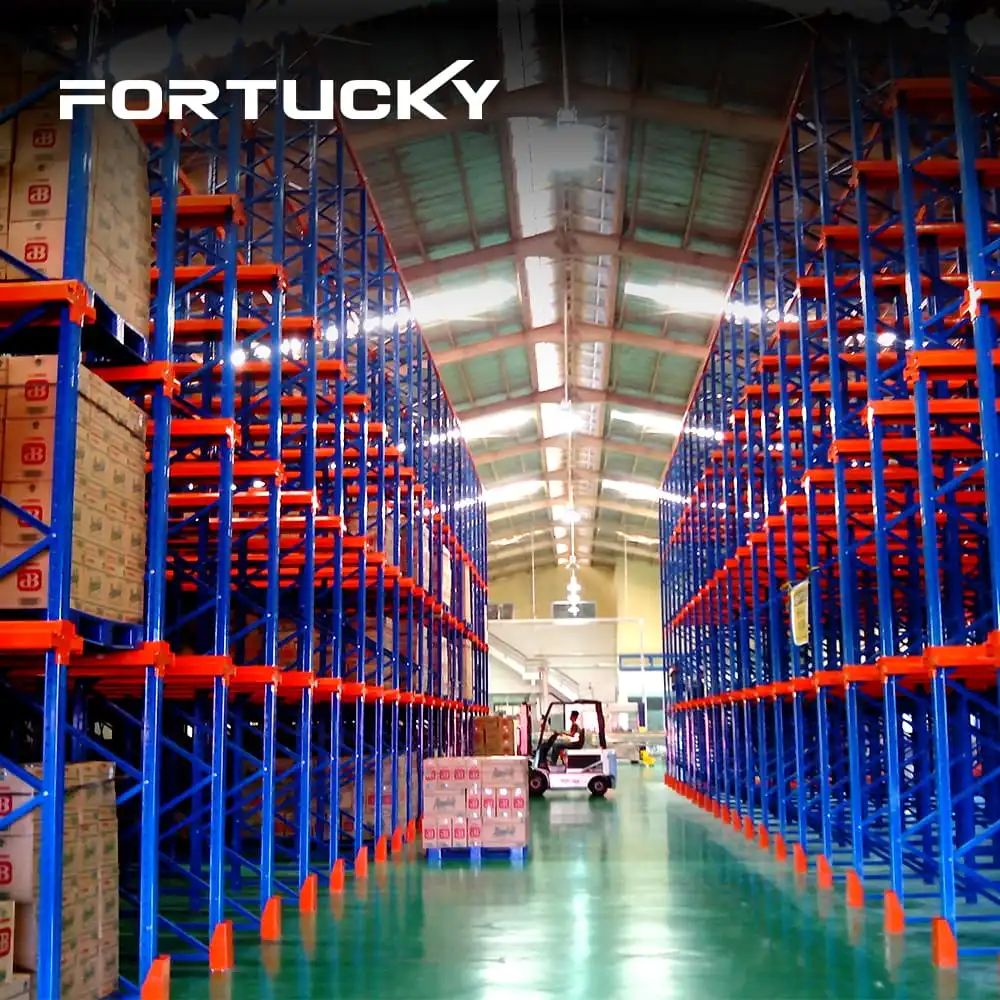

Drive in storage racks ccan significantly increase your storage capacity and help your business run more smoothly. Forklifts can drive directly into the storage lanes of this high-density pallet racking system, stacking pallets several positions deep and eliminating unnecessary aisles. Warehouses using this method typically achieve around 80% space utilization, which is 30% higher than traditional selective racking systems. This layout works well for businesses that handle large quantities of similar goods, such as those in the food and beverage, cold storage, auto parts, and pharmaceutical industries, where saving money while maximizing space remains a key goal.

Understanding Drive-In Storage Racks and Their Role in Warehouse Optimization

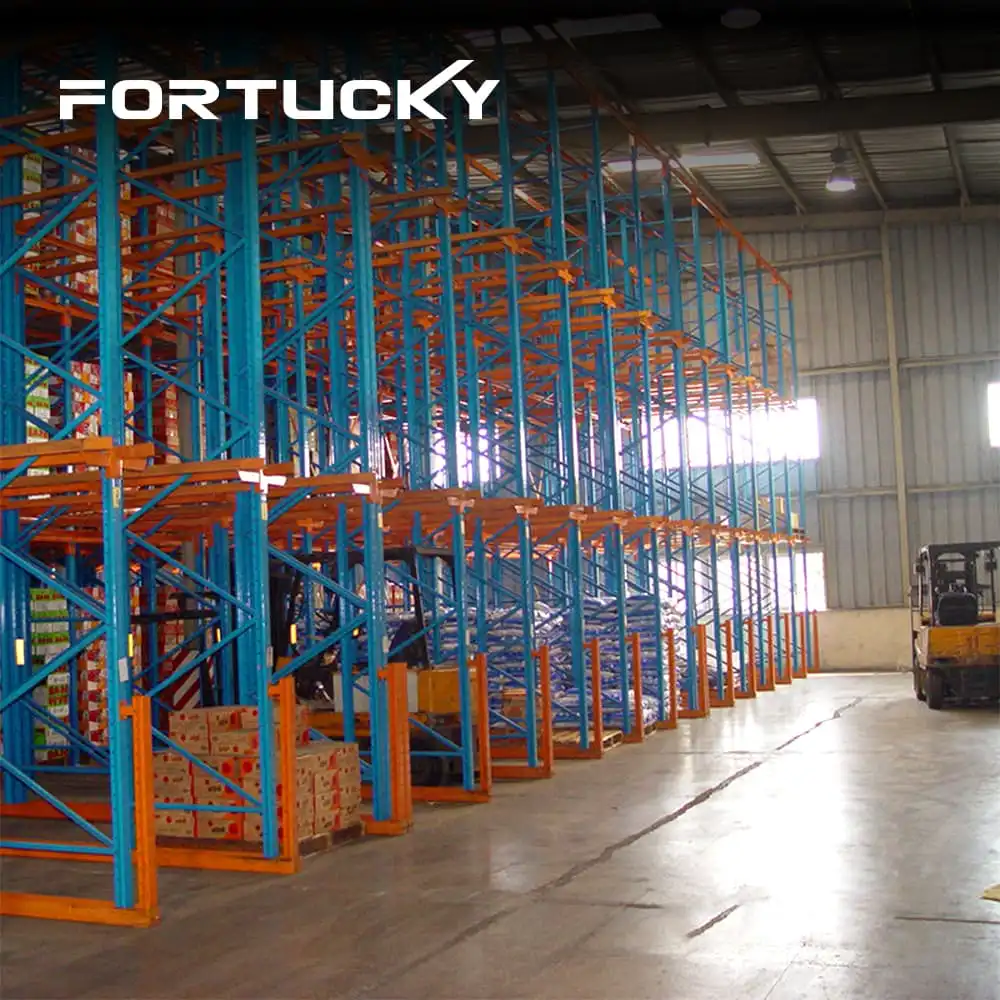

Drive-in storage racks are a type of pallet storage system where items are loaded and retrieved from the same side, following the last-in, first-out (LIFO) principle. The structure creates continuous storage lanes that run perpendicular to the working aisles. Instead of individual beams, pallets rest on parallel horizontal rails. This design makes the best use of available cubic space by reducing the need for aisles.

How do Drive-In Systems Differ from Drive-Through Configurations?

LIFO systems use single-sided access in drive-in storage racks, but first-in, first-out (FIFO) inventory rotation is possible with drive-through configurations, which allow entry from both ends of the storage lane. Drive-through systems work well for goods with expiration dates or when inventory turnover requires stricter rotation rules. They are often preferred by factories producing battery parts or pharmaceutical ingredients to maintain product freshness and comply with regulations. The main factors determining which setup to choose are the number of SKUs, inventory turnover rate, and the need for date-sensitive stock rotation.

Core Operational Benefits for Enterprise Warehousing

Because of its design, this racking system solves common problems faced by logistics managers and supply chain professionals. Space savings immediately reduce real estate costs, and existing buildings can hold more inventory. This method works best for businesses storing pallet loads of similar items, such as cases of liquor, bins of auto parts, or boxes of electronics. The system accommodates heights from 5 to 15 meters, allowing facilities with high ceilings to utilize unused vertical space. When workers follow consistent entry and exit procedures for storage lanes, material handling becomes easier to plan, and errors occur less frequently.

Key Design Principles and Safety Considerations for Drive-In Storage Racks

Successful implementation requires close attention to structural requirements and operational factors. The heavy-duty steel frame must withstand vertical and lateral loads while remaining stable as forklifts move through the lanes. Because cross-aisle bracing provides no intermediate support, column sections generally need to be thicker than those in selective racking.

Load Capacity and Dimensional Planning

Determining the correct load capacity requires knowing the weight of stored items and pallet dimensions. Standard pallet sizes vary by region. For example, North American pallets are typically 48" x 40", while European pallets are usually 1200mm x 800mm. Each horizontal rail must support the weight of all pallets stored at that level, plus the dynamic forces created when forklifts enter and exit. Facilities storing steel bars, construction equipment parts, or bulk liquid drums need engineering assessments that account for weight distribution. Adjustable beam levels allow for different pallet heights as product mixes change, without fully reconfiguring the system.

Critical Safety Features and Protective Elements

Guide rails on both sides of each entry lane serve two purposes: they show forklift drivers the safest path and protect structural beams from impact damage. These rails, typically installed at about 500 mm in height, place a barrier between the forklift forks and the main load-bearing components. Column guards at entry points add extra protection at corners where turning movements increase the risk of collision. Backstops at the end of each lane prevent pallets from being pushed too far, keeping them properly positioned on the support rails. Regular inspections should document any signs of impact damage, structural deformation, or loose connections. To maintain system integrity, repairs should be made immediately by trained technicians.

Temperature-Controlled Environment Considerations

Applications like cold storage and cooled warehouses have their own problems that affect the design requirements. Because low temperatures change the qualities of materials, steel types that stay flexible and resistant to impact below freezing are needed. Managing condensation is needed to keep ice from building up on the structure parts. The high-density design of drive-in storage racks is especially useful in temperature-controlled areas where the cost of cooling is directly related to the amount of space. By keeping as many items as possible in as little expensive climate-controlled space as possible, companies that store temperature-sensitive vaccines or food makers that keep their stock frozen can save a lot of energy.

Comparing Drive-In Storage Racks with Other Pallet Racking Systems

Understanding how different racking systems compare helps procurement teams make informed decisions that meet operational needs and budget constraints. Each system presents different trade-offs among density, accessibility, cost, and operational complexity.

Selective pallet racking allows direct access to every pallet position but requires aisles between each row, using up about half of available space. This method works well for businesses that need quick access to any product and have many different SKUs. Push-back systems store pallets two to six deep on inclined rails. As front pallets are removed, gravity moves goods forward. Compared to drive-in storage racks, this design maintains FIFO rotation while offering higher density than selective racks.

Pallet flow racking uses roller conveyors or wheeled tracks set at a slight angle to move rear-loaded pallets forward automatically as front positions are emptied. This arrangement works excellently in high-turnover environments requiring strict FIFO rules, but it costs more to install and maintain than drive-in storage racks. Double-deep racks store pallets two positions deep, requiring special reach trucks but providing moderate density gains without the depth limitations of drive-in systems.

Situational Advantages for Drive-In Systems

When operations need to manage a small number of SKUs but large quantities of each product, drive-in storage racks are the best choice. Compared to selective racking, storing thousands of pallets with only a dozen product codes saves tremendous space for a beverage distributor. Maximum density and minimal aisle cooling work together effectively in cold storage operations. When fast turnover is not required, seasonal inventory storage such as building materials or agricultural goods works well with the LIFO access pattern. Drive-in storage racks offer the lowest investment cost per pallet position of all high-density options, making them an economical choice for procurement projects.

Guide to Procurement and Installation of Drive-In Storage Racks

Navigating the procurement process requires evaluating supplier expertise, customization capabilities, and lifecycle support services. Because material handling systems are complex, they require collaboration with manufacturers who can provide complete solutions rather than just selling equipment.

Supplier Evaluation and Customization Capabilities

Manufacturing capacity is important when project deadlines are tight or facilities require large-scale deployment. Suppliers with annual production capacity exceeding 100,000 tons can handle major projects without extended lead times. Customization options go beyond simple dimensional changes to include different finishes, load capacities, and integration with existing inventory management systems. Column spacing, beam levels, and lane depth must be carefully calculated based on product dimensions and forklift specifications. While color changes may seem merely aesthetic, they actually support safety protocols and visual management systems. For example, color-coded lanes help workers quickly identify the correct storage locations for different product types.

Fortucky's engineering team has extensive experience across many manufacturing sectors, from automotive parts storage to pharmaceutical distribution centers. Our annual production capacity of 150,000 tons supports projects ranging from single-warehouse installations to multi-site business deployments. We have developed unique solutions for challenging environments such as sub-zero cold storage facilities and highly corrosive chemical storage applications. The flexible frame design allows for incremental expansion as storage needs change, protecting your initial capital investment.

Installation and Lifecycle Support Considerations

Professional construction by licensed workers makes sure that the structure is sound and meets all safety requirements, including for high-density drive-in storage systems. If you prepare the floor correctly, including checking the width and levelness of the slab, you can avoid future settlement problems that could make it hard to line up the racks. The anchor bolt fitting needs to be done carefully to get the required pull-out resistance. This is especially important in areas prone to earthquakes or in buildings that handle a lot of weight. After the system is installed, it is loaded and tested to make sure it works as planned before it starts running normally.

Long-term value depends heavily on the quality of after-sales support. Total cost of ownership is affected by how quickly technical questions are answered, how easily spare parts can be obtained, and how effectively field repairs can be performed. The warranty should cover more than just the basic structure, including workmanship and dimensional accuracy. Documentation packages containing installation drawings, load tables, and maintenance procedures support safe operations throughout the system's service life.

Real-World Application and Maintenance for Optimal Performance

By examining how different industries use drive-in storage racks, procurement officials can better understand how these solutions perform in practice. Performance data from actual installations demonstrates improvements in storage efficiency and operational processes.

Industry-Specific Implementation Examples

A large dairy processor installed drive-in storage racks across multiple cold storage sites to handle increased production without building additional space. The installation increased pallet density by 45% within existing buildings, deferring a $12 million new construction project. Standardized pallet sizes for milk crates and yogurt cases worked perfectly with drive-in storage racks' requirement for uniform inventory. Reduced air circulation helped maintain more stable temperatures, lowering cooling costs by approximately 18%.

An automotive parts distributor serving assembly plants installed drive-in storage racks adjacent to production lines for buffer storage of components. The setup allowed several days' worth of parts receipts to be stored in a compact area, reducing supply chain fluctuations. The limited SKU count per lane reduced picking errors and improved inventory accuracy. Material handlers reported faster put-away times because they could quickly stage multiple pallets of the same parts in dedicated lanes.

Preventive Maintenance and Inspection Protocols

Systematic inspection routines keep workplaces safe and extend system life. Visual checks for impact damage to columns, beam connections, and guide rails should be performed monthly. Any deformation exceeding manufacturer specifications should be repaired immediately, even if it appears minor. Damage that accumulates over time and might seem insignificant at first can lead to reduced load capacity. Annual comprehensive inspections by trained rack safety professionals provide thorough reports on structural condition, connection integrity, and compliance with current safety standards.

Another important part of the repair is training for operators. Forklift drivers need to know the right entry speeds, how to place loads, and how much space they need to work at. Setting up standard operating methods for loading and unloading reduces the chance of hitting something by mistake. Some facilities use height monitors or guidance lighting systems to help workers remember the right way to do things, especially with industrial drive-in pallet racks. This is especially helpful when training new workers or running operations with people on different shifts who have different levels of experience.

Conclusion

For businesses handling large quantities of similar goods, drive-in storage racks improve warehouse space utilization, operational efficiency, and storage density. This solution is excellent for logistics-intensive operations because it uses 80% of available space and costs less per pallet position than other high-density systems. Careful attention to load specifications, safety requirements, and supplier selection is essential for successful implementation. When properly installed and maintained, these systems provide reliable, cost-effective storage for decades, directly supporting strategic goals to increase throughput and lower operating costs across production and distribution operations.

FAQ

1. Which warehouse operations benefit most from drive-in racking systems?

Operations that store large quantities of similar goods with few SKU variations get the most value from their storage space. Ideal applications include cold storage facilities, beverage distribution hubs, food processing plants, and seasonal inventory warehouses. The LIFO access pattern works well when strict inventory rotation is not required or when order picking can accommodate product date sequencing.

2. How do I determine the appropriate load capacity for my application?

Load capacity determination must account for pallet weight, product weight distribution, and dynamic forces generated during forklift operation. Consult engineering teams who can analyze your specific requirements and make recommendations based on pallet dimensions, stacking patterns, and the types of materials to be stored. Conservative capacity ratings provide margin for future product changes.

3. Can these systems be customized for specialized environments?

Full customization addresses specific operational challenges such as extreme temperatures, corrosive environments, or non-standard pallet sizes. Material selection, finishes, and structural reinforcement can accommodate demanding conditions. Bay height, depth, and width can be adjusted to match building dimensions and equipment specifications.

Partner with Fortucky for High-Performance Drive In Storage Racks Solutions

To get the most out of your warehouse space while keeping costs low, you need to find an industrial drive in storage racks provider with a track record of successful engineering and global deployment. Fortucky has finished more than 1,000 successful installations for major businesses in North America, Europe, and Asia. These companies include automakers, food and beverage makers, and drug companies. Our focused research and development team and vertically integrated production center make custom solutions that are designed to fit your needs, operational processes, and integration needs. We help with projects from the first idea and thorough design all the way through installation, control, and ongoing technical support. Email our team at sales@fortuckyrobot.com to talk about how to improve the performance and efficiency of your warehouse and get a thorough proposal that addresses your unique storage problems and performance goals.
