Sheet Metal Stacker

High-Performance Sheet Metal Stacker for Industrial Manufacturing

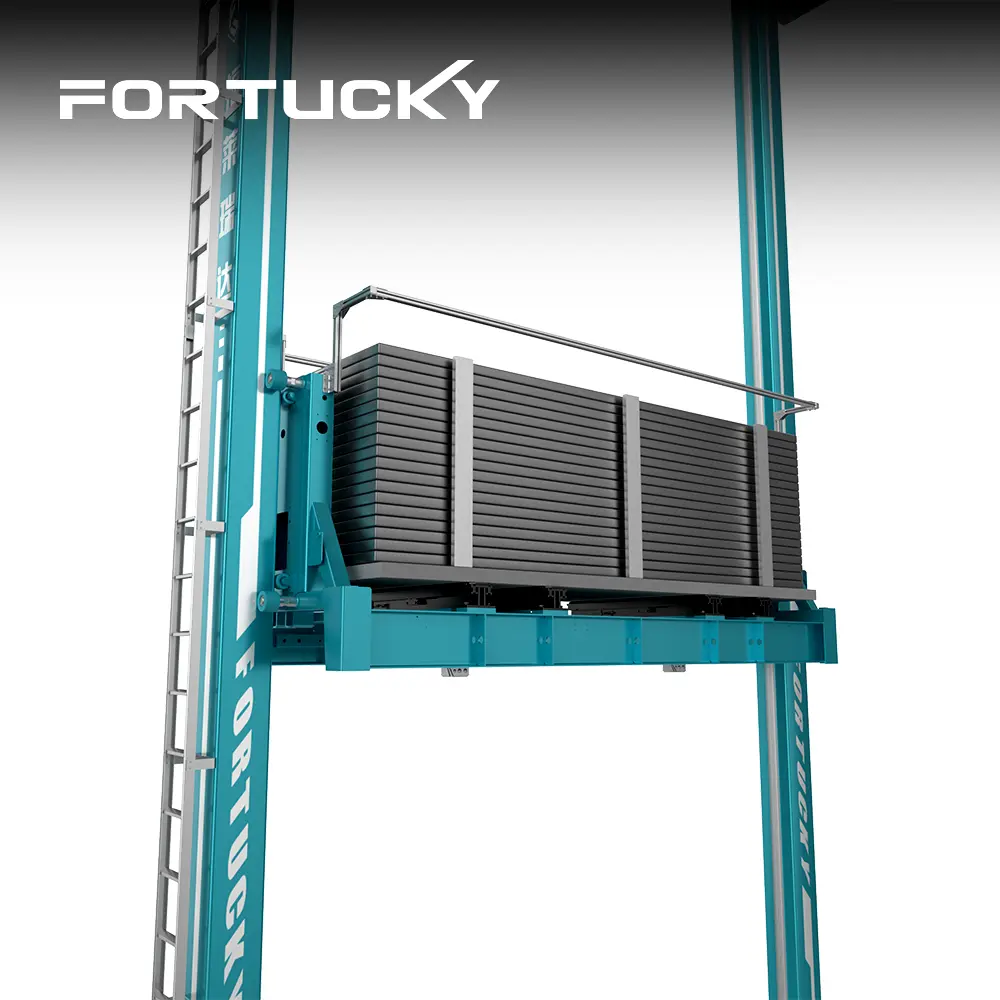

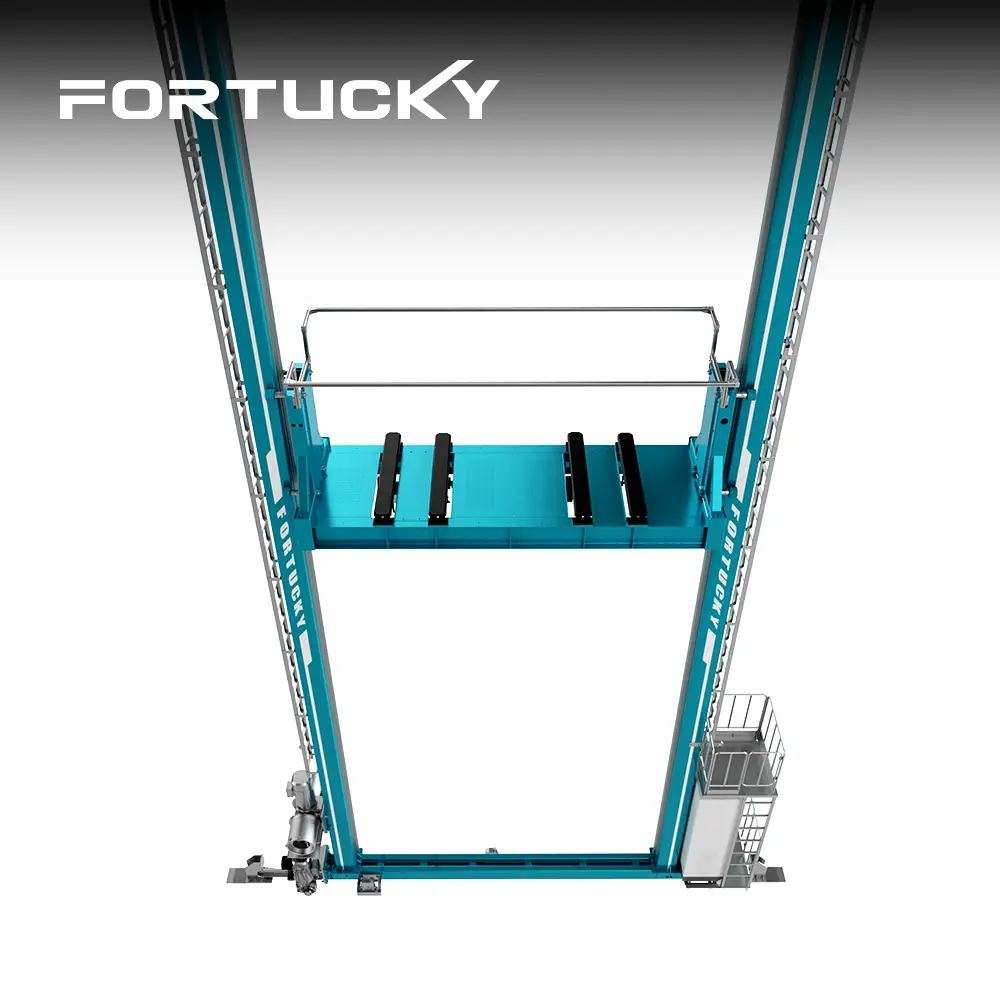

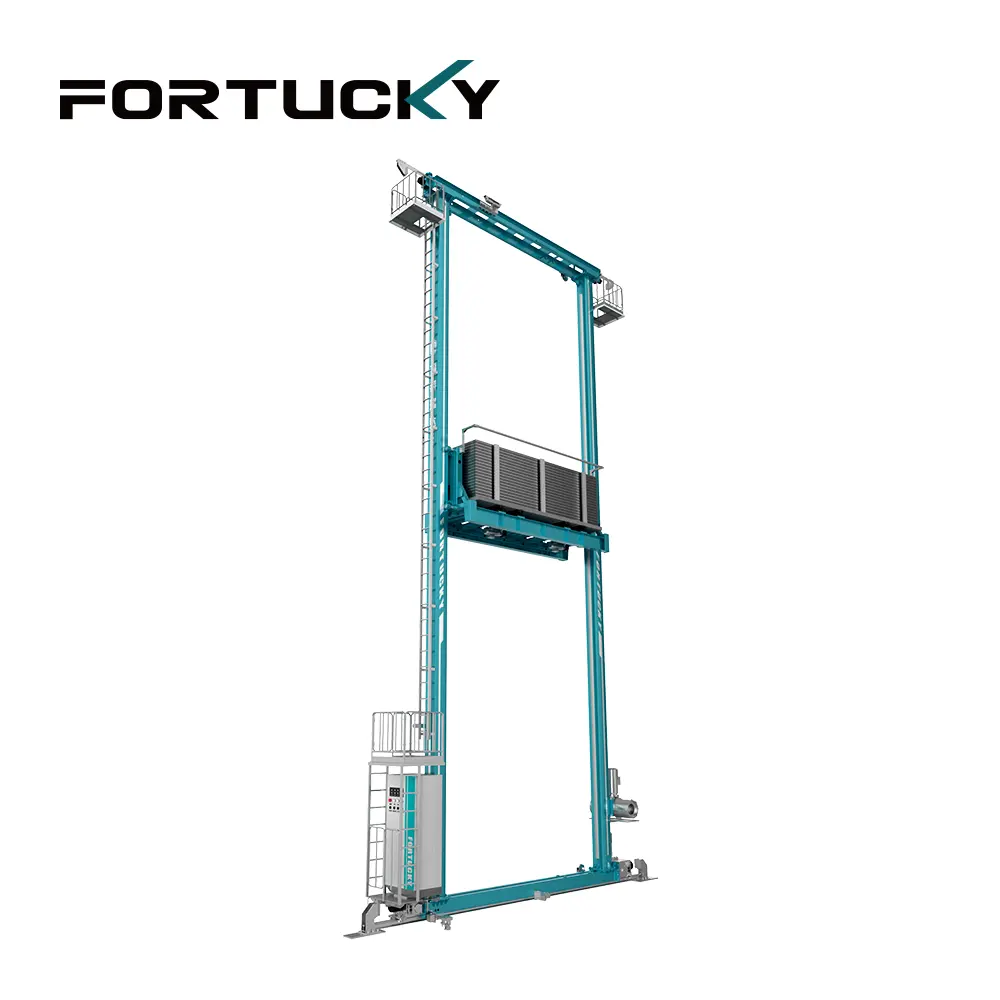

The enterprise-grade Sheet Metal Stacker from Fortucky is a great way to automate high-volume metal handling tasks. Our lane-type stacker can move loads of up to 20,000 kg with an accuracy of ±3 mm. This automated storage equipment can move at speeds of up to 160 m/min and lift up to 40 m/min. It can support loads up to 27 meters high. It is made for bulk storage and sheet warehouses, and it has different working modes, such as single-deep, double-deep, and multi-station setups. It works quickly, reliably, and efficiently in temperatures ranging from -25°C to +65°C.

Advanced Automation for Metal Processing Excellence

Your production processes need to be reliable and accurate. Our automatic stacking system works well with blanking presses, shearing machines, and cut-to-length lines. The equipment gets rid of production problems and keeps the flow of work in sync all the time.

The complex design works with different kinds of metal, like carbon steel, aluminum, and stainless steel. Surface damage to sensitive materials is avoided by advanced air-flotation supports and precise control systems. This safety is very important for uses involving polished stainless steel and aluminum made for cars.

Different output needs can be met by using different operation modes. Based on your business needs, you can choose between manual, stand-alone automatic, online automatic, or maintenance modes.

Technical Specifications

Key Features and Benefits

High-Speed Precision Operation

Picking and putting are more efficient when people run quickly and are in the right place. The system makes the best use of room while still meeting the high standards of accuracy needed for good manufacturing.

Cost Reduction and Efficiency Improvement

Faster keeping and retrieval cuts down on the amount of work that needs to be done and the costs that come with it. Automated handling cuts down on mistakes made by people and damage to materials, which leads to measured productivity gains.

Customizable Design Solutions

Personalize the system to meet your unique needs. Modular design and flexible control of storage locations allow for a wide range of operational needs. Cargo platforms can be changed to fit specific needs, such as adding fire control systems.

Wide Industry Applications

The flexible platform is used in the aerospace, automotive, building materials, metal processing, and machinery production industries. Sheet Metal Stacker technology can be used to store different types of sheets and bulk goods.

International Safety Standards

Following state standards, military specifications, and European safety rules makes sure that the system works properly. Strict quality control procedures make sure that products are safe and that they follow the rules.

Industrial Applications

Manufacturing facilities across multiple sectors benefit from automated stacking solutions. Steel service centers processing massive coils into flat sheets require robust systems handling frequent material changeovers. Our equipment manages varying materials including hot-rolled steel, cold-rolled steel, and aluminum while maintaining operational efficiency.

Automotive stamping operations demand surface finish preservation for Class A panels. The product employs gentle handling techniques preventing friction scratches during material transfer. Vacuum and air-flotation systems ensure damage-free processing of sensitive materials.

Appliance manufacturing benefits from integration capabilities with film applicators and leveling equipment. Systems handle thin-gauge stainless steel without inducing deformation, ensuring perfect alignment for downstream robotic operations.

FAQ

Q1: What working modes does the stacker support?

A1: The system offers single-deep and double-deep configurations with single-station, dual-station, and multi-station options. Operation cycles include single and compound cycles for flexible workflow adaptation.

Q2: How does the system handle non-magnetic materials?

A2: For aluminum and austenitic stainless steel, we utilize vacuum conveyor stackers or air-flotation drop systems instead of magnetic overhead mechanisms, ensuring secure grip and scratch-free handling.

Q3: Can the stacker maintain continuous operation?

A3: Yes, double-station and continuous-run modes employ temporary support arms and secondary conveyor buffers. This allows zero-downtime operation during pallet changes and material transitions.

Q4: What maintenance is most critical for longevity?

A4: Beyond standard lubrication, conveyor belt condition and tracking require weekly inspection. Worn belts cause slippage and misalignment, potentially leading to operational issues. Pneumatic cylinder seals also need regular monitoring.

Q5: How is stack squareness maintained for different sheet sizes?

A5: Servo-motor driven side guides and backstops connect to the central PLC system. Operators input sheet dimensions for automatic position adjustment. Pneumatic tampers ensure perfect alignment during operation.

Q6: What is the minimum thickness the system can handle?

A6: While standard configurations handle materials down to 0.5mm, ultra-thin materials (0.15mm-0.4mm) require specialized air-support blowers preventing edge drooping during transfer operations.

Q7: What quality control measures ensure reliable performance?

A7: Factory acceptance testing includes 50-sheet accuracy verification, surface finish inspection, and cycle time stress testing at 110% rated capacity. Safety interlock verification ensures compliance with OSHA and CE machinery directives.

The product represents advanced automation technology delivering consistent performance across diverse manufacturing environments. Our comprehensive solution addresses critical industry challenges while providing measurable operational improvements.

Contact Us

Ready to optimize your metal processing operations with Sheet Metal Stacker? Contact our experts at sales@fortuckyrobot.com for customized automation solutions.
