Heavy-duty stacker

As the core equipment of heavy-duty automated stereoscopic warehouses, heavy-duty stackers have the advantages of ultra-heavy load capacity (maximum load can reach 30t), strong reliability, fast speed, high precision, and high safety factor. They are widely used in the automated storage and retrieval of heavy-duty special-specification products such as steel coils, aluminum coils, paper coils, and die-castings, and in industries such as tobacco, food ingredients, frozen produce, paper, home appliances, and tires.

Send Inquiry

Download

Product Description

Heavy-Duty Stacker: Enterprise-Grade Automated Warehouse Solutions

Fortucky's Heavy-duty stacker represents the pinnacle of automated warehousing technology for enterprise applications. Our system can hold up to 30 tons of weight and is very accurate about where it is placed, within 3 mm. This automatic system for storing and retrieving things can walk up to 160 meters per minute and lift 40 meters per minute. Your facility gets the most uptime and stability because it was made to work continuously in temperatures ranging from -25°C to +65°C. Our dual lifting mechanism and strengthened rail systems give you the performance you need for heavy-duty jobs.

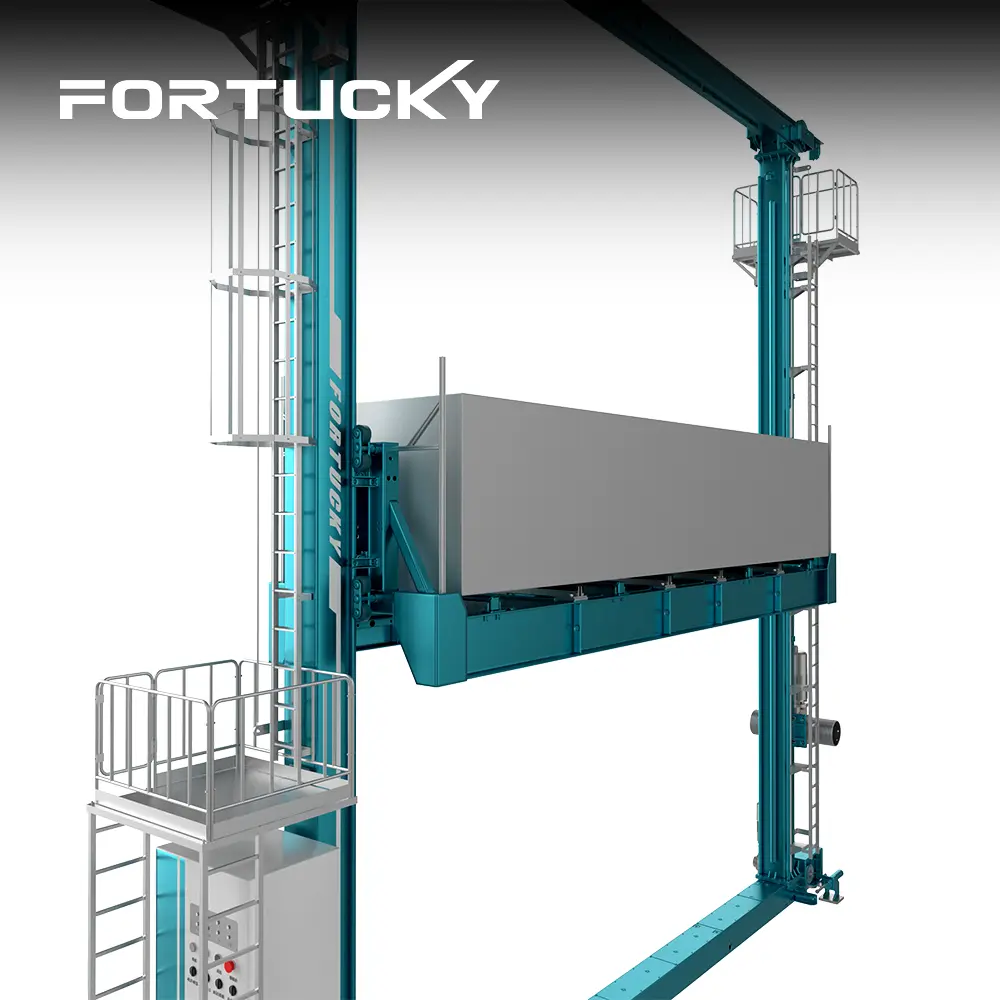

product-1-1

Why Choose Our Automated Storage and Retrieval Systems?

Unmatched Load Capacity and Performance

Everything you need for your building must be able to move the largest things without any trouble. It's possible to lift up to 20,000 kg with our stacker crane technology. At its biggest, it can lift 30 tons. This is a safe way to keep metal coils, paper rolls, die castings, and steel coils.

The two-part lifting method makes sure that the load is safely moved even when it is full. Your work is always done quickly and correctly, even when there is a lot to do.

Precision engineering to get the most out of your resources

Our product is different from other material handling tools because it can position itself accurately to within ±3mm. With this level of accuracy, your things will always be put exactly where they need to be.

Your warehouse benefits from:

Walking speeds up to 160 m/min
Lifting speeds up to 40 m/min
Fork speeds up to 60 m/min
Smooth acceleration controls for optimal handling

Built for Demanding Environments

Strong engineering is needed to work in tough situations. Between -25°C and +65°C, your heavy-duty stacker will work consistently. This makes it great for places with low temperatures like cold storage and high temperatures like factories.

Large, heavy rails with press-fitting and buffer devices that match keep vibrations to a minimum. Your processes stay stable and smooth even when things move quickly.

Technical Specifications

Parameter	Specification
Height (m)	≤30
Rated Load (kg)	≤20,000
Walking Speed (m/min)	≤160
Walking Acceleration (m/s²)	0.4
Lifting Speed (m/min)	≤40
Lifting Acceleration (m/s²)	0.4
Fork Speed (m/min)	≤30/60
Fork Acceleration (m/s²)	0.5/1
Positioning Accuracy (mm)	≤±3
Operating Temperature (℃)	-25 to +65
Operating Modes	Manual/Stand-alone/Connected/Maintenance
Assignment Style	Single Cycle/Compound Cycle

Production Process

Certificate Display

Patent Honor Display

Key Features and Benefits

Easy Maintenance Design

The easy-to-use design will be appreciated by your repair teams. Downtime is kept to a minimum by quickly replacing the wheel box and repairing other parts. This way of thinking about design keeps your business running easily and saves you money on repairs.

Versatile Operating Modes

Choose from multiple operating modes to match your specific needs:

Manual operation for training and setup
Stand-alone mode for independent operation
Connected mode for integrated warehouse management
Maintenance mode for safe servicing

Enhanced Safety Features

Safety remains paramount in heavy-duty applications. The reinforced chassis and dual lifting mechanisms provide multiple layers of protection. Emergency stop systems and controlled acceleration ensure operator and equipment safety.

Industry Applications

In many fields, your offering is the best:

Manufacturing: working with steel, making aluminum, and casting cars

Distribution: 3PL activities and warehousing for heavy goods

Food and drink: storing frozen goods and moving large ingredients

Paper industry: storing and getting paper rolls

Electronics: storing parts and helping with building

Full Life Cycle Services

FAQ

Q: What makes this different from standard stackers?

A: Our product can move loads of up to 30 tons and is accurate to within 3 mm. Most of the time, standard stackers can handle much smaller loads with less accuracy.

Q: How reliable is the dual lifting mechanism?

A: The dual drive system provides redundancy and enhanced safety. If one mechanism experiences issues, the second provides backup support for safe load handling.

Q: Can the system operate in extreme temperatures?

A: Yes, our equipment operates reliably from -25°C to +65°C, making it suitable for cold storage and high-temperature manufacturing environments.

Q: What maintenance is required?

A: Regular inspections and preventive maintenance keep the system running optimally. The modular design allows for quick component replacement and minimal downtime.

Q: How fast can the system operate?

A: Walking speeds reach 160 m/min, lifting speeds up to 40 m/min, and fork speeds up to 60 m/min, ensuring efficient material flow.

Q: Is customization available?

A: Absolutely. We customize load capacity, dimensions, and features to match your specific application requirements.

Contact Us

Experience the power of enterprise-grade automated storage solutions. Contact our experts today at sales@fortuckyrobot.com to discuss your Heavy-duty stacker requirements.
