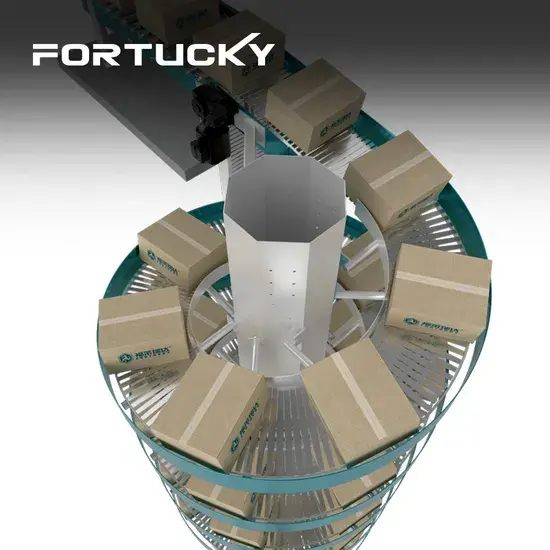

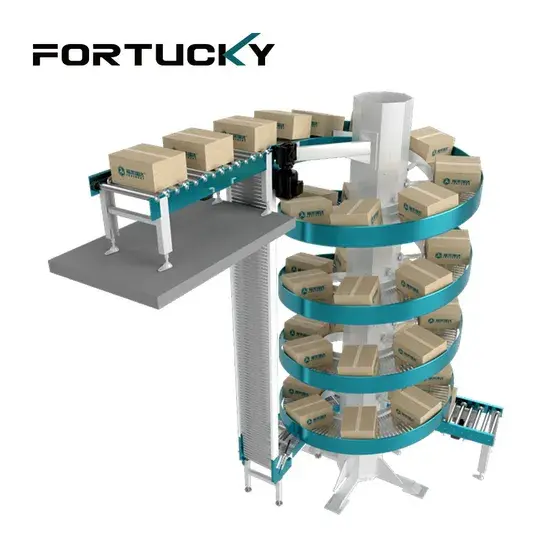

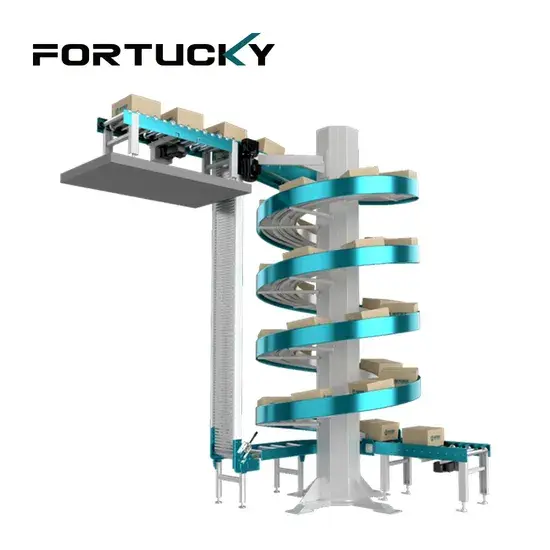

Industrial Spiral Elevator

Industrial Spiral Elevator: High-Efficiency Vertical Conveying Solutions

With enterprise-grade performance, the Taiyuan Fortucky Logistics Equipment & Technology Co., Ltd. Industrial Spiral Elevator revolutionizes the handling of high material. With a highest lifting height of 37 meters, our modularly designed system can move 2000 to 4000 pieces per hour with great efficiency. With a positioning accuracy of ±2mm and an operating temperature range of -25°C to +65°C, this equipment works reliably 24 hours a day, seven days a week in a wide range of commercial settings.

Key Technical Specifications

What Makes Our Spiral Conveying System Outstanding

Exceptional Space Efficiency

Your building is always under pressure to make the best use of its floor space. Instead of standard inclined conveyors, our vertical conveying solution takes up only 60–80% of the floor space. You can move materials up and down without giving up important production space because the circular footprint is small.

Stable and Reliable Operation

The system works the same way every day because it was made with modular parts and standard installation methods. Low operating costs and easy maintenance requirements help you cut down on total transportation costs while still meeting high standards of dependability.

High-Throughput Performance

In the constant spiral conveying mode, there are no breaks for loading and unloading, so there are no wait times. Your materials move smoothly at 2000 to 4000 pieces per hour, which greatly increases the general productivity of your facility and helps you meet tight production schedules.

Customizable for Special Industries

We offer 304 stainless steel building for places that work with chemicals or food and need to meet higher hygiene standards. This makes sure that strict hygiene rules are followed and gives the product great rust resistance.

Versatile Applications Across Industries

Manufacturing and Production

Our Industrial Spiral Elevator vertical transport systems excel in automotive parts warehousing, electronics assembly, and machinery manufacturing. The robust construction handles heavy-duty cycles typical in Tier 1 supplier facilities.

Food and Beverage Processing

Perfect for end-of-line packaging where floor space is premium. Transport finished goods from ground-level production to overhead palletizing areas while maintaining food-grade standards.

Logistics and E-commerce

Critical for linking multi-tier mezzanines in distribution centers. Move picked order totes from upper storage levels to sorting and shipping areas without creating vertical bottlenecks.

Chemical and Pharmaceutical

Handle bulk materials requiring simultaneous processing during elevation. The extended residence time in the helical path allows for effective drying or cooling of heat-sensitive compounds.

Advanced Control and Integration Features

Your working efficiency depends on how well your systems work together. Industrial standards like PROFINET and Ethernet/IP let our smart control systems talk to each other. Real-time operational data is sent directly to your SCADA or WMS systems, giving you full control and insight.

The clever VFDs and sensors can find jams and keep an eye on the speed. This proactive monitoring keeps your building running smoothly and saves you money on costly downtime.

Why Choose Fortucky's Solution?

With more than 15 years of experience helping more than 1,000 people around the world, we know the problems you're facing. We're committed to quality and innovation, as shown by our 100,000-square-meter manufacturing center and more than 360 intellectual property rights.

The flexible design lets you get started quickly and let you add more features in the future. The system changes to meet your needs as your business grows without requiring big infrastructure changes.

FAQ

Q: What is the conveying efficiency of your spiral vertical conveyor?

A: Under normal conditions, our system achieves 2000-4000 units per hour. The continuous spiral design eliminates loading and unloading interruptions, ensuring uninterrupted vertical conveying.

Q: Can the system be customized for special industry requirements?

A: Yes. For industries requiring enhanced hygiene and corrosion resistance, we provide 304 stainless steel construction suitable for food and chemical processing environments.

Q: What are the lifting height and speed capabilities?

A: Maximum lifting height reaches 37 meters with overall equipment height ≤38 meters. Lifting speed operates ≤60 m/min while horizontal conveying speed ranges 5-15 m/min.

Q: Which industries benefit most from this technology?

A: Our systems serve metallurgy, chemical, pharmaceutical, food processing, building materials, machinery, mining, and logistics industries requiring continuous vertical material transport.

Q: How does maintenance compare to traditional bucket elevators?

A: Our systems require significantly less maintenance due to fewer moving parts. Primary maintenance focuses on lubrication and wear strip monitoring, reducing operational costs.

Q: What motor configurations and operation modes are available?

A: Standard SEW/NORD motors ensure reliable power delivery. Operation modes include manual, single-machine automatic, online automatic, and maintenance modes for flexible operation scenarios.

Q: Can the system integrate with existing ERP and WMS platforms?

A: Absolutely. Modern control systems communicate via standard industrial protocols, sending real-time operational data directly to your existing management systems.

Q: What is the minimum docking height requirement?

A: The minimum docking height is 700mm, providing flexibility for various floor heights and conveying line requirements.

Contact Us

Ready to optimize your facility's vertical transport efficiency? Our industrial spiral Elevator delivers the reliability, performance, and customization options you need.

Contact sales@fortuckyrobot.com for personalized consultation and system design.
