Drum Handling Safety Best Practices

Best practices for drum-handling safety include using mechanized tools strategically to reduce the amount of pulling that needs to be done by hand, stop spills, and prevent injuries at work. In these situations, a mobile drum lifter is very important because it is designed to safely move cylindrical containers across production floors, lift them mechanically, and keep them safe. These devices address the problems that lead to musculoskeletal injuries and hazardous material exposure by combining ergonomic design principles with self-locking clamping mechanisms. They transform how companies in the pharmaceutical, chemical, and food processing industries handle the logistics of heavy drums.

Understanding Drum Handling Risks and Safety Challenges

Physical Injuries and Ergonomic Hazards

Industrial sites that handle 200-liter steel or plastic drums face a constant risk of injuries. When workers physically tip or roll 300–450 kg drums, they often suffer lower back sprains, shoulder impingements, and crush injuries from drums falling on them. The Bureau of Labor Statistics states that almost 30% of all workplace injuries in industry are caused by accidents involving moving or handling materials. Repeated bending and twisting to put drums onto boxes or feed them into processing lines can lead to cumulative trauma disorders. These disorders lower worker output and raise insurance costs.

Environmental and Chemical Exposure Risks

When drums hold corrosive acids, flammable liquids, or reactive substances, they add to the risks that chemical and pharmaceutical operations already face. Handling drums by hand makes it more likely that they will break or leak during transport, which can cause spills that require evacuations and expensive cleanup. A single leak from a drum containing dangerous materials can stop production for hours and require special teams to clean up. The costs of cleanup are only the beginning of the financial effects. Facilities could be shut down or fined by regulators if they fail compliance checks.

Root Causes of Unsafe Drum Handling Practices

Unsafe drum handling is caused by three general problems. When workers do not receive adequate training, they do not learn the correct lifting techniques or understand the tools’ capabilities. Many places still use old-fashioned manual methods even though automated options exist because people in charge do not realize how much accidents cost the company as a whole. When existing drum handling equipment is not maintained properly, brakes stop working, hydraulic leaks happen, and gripping systems become worn out, all of which make the equipment less safe. To fix these underlying problems, we need to switch to automated handling solutions along with organized training programs and regular repair plans.

Mobile Drum Lifters: Features, Types, and Safety Advantages

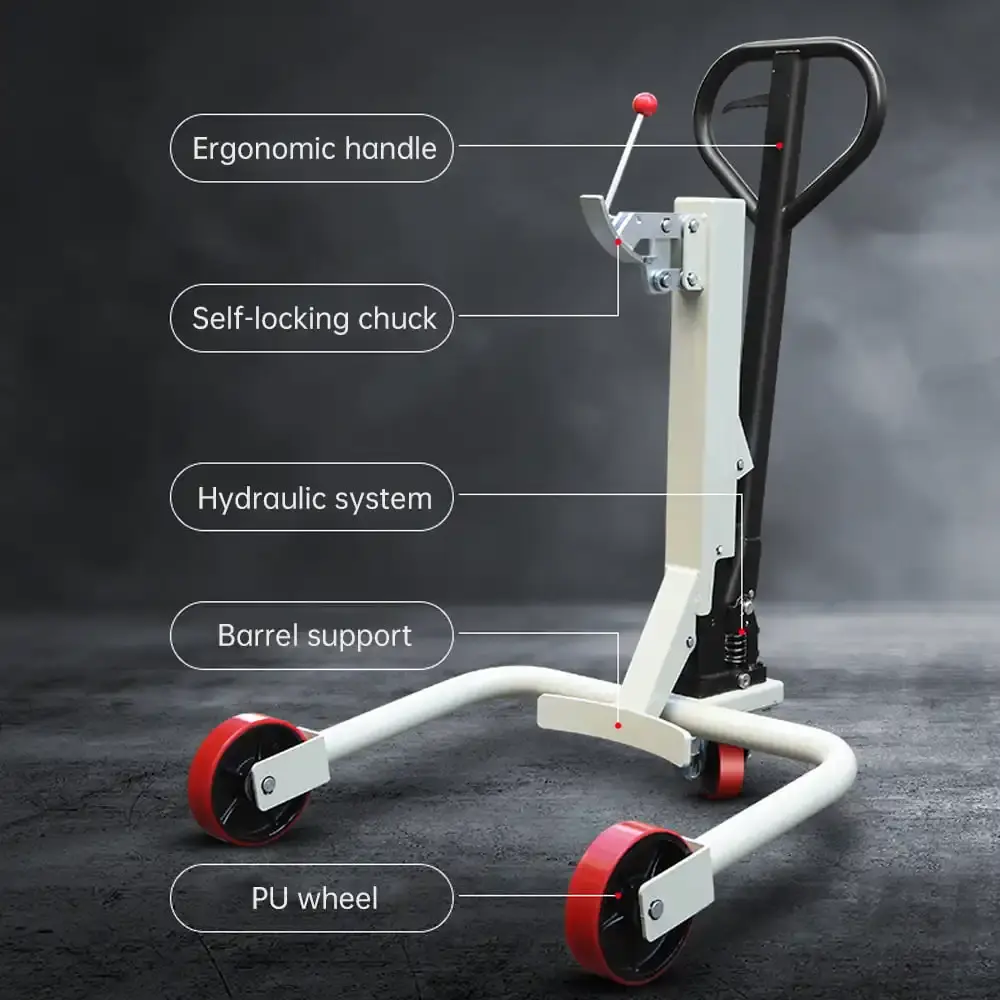

Core Design Features and Technical Specifications

Equipment for moving drums has changed a great deal over the years, from simple hand trucks to complex hydraulic systems. Modern units have comfortable handle designs that spread force evenly across the operator’s grip points, reducing wrist stress during long-term use. The hydraulic systems use strong springs that can handle a lot of weight, allowing for quick and smooth lifting and lowering.

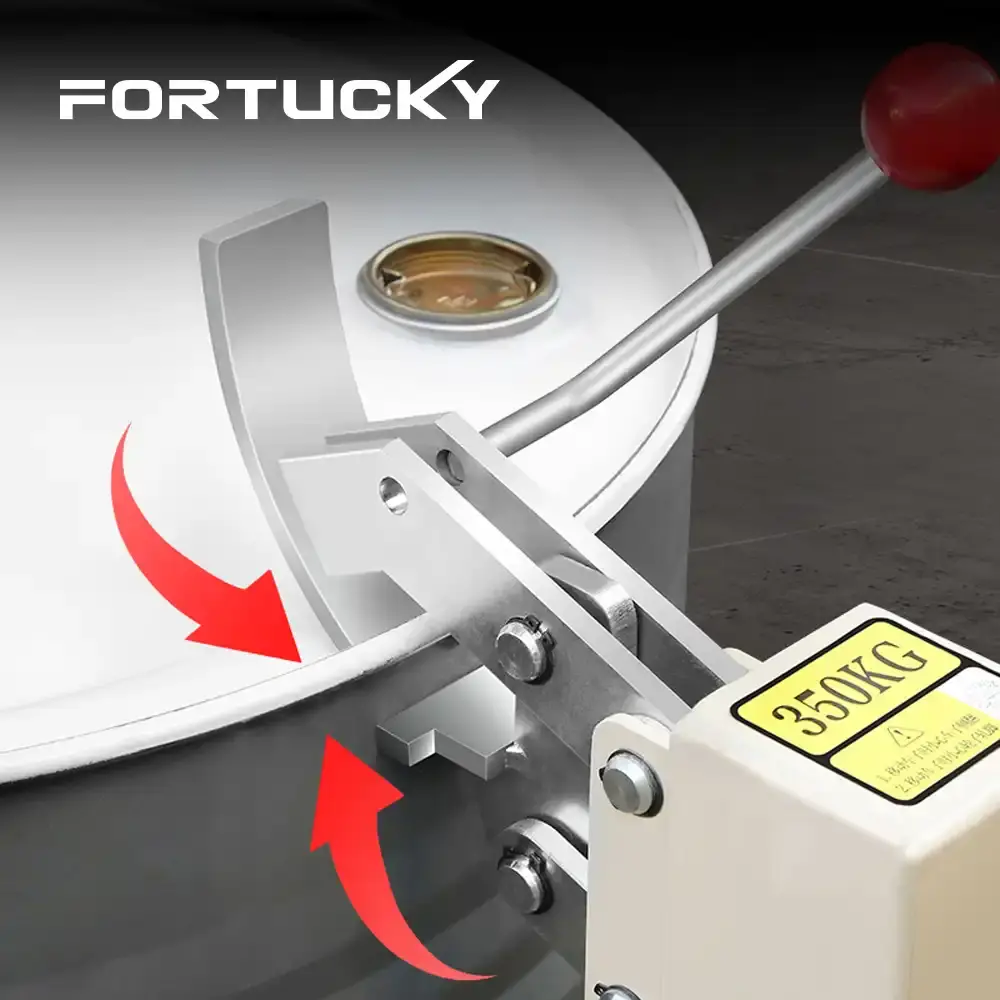

An eagle-beak automatic buckle design is a very important safety improvement. This self-locking spring-loaded mechanism adapts to changes in the drum rim and clamps tightly without any help from the user. Once engaged, the grip force increases in relation to the weight of the load, which prevents movement while the drum is being moved. Forged from high-carbon steel alloys, the chuck parts resist wear even after thousands of lift cycles, ensuring the equipment will keep working well for its entire lifespan.

Capacity and Dimensional Specifications

Professional-grade units come in a variety of designs that can be changed to meet the needs of different operations, such as the Mobile Drum Lifter. A small model can lift up to 300 kg and has a maximum lifting height of 375 mm and a minimum lifting height of 265 mm. Its overall length of 1080mm and width of 730mm make it easy to move through tight warehouse lanes. Because of its radial standard, R285 can work with drums that have curved profiles, which are popular in food-grade uses.

The maximum weight that heavy-duty models can lift is 350 kg, and the highest point they can reach is 250 mm. Standard 55-gallon drums fit inside these units, which can hold drums up to 600 mm in width and 915 mm in height. Their larger size—1250 mm long and 760 mm wide—makes them more stable when moving fully loaded drums over rough ground or up gentle ramps.

Advantages Over Traditional Manual Methods

The switch from manual drum handling to machine-assisted handling improves safety in measurable ways. Workers do not have to carry direct loads when using equipment, which lowers the risk of injury and muscle fatigue. Within the first year of using these tools, facilities report a 60–75% drop in workers’ compensation claims linked to handling. Precision control systems let workers place drums within millimeters of their target location, increasing efficiency in chemical mixing and pharmaceutical blending, where accuracy directly affects the quality of the finished product.

Another important benefit is ease of movement. With swivel casters and short wheelbases, operators can navigate through crowded production areas that regular forklifts cannot reach. This reduces waiting time for material handling equipment, a common problem in fast-moving factory settings where production schedules depend on timely raw material delivery.

Essential Safety Best Practices When Using Mobile Drum Lifters

Pre-Operation Inspection Protocols

At the start of every shift, all tools should be carefully checked. Operators must ensure that hydraulic fluid levels stay within the ranges set by the manufacturer. Low fluid levels reduce lifting capacity and increase the risk of a sudden drop. The eagle-beak mechanism should move easily through its full range of motion without sticking, as verified by inspecting the locking mechanism. Any damage to the self-locking spring, such as deformation or rust, needs to be fixed immediately before activities resume.

Verifying the weight limit is important, especially when facilities handle different kinds of drums. The operator should make sure that the total weight of the drum and its contents does not exceed the lifter’s maximum capacity. Overloading damages hydraulic seals and bends the frame, which can lead to dangerous failures. As part of compatibility checks, the chuck hole is matched to the width of the drum rim, and the lifting height is adjusted to fit the full height of the drum when raised.

Safe Operating Procedures

The correct way to begin lifting starts with positioning the lifter so that the locking mechanism lines up perfectly with the center of the drum. The eagle-beak clamp should be engaged until the operator hears a click, indicating the self-locking device is working. A light tug test is performed to ensure the connection is solid before lifting. To use the hydraulic lift, press down steadily on the foot pedal or control button, avoiding jerky movements that could destabilize the load.

During transport, workers must keep their lines of sight clear and move at a walking pace, keeping an eye out for things on the floor or changes in the surface that could cause the load to fall. When using a drum lifting trolley, to keep the equipment's center of gravity stable, the drum should stay in its lowest safe position when it gets close to ramps or dock plates. Before lowering the drum to its final destination, workers should make sure the area where it will be placed is level and free of anything that could make it unstable.

Maintenance and Longevity Practices

Planned maintenance gaps prevent the gradual loss of performance that leads to safety issues. Lubricating pivot points and wheel bearings once a month keeps them running smoothly and extends part life. Hydraulic system seals need to be checked once a year, and if fluid starts to leak, they should be replaced immediately. The forged steel parts of the locking mechanism should be inspected for stress cracks using visual checks or dye penetrant tests in high-cycle environments.

Facilities should keep thorough maintenance logs that record inspection and replacement dates, as well as any operational problems workers noticed, including those involving the drum lifting trolley. This information helps identify trends, such as seals failing too soon, which could indicate contaminated hydraulic fluid. Replacing worn parts on time, rather than fixing them after they break, reduces unexpected downtime and maintains the safety margins built into the equipment.

​​​​​​​Comparing Mobile Drum Lifters: Choosing the Right Solution for Your Business

Manual Versus Electric Lift Mechanisms

Manual hydraulic types are used most often when power sources are unavailable or electric motors cannot be used because of explosion risks. These machines use foot-pedal pumps that raise hydraulic pressure when the operator steps on them. Modern designs make them easier on the body by using efficient pump ratios that require only 3–4 leg strokes to reach full lift height. However, they still require more physical effort than electric options. Their simplicity means lower purchase costs and easier maintenance.

Electric versions work well in high-volume settings where workers perform dozens of lift cycles during each shift. Battery-powered pumps eliminate the physical strain of manual pumping, preventing operator fatigue and maintaining productivity for long periods. The higher initial investment, which is usually 40–60% higher than manual alternatives, is offset by higher productivity and lower labor costs in facilities that process hundreds of drums every day.

Mobile Units Versus Forklift Attachments

Forklift attachments cannot match stand-alone units in operating freedom. Dedicated equipment allows drum handling to occur simultaneously with other material-moving tasks, eliminating the delays that happen when multiple work areas try to use the same forklift. Their compact size enables them to work in production areas designed for pedestrian movement rather than forklifts.

Forklift-mounted drum grabs work best in facilities that already have many forklifts and primarily move drums without palletized loads. They use existing capital equipment and take up less floor space than specialized units. However, they offer less accurate drum placement and always have access limitations that come with shared equipment.

Critical Selection Factors

Load capacity matching is the most important factor in the selection process. To maintain safety margins and accommodate future process changes, facilities should request equipment rated for 20 to 30 percent more than their largest expected drum weight. Drum compatibility goes beyond weight and includes differences in rim shape. For example, some specialty drums have recessed or reinforced rims, requiring modified clamping head designs.

When judging a supplier's trustworthiness, you should look at their manufacturing quality certifications, their after-sales support system, and the availability of spare parts, such as for a mobile drum stacker. Businesses with more than one location can save money by sticking with providers that have global service networks that can get new parts to them within 24 to 48 hours. The length of the warranty shows how confident the maker is in the product's durability. For example, top suppliers cover structural parts and hydraulic systems for 3 to 5 years.

Conclusion

Safety in drum handling depends on replacing manual processes with purpose-built mechanical ones that eliminate injury pathways while making operations run more smoothly. The technologies discussed here, such as eagle-beak automatic locking mechanisms and hydraulic lift systems with strengthened springs, are mature, tried-and-true methods that reduce risk immediately. Choosing the right tools requires matching capacity requirements to operational needs, understanding the pros and cons of both manual and electric power systems, and prioritizing suppliers with a proven history of quality and support. These investments, combined with organized training programs and built-in safety management systems, transform drum handling from a constant source of danger into a controlled, reliable process that meets production goals and keeps workers healthy.

FAQ

1. What is the maximum safe lifting capacity for mobile drum lifters?

Capacity specifications depend on equipment design and structural engineering. Standard commercial models can handle loads of 300 to 350 kg, which matches the weight of 200-liter drums filled with high-density liquids. For use with strong chemicals or metal-filled drums, heavy-duty versions increase capacity to 500 kg. Operators must always ensure that the drum and its contents do not exceed the manufacturer’s stated limit. Exceeding these limits damages hydraulic seals, bends structural frames, and increases the chance of catastrophic failure. To maintain safety margins, facilities that handle drums approaching the equipment’s capacity limits should select the next higher capacity rating.

2. How can I ensure mobile drum lifter maintenance supports workplace safety?

Maintenance plans should focus on hydraulic system integrity and clamping device function. Monthly checks should include fluid levels, seal leaks, and ensuring the eagle-beak design engages and releases smoothly. Annual deep maintenance should include replacing hydraulic seals, lubricating all pivot points and wheel bearings, and performing load tests at the stated capacity to confirm continued performance. Keeping detailed service records allows trend analysis and identification of parts that need frequent replacement in high-cycle environments. Facilities should build relationships with qualified service providers who can respond within 24 hours for urgent repairs, minimizing reliance on backup equipment or dangerous manual handling methods.

3. Are mobile drum lifters suitable for all types of drums and environments?

Compatibility depends on the clamping head matching the specific drum rim shape and appropriate materials being used for the environment. Standard models can handle regular steel drums with rolled rims, but they need special wide-beak grippers to hold plastic drums that deform under pressure. In food preparation and pharmaceutical settings where equipment is frequently washed with harsh chemicals, stainless steel construction is required. Chemical plants handling volatile liquids in classified hazardous areas need explosion-proof models with spark-resistant parts and pneumatic power systems. During equipment selection, facilities should provide manufacturers with detailed information about drum types, intended applications, environmental conditions, and any special regulatory requirements that must be followed.

Partner With Fortucky for Advanced Drum Handling Solutions

For example, Fortucky's specialized material handling systems can help warehouse managers and production engineers get rid of accidents that happen when handling drums while also increasing output. As a top mobile drum lifter maker, we work with over 1,000 companies around the world, such as CATL, Mengniu Dairy, and COFCO Group. We make tools that can handle the tough conditions of chemical processing, pharmaceutical manufacturing, and food production.

When it comes to customization, our engineering team can change standard designs to fit specific drum shapes, work with current warehouse management systems, and meet the regulatory needs of your industry. When you need technical help or new parts, you can get them quickly thanks to localized service networks that cover Asia, Europe, and the Americas. Our smart production facilities that use 5G keep inventory backups that allow for quick delivery times, and our competitive R&D team is always improving hydraulic systems and locking mechanisms based on feedback from real-world operations.

Contact our technical sales specialists at sales@fortuckyrobot.com to discuss how our Mobile Drum Lifter solutions can transform your material handling operations. Our consultative approach begins with a thorough analysis of your current processes, drum specifications, and throughput targets. We provide detailed ROI projections that account for injury cost avoidance, productivity improvements, and equipment lifecycle costs. Whether you need a single unit for pilot testing or a fleet deployment across multiple facilities, Fortucky delivers the expertise and support infrastructure that global manufacturing leaders depend on for their automation initiatives.

References

1. National Institute for Occupational Safety and Health. (2021). Preventing Injuries When Working With Industrial Drums and Barrels. DHHS Publication No. 2021-156.

2. American Society of Safety Professionals. (2020). Best Practices for Material Handling Equipment: Ergonomic Design Principles and Implementation Guidelines.

3. Occupational Safety and Health Administration. (2019). Materials Handling and Storage: Regulatory Compliance in Chemical and Pharmaceutical Manufacturing.

4. International Journal of Industrial Ergonomics. (2022). Biomechanical Analysis of Manual Versus Mechanized Drum Handling Methods in Production Environments, Volume 87.

5. European Agency for Safety and Health at Work. (2020). Case Studies in Automated Material Handling: Injury Reduction Through Equipment Modernization.

6. Manufacturing Engineering Society. (2023). Technical Standards for Hydraulic Drum Lifting Equipment: Design Specifications and Safety Requirements, Publication ME-447.
