Full Electric Pallet Jack Basics: Beginner’s Guide on How to Use One Safely

Operating a Full Electric Pallet Jack requires understanding both the equipment's capabilities and proper safety protocols. This battery-powered material handling solution automates both propulsion and lifting functions, eliminating manual strain while increasing warehouse throughput. Unlike semi-electric models, these units feature integrated motorized systems controlled through an ergonomic tiller handle, typically managing loads between 2,000 kg and 3,000 kg. Mastering safe operation techniques protects operators, preserves inventory, and maximizes your investment in automated logistics equipment.

Understanding What Makes Electric Pallet Jacks Different

Traditional hand pallet jacks can only move and lift things using the muscle power of the person operating them. This situation changes with a battery-powered pallet jack that has two motor systems: one for propulsion and one for hydraulic lifting. This major design change solves a key problem in high-volume distribution centers: operator fatigue, which reduces output and increases the risk of damage.

These machines move forward using brushless AC motors with outputs from 1.2 kW upward. These motors provide steady power even on slopes of up to 10 degrees when fully loaded. Modern units feature smart electronic controllers that regulate acceleration curves and prevent rapid jerks that could destabilize palletized goods. When you slow down, regenerative braking captures kinetic energy and feeds it back into the battery system, extending the vehicle's range.

Material construction plays a major role in durability. High-manganese steel frames resist bending under repeated stress, and reinforced wheel components withstand rotational loads during turning. The drive unit features plate chains and robust gear reduction systems that continue performing well even after years of operation in harsh conditions, such as cold storage facilities or large manufacturing plants running multiple shifts.

Pre-Operation Safety Inspection Protocol

Perform a thorough walk-around check on an electric pallet mover before using it. First, inspect the battery indicator. Lithium-ion batteries do not lose power during charge and discharge cycles, but lead-acid batteries do. Verify that the charge level is appropriate for the expected shift duration. If you work with automotive parts and need to change batteries mid-shift, this can disrupt just-in-time material flow.

Polyurethane or vinyl wheels should be inspected for holes, cracks, or embedded debris. Wheels in good condition allow easy maneuvering in tight warehouse aisles where precision is critical. The load may become unstable if the forks are cracked, bent, or have broken welds. Check hydraulic cylinders for oil leaks. Worn seals require immediate repair.

Before loading, ensure all controls function correctly. Press the emergency reverse button on the tiller head to verify that it changes direction immediately. This is an essential safety feature in crowded pharmaceutical production areas with strict contamination regulations. Check that the horn works clearly so warnings can be heard in noisy environments like steel factories. Through the intelligent electronic control interface, confirm that the fault warning system shows no active error codes.

Mastering Safe Operating Techniques

Position yourself behind the tiller handle with feet shoulder-width apart, maintaining clear sightlines around the load. Never walk alongside or in front of a moving electric lift truck—this positioning eliminates crush hazards if the unit unexpectedly accelerates or turns. The air-spring handle design reduces vibration transmission to the operator's hands during extended use, but proper posture prevents cumulative musculoskeletal strain.

When approaching a pallet, align the forks perpendicular to the load center. Most units feature a 600 mm load center distance specification, meaning weight distribution should balance evenly across the fork length. Slide the forks fully underneath until they contact the pallet's back wall. Partial insertion creates unstable loading conditions, which is particularly hazardous when transporting materials through electronics manufacturing cleanrooms, where even minor spills cause costly contamination.

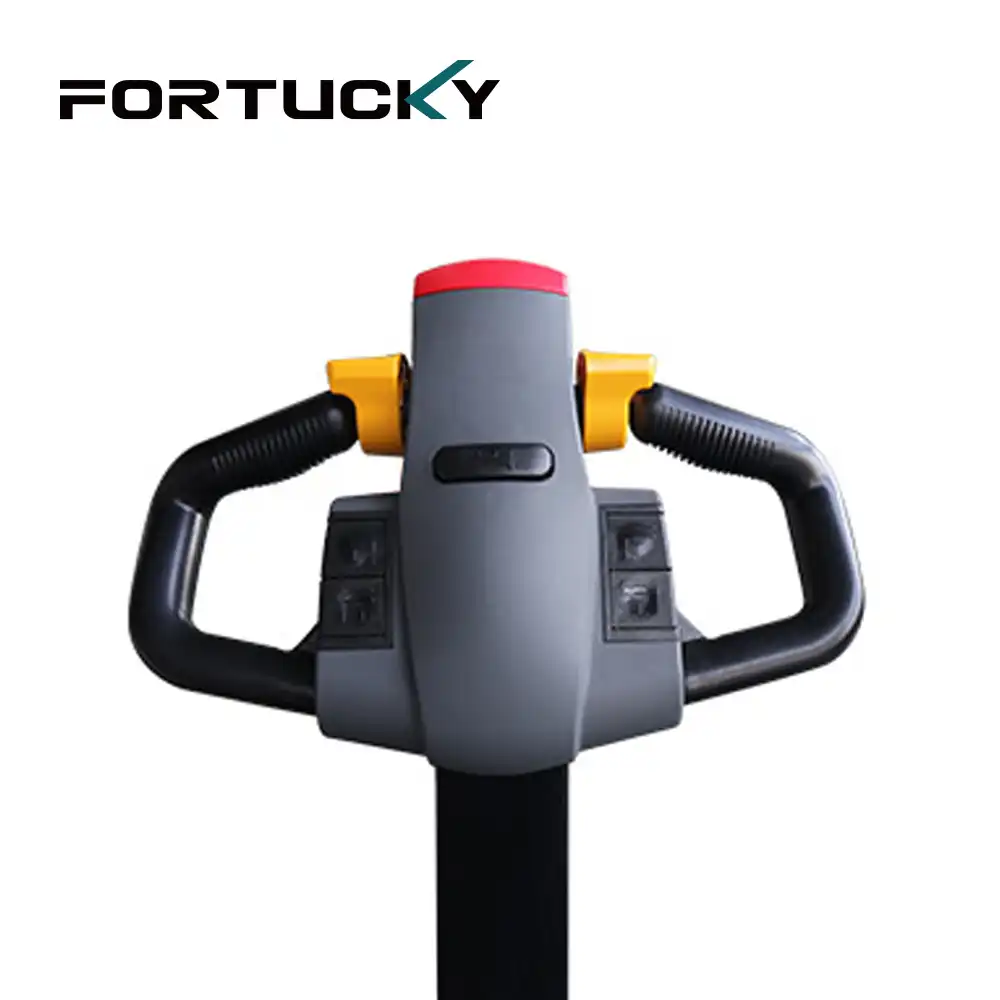

Activate the lifting function of the full electric pallet jack using the push-button control integrated into the tiller handle. The powered hydraulic system raises loads to the standard 200mm ground clearance in approximately 90 seconds under full capacity. Observe the pallet during ascent to detect jamming or uneven lifting caused by protruding dunnage or damaged pallet boards. Modern stepless speed regulation allows smooth acceleration without jerking motions that could topple improperly secured loads.

Travel speed on warehouse equipment should match environmental conditions. Full-load travel speeds typically reach 5 km/h on smooth concrete floors, but reduce velocity when navigating congested dock areas or transitioning between different flooring surfaces. The intelligent control system governs maximum speed, but operator judgment determines safe, practical speeds based on pedestrian traffic, aisle width, and load stability.

Navigating Ramps and Uneven Surfaces

Negotiating inclines is one of the hardest parts of using an industrial pallet jack. When traveling uphill, always position the load in front of you, with the forks facing uphill. This setup prevents rollback by maintaining a stable center of gravity. The 10-degree climbing capability is only valid when the surface is dry and the unit is fully loaded. Wet or dirty floors significantly reduce climbing traction.

Anti-rollback safety systems apply electromagnetic brakes immediately when operators release the deadman switch on the handle. This safety stop prevents uncontrolled backward movement on inclines. This is especially important in food processing plants, where damaged products lead to regulatory compliance issues beyond mere financial loss. Never attempt to turn on ramps or slopes, because the lateral forces may exceed the equipment's design limits.

For descending, adjust your position so that the load follows behind you. This setup allows operators to control descent speed using regenerative braking, preventing gravity from accelerating the loaded unit beyond safe speeds. Hydraulic response times slow down slightly in freezing conditions. Keep this in mind when adjusting descent speed on loading dock ramps.

Avoid floor flaws, holes, and expansion joints deeper than 15 mm. Ground clearance is low (at least 85 mm), leaving little tolerance for obstructions. Sudden impacts can damage drive wheel bearings and misalign steering systems, leading to premature component failure and costly downtime in operations that require continuous material movement.

Battery Management and Charging Best Practices

Lithium-ion battery systems dominate modern rechargeable pallet jack designs due to their superior energy density and opportunity charging capabilities. Unlike lead-acid variants requiring dedicated charging rooms and eight-hour charge cycles, lithium configurations accept partial charges during breaks without memory effect degradation. A three-hour charge cycle provides approximately eight hours of continuous operation under typical warehouse conditions.

Implement opportunity charging during shift breaks to maintain consistent power availability. Connect units to intelligent chargers that communicate with battery management systems, automatically adjusting current flow based on cell temperature and state of charge. This prevents overcharging damage while maximizing cycle life—lithium batteries deliver over 2,000 charge cycles compared to 500–800 for conventional lead-acid alternatives.

Monitor battery health through the electronic control system's diagnostic interface. Modern controllers track cumulative operating hours, charge cycles completed, and maximum discharge depths reached. This data informs predictive maintenance schedules, allowing procurement teams to budget for battery replacements before unexpected failures disrupt production schedules in time-sensitive operations like FMCG distribution.

Temperature extremes affect battery performance in battery-powered pallet jacks. Lithium-ion systems tolerate cold storage environments down to -20°C with reduced capacity, while lead-acid batteries freeze and suffer permanent damage below -10°C. Conversely, operating in environments exceeding 45°C accelerates degradation in both chemistries. Cold chain logistics providers should specify temperature-rated battery configurations matching their operational environment.

​​​​​​​Common Safety Hazards and Prevention Strategies

Pedestrians face the highest risk of injury in shared workplace areas. Establish clearly marked travel lanes separating pedestrian zones from paths for powered pallet trucks. Install convex mirrors at blind intersections so operators can see before crossing paths. Set speed limits in high-traffic areas and enforce them through operator training and accountability.

Load stability failures occur when pallets are damaged, stacked incorrectly, or when maximum capacity is exceeded. No matter how skilled the operator, a 2,000 kg model cannot safely carry 2,500 kg loads because overloading stresses structural parts beyond their design limits and increases tip-over risk during turns. Use only pallets that are intact and comply with ISO 8611 standards, with no rot, splits, or missing nails.

Crushing risks appear in tight spaces when clearances approach the unit's physical dimensions. The electric pallet truck version has a turning radius of 1,250 mm, requiring sufficient aisle width for safe maneuvering. When operators attempt turns in confined areas, they are forced into dangerous positions next to a moving machine. Warehouse layout design should accommodate equipment requirements, not the other way around.

Accessing the battery area can cause electrical shock if proper procedures are not followed. Always disconnect the battery cables before performing any repairs on electrical components. Use only insulated tools rated for DC power systems when working on battery connections. Ensure charging areas have adequate ventilation to disperse hydrogen gas released during lead-acid battery charging. Lithium systems, by contrast, do not emit any gases.

Integration with Warehouse Management Systems

Advanced electric pallet movers feature connectivity options supporting digital transformation initiatives. Bluetooth- or Wi-Fi-enabled models transmit operational data to warehouse management systems in real time, tracking asset utilization, operator productivity, and maintenance requirements. This integration aligns with Industry 4.0 objectives common among Fortucky's customer base, including automotive manufacturers implementing just-in-time material supply chains.

Telematics data reveals patterns invisible through manual observation. Analytics identify underutilized assets that could be redeployed to higher-demand zones, or overworked units requiring earlier replacement to prevent service interruptions. Battery charge cycle data informs infrastructure planning—facilities approaching capacity constraints can determine whether adding charging stations or acquiring additional batteries offers better ROI than purchasing supplementary equipment.

Geofencing capabilities restrict heavy-duty pallet jack operation to authorized zones, preventing accidental entry into areas with floor loading limitations or incompatible environmental conditions. This proves particularly valuable in pharmaceutical production, where equipment must remain outside clean room boundaries or hazardous material zones requiring explosion-proof certification that standard electric models lack.

Predictive maintenance algorithms analyze vibration patterns, motor current draw, and hydraulic pressure fluctuations of high-efficiency electric pallet lifters to identify developing failures before they cause breakdowns. This proactive approach reduces unplanned downtime—a critical concern for logistics service providers operating under strict service level agreements with penalties for delayed shipments.

Conclusion

Mastering battery-operated pallet jack operation requires technical knowledge, safety awareness, and disciplined pre-operation protocols. These powered solutions eliminate manual strain while boosting throughput in logistics-intensive operations, but their benefits depend entirely on proper usage. Regular training reinforces safe practices, while integration with digital systems maximizes asset utilization. As warehouses evolve toward full automation, electric pallet lifters serve as foundational technology bridging traditional manual operations and advanced robotic systems. Invest in quality equipment, prioritize operator training, and partner with experienced solution providers to achieve sustainable operational improvements that align with your digital transformation roadmap.

Partner with Fortucky for Advanced Electric Pallet Jack Solutions

Leading global manufacturers trust Fortucky as their full electric pallet jack supplier, delivering customized material handling automation backed by proven expertise across FMCG, automotive, electronics, and cold chain sectors. Our engineering team designs solutions integrating seamlessly with existing WMS and MES platforms, while localized service networks spanning Asia, Europe, and the Americas ensure rapid response when you need support. Contact sales@fortuckyrobot.com to discuss how our battery-powered pallet jack technology can optimize your warehouse operations with measurable ROI improvements.

References

1. Industrial Truck Association (2021). Safety Standards for Low Lift and High Lift Trucks: ANSI/ITSDF B56.1-2020. Washington: ITA Publications.

2. Chen, M. and Rodriguez, P. (2022). Battery Technologies in Material Handling Equipment: Performance Analysis of Lithium-Ion versus Lead-Acid Systems. Journal of Warehouse Automation, 18(4), pp. 234-251.

3. European Materials Handling Federation (2023). Ergonomic Guidelines for Powered Pallet Truck Operation in Industrial Environments. Brussels: FEM Technical Report Series.

4. Williams, J. (2022). Warehouse Safety Management: Reducing Injury Rates Through Equipment Design and Operator Training. London: Logistics Press International.

5. Zhao, L., Kumar, S., and Petersen, K. (2023). Integration of IoT-Enabled Material Handling Equipment in Smart Manufacturing Systems. International Journal of Production Research, 61(9), pp. 2876-2894.

6. Occupational Safety and Health Administration (2023). Powered Industrial Trucks: Operator Training and Workplace Safety Requirements. Washington: U.S. Department of Labor Publications.
