How does a hydraulic hand pallet truck work?

A Manual Hydraulic Pallet Truck uses a complex yet easy-to-understand hydraulic system that converts the force of hand pushing into strong pulling power. When the user presses on the handle, hydraulic fluid runs through a sealed system made up of cylinders, pistons, and valves. This creates pressure that lifts the forks and moves palletized loads. The three-position control button makes it easy for workers to precisely lift, hold in neutral, or lower loads. This basic idea makes it easy for warehouse workers to move large items weighing up to 10,000 kg around factories, delivery centers, and logistics operations worldwide.

Understanding the Working Principle of a Hydraulic Hand Pallet Truck

Fluid physics make the hydraulic system at the heart of every pallet jack possible. It turns human effort into a lot of lifting strength. When looking at how these things work, the process starts with the user pushing on the handle, which turns on a hydraulic pump inside the machine.

Core Components and Their Functions

The hydraulic system is made up of several parts that are all related to each other and work well together. When pressure is applied, the hydraulic fluid inside the pump cylinder moves along paths that were carefully planned. A strengthened chrome piston with a dust cover protects it and makes sure it works smoothly and reliably for a long time, even in harsh industrial settings.

The control valve system is an important piece of engineering because it has a single valve cartridge that makes upkeep easier and gives precise control over lifting and lowering activities. This design gives workers full control over the load-handling process by letting them choose between three positions: raise, stable, and lower.

Hydraulic Fluid Dynamics in Action

Fluids in hydraulic systems move according to Pascal's principle, which says that pressure applied to a confined fluid spreads evenly through the system. When the user presses on the handle, the small input cylinder applies pressure that moves to the bigger lifting cylinders and makes the force much stronger. Because of this mechanical benefit, one person can lift things that would normally need more than one person or machines to help.

The protected hydraulic unit case keeps the pressure levels steady and keeps the internal parts from getting dirty. Good pallet trucks have one-piece tanks that don't have any places where they could leak. This means they work reliably for long periods of time.

Fork Design and Load Engagement

The fork section has entry wheels and tapered shapes that make it easy to enter the pallet. These features make it easier to move the truck while it's loaded, and they also keep boxes and floors from getting damaged. Fork tips with load rollers allow for smooth movement both forward and backward, and swivel castors make it easy to move around with a small turning radius.

Modern pallet trucks can lift to 200 mm, which is high enough for most typical pallet layouts. The forks are usually between 1100 and 1200 mm long and between 550 and 685 mm wide, so they can fit a wide range of pallet sizes that are popular in many businesses.

Manual vs. Electric Hydraulic Pallet Trucks – A Comparative Analysis

Choosing between manual and electric pallet trucks has a big effect on how well they work, how much they cost, and how comfortable the workplace is. When procurement workers understand these differences, they can make choices that are in line with their business needs and spending limits.

Operational Differences and Performance Metrics

Because you have to work hard to move and lift a manual pallet truck, they are best for moving light loads over short distances. Operators learn a rhythm and method that lets them move things up to the truck's rated capacity quickly and efficiently. With battery-powered hydraulic systems, electric models don't need to be pumped by hand, which keeps operators from getting tired after long periods of use.

Ranges of load capacities are very different between groups. Most manual units can hold loads of 2000 kg to 5000 kg, but heavy-duty types can hold up to 10,000 kg. Electric alternatives can usually handle heavier loads and keep working the same way, no matter how strong or experienced the person is.

Total Cost of Ownership Analysis

There are lower start-up costs for manual hydraulic pallet trucks, and they don't need much upkeep over time. Their simple mechanical design cuts down on places where things could go wrong, so with basic care, they last longer. Electric cars need new batteries, charging stations, and more complicated fixes when they break down.

Operating costs favor manual units in situations where they are only used sometimes or for short periods of time each day. Electric trucks are worth the extra money when they are used in high-volume situations where less user tiredness means more work gets done and fewer workers' compensation claims are made.

Durability and Environmental Considerations

Manual trucks work best in rough conditions where dust, water, or sudden changes in temperature could damage electrical parts. Because they are mechanically simple, they work reliably in places like cold storage, outdoor loading areas, and dusty industrial sites. Electric cars need to be kept away from harsh environments, and batteries may not work as well in very hot or cold conditions.

Both groups have very good corrosion protection thanks to the powder-coated chassis design made of high-grade steel. Because they don't have as many complicated parts that might need to be replaced, manual units are known for lasting a long time in tough situations.

Key Benefits and Features of Manual Hydraulic Pallet Trucks for B2B Buyers

For a variety of business uses, Manual Hydraulic Pallet Truck solutions provide appealing benefits. These benefits are more than just lower costs; they also include operating freedom, dependability, and the ability to change with the needs of the business.

Cost Efficiency and Return on Investment

There are a number of cost factors that show that hand pallet trucks are more cost-effective. Initial buy prices are still much lower than powered options, which means that businesses can equip whole buildings without having to spend a lot of money. There aren't any complicated electrical systems, batteries, or control tools, so maintenance costs are kept low.

The costs of energy go away completely because physical action gets rid of the need to charge batteries. This benefit is especially useful in places where energy costs are high or where there isn't a lot of electricity infrastructure. When you don't have to change the batteries, you don't have to think about ongoing costs that affect the total cost of ownership over the life of the equipment.

Structural Design Excellence

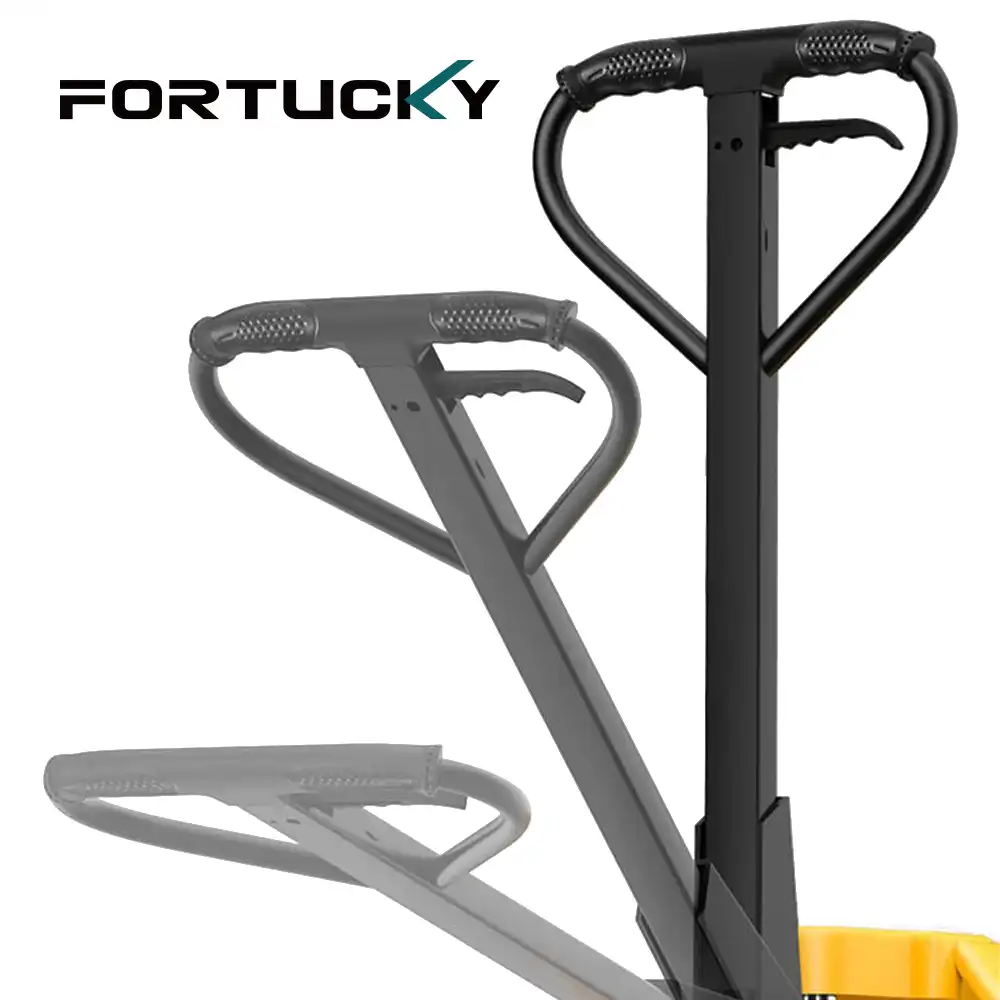

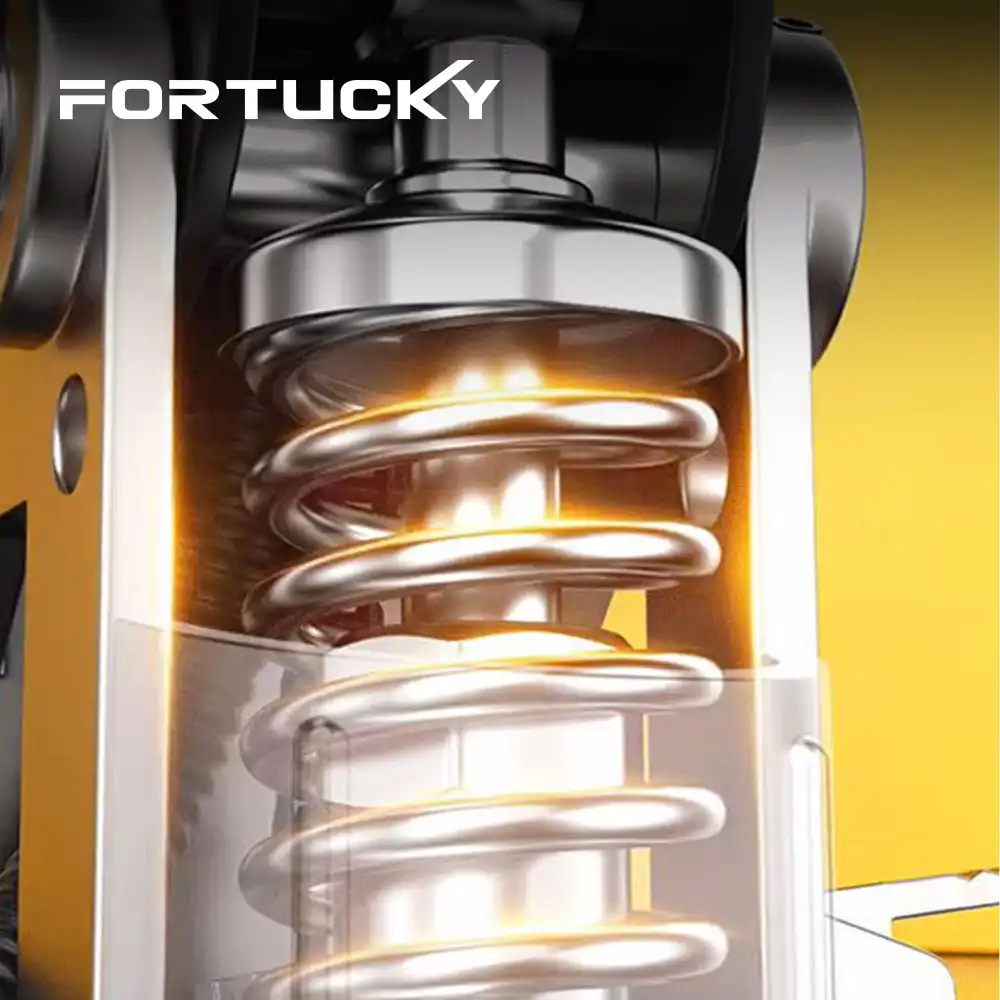

Modern hand pallet trucks have high-tech features that make them work better and keep workers safer. As long as the equipment is in use, strong springs will keep pulling things consistently because they are very flexible and last a long time. Rubber handles make it easier to hold and work without slipping, which is especially helpful when working for long amounts of time in temperature-controlled areas.

One-piece cylinder design gets rid of possible leak spots and makes the structure strong. Pressure feet made of cast steel don't slip, which makes them more stable when lifting. Anti-roll features keep goods from tilting, which lowers the risk of damage to products and raises safety standards in the workplace.

Versatility Across Industrial Applications

These gadgets are amazingly flexible and can work in a wide range of settings. It's helpful for factories to be able to get around in the small places between work areas and storage areas. Supermarkets use their quiet operations to restock during business hours, so they don't bother customers. When it comes to high-volume picking and putting away, warehouses are only as reliable as they are.

People who work in cold storage buildings really like manual trucks because they don't lose battery power as some trucks do in cold places. Logistics operations gain from having them available right away, without having to wait for them to charge or worry about how to handle their batteries.

The standard two-wheel design saves time and effort while still giving you exact control over where the load is placed. Polyurethane turn and load wheels protect floors and make sure that the machine moves smoothly on a variety of surfaces.

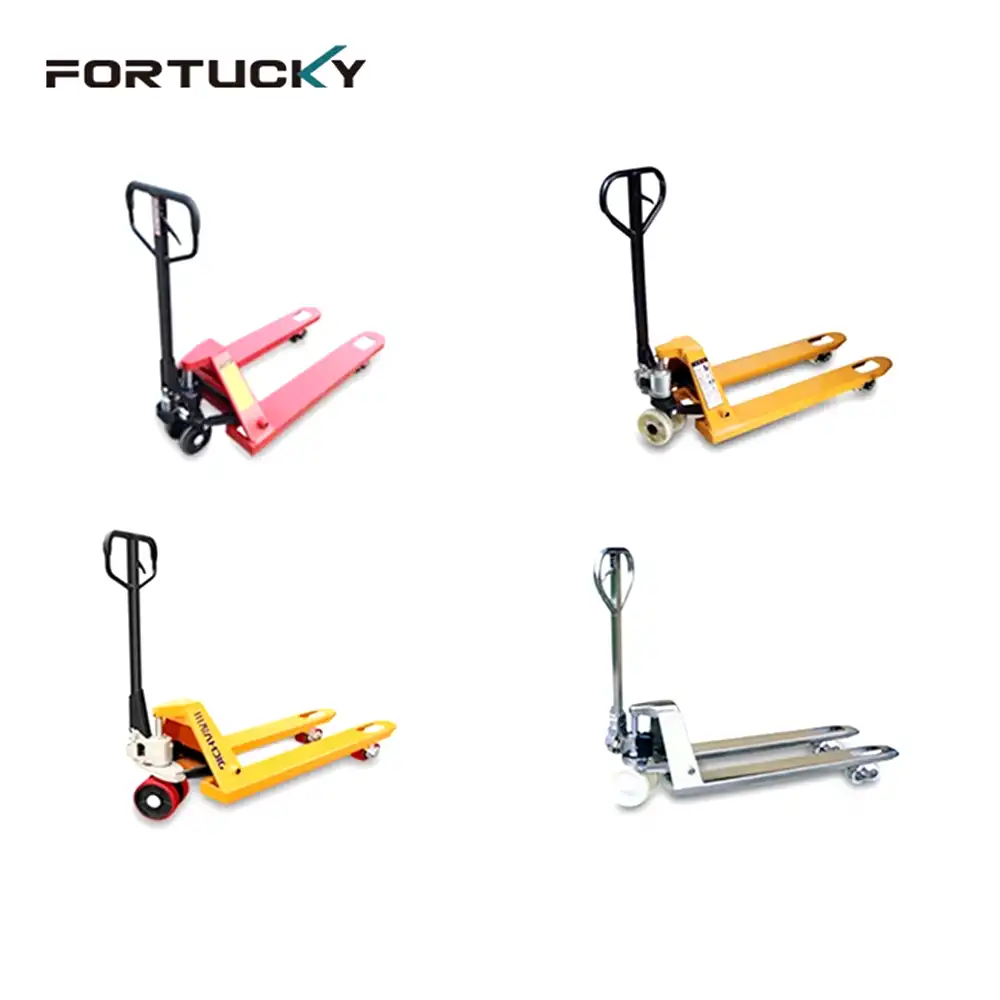

How to Choose the Right Manual Hydraulic Pallet Truck for Your Business?

To choose the right pallet truck specifications, you need to carefully think about your long-term business goals, working needs, and building limitations. Professionals in procurement have to find the best mix between performance and cost, while also making sure that the new tools can work with the old ways of doing things.

Load Capacity Assessment and Specification

To find the right load capacity, you have to look at the usual weights of materials, the shapes of pallets, and the standards for safety margins. Standard specs with capacities of 2000 kg, 2500 kg, 3000 kg, and 5000 kg can handle most basic uses. Heavy-duty needs up to 10,000 kg capacity to help businesses that work with dense materials or loads that are too big for their trucks.

How load capacity and structure design work together affects how long equipment lasts and how safe it is to use. The higher capacity units have stronger parts, better hydraulic systems, and more stable design features that make up for their higher initial costs by lasting longer and needing less upkeep.

Dimensional Considerations and Facility Compatibility

Fork length requirements of 1100mm and 1200mm must match common pallet sizes used in certain processes. With fork width choices of 550mm and 685mm, you can fit a variety of pallets and loads. Overall lengths of 1480 mm and 1580 mm affect how easily the equipment can be moved in small areas and how much room it needs to be stored when it's not in use.

Ground-level requirements of 30 mm determine how well it works with different types of floors and possible objects. To make sure that all parts of a building work reliably, these dimensions must be carefully thought through when there are uneven surfaces, drain grates, or threshold changes.

Wheel Selection and Customization Options

The choice of wheel material has a big effect on how well it works and how much it costs to run. To make things last longer and cost less, nylon wheels are good for general use with flat areas and low use rates. Polyurethane wheels are more expensive, but they are worth it in places where they need to protect floors better, make less noise, and make it easier to move around.

The 180mm wheel width makes sure that the machine rolls smoothly over small bumps in the ground while the operator stays in control while moving heavy things. The two 80x68mm fork wheels provide stability and load distribution that keeps boxes and floors from getting damaged by point loading.

Supplier Evaluation and Procurement Strategy

Successful buying includes more than just the specs of the equipment. It also includes the skills of the seller, the availability of service support, and the chance to form a long-term relationship. Reliable providers give full warranties, quick technical support, and spare parts that are easy to find so that operations don't have to be interrupted as much.

When you buy in bulk, you can often save a lot of money and make sure that all of your sites have the same tools. Standardization makes it easier to train operators, follow repair routines, and keep track of spare parts, which improves the total efficiency of operations.

 Maintenance, Safety, and Operational Best Practices

 Maintenance plans and safety rules that are followed correctly can make equipment last longer and keep people and things safe from   possible dangers. In order to maintain consistent performance, Manual Hydraulic Pallet Truck systems need to pay close attention to   their hydraulic parts, mechanical parts, and operating procedures.

 Preventive Maintenance Protocols

 Hydraulic fluid monitoring, lubricating parts, and systematic checks are all important parts of regular maintenance processes that find   problems before they stop operations. Regular checks of the hydraulic fluid amounts are needed to make sure that the system pressure is   right and that lifting activities go smoothly. Quality oil keeps its viscosity the same at all temperatures and keeps interior parts from   wearing out or rusting.

 According to the manufacturer's instructions, lubrication spots all over the mechanical system need to be checked. Proper lubrication   lowers friction, increases the life of parts, and keeps things running smoothly even when the load changes. Schedules for inspections   should cover structural parts, hydraulic connections, wheel state, and the operation of the control system.

 Safety Protocols and Risk Management

 Operator training is the most important part of driving a pallet truck safely. Employees need to know the limits of what they can lift, how   to properly identify hazards, and how to avoid crashes and damage to tools. Weight distribution rules help drivers put loads in the right   place and keep the tools stable while transporting them.

 To handle things properly on uneven areas and when they are crowded, you need to use certain techniques that keep both the equipment   and the people who are using it safe. Load locking methods keep things from moving around while they're being moved, and good   storage habits keep things from getting damaged by the environment or being used without permission.

Troubleshooting Common Issues

Understanding common operating problems helps solve them quickly and keep downtime to a minimum. Problems with hydraulic systems usually involve air in the system, not enough fluid, or worn joints that make it hard to move. Most mechanical problems are caused by worn wheels, misaligned control levers, or structural parts that are too worn.

Instead of addressing symptoms, systematic diagnostic methods help find the reasons. Recording problems that happen again and again gives useful information for improving repair schedules and making decisions about possible equipment upgrades.

Operational Efficiency Optimization

Maximizing equipment utilization means matching the truck's powers to specific jobs and finding the best ways to work so that people don't have to move and handle things that aren't needed. Planning routes cuts down on journey times and makes sure that equipment is available when it's needed for important activities.

Programs that certify operators raise output while lowering the risk of accidents and machine abuse. Regular performance reviews show where techniques can be improved, and more training is needed, which improves the general efficiency of the operation.

Conclusion

In a wide range of workplace settings, Manual Hydraulic Pallet Truck systems offer crucial material handling capabilities that combine operating effectiveness with cost-effective performance. Through tried-and-true technical concepts that make sure they work reliably in tough conditions, their hydraulic systems turn human effort into a lot of lifting power. Their lower prices, lower upkeep needs, and ability to work in a variety of environments make them more useful than electric alternatives in production, logistics, and warehouse operations. The best equipment performance is achieved by choosing the right model based on load needs, building limitations, and operating patterns. This also maximizes return on investment by extending service life and lowering ongoing costs.

FAQ

Q1: What is the typical lifespan of a manual hydraulic pallet truck?

Quality manual pallet trucks typically operate reliably for 10-15 years under normal industrial conditions with proper maintenance. Heavy-duty models used in demanding applications may require component replacement after 5-7 years, while light-duty units in controlled environments often exceed 15 years of service life. Regular maintenance, proper operation, and quality construction materials significantly influence equipment longevity.

Q2: How often should hydraulic fluid be replaced in manual pallet trucks?

Hydraulic fluid replacement intervals depend on usage frequency and environmental conditions. Standard recommendations suggest annual fluid changes for high-use applications, while moderate-use equipment may extend intervals to 18-24 months. Contamination, temperature extremes, and system leaks may necessitate more frequent changes to maintain optimal performance.

Q3: Can manual pallet trucks operate effectively on uneven terrain?

Manual pallet trucks function best on smooth, level surfaces, but can handle minor surface irregularities with proper technique. Significant slopes, rough terrain, or obstacles may compromise stability and operator control. Specialized wheel configurations and reinforced construction improve performance on challenging surfaces, though limitations remain compared to powered alternatives.

Q4: What safety training is required for pallet truck operators?

Comprehensive operator training should cover load capacity limits, proper lifting techniques, hazard recognition, and emergency procedures. While formal certification requirements vary by jurisdiction, effective programs typically require 2-4 hours of initial training plus periodic refresher sessions. Training documentation helps demonstrate compliance with workplace safety regulations.
