How Mobile Drum Lifters Work in Industrial Settings

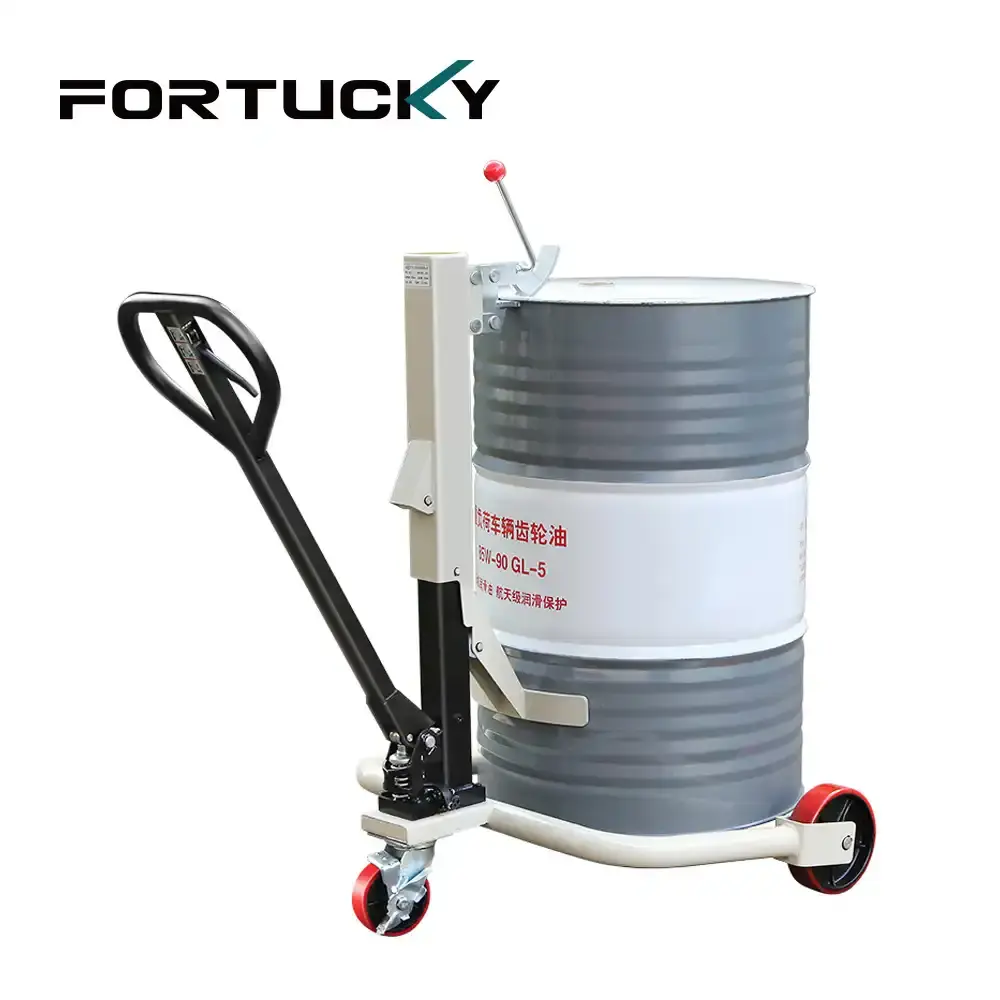

Mobile drum lifters are specialized handling systems that change how factories handle large cylindrical loads. These tools use mechanical advantage, hydraulic power, and smart clamping systems to safely hold, lift, move, and place drums weighing up to 500 kg without requiring a central forklift. Lifting and lowering motions can be controlled with little physical effort thanks to the ergonomic handle design and strengthened hydraulic springs. Eagle-beak automatic buckles hold drums in place through self-adjusting pressure. This engineering approach solves important problems in areas where traditional carts cannot go because they are too large or cannot meet cleanliness standards, such as chemical dispensing stations, food ingredient transfer zones, and pharmaceutical mixing lines.

Understanding Mobile Drum Lifters: Fundamentals and Operations

The idea behind mobile drum lifters is to distribute load forces across multiple contact points while keeping the drums stable during movement. Understanding how these devices work helps procurement teams choose the right options for each process.

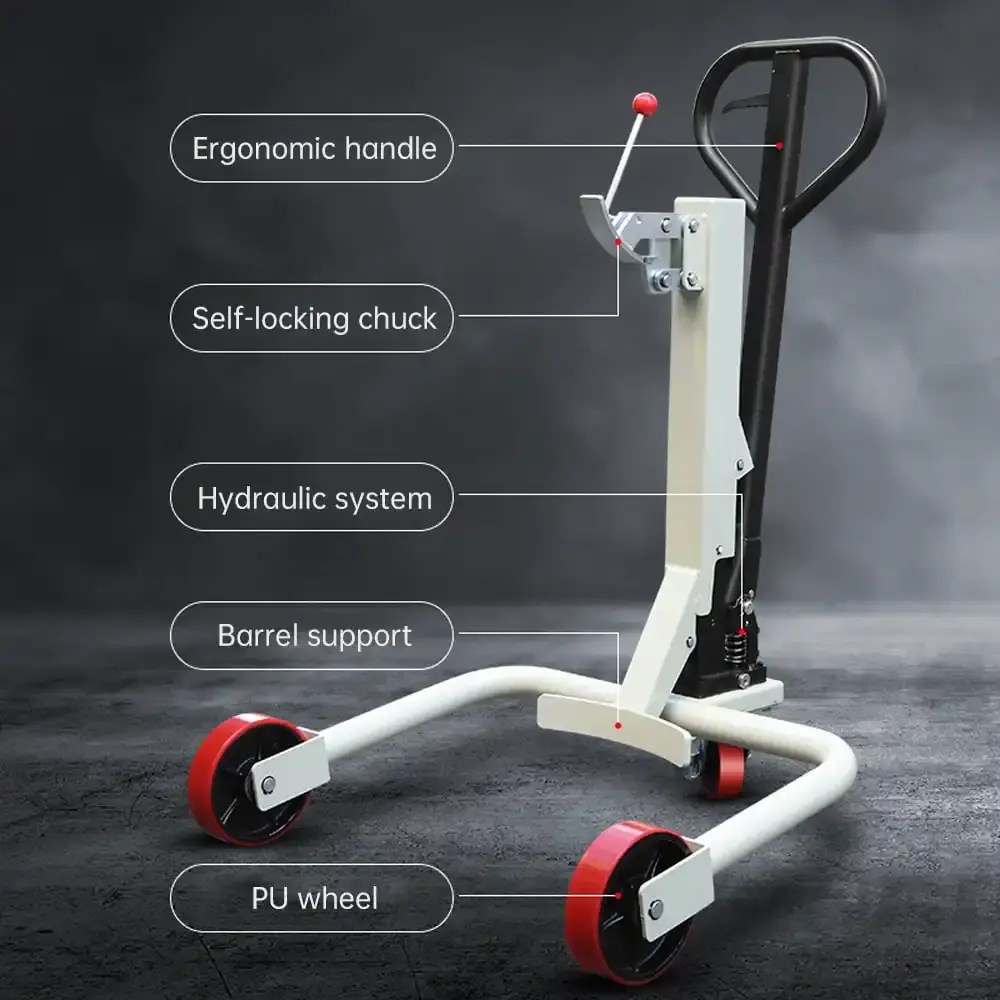

Core Design Architecture and Load Management

Modern drum moving systems use C-channel steel frames designed to handle variable loads. Through sealed piston chambers filled with ISO VG32 grade oil, the hydraulic cylinder converts pressure from the foot pedal into vertical movement. The hydraulic fluid pushes against the piston head when the user steps on the pedal, creating an upward force that lifts the carriage assembly. Controlled descent is made possible by spring-assisted return devices, which prevent sudden drops that could damage products or injure people.

A self-centering jaw device is used in the clamping head unit. As the user tightens the grip around the drum's edge, the two opposing steel beaks automatically adjust to fit the container's diameter. This flexible design accommodates manufacturing variations in drums while maintaining a secure fit. Heat treatments are applied to high-quality steel chucks to increase surface hardness to HRC 48–52, allowing them to last for more than 50,000 lift cycles under normal use.

Manual Versus Powered Operation Models

Manual hydraulic versions depend on the operator's foot pedal input to generate lifting force. These units work well in places where drum handling occurs infrequently (typically fewer than 20 lifts per shift) and where capital costs must be kept low. Since they have no electrical components, they can be used in explosion-prone areas without needing ATEX approval. However, users experience fatigue after extended periods of use.

Electric drum stackers have rechargeable battery packs that power both the lifting cylinders and the drive motors. At full capacity, a single charge usually lasts for 40 to 60 lift cycles. Standard industrial outlets take between 4 and 6 hours to fully charge. Although they cost more upfront and require battery replacement every 18 to 24 months depending on usage, these models significantly reduce operator strain and increase throughput.

Hydraulic System Performance Characteristics

The strengthened spring system represents a major advance in drum lifter engineering. Metal fatigue occurred in traditional single-spring designs after 12,000 to 15,000 cycles, leading to unpredictable descent rates and safety risks. Modern multi-spring designs use three or four parallel springs, each with a 2mm compression limit, to distribute compression forces. This redundancy ensures that even if one spring begins to weaken, the remaining components can still keep descent speeds under control.

The temperature and thickness of the fluid have a big effect on how well hydraulics work, including in a mobile drum lifter. When temperatures drop below 5°C, operations in cold chain plants often have slow response times because the hydraulic oil thickens. Low-temperature hydraulic oils that are made to keep their viscosity at -20°C are useful in these types of settings because they keep lifting speeds constant all year.

Benefits and Ergonomic Features of Mobile Drum Lifters in Industrial Settings

Moving from manual drum handling to using mobile drum lifters makes a noticeable difference in safety, operational efficiency, and employee retention. Businesses invest in these systems despite the upfront cost because of the following benefits.

Workplace Safety Enhancement and Injury Prevention

Manual drum handling creates biomechanical stresses that can lead to lower back injuries, shoulder strains, and finger crushes. A standard 200-liter steel drum filled with industrial lubricant weighs about 180 kg, which is well above the 23 kg limit set by workplace health regulations for manual lifting. Industrial safety studies show that eliminating direct manual movement with mobile drum equipment reduces workers' compensation claims for musculoskeletal disorders by 60–75%.

The eagle-beak automatic buckle has spring-loaded locking pins that engage when the clamping force exceeds 150N. This mechanism prevents accidental drum release during transport, even on uneven floors or slopes of up to 3 degrees. Colored bands that change from red to green provide operators with immediate visual confirmation that a secure grip has been achieved.

Ergonomic Design Elements and Operator Comfort

It's not well known that the shape of the handle can help keep operators from getting tired during long jobs. Premium drum handling carts have shaped handles that are set at a height of 1,050 mm, which is best for people who are between 160 cm and 185 cm tall so that their wrists stay in a neutral position while driving. The 32mm width of the grip fits the way your hands naturally close together, so pressure is spread out across the palm areas instead of being concentrated on the finger joints.

Wheel design affects maneuverability in crowded work areas. Four-wheel versions with two swivel casters at the rear allow 360-degree rotation within a 1.8-meter turning radius, enabling workers to move between drum storage racks spaced 2.2 meters apart. Compared to hard rubber wheels, polyurethane wheels have 40% lower rolling resistance, allowing smooth movement across epoxy-coated concrete floors without leaving scuff marks.

Load Capacity Specifications and Application Matching

Different types of drum lifters are designed for different container types. Light-duty models that handle up to 300 kg are best for plastic polyethylene drums often used in food processing and pharmaceutical ingredient storage. These units typically have a maximum lift height of 375 mm and a minimum of 265 mm, allowing workers to place drums on containment pallets or low-profile mixing platforms.

Heavy-duty models that can hold up to 350 kg can fit steel drums that are used to mix petrochemicals and pour fluids into cars. The highest these drum-lifting trolley systems can lift is 250 mm, and they can handle drums that are up to 600 mm in diameter and 915 mm high, which are the same sizes as normal UN-approved containers for dangerous goods. The length of the equipment is 1,250 mm, and its width is 760 mm. This makes it easy to fit through standard 900 mm industrial doors while still staying stable when it's fully loaded.

​​​​​​​Comparing Mobile Drum Lifters: How to Choose the Best Solution for Your Facility?

Choosing the best mobile drum lifter requires evaluating many factors, including operational volume, facility layout constraints, container types, and projected total cost of ownership. This comparison method helps buyers make informed product differentiation decisions.

Mobility Advantages Versus Fixed Installation Benefits

Mobile units offer greater placement flexibility than fixed lifting stations. Instead of moving drums to central lifting points, operators bring these devices to drum storage locations, reducing travel distances and cycle times. This mobility is especially valuable in pharmaceutical mixing facilities, where workers need to access different ingredient drums from multiple cleanroom areas during the same production batch.

Stationary drum tippers are better suited for high-volume filling operations where drums continuously arrive on conveyor lines. These permanent installations connect to facility SCADA systems and track each drum's weight and tilt angle for quality control records. The downside is that a stationary tipper cannot be moved without professional lifting services and facility downtime once installed, unlike a drum lifting trolley.

Manual Versus Electric Power Systems Evaluation

Total cost of ownership estimates show that manual hydraulic lifts are cheaper for businesses that move fewer than 15 drums every day. With prices ranging from $800 to $1,200 and almost no maintenance costs other than an annual inspection of the hydraulic seals, payback times are still less than 18 months when compared to the costs of manual work and injuries.

When more than 30 units are handled every day, electric types become economically viable. Even though the original investment is between $3,500 and $5,500, the higher throughput and lessened operator tiredness pay for themselves in 24 to 30 months. Facilities that work multiple shifts find that electric models stop the drop in productivity that happens on the second and third shifts when workers get tired from pumping by hand.

Integrated Weighing Systems and Process Control Benefits

When load cells are built into drum lifters, they provide real-time weight data accurate to within 0.5% of the measured value. This feature transforms drum handling from a simple transport activity into a quality control checkpoint. In chemical blending, weighing data ensures that drum contents match supplier certificates of analysis, allowing mislabeled containers to be identified before they enter production runs.

Adding integrated scales typically costs an extra 600to600to900 per machine, but businesses handling hazardous or valuable materials quickly recover this investment. A single preventable contamination event that could cost $50,000 in wasted batches, equipment cleaning, and lost production time justifies fleet-wide scale integration.

Working with well-known manufacturers guarantees access to tested engineering, thorough documentation, and quick expert help, including for mobile drum stackers. Asking for thorough specification sheets with frame material certifications, hydraulic component brand names, and load testing procedures is helpful for procurement teams. Authorized wholesalers offer guarantee coverage that gray-market buyers can't match. This protects capital investments over the course of many years of use.

Conclusion

Mobile drum lifters are long-term investments that pay off in multiple ways, including injury prevention, increased productivity, and greater operational flexibility. Modern equipment features hydraulic lifting systems, ergonomic design elements, and self-locking clamping technology that reflect years of industrial engineering advancement. Companies that select the right models based on capacity requirements, preferred power systems, and industry safety standards will maintain a competitive advantage for years to come. Proper operator training, structured maintenance routines, and the use of genuine replacement parts ensure maximum equipment longevity while keeping workers safe. As industries such as manufacturing and logistics adopt automation and lean principles, drum handling equipment plays an increasingly important role in ensuring smooth material flow and reliable processes.

FAQ

1. What drum sizes can standard mobile lifters accommodate?

Most industrial mobile drum lifters can handle 200-liter steel drums that are 600 mm in diameter and up to 915 mm tall. Specialized models have adjustable locking systems to fit either smaller 30-gallon containers or larger 300-liter drums. The most important specification to check is maximum width compatibility. Before purchasing, ensure the equipment can clamp containers of the required size.

2. How do I prevent hydraulic fluid leaks in drum lifters?

Most leaks can be avoided by regularly inspecting hydraulic seals and maintaining proper fluid levels. Use only the ISO VG32 hydraulic oil specified by the manufacturer, and replace seals annually even if no obvious wear is present. Strictly observe load limits, as operating equipment beyond its rated capacity quickly damages seals. When possible, store equipment in a temperature-controlled area, as extreme cold can crack seals and excessive heat can degrade rubber materials.

3. Can drum handlers work on uneven warehouse floors?

Industrial-grade equipment can accommodate floor imperfections of up to 5 mm without losing stability. Floors with larger holes or cracks need to be repaired before safe operation. On rough surfaces, pneumatic tires absorb shock better than solid polyurethane wheels, but they require regular pressure checks. Do not use the equipment on slopes exceeding 3 degrees unless it is specifically designed for ramp use.

Partner with Fortucky for Advanced Drum-Handling Solutions

To find a reliable mobile drum lifter provider, you need to look at their production skills, ability to make changes, and global service infrastructure. Fortucky offers complete material handling systems and has experience putting them into action in the food processing, pharmaceutical, chemical, and automobile industries. By changing standard drum lifter platforms to meet specific practical needs like explosion-proof certifications, clean construction, and built-in weighing systems, our engineering team can make them very different from the norm.

Fortucky has regional service networks in Asia, Europe, and the Americas for its more than 1,000 customers around the world, including major companies like CATL, BYD, and Mengniu Dairy. Our clever production sites that are connected to 5G make sure that deliveries happen quickly, and strict quality standards make sure that the equipment works well. Our solutions engineering team can help you with technical questions that are in line with your automation plan, whether you need to buy a single unit or install a fleet of units with training and maintenance support.

Get in touch with our industrial equipment experts at sales@fortuckyrobot.com to talk about how you need to handle drums. As a direct mobile drum lifter maker, we can offer reasonable prices because we don't have to pay markups to distributors. We also offer full lifecycle support. To see how Fortucky's drum handling solutions can improve your material flow, ask for full specification sheets, CAD integration plans, and customer references.
