Mobile Drum Lifter Design and Function Guide

When production floors handle hundreds of heavy drums weekly, the right drum handling equipment transforms safety and efficiency. A Mobile Drum Lifter is purpose-built machinery designed to grip, elevate, transport, and dispense cylindrical containers—typically 200-litre steel or plastic drums—without manual strain. Its core design integrates hydraulic lifting mechanisms, self-locking clamping systems, and ergonomic maneuverability to eliminate workplace injuries while accelerating material flow. Understanding how these systems work helps logistics managers, plant engineers, and procurement teams choose equipment that genuinely addresses operational bottlenecks.

Why Mobile Drum Lifting Equipment Matters in Modern Industrial Operations

Moving large, awkward drums safely without disrupting workflow is a persistent challenge for factories in the chemical, pharmaceutical, and automotive industries. Traditional cart-based methods create bottlenecks. Forklifts consume significant space, require certified operators, and their tines can puncture drum walls. Workers performing repetitive manual handling are at risk of cumulative injuries, particularly lower back strain from repeated lifting and pulling.

With careful planning, a drum-raising cart can solve these problems. Unlike forklifts, which cannot access tight work areas, these devices have compact wheelbases that enable movement through confined spaces. Built-in clamps secure drums by their reinforced rims or bodies, distributing load forces evenly. Hydraulic systems amplify the operator's input power, allowing one person to lift a 350-kilogram drum with very little physical effort. This equipment is especially valuable in environments where high throughput is essential but space is limited, such as fast-moving consumer goods factories, cold storage facilities, and battery production lines.

Beyond protecting personnel, these devices also reduce product loss. Controllable tilting mechanisms enable precise pouring into mixing vessels or reactor hoppers, helping operators avoid spills that could contaminate batches or create unsafe floors. The economic impact is clear: facilities report that automated drum handling processes are 40–60% faster than manual ones, directly increasing production line uptime.

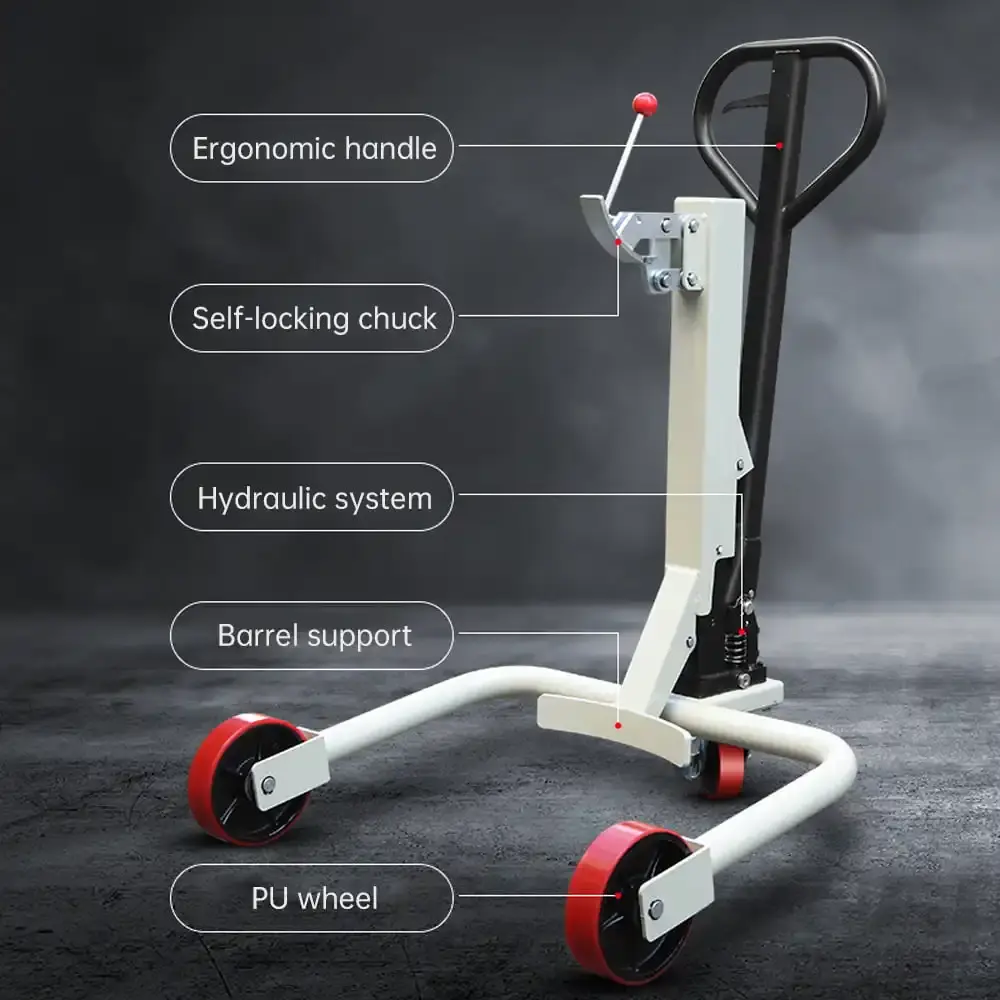

Core Design Elements That Define Performance

Hydraulic Systems and Load Mechanics

The lifting heart of any industrial mobile drum lifter relies on sealed hydraulic cylinders paired with reinforced springs. When an operator activates the foot pedal, hydraulic fluid transfers into the cylinder chamber, pushing a piston rod upward. The piston connects to a carriage frame that holds the drum clamp assembly. High-quality units employ dual-cylinder designs for balanced lifting, preventing lateral sway during elevation.

Spring reinforcement serves dual purposes. During the lifting phase, hardened coil springs absorb shock loads, protecting the frame from stress fractures when drum weights vary. During descent, these springs control the rate of hydraulic oil return flow, ensuring gradual lowering rather than sudden drops that could disturb contents or damage packaging.

Premium models incorporate overload protection valves. If an operator attempts lifting beyond rated capacity—say, 400kg on a 350kg-rated drum lifting trolley—the bypass valve redirects hydraulic pressure back to the reservoir. This prevents cylinder rupture and frame deformation, extending equipment lifespan while safeguarding personnel.

Clamping Mechanisms and Drum Security

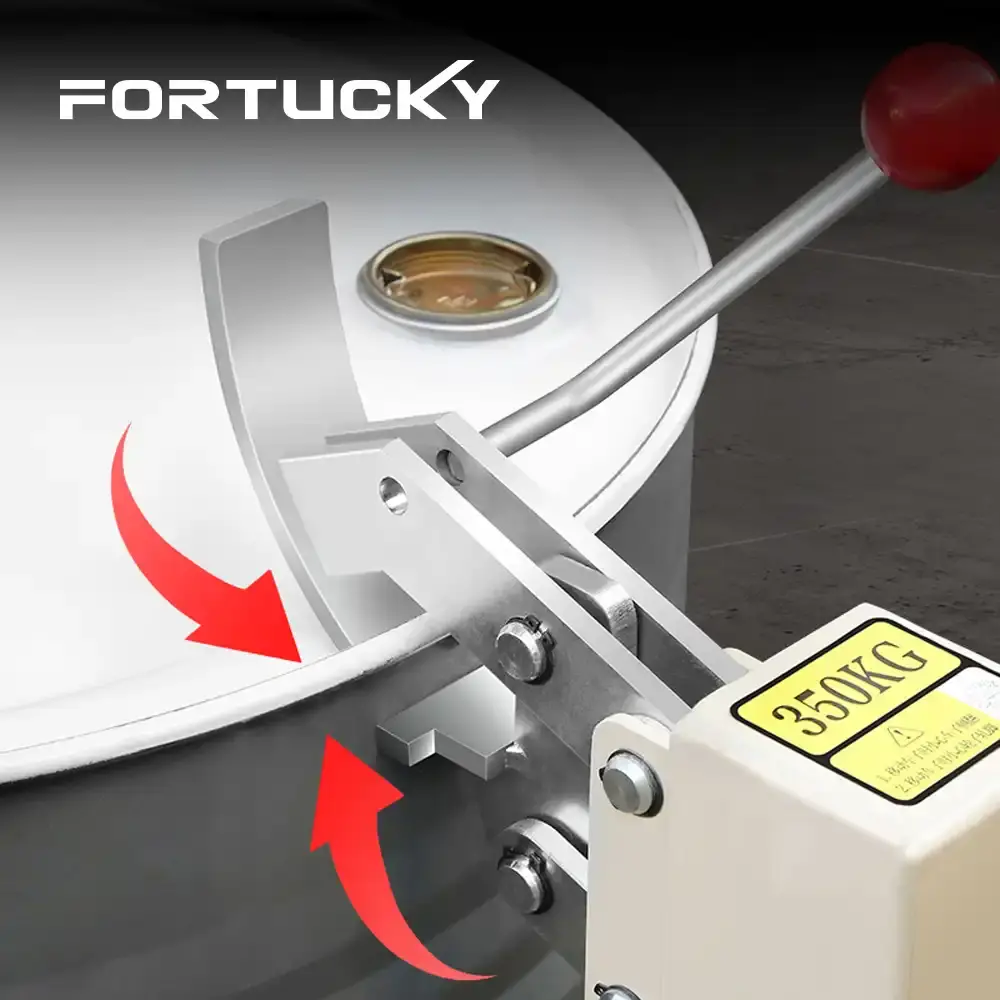

The eagle-beak automatic belt represents a significant advance in passive safety. This design features two opposing curved jaws that self-center around the middle of the drum body. When the user turns the clamp handle, a spring-loaded locking pin engages with a stop hole. The clamping force increases with the drum's weight, as heavier loads create greater friction between the steel jaws and the drum surface.

Forged steel construction is critical in the clamp assembly. Standard mild steel clamps bend after 200 to 300 lift cycles, requiring frequent replacement. Heat-treated alloy steel maintains jaw shape after more than 5,000 cycles, ensuring consistent grip pressure. When working with smooth plastic drums that might slip against plain metal contacts, surface knurling on the jaw faces improves friction coefficients.

Many basic models have a maximum width of 600 mm, which is sufficient to accommodate both 200-litre steel drums and larger composite containers. Adjustable jaw gaps allow workers to switch between drum sizes in under 30 seconds, eliminating downtime during product changeovers.

Ergonomic Mobility and Operator Interface

Handle design directly impacts fatigue levels during extended shifts. Contoured grips with rubberized coatings reduce vibration transmission to the operator's hands. Handle height positioning—typically 1,100 to 1,200 mm—encourages natural pushing postures that engage leg muscles rather than stressing shoulder and arm joints. This seemingly minor detail cuts reported musculoskeletal discomfort by 35% in comparative ergonomics studies.

Wheelbase geometry balances stability with agility. An overall width of 730–760 mm provides sufficient track separation to prevent tipping when transporting off-center loads, while remaining narrow enough to pass through standard 900 mm doorways. Polyurethane wheel treads prevent floor marking, which is critical in clean-room environments such as electronics assembly or food processing zones where rubber residue can contaminate production areas.

Turning radius calculations become crucial in tight warehouse layouts. A drum transport trolley with an overall length of 1,250 mm typically requires a 1.8-meter aisle width for comfortable 180-degree turns. Facilities planning automation upgrades should audit their narrowest choke points before specifying equipment dimensions.

Technical Specifications That Match Real-World Demands

Load Capacity Tiers and Application Matching

Entry-level Mobile Drum Lifter models handling 300kg suit pharmaceutical companies transferring ingredient drums from storage to compounding areas. These lighter-duty units feature manual hydraulic pumps operated by foot pedals, eliminating electrical components that complicate cleaning protocols in GMP environments.

Mid-range 350 kg capacity systems serve automotive parts suppliers moving lubricants and coolants to assembly lines. The 250 mm maximum lifting height aligns with standard workbench heights, enabling direct transfer from drum to dispensing equipment without intermediate containers.

Heavy-duty 500 kg variants address steel and mining operations where drums contain metal powders or dense slurries. These incorporate reinforced chassis crossmembers and oversized hydraulic cylinders to handle extreme loads while maintaining a compact footprint of 1,080–1,250 mm.

Lifting Height Ranges and Process Integration

A 250 mm maximum lift height satisfies 70% of applications involving ground-level dispensing or transfer into low hoppers. Facilities processing viscous materials benefit from 375 mm lift capabilities, which position drum spouts above heated mixing vessels without requiring elevated platforms.

Minimum lifting heights matter equally. Models that lower to 265 mm allow operators to position clamps beneath drums sitting on standard 150 mm pallets, enabling direct pickup without manual repositioning. This seemingly small 115 mm working range eliminates thousands of unnecessary manual handling incidents annually across medium-sized facilities.

Dimensional Considerations for Facility Layout

The 760 mm width specification accommodates standard 1,200 mm pallet widths with 220 mm clearance on each side—sufficient buffer for visual alignment without precision maneuvering. The 1,250 mm length measurement includes handle extension, meaning the actual load-bearing footprint occupies just 850 mm, which is critical when calculating storage density in congested production zones.

Operational Advantages Driving ROI

Labor Efficiency and Throughput Gains

A single operator with a mobile drum stacker moves 12–15 drums per hour, compared to 5–7 using manual two-person lift techniques. This 140% productivity increase allows manufacturers to reassign personnel to value-added tasks such as quality inspection or preventive maintenance. For a facility handling 200 drums daily, the labor hour savings equal approximately 2.5 full-time positions annually.

Safety Compliance and Risk Mitigation

Documented injury rates drop 80–90% after transitioning from manual drum handling to mechanical systems. Workers' compensation claims decrease proportionally, improving insurance premium negotiations. Regulatory compliance improves automatically—OSHA guidelines recommend mechanical assistance for loads exceeding 23 kg, making drum handling equipment not just beneficial but legally prudent.

Maintenance Simplicity and Lifecycle Costs

Well-designed hydraulic drum lifters require quarterly seal inspections and annual fluid changes. Total maintenance hours average 4–6 annually per unit, compared to 15–20 hours for battery-powered alternatives that need electrical system diagnostics. Component standardization means replacement parts can arrive within 48 hours from suppliers, minimizing unexpected downtime.

Critical Selection Criteria for Procurement Teams

Matching Equipment to Material Characteristics

Steel drums with reinforced rims tolerate standard jaw clamps. Plastic drums require wider beak grippers, distributing pressure across larger surface areas to prevent deformation. Fibre drums demand specialized padded clamps, avoiding puncture risks. The right clamp configuration prevents 90% of drum damage incidents during transport when using a mobile drum stacker.

Environmental Compatibility Assessments

Stainless steel models justify their 40% price premium in food processing and pharmaceutical applications requiring daily caustic washdowns. Powder-coated carbon steel suffices for dry goods warehouses. Explosion-rated units with non-sparking bronze components become mandatory in chemical plants handling volatile solvents—the cost difference is negligible compared to potential catastrophic loss scenarios.

Integration With Existing Material Flow Systems

Drum handling tools must coordinate with pallet rack heights, conveyor discharge points, and vessel inlet elevations. A 375 mm maximum lift barely reaches a 450 mm hopper rim, forcing awkward tilting angles that stress hydraulic seals. Accurate facility measurements during specification prevent expensive mismatches discovered during commissioning.

Real-World Implementation Insights

Installation and Training Protocols

Operators achieve proficiency within two hours of hands-on training. Key learning points include recognizing maximum capacity indicators, proper clamp engagement sequences, and hydraulic pressure release procedures. Facilities report zero learning-curve incidents when following structured training protocols versus 12% incident rates with informal peer instruction.

Workflow Optimization Strategies

Positioning drum storage near usage points reduces transport distances, cutting handling time from four minutes to 90 seconds per drum. Batch staging—bringing multiple drums to production areas during shift changes—prevents mid-cycle interruptions. These process refinements, enabled by the flexibility of mobile lifting equipment, compound productivity gains beyond the equipment's inherent speed advantages.

Predictive Maintenance Approaches

Monitoring hydraulic fluid clarity during monthly inspections catches contamination before seal damage occurs. Tracking clamp jaw wear patterns identifies excessive force application that may require operator retraining. Proactive component replacement at 70% wear extends system lifespan 30% beyond reactive maintenance strategies.

Conclusion

Selecting the right drum handling equipment requires balancing load specifications, operational environment constraints, and long-term maintenance realities. The mobile drum lifter's design excellence lies in simplifying complex material handling challenges through hydraulic precision, self-locking safety mechanisms, and ergonomic operator interfaces. Facilities investing in properly specified systems achieve measurable improvements in throughput, injury reduction, and process consistency. As manufacturing complexity intensifies and labor availability tightens, these specialized tools transition from optional conveniences to operational necessities, directly impacting competitive positioning in demanding global markets.

Choose a Mobile Drum Lifter Supplier That Delivers Complete Solutions

Fortucky combines engineering expertise with practical manufacturing knowledge to design Mobile Drum Lifter equipment matching your specific operational demands. Our customizable drum lifting trolleys handle everything from pharmaceutical-grade stainless requirements to heavy-duty 500kg industrial applications. With over 1,000 successful installations across FMCG, automotive, and chemical sectors—including partnerships with Huawei, CATL, and Mercedes-Benz—we understand the nuances separating adequate equipment from transformative solutions. Contact our engineering team at sales@fortuckyrobot.com to discuss load capacities, integration requirements, and ROI projections tailored to your facility's workflow challenges.
