What are drive-in racks or drive-through racking systems？

Drive-in storage racks are a completely new way to store things in a building. Their innovative design makes the best use of space. With these systems, forklifts can drive right into storage lanes that have horizontal support rails. This allows you to store many pallets without needing many different entry paths. When using the drive-in arrangement, pallets are loaded and unloaded from the same entry point, following the last-in, first-out (LIFO) rule. Drive-through methods allow access from both sides of the storage lane, which makes first-in, first-out (FIFO) product rotation easier. Both designs eliminate the need for traditional aisles, achieving storage utilization rates close to 80%, which is significantly higher than with regular selective racking. These methods work especially well for managing large volumes of low-variety inventory in transportation and manufacturing settings.

Understanding Drive-In and Drive-Through Racking Systems

High-density storage options have completely changed how production and logistics companies manage warehouse space. For decades, engineers have worked to improve these systems to make the best use of cubic volume.

Core Operational Mechanics

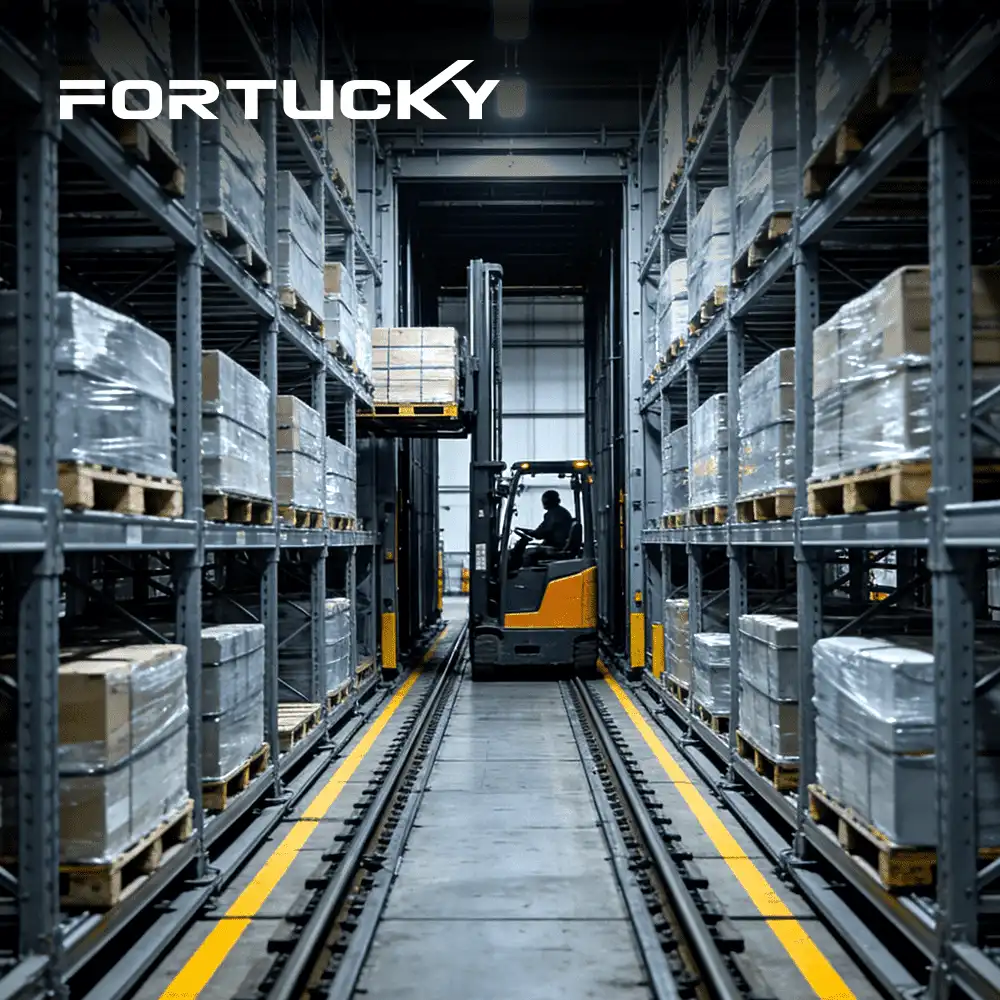

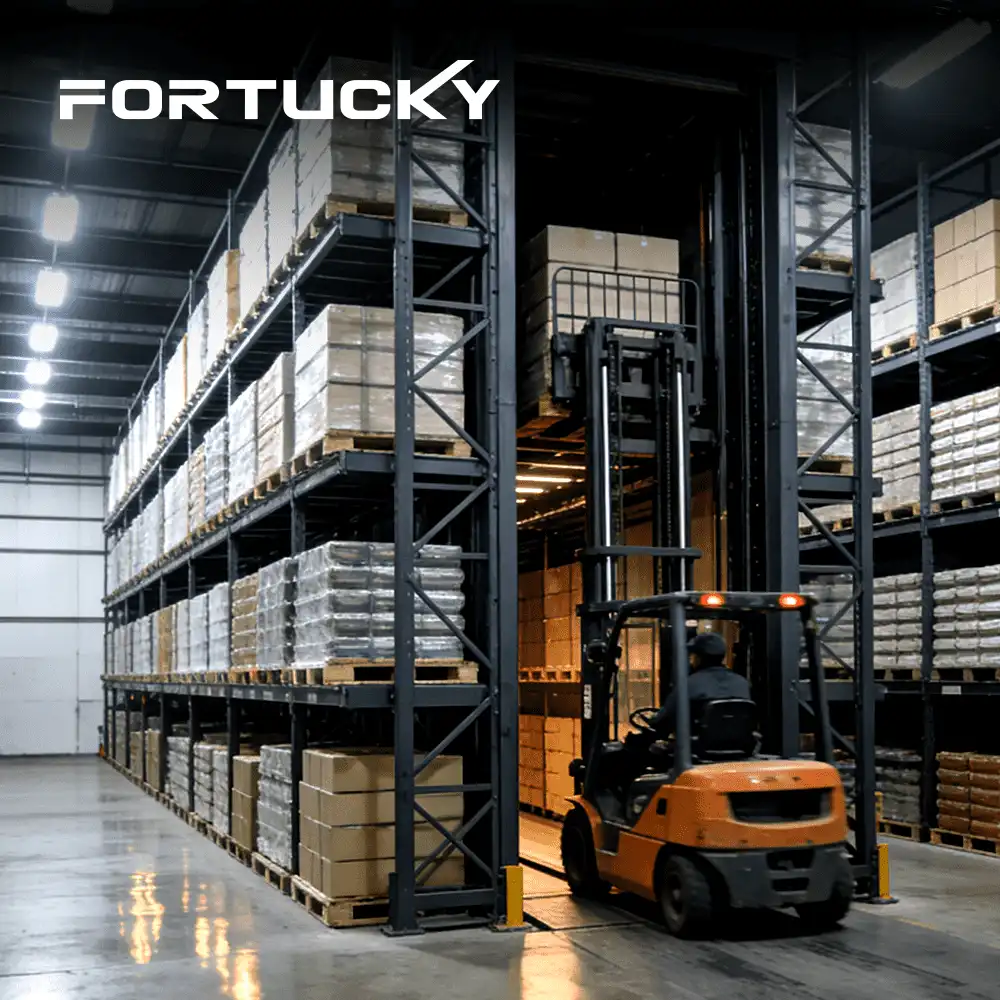

With parallel guide rails on straight frames, drive-in systems provide lengthy storage spaces where forklifts may travel along designated lanes. These rails allow pallets to be stacked up to 15 meters high, depending on load and ceiling height. The structure is made sturdy by combining frame designs for columns, beams, guide rails, and horizontal supporting parts. Instead of aisles, this plan uses dense storage blocks accessible from a single entry point.

Similar to this configuration, drive-through systems have exits at both ends so that vehicles can move through storage queues. This two-way access simplifies product rotation, making drive-through systems ideal for time-sensitive, first-in, first-out commodities. The choice between these options depends on the number of SKUs, inventory turnover, and product shelf life.

Forklift Compatibility and Equipment Integration

Successful application requires attention to forklift specifications and operational approvals. These systems use narrow-aisle cranes and reach trucks. Lift heights should match rack heights, and vehicle widths should match lane widths, with appropriate safety margins. Guide rails, typically 500 mm above floor level, protect structural columns and direct vehicle movement. Operators receive specialized training for confined lanes with limited visibility and precise turning.

Modern warehouse management systems integrate with forklift computers for real-time storage and retrieval. Digital coordination reduces human errors, determines optimal routes, and maintains accurate inventory data, which is crucial for efficient operations in crowded spaces.

Typical Industrial Applications

Businesses that handle large quantities of uniform products benefit from these storage solutions. Drive-in systems allow frozen food cold chain operations to maximize expensive refrigeration space and maintain temperatures by reducing door openings. Auto parts distribution facilities store seasonal or model-specific inventory until manufacturing schedules require them. Pharmaceutical warehouses hold large volumes of raw materials before production, and beverage distributors keep cases of finished goods for regular distribution.

The economic rationale is strongest for storage with few SKUs, consistent demand, and last-in, first-out inventory flow. Selective shelving is best for operations that need quick access to every pallet, whereas drive-in layouts prioritize space efficiency over random accessibility.

Key Design Principles and Safety Considerations for Drive-In Storage Racks

Designing robust high-density storage requires close attention to both structural requirements and operational safety rules. Because these systems are highly integrated, problems with one component can affect others, making good planning and operation essential.

Structural Engineering Standards

A drive-in storage rack's steel frame ensures the structure performs properly under repeated loading and unloading. Horizontal beams support the columns and distribute pallet weight across the support rails. For heavy-duty applications, steel gauges must be thicker and connection points reinforced to accommodate higher stresses. Adjustable configurations can handle different pallet sizes and weights, and modular components allow for future design changes as storage needs evolve.

Height limitations are typically 5 to 15 meters, depending on proximity to building structures, forklift lift height, and load stability at greater heights. Taller constructions require stronger bracing and additional structural reinforcement to resist lateral forces and maintain straightness. Professional engineering evaluations consider seismic factors, floor load capacity, and overall rack deflection.

Operational Safety Protocols

Guide rails serve as both a key tool and a personnel safety feature. These rails can withstand light forklift contact, preventing damage to load-bearing beams. Regular inspections detect wear patterns, loose connections, and impact damage, which must be addressed immediately to avoid serious hazards.

Fire control is challenging to implement when there are many storage spaces, and sprinklers must reach deep into storage lanes. System designs allow water to circulate while meeting storage density targets. Emergency access factors allow merchandise to be removed and firefighting equipment to reach needed areas without causing structural collapse.

Training programs should cover backing up, limited sight lines, and ensuring load stability before vertical lifting. Signs indicate maximum loads per level, and frequent checks ensure that standards are followed, preventing overloading of structural sections beyond their intended capacity.

Maintenance Best Practices

Scheduled maintenance keeps systems running smoothly and extends their lifespan. Inspections cover connections, columns, guide rails, and rack base floors. Damaged parts should be replaced immediately rather than repaired in the field, as field repairs may reduce load-bearing capacity. Professional installation crews adjust base bolts and ensure floor slabs can withstand loads. This is done regularly and during installation.

Documenting installation specifications, load ratings, and modifications simplifies maintenance and capacity management. These records are useful when operations change and capacity needs to be reassessed, or when insurance and safety reports require performance evaluation.

Comparing Drive-In Racks with Other Storage Systems

Warehouse planners face a wide range of storage system choices, each offering distinct advantages depending on operational goals, product characteristics, and budget. Understanding the key trade-offs between these systems is essential for selecting the solution that best fits your unique logistics needs.

Drive-In vs. Drive-Through Configurations

The main distinction is product flow. Drive-in racks enhance storage density with single-entry lanes, sacrificing direct access. The strict last-in, first-out (LIFO) rotation makes this design appropriate for non-perishable commodities, seasonal items, and bulk manufacturing components. Eliminating access aisles saves about 30% more floor space than selective racking.

Drive-through systems offer a compromise by having separate entry and exit points. First-in, first-out (FIFO) rotation is essential for perishable, fast-moving consumer products and age-controlled inventory. Due to the need for a second access lane, density is slightly lower than drive-in but still much higher than selective options. To balance space efficiency and inventory rotation, beverage distributors, dairy processors, and pharmaceutical firms use this configuration.

Versus Selective Pallet Racking

For facilities with many SKUs and frequent, random picking, selective racks offer direct access to every pallet position. While flexible, aisles take up 40–50% of floor area. Organizations with hundreds or thousands of frequently changing SKUs generally accept this trade-off for operational agility.

Drive-in systems use over 80% of floor area for storage rather than access. Operations with stable, limited SKUs, homogeneous goods, and predictable turnover patterns benefit from these economies. Due to lower steel requirements per storage unit and shorter forklift travel distances, drive-in systems reduce cost per pallet position and improve operational efficiency.

Push-Back and Flow Rack Alternatives​​

Push-back racks provide a balanced solution. In one lane, they employ stacked pallets on inclined rails to store numerous pallets and retrieve them with gravity. This arrangement handles more SKUs than high-density drive-in storage systems while retaining density, making it ideal in electronics distribution and automotive parts warehouses with moderate diversity and space restrictions.

Flow racks use gravity to move pallets from loading to picking along designated lanes. This allows precise FIFO rotation without forklifts entering storage lanes, improving efficiency and product freshness. In high-throughput facilities such as food processing plants and beverage distribution hubs, labor efficiency and rotation justify the more complex mechanics and higher initial investment.

The Bottom Line

The best option depends on your operational profile: shelf life, SKU count, turnover rate, and picking method. Material quality and manufacturer reputation affect long-term performance regardless of system type. System durability and return on investment depend on established suppliers with strict quality control, comprehensive engineering support, and reliable service networks.

Optimizing Warehouse Space and Efficiency with Drive-In and Drive-Through Racks

Getting the most out of storage investments means combining racking systems with information systems and material handling equipment. Space optimization includes not just physical density but also improving operational processes and making technology easier to use.

Maximizing Cubic Capacity Utilization

Most warehouses have untapped vertical potential. High-density designs that use full ceiling heights provide additional storage without expanding the building. A warehouse that stores boxes three stories high with selective shelving may add six or seven levels with drive-in systems, significantly increasing its area. Vertical efficiency reduces building costs, land taxes, and energy expenditures per stored unit.

Lane depth optimization balances density and retrieval speed. Although deeper lanes increase storage space, they also increase forklift travel distance and transaction time. Optimal depth for each operational profile is determined by turnover rates, truck cycle times, and labor costs. Maximum depth is desirable in cold storage to reduce cooling costs. In ambient storage, depth may be limited to minimize picking time.

Warehouse Management System Integration

Modern warehouse control systems accurately track where products are stored and retrieved to maximize space and minimize travel. Slot management logic must be careful with lane depth and vertical positioning for drive-in configurations. To maintain operations, systems monitor lane fill rates, preventing partial fills that waste space, and adjust storage accordingly.

Real-time inventory awareness eliminates hand-counting errors, which are common in crowded environments where it is impossible to see everything. Digital systems maintain stock levels, expiration dates, and lot tracking, which is crucial for regulated industries. This data connection lets advanced analytics identify wasteful storage habits and support improvement projects.

Material Handling Equipment Compatibility

Forklift specifications must match the rack dimensions and operational demands. Vehicle width, lift height, turning radius, and load capacity affect how well the system works. Equipment that moves quickly and offers good visibility is needed for narrow-aisle configurations. Comfort and safety features help operators stay alert during long shifts of repetitive tasks in tight spaces.

Battery management and charging infrastructure affect equipment availability and operation. High-throughput centers use fast-charging or battery pooling to prevent downtime. Electric vehicles are quiet, emission-free, and low-maintenance, making them popular indoors.

When these elements are considered, storage systems become dynamic operational assets. An integrated facility improves inventory accuracy, processing capacity, and worker productivity while reducing operational complexity and occupancy costs.

Procurement Guide and Choosing the Right Drive-In Storage Rack Supplier

Selecting the right supplier for a storage system is critical to the project's success, long-term performance, and total cost of ownership. A systematic evaluation of a supplier's capabilities ensures they align with your operational needs and budget constraints.

Customization and Engineering Support

Standard catalog solutions often fall short for complex warehouse requirements. Leading suppliers employ dedicated engineering teams to provide custom design services, adapting systems to specific building layouts, load profiles, or existing infrastructure. This technical support typically includes installation supervision, load testing, and system commissioning.

Clear specifications are essential and should define maximum load capacity, dimensional tolerances, permissible materials, finish options, and any environmental or seismic factors. Detailed documentation outlining precise acceptance criteria for installation prevents misunderstandings. Suppliers who provide comprehensive documentation packages—including structural calculations, installation manuals, and operational guides—demonstrate the professional competence required for complex projects.

Quality Assurance and Compliance

Industrial drive-in pallet racks' material certifications ensure steel grades and production processes satisfy industry requirements. Manufacturing quality is verified by welding certificates, coating requirements, and component testing. Facilities handling high-value or regulated items should select suppliers with comprehensive quality management systems, complete traceability, and unambiguous procedural controls.

Third-party tests must recreate service conditions to confirm load capacity ratings. Safe design and conservative engineering prevent premature failure and ensure dependable performance throughout the system's lifecycle. Professional engineering evaluation and stamping of structural calculations are required for custom setups.

Pricing Structures and Value Assessment

The purchase price is only part of the ownership cost. Installation quality, maintenance, flexibility, and service life affect long-term value. When comparing bids, normalize requirements; material gauge and coating quality affect durability and performance.

Negotiated pricing and supplier financing can improve project cash flow for volume purchases. Payment terms, retention schedules, and warranty conditions must be reviewed to protect buyer interests and ensure supplier accountability during project execution and installation.

Installation and After-Sales Support

Professional installation is essential for proper assembly. Certified installers understand anchor placement, vertical alignment, connection torque, and load testing techniques for proper system activation. Installer knowledge is important because improper installation can void warranties and compromise safety.

Technical assistance guides system operation, rack management, and upgrades. Response teams reduce downtime, while preventive maintenance procedures detect issues before they disrupt operations. Local suppliers offer faster response times and better understanding of local operating environments than distant manufacturers.

Conclusion

High-density storage options are very useful for manufacturing and transportation companies that need to keep large amounts of inventory in small spaces. Drive-in storage racks achieve usage rates of nearly 80%, which is much higher than standard selective systems, while still providing good accessibility for the right product profiles. Whether you choose a drive-in or drive-through setup depends on how often you need to rotate your goods. Drive-through systems allow for better product flow while reducing density only slightly.

FAQ

Q1: What load capacities do standard drive-in racks support?

Most systems can handle loads of 1,000 to 3,000 pounds per pallet, but heavy-duty setups can handle over 4,000 pounds per pallet position. Actual capacity depends on rack height, lane depth, steel specifications, and floor load limits. Professional engineering calculations determine safe working loads for different configurations, taking into account forklift dynamics and ensuring adequate safety margins. Custom designs are made to meet unique needs that go beyond standard requirements.

Q2: Are these systems suitable for cold storage applications?

Yes, absolutely. In environments that require cold or frozen temperatures, where space and temperature control are expensive, drive-in setups are very useful. The higher density directly reduces the required building size and associated cooling costs. Extreme temperatures do not affect the performance of steel components, and the reduced aisle space means less cold air is lost during forklift operation. Many food processing plants, cold storage warehouses, and pharmaceutical facilities use these systems to manage their frozen goods.

Q3: How do I decide between drive-in and drive-through systems?

Systematically review inventory characteristics and operational objectives. Drive-in systems maximize space for seasonal goods, long-lasting materials, or manufacturing parts that can tolerate last-in, first-out turnover. Drive-through layouts work best for products that require fast, order-specific management, so the small drop in density is worth it for better product flow. When making this decision, consider the number of SKUs, turnover rate, shelf life constraints, and possible building configurations. Professional advice can help match system features to business needs.

Partner with a Trusted Drive-In Storage Racks Manufacturer

Warehouse improvement projects need partners with both professional know-how and a track record of getting things done. Fortucky provides complete solutions for all aspects of designing, building, and using high-density storage systems. Our engineering teams work closely with clients to create unique combinations that meet exact operating needs, building limitations, and budget limits.

We keep strict quality standards throughout the manufacturing process at our advanced production facilities because we are a top provider of drive-in storage racks to markets all over the world. Fast delivery, deep customization skills, and regional deployment support all work together to make sure that projects succeed in a wide range of businesses and locations. Full technical support stays with systems throughout their entire lives, and service teams that are quick to respond keep them running at their best and help with future changes as operating needs change.

Get in touch with our experts at sales@fortuckyrobot.com to talk about how to improve your business. We'll carefully look at how things are done now, suggest custom solutions that balance the need for density with the need for ease, and give you written plans with specifics, timelines, and investment needs. Find out how tried-and-true storage technologies can change the size and efficiency of your building.
