What is the maximum lifting height of an electric stand-on stacker?

An Electric Stand-On Type Stacker can typically lift loads to a height of 5.5 meters, though this depends on the specific model and configuration. More advanced models with triplex mast designs can achieve even greater heights while maintaining safety and stability. The actual lifting capacity depends on the load weight, mast type, and operating conditions. Most industrial-grade stand-on stackers are equipped with hydraulic masts featuring multiple stages, allowing precise height control for smooth warehouse operations.

Understanding Electric Stand-On Stackers and Their Lifting Height

Learn about electric stand-on stackers and how high they can lift.

Bridging the gap between manual tools and full-size forklifts, electric stand-on stackers represent a significant advancement in material handling technology. These machines are highly valued for their versatility and maneuverability, serving as a hybrid between walk-behind units and ride-on equipment.

Core Design and Operational Principles

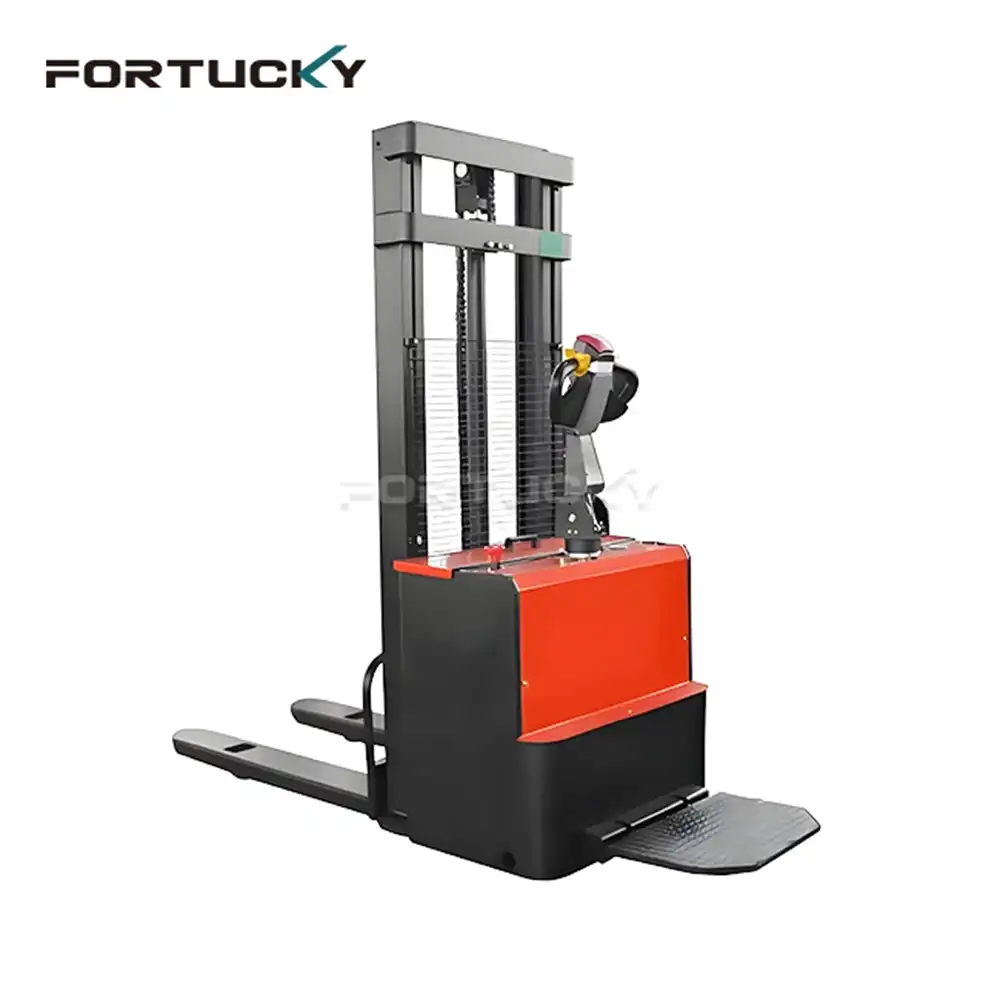

The electric stand-on stacker features a small platform where operators can stand while moving goods, providing better visibility and control than conventional walkie stackers. The electric drive system eliminates emissions and delivers consistent power for both lifting and horizontal transport. This design allows operators to mount and dismount the platform quickly, making it ideal for tasks requiring frequent stops and repositioning.

The space-saving design enables navigation through aisles as narrow as 2.5 meters, maximizing storage space in facilities where every inch counts. The electric lift and drive system significantly reduces operator fatigue, especially during repeated handling over long shifts.

Key Components Affecting Maximum Height Performance

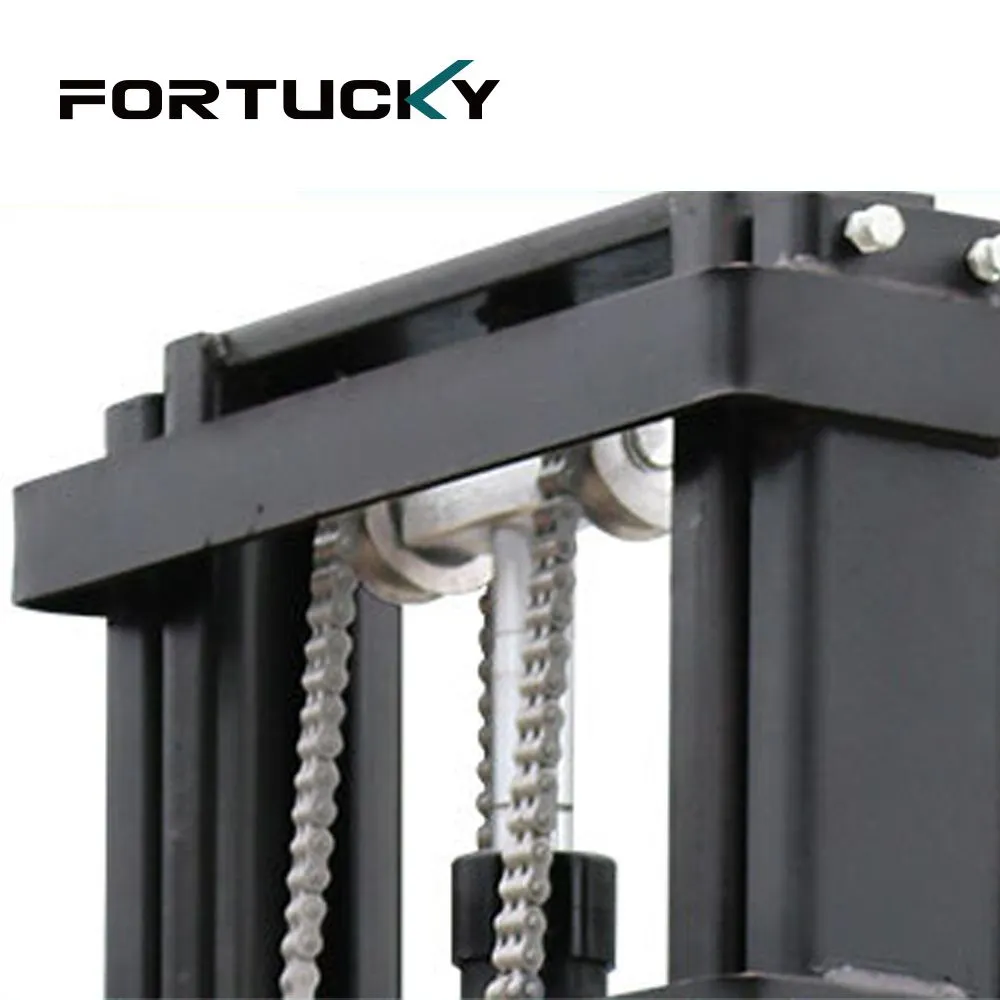

The lifting capability of stand-on stackers depends on several critical components, with the mast assembly being the primary determinant of height performance. Maximum heights are achieved using duplex or triplex mast designs. Duplex masts typically provide lifting heights up to 3.5 meters, while triplex masts can reach 5.5 meters or higher.

The hydraulic system of an elevated electric stacker is very important for reaching great heights. High-pressure pumps and precise cylinders make raising smooth even at full extension. The lifting power is directly related to the battery's volume and voltage. For most uses that need a lot of height, 24V systems are common.

Factors Influencing the Maximum Lifting Height of Electric Stand-On Stackers

The maximum achievable height depends on multiple interrelated factors, creating a complex relationship between performance and safety.

Load Capacity and Height Relationship

A fundamental principle in stacker design is that load capacity decreases as lift height increases. Most stand-on stackers can handle between 1,200 and 2,000 kilograms, with height limits decreasing as load weight rises. This relationship ensures stability and prevents tip-over during lifting operations.

Understanding this balance helps procurement professionals select the right equipment for each task. For safety reasons, warehouses handling heavier loads may need to operate at lower lift heights, while those moving lighter loads can take full advantage of maximum heights.

Mast Technology and Innovation

Modern mast designs utilize advanced technology to achieve maximum height while maintaining structural integrity. Triplex masts feature three telescoping sections, offering a better collapsed-to-extended height ratio than duplex masts. Emerging technologies include reinforced steel construction and precision machining that reduces play between components, ensuring proper alignment at full extension.

Free-lift functionality allows lifting loads off the ground without raising the entire chassis—essential for truck loading and operations in areas with limited overhead clearance. This feature is particularly valuable when maximum lift heights approach facility ceiling limits.

Battery and Power System Impact

The electrical system directly affects lifting performance, especially at maximum heights where hydraulic demand is highest. Lithium-ion batteries are increasingly replacing traditional lead-acid systems due to their consistent power output across discharge cycles, ensuring reliable lifting even as battery charge declines.

Higher voltage systems enable faster and higher lifting, with some premium models featuring 48V setups for demanding applications. Regenerative braking systems capture energy during deceleration, extending battery life and increasing time between charges.

Comparing Electric Stand-On Stackers: Maximum Lifting Height Across Models

Various stand-on stacker models are available, each designed to meet specific height and capacity requirements of different commercial environments.

Stand-On Versus Alternative Configurations

Electric Stand-On Type Stackers offer distinct advantages over walkie and sit-down options in certain situations. Walkie stackers perform well in tight spaces but are less efficient over longer distances due to operator walking requirements. Sit-down forklifts provide greater comfort but need wider aisles and larger turning radii.

Stand-on models offer a superior compromise, delivering faster travel speeds than walkies while maintaining better narrow-aisle maneuverability than sit-down units. This positioning makes them highly valuable in distribution centers where operators must travel significant distances while meeting precise load placement requirements.

Leading Brand Innovations in Height Technology

Major manufacturers have developed unique approaches to increasing lift heights while maintaining operator safety. Toyota's stand-on stackers feature advanced stability systems that monitor load distribution and prevent unsafe lifting operations. Crown's models incorporate built-in height sensors providing real-time feedback to operators and fleet management systems.

Raymond pioneered mast designs that minimize deflection at full extension—critical for accurate load placement in high-density storage systems. Linde focuses on energy-efficient systems that maintain lifting speed at maximum heights.

Premium Versus Budget Model Considerations

Premium stand-on stackers typically offer higher maximum heights, enhanced safety features, and improved operator ergonomics. High-end models include advanced diagnostics, programmable performance settings, and sophisticated stability tracking systems that enable safe operation at maximum heights.

Budget models may not achieve the highest lift heights but provide reliable performance for applications with moderate height requirements. Rather than simply pursuing maximum specifications, matching equipment capabilities to actual operational needs is essential.

Operation, Maintenance, and Safety Tips for Maximizing Lifting Height

Achieving maximum lift height safely requires proper operation, regular maintenance, and strict adherence to safety protocols.

Operator Training and Certification Requirements

Proper operator training is critical when utilizing maximum lift heights, as safety margins decrease with increasing elevation. Training programs should emphasize load assessment, environmental awareness, and emergency procedures related to high-lift operations. Certification often requires demonstrated competence in operating at maximum heights with various loads.

Operators must understand how load center distance affects stability, especially when handling non-standard loads or operating on uneven surfaces. Regular refresher training ensures continued safe equipment use as operators gain experience and confidence.

Critical Maintenance for Height Performance

Maintaining maximum lift height requires close attention to hydraulic system components. Regular inspection of hydraulic fluid levels, seals, and cylinder integrity prevents performance degradation that could limit achievable heights. Mast chains require periodic adjustment and lubrication to ensure smooth operation across all height ranges.

Battery maintenance directly affects lifting performance. Following proper charging procedures and regularly testing battery capacity ensures consistent power delivery. Tire condition impacts stability at height, requiring regular inspection and replacement to ensure safe high-lift operations.

Essential Safety Features and Compliance

Modern electric stand-on stackers incorporate multiple safety features designed to protect operators during high-lift operations. Load backrests prevent loads from shifting toward the operator, while automatic speed reduction systems slow the machine when loads are raised above certain thresholds.

Stability monitoring systems continuously assess vehicle stability, alerting the operator or taking corrective action when unsafe conditions arise. Emergency lowering features enable safe load descent even in the event of system failure—critical for applications requiring very high lifts.

Procurement Guide: Choosing the Right Electric Stand-On Stacker for Your Height Needs

Selecting the appropriate stand-on stacker requires careful evaluation of long-term strategic goals, operational requirements, and facility constraints.

Warehouse Assessment and Requirement Analysis

A thorough study of the warehouse's aisle widths, ceiling heights, normal load characteristics, and operating patterns is the first step to effective procurement of a stand-up type hydraulic stacker. Knowing the difference between peak lifting needs and normal operating needs can help you avoid over-specification and make sure you have the right equipment for tough jobs.

Facility assessments should consider future growth plans and potential changes to storage configurations. Purchasing equipment capable of greater heights than currently needed may provide operational flexibility as warehouse requirements evolve.

Supplier Evaluation and Partnership Considerations

Reliable suppliers offer comprehensive support throughout the equipment lifecycle, from initial specification through ongoing maintenance and eventual replacement. Local repair expertise, parts availability, and technical support quality should all factor into supplier evaluation—especially important for specialized high-lift applications.

Warranty terms and service level agreements become particularly critical when technology is pushed to its performance limits. Understanding coverage limitations and promised response times helps set realistic expectations and determine contingency planning needs.

When evaluating financing options and total cost of ownership, consider how enhanced capabilities can increase productivity. Models with maximum lift heights may carry higher upfront costs, but the additional investment is often justified through labor savings and improved space utilization.

Conclusion

Electric stand-on stackers can lift to heights of 5.5 meters, though actual capabilities depend on mast configuration, load capacity, and safety requirements. These machines represent an optimal choice for modern warehouses due to their height capabilities, maneuverability, and operational efficiency. Understanding the factors affecting height performance enables informed procurement decisions that match equipment capabilities to operational needs. Following proper operating, maintenance, and safety protocols ensures reliable performance at maximum heights.

FAQ

Q1: What determines the maximum safe lifting height for stand-on stackers?

The maximum safe lift height is determined by load weight, mast design, floor surface condition, and the equipment's built-in stability margins. Manufacturers establish height limits after extensive testing across various operating conditions, with safety factors incorporated to prevent tip-over or structural failure.

Q2: How does load capacity affect maximum lifting height performance?

Maximum height and load capacity are inversely related—to maintain stability, lift heights must be reduced for heavier loads. Most electric stand-on stackers come with load charts showing allowable load weights at various lift heights, ensuring safe operation across different scenarios.

Q3: Are there models available that exceed 5 meters in lifting capacity?

Yes, specialized models—typically featuring reinforced mast designs and enhanced stability systems—can achieve lift heights exceeding 5 meters. These machines generally require additional operator training and may impose specific facility requirements regarding floor condition and ceiling height.

Q4: What operational costs should be considered for high-lifting stackers?

Operational costs include energy consumption, maintenance requirements, operator training, and potential facility modifications. Some high-lift models may consume more energy and require more frequent servicing, but increased storage efficiency often offsets these additional costs through higher productivity.

Maximize Your Warehouse Efficiency with Fortucky's Advanced Stacker Solutions

The Electric Stand-On Type Stacker maker in Fortucky makes cutting-edge solutions for moving materials that are designed to work well and be reliable. Our stand-on stackers are electric and easy to operate. They can lift up to 5 tons and have lifting heights between 1.5 and 3.5 meters. Fortucky has the cost-effective answer your warehouse needs. Their designs save room and work well in narrow aisles, and their warranties cover everything. Get in touch with our knowledgeable staff at sales@fortuckyrobot.com to find out how our custom stacker solutions can change the way you handle business and make you more productive.
