What is a mezzanine rack?

Many operations managers find themselves in a tough spot when warehouse space is tight and moving to a larger building isn’t feasible. This frustration is common on factory floors and in distribution centers. The good news? You don’t have to relocate or spend heavily on expensive extensions.  A mezzanine storage rack transforms your building by adding usable levels above the existing floor space. This steel-structured platform provides more storage without expanding the building’s footprint—it’s like building up instead of out. It’s a practical way for businesses to make the most of every square foot while keeping operations smooth and costs low.

Understanding Mezzanine Storage Rack Systems

A mezzanine storage rack is essentially a raised steel platform installed within the frame of your existing warehouse. Unlike standard shelving that only holds items, this system creates an entirely new level of usable floor space. The lower level remains for regular storage, while the upper level can accommodate additional storage, packing stations, sorting areas, or even management offices.

Heavy-duty steel beams and columns support the structure and specialized flooring panels. These panels can handle heavy loads—typically between 300 and 1,000 kilograms per square meter—and distribute weight evenly. Thanks to the modular design, sizes, heights, and configurations can be tailored to your unique needs.

The semi-permanent nature of these systems adds great value. If your business grows or relocates, the entire system can be disassembled and reassembled elsewhere. This flexibility protects your investment over time and allows you to adapt to changing storage needs across different locations or business stages.

The Critical Space Challenge in Modern Warehousing

Warehouse space costs continue to rise in major manufacturing areas. I’ve worked with logistics managers who face this stress daily. Even though many sites use only 70–80% of their storage capacity, they still run out of usable space. The issue isn’t total volume—it’s the wasted vertical space.

Most buildings have ceilings between 20 and 40 feet high, yet typical storage methods utilize only the first 10 to 12 feet. Consequently, huge amounts of space sit empty. This waste directly affects productivity and labor costs for businesses dealing with auto parts, electronics, or consumer goods.

Horizontal expansion requires buying or renting more land, dealing with construction delays that disrupt operations, and relocating goods to farther facilities, which lengthens order fulfillment times. According to the Industrial Storage Association, building a new warehouse in a competitive market costs about $150–$200 per square foot. Vertical expansion via mezzanine systems delivers the same amount of space at 40–60% less cost while keeping operations running smoothly.

Core Features and Functional Design Elements

Modern mezzanine levels include many sophisticated design elements. The base starts with adjustable steel supports firmly anchored to the existing floor. These uprights connect to horizontal beams, forming the skeletal system. Specialized flooring materials—such as steel grates, checker plate, or reinforced plywood—distribute weight. The choice depends on your specific needs.

Industrial-grade stairs provide access between levels. Many designs integrate forklifts, vertical lifts, and conveyor systems to assist with material handling. This integration ensures quick, unimpeded movement of goods between levels.

Safety features are built in: guardrails around edges prevent falls, safety gates control access points, and load capacity signs keep operations safe. The open racking design allows full visibility across the building, helping managers monitor work and spot issues quickly.

Floor load capacity varies by application. Light-duty warehouse mezzanine floor racking supports 300–500 kg/m² for small parts and boxes, while heavy-duty models handle up to 1,000 kg/m² for palletized goods or dense materials. This ensures the system aligns with business needs rather than forcing adaptation to generic solutions.

Engineering and Material Specifications

Accurate engineering is essential for structurally sound multi-level storage. Load-bearing columns use cold-rolled steel shapes that resist bending and remain stable under changing loads. Instead of welding, bolted connections join beams, making future modifications easier and maintaining structural flexibility.

The decking material depends on the application. Steel grating offers excellent ventilation and works well with fire control systems—critical for buildings with sprinklers. Checkered steel plates provide slip resistance and prevent small items from falling through while supporting heavy weights. Reinforced plywood offers smooth surfaces ideal for rolling carts and material handling equipment.

Surface treatments prevent rust in harsh conditions. Powder coating provides long-lasting finishes that withstand temperature changes, humidity, and chemical exposure common in food or pharmaceutical processes. Colors can be customized to aid zone recognition and visual management systems, improving picking accuracy.

Modular construction uses prefabricated parts ready for assembly. Depending on project size and complexity, installation teams typically finish within two to four weeks. This rapid deployment causes far less operational disruption than conventional construction projects that drag on for months.

Strategic Advantages for High-Volume Operations

The main benefit of an industrial storage loft is better space utilization. Without changing their footprint, buildings can double or triple usable space. This multiplication effect relieves capacity constraints immediately and postpones expensive expansion decisions.

Cost efficiency goes beyond initial investment savings. By maximizing existing utilities, climate control, and security systems rather than adding them to new buildings, operating costs drop. Workers become more productive because related tasks are grouped vertically, reducing travel time between distant zones.

Operational freedom increases significantly. You can rearrange storage areas, adjust shelf heights, or repurpose upper levels for different functions as product lines change or seasonal demands shift. This adaptability is invaluable for businesses facing uncertain markets or rapid growth.

Integration with inventory management tools simplifies stock tracking. Modern mezzanine setups incorporate zone markings and location tags compatible with WMS (Warehouse Management System). This connection enables real-time inventory visibility and triggers automatic restocking events, keeping operations flowing smoothly.

These systems provide the physical framework that supports digital transformation for Industry 4.0 initiatives. Robotic guided vehicles can move beneath platforms, and robotic picking systems can operate on upper levels. This multi-level material handling approach optimizes both human and machine resources.

Practical Considerations and Implementation Factors

Modular mezzanine storage systems offer many benefits, but careful planning is essential for success. Obtain structural reports for your existing building. The floor must support additional column loads, and ceiling heights must allow adequate headroom—typically at least 7–8 feet per level.

Building codes and permit requirements vary by location. Most installations need approval from both a building engineer and the fire marshal. Working with experienced companies familiar with these regulations helps you avoid costly delays and future compliance issues.

Workflow design requires careful thought to integrate with existing processes. The planning phase must analyze material flow, picking methods, and equipment accessibility. I’ve seen systems that fit perfectly in technical terms but proved frustrating to use because traffic patterns weren’t properly considered upfront.

Initial investment depends on project size and specifications. Simple systems cost $35–$50 per square foot of added space. More complex setups designed for heavy loads and advanced material handling can range from $80–$120 per square foot. Even so, these figures represent significant savings compared to other building expansion options.

Maintenance requirements are low but still important. Annual inspections verify structural integrity, tight connections, and functional safety equipment. These precautions ensure long-term reliability and worker safety.

Comparing Storage Solutions: Finding the Right Fit

The main vertical storage alternatives to mezzanine systems are high-bay shelving and automated storage and retrieval systems (AS/RS). Each approach involves different trade-offs.

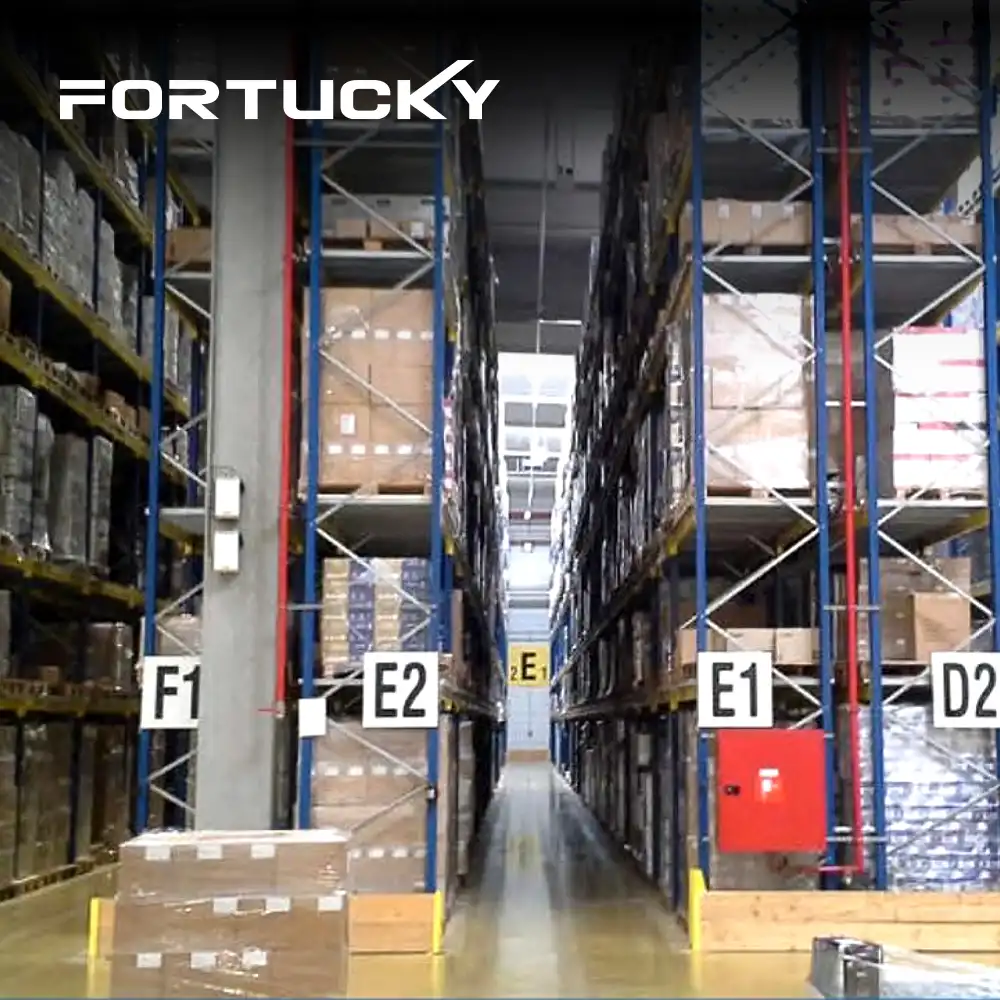

High-bay pallet racking, using narrow aisles and specialized lift trucks, maximizes vertical space. This method works well for palletized inventory with limited SKU variety. However, it requires significant investment in material handling equipment and offers less flexibility for mixed product types or manual piece picking.

AS/RS technology achieves high throughput and accuracy through fully automated storage and retrieval. These systems excel when many repetitive tasks demand speed and precision. The downsides are much higher upfront costs (3–5 times that of mezzanine options) and less adaptability as operational needs change.

Steel mezzanine platforms offer a balanced compromise among space expansion, operational flexibility, and budget. They handle diverse goods, work with both manual and automated processes, and can grow incrementally as needed. This flexibility is especially valuable for medium to large businesses dealing with complex product mixes such as auto parts, electronics, and industrial equipment.

Ideal Applications Across Industry Sectors

Mezzanine systems shine in several practical scenarios. E-commerce fulfillment centers benefit greatly by grouping picking, packing, and sorting tasks across multiple levels. Mass storage occupies lower levels, while value-added services like kitting, labeling, and quality checks often occur on upper stages.

Automotive and electronics manufacturers use these systems to keep parts inventory close to production lines. Raised storage makes parts easily accessible without consuming valuable factory floor space. Quick access to bins of small parts, fasteners, and subassemblies reduces production line downtime and speeds up assembly.

Pharmaceutical and chemical companies appreciate the ability to segregate products based on temperature requirements, regulatory classifications, or hazard categories. Modular elevated storage enables precise environmental zones within a single building, easing compliance and reducing cross-contamination risk.

Cold chain logistics operators maximize refrigerated spaces—the most expensive storage areas. Adding vertical space to existing cold rooms yields a better return on investment than expanding cooled square footage. Controlled environment characteristics remain consistent across levels, preserving product integrity throughout storage.

Conclusion

Investing in a well-designed mezzanine storage rack system allows warehouse operators to achieve vertical growth, capacity gains, and operational flexibility. These platforms deliver lower costs and long-term competitive advantages, supporting rapid expansion, digital transformation, and optimal use of existing facilities. The key is to partner with experienced providers who understand both technical and operational considerations.

Frequently Asked Questions

Q1: How much weight can a typical mezzanine storage rack support?

A: Load capacity depends on structural design and intended use. Standard configurations handle 300-500 kg per square meter for light goods and carton storage. Heavy-duty systems designed for palletized inventory or dense materials support 800-1000 kg per square meter. During the design phase, engineers calculate exact capacities based on your specific inventory characteristics, material handling equipment, and safety factors. Proper load rating ensures safe operations and prevents structural issues over the system's lifespan.

Q2: Can mezzanine systems integrate with existing warehouse automation?

A: Yes, modern platforms accommodate various automation technologies. Conveyor systems can route products between levels, vertical lifts handle palletized goods, and robotic picking stations operate on upper platforms. The key is planning these integrations during initial design rather than retrofitting later. Coordination between structural engineers and automation specialists ensures proper clearances, power distribution, and control system connectivity. Many facilities successfully combine mezzanine platforms with WMS, WCS, and MES systems for seamless operational flow.

Q3: What timeline should we expect from design to full operation?

A: Project timelines vary based on scale and complexity. Simple installations spanning 5,000-10,000 square feet are typically completed within 6-10 weeks from final design approval. This includes engineering, permitting, manufacturing, delivery, and installation. Larger projects or those requiring extensive automation integration may extend to 12-16 weeks. The modular construction approach minimizes on-site work compared to conventional building projects. Most installations allow continued operations in unaffected warehouse areas, reducing business disruption during implementation.
