Ultra-high Stacker

The maximum lifting height of the ultra-high stacker is 45 meters. The column adopts a unique cavity design to enhance the rigidity of the column, reduce deflection, and reduce the overall shaking amplitude of the column; the processing technology is upgraded to ensure the straightness of the entire column body to be guaranteed within ±3mm; To facilitate transportation and installation, the main body is divided into 5 major parts, and the upper crossbeam is integrated with the upper part of the column to further reduce the weight of the upper part of the column and reduce the shaking of the top of the column; the connection structure design is strengthened, and a unique bolt arrangement method and bolts with appropriate strength and stiffness are used for connection.

Send Inquiry

Download

Product Description

Ultra-high Stacker: Revolutionary 45-Meter Automated Storage Solution

Fortucky's Ultra-high Stacker represents the pinnacle of automated warehouse technology, engineered to reach extraordinary lifting heights up to 45 meters. This advanced system features a unique cavity-designed column structure that enhances rigidity while reducing deflection and overall shaking amplitude. With upgraded processing technology ensuring column straightness within ±3mm tolerance and innovative modular design divided into 5 major components, this product delivers unmatched precision and reliability for your high-density storage operations.

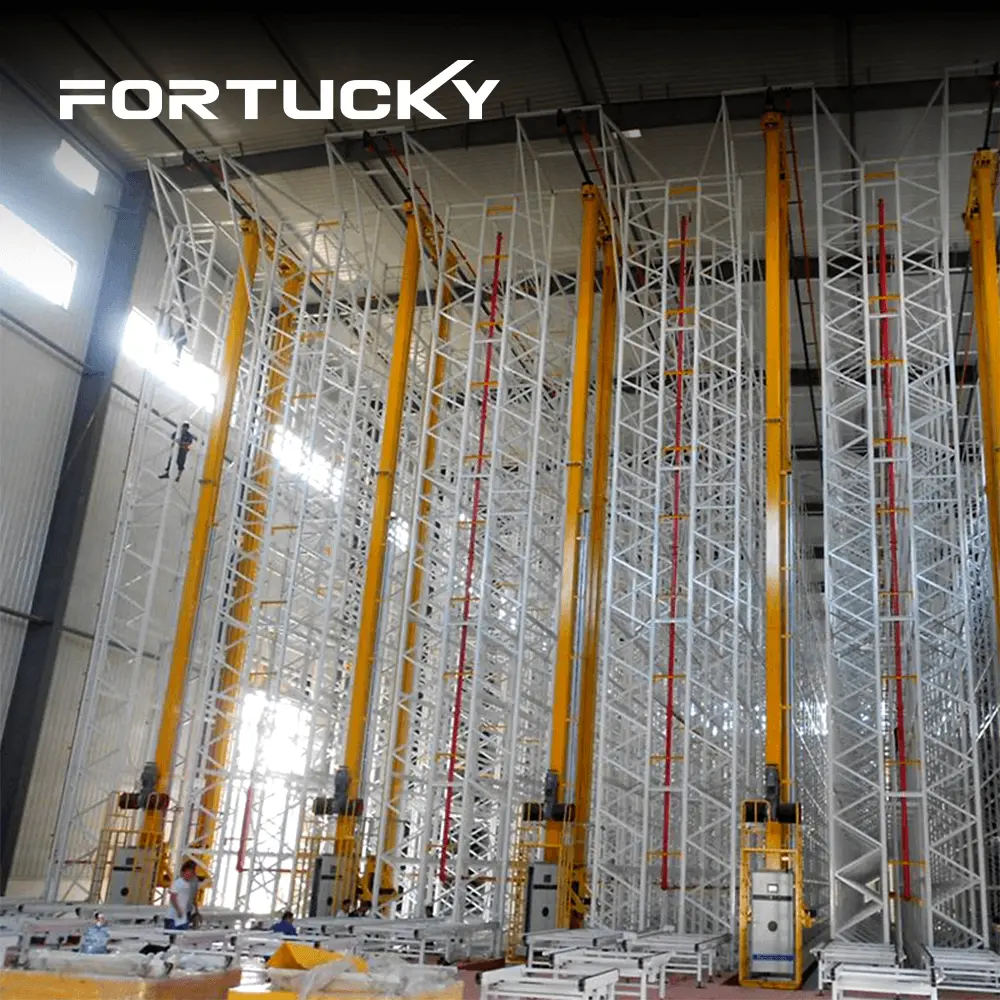

product-1-1

Advanced Engineering for Maximum Performance

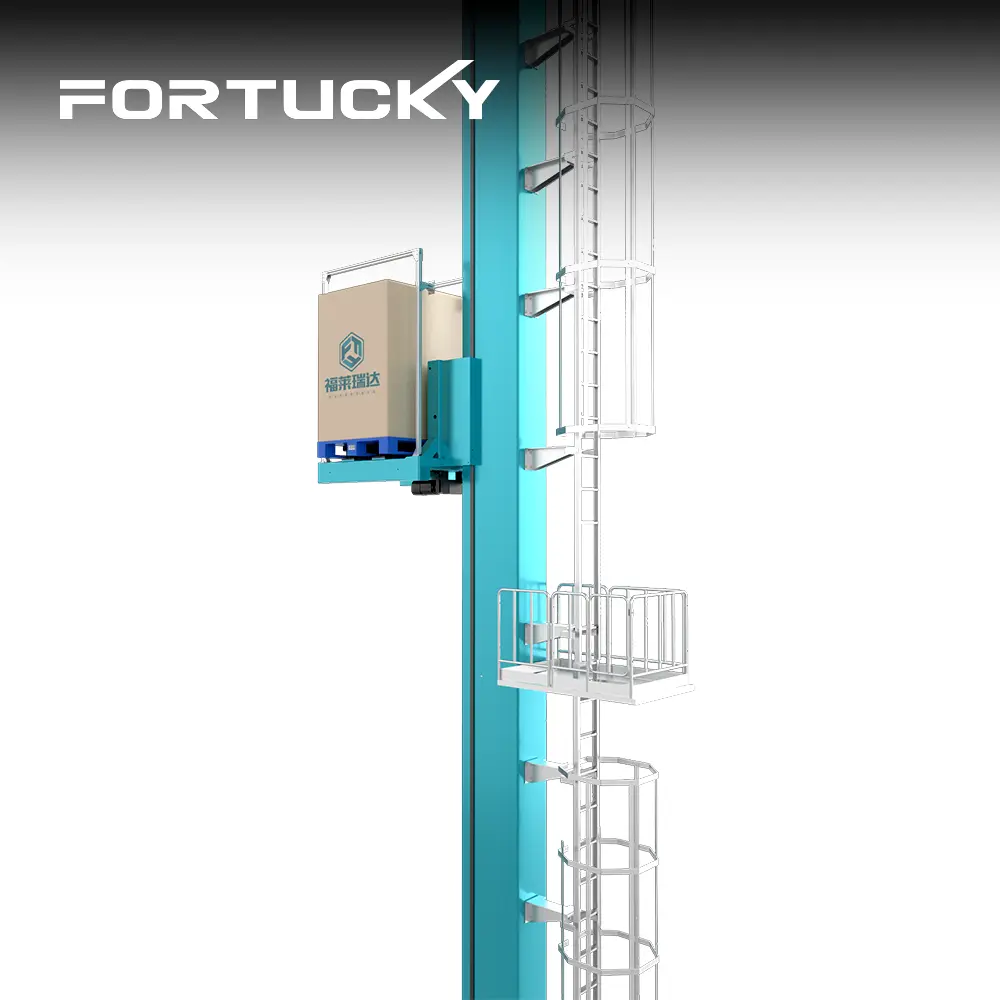

Innovative Column Design

Your warehouse deserves technology that pushes boundaries. Our ultra-high stacking system incorporates a revolutionary cavity column design that significantly enhances structural rigidity. This engineering breakthrough reduces deflection and minimizes shaking throughout the entire lifting process.

The upgraded processing technology ensures exceptional precision. Every column maintains straightness within ±3mm tolerance across its entire height. This level of accuracy is crucial when you're operating at extreme heights where even minor deviations can impact performance.

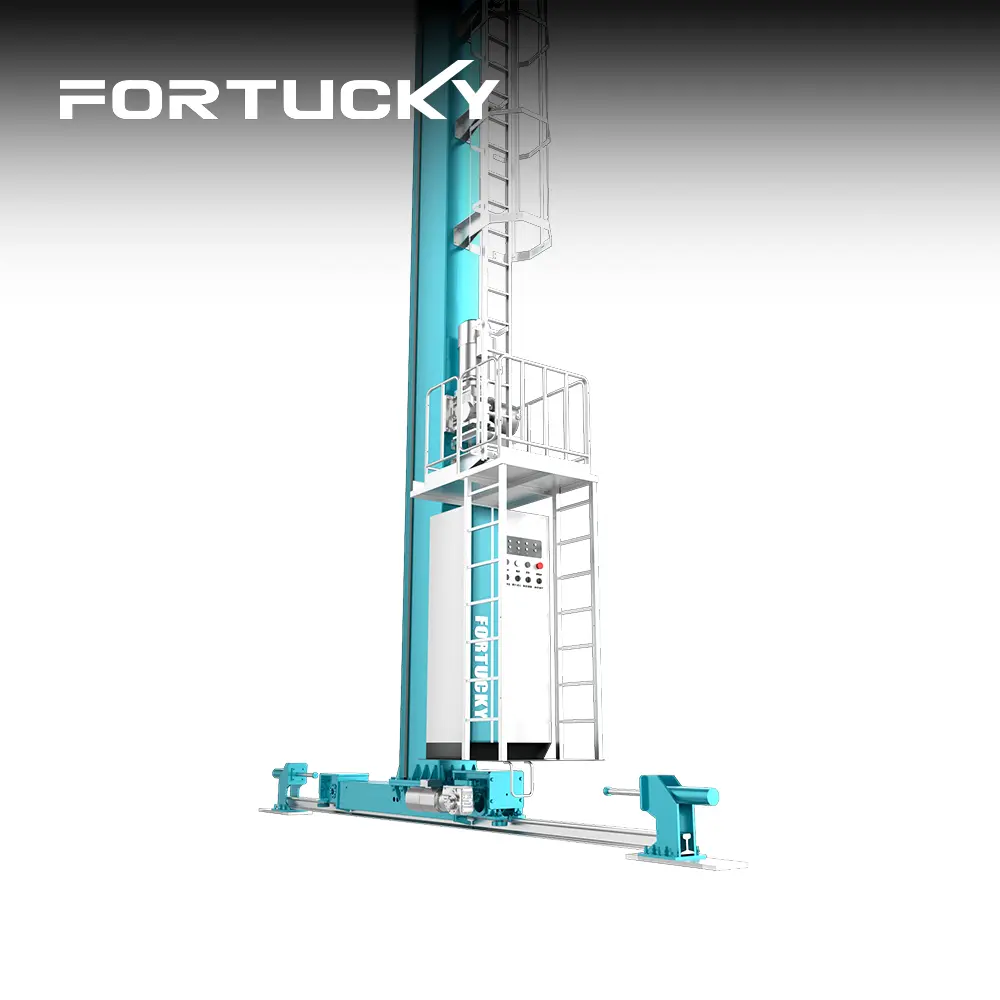

Modular Construction Benefits

Transportation and installation become manageable with our thoughtful modular approach. The main body divides into 5 major components for easier handling. The upper crossbeam integrates seamlessly with the upper column section, reducing top-heavy weight distribution and minimizing column tip oscillation.

Our reinforced connection structure uses a unique bolt arrangement method. High-strength, high-rigidity bolts ensure secure connections between all components. This design philosophy guarantees long-term structural integrity under demanding operational conditions.

Production Process

Certificate Display

Patent Honor Display

Technical Specifications

Parameter	Specification
Maximum Height	≤45m
Rated Load Capacity	≤1000kg
Walking Speed	≤180 m/min
Walking Acceleration	0.5 m/s²
Lifting Speed	≤60 m/min
Lifting Acceleration	0.5 m/s²
Fork Speed	≤30/60 m/min
Fork Acceleration	0.5/1 m/s²
Positioning Accuracy	≤±3mm
Operating Temperature	-25°C to +65°C
Operation Modes	Manual/Stand-alone/Connected/Maintenance
Assignment Types	Single cycle/Compound cycle

Superior Performance Features

Ultra-High Capabilities

Reaching 45 meters represents international cutting-edge technology. Your facility gains access to unprecedented vertical storage capacity. This height capability transforms how you approach warehouse design and inventory management.

Enhanced Speed Operations

Comprehensive optimization delivers faster performance across all movement axes. Walking, lifting, and acceleration systems receive thorough upgrades. Every motion contributes to improved overall throughput and operational efficiency.

Triple-Level Safety Protection

Safety remains paramount at extreme heights. Our system provides mechanical, electrical, and software protection layers. The XYZ three-dimensional interlocking anti-collision design prevents accidents from any direction.

Wide Application Versatility

Your specific environment requirements are met through robust adaptability. Low temperature, explosion-proof, and confidential environments pose no challenges. Industries including aerospace, chemical, food, and pharmaceutical benefit from this flexibility.

Industry Applications

Cold Storage Operations

Frozen food logistics benefit enormously from vertical density maximization. Refrigeration costs scale with cubic volume, making height utilization economically advantageous. Our temperature-resistant components operate reliably in -25°C environments.

Automotive Distribution Centers

Heavy automotive components require robust handling capabilities. Engine blocks, chassis parts, and transmission assemblies need reliable vertical transport. The 1000kg capacity handles these demanding loads with confidence.

Pharmaceutical Storage

Strict FIFO requirements and contamination prevention make automation essential. The Ultra-high Stacker integrates seamlessly with warehouse management systems. Precise tracking and controlled access protect valuable pharmaceutical inventory.

Full Life Cycle Services

FAQ

Q: What makes this stacker suitable for ultra-high applications?

A: The unique hollow column design enhances rigidity while reducing weight. Advanced processing technology maintains straightness within ±3mm tolerance. These engineering innovations ensure stable operation at 45-meter heights.

Q: How does the system maintain precision at extreme heights?

A: Multiple factors contribute to exceptional accuracy. The reinforced column structure minimizes deflection. Upgraded control systems compensate for environmental factors. Positioning accuracy remains within ±3mm throughout the operational range.

Q: What safety measures protect operations at height?

A: Triple protection layers provide comprehensive safety coverage. Mechanical systems prevent physical damage. Electrical systems monitor operational parameters continuously. Software systems coordinate all safety functions intelligently.

Q: Can the system operate in harsh environments?

A: Absolutely. The temperature range spans -25°C to +65°C. Explosion-proof configurations suit hazardous environments. Special coatings protect against corrosive atmospheres when required.

Q: How does modular design benefit installation?

A: The 5-component design simplifies transportation logistics. Smaller sections fit standard shipping containers. On-site assembly becomes more manageable. Reduced crane requirements lower installation costs.

Q: What maintenance access is provided?

A: Service platforms provide safe technician access. Maintenance modes allow controlled system operation. Component accessibility receives careful design consideration. Regular service becomes straightforward and efficient.
