Do scissor lifts use hydraulics?

Scissor lifts extensively use hydraulics as their primary lifting mechanism. Manual hydraulic scissor lift systems operate through a hand or foot-operated hydraulic pump that pressurises hydraulic fluid, which then flows into cylinders to extend pistons and raise the scissor arms. This hydraulic principle provides controlled, precise lifting without requiring electrical power, making these lifts ideal for warehouses, manufacturing facilities, and logistics operations where reliability and portability are essential.

How Do Scissor Lifts Use Hydraulics to Operate?

Pascal’s law states that pressure applied to a confined fluid is transmitted equally throughout the system. This creates a strong lifting force with minimal operator effort—the core reason hydraulic scissor lifts remain the preferred material handling solution in countless industrial workplaces.

Core Hydraulic Components and Their Functions

Several key components work together to ensure smooth, controlled lifting:

• Hydraulic pump – operated by foot pedal or hand lever; moves fluid from the reservoir to the cylinder.

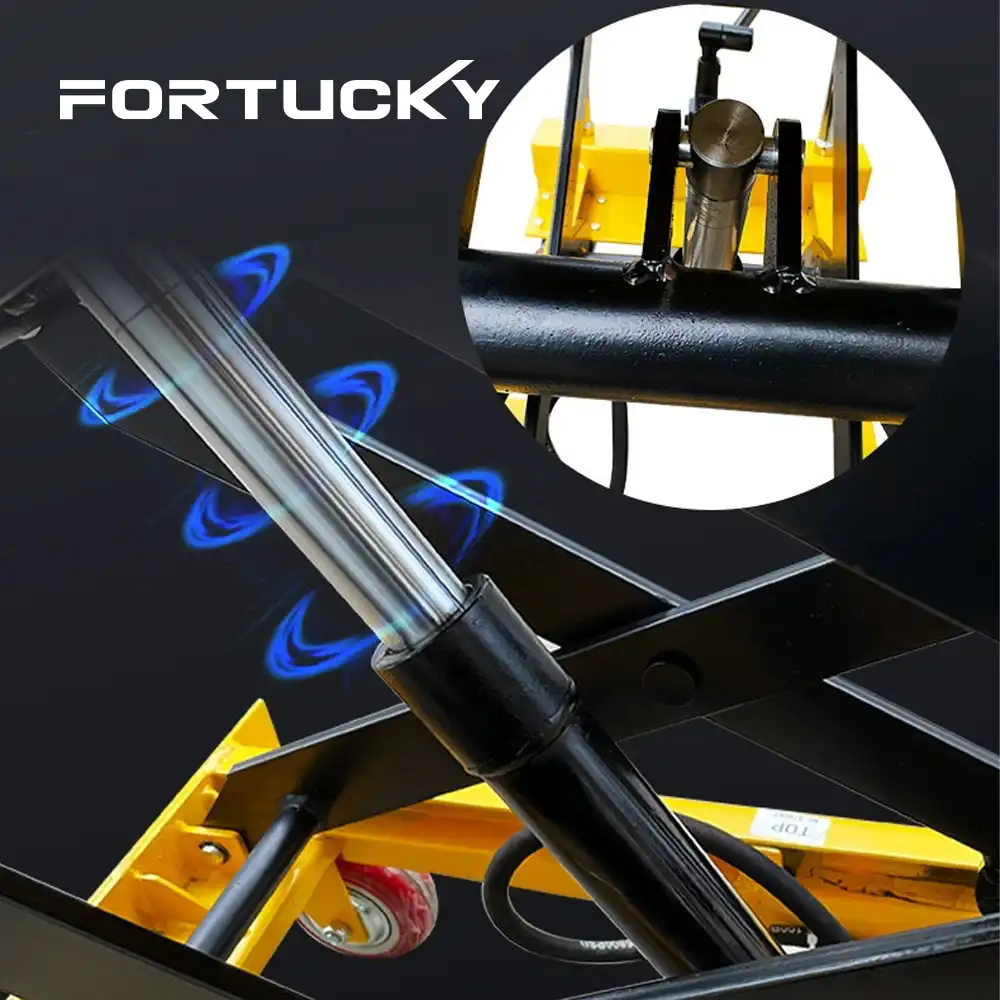

• Cylinder & piston – pressurized fluid extends the piston, pushing against the scissor mechanism to raise the platform.

• Release valve – allows controlled fluid return to the reservoir for safe lowering.

• Overload relief valve – prevents system damage when weight limits are exceeded.

• Sealed reservoir – keeps fluid clean for long-term reliability.

Step-by-Step Operation Process

There is an easy way to use a hydraulic scissor lift that keeps the operator safe and in charge. Someone puts the load on the lift and makes sure the weight is spread out properly across the platform. By pushing the hydraulic pump over and over, the platform is raised slowly until it reaches the right height. When the scissor arms are fully extended, they stay in place because they can be managed.

When you want to lower the platform of a work platform maintenance hydraulic lift, carefully open and close the valve. In this way, the hydraulic fluid can slowly go back to the tank. This managed plunge keeps things from falling quickly, which could damage things or put people in danger. The entire process shows that hydraulic technology is reliable and doesn't need complicated power systems or compressed air.

Benefits of Using Manual Hydraulic Scissor Lifts in Industrial Settings

A lot of good things happen when you use hydraulic scissor lifts. They can help production and transportation companies directly with problems that come up during normal business. Because of these benefits, efficiency, cost control, and safety at work all get better over time.

Cost-Effectiveness and Operational Efficiency

Hydraulic scissor lifts are more cost-effective than other types of tools when you add up all of their costs. Since these units don't need any power tools, they don't cost anything to set up and don't use any energy at all. The hydraulic system is well-made, so it doesn't need much upkeep. This means that it works better and costs less to repair.

When used in high-frequency industrial settings, manual hydraulic scissor lift models last a very long time. The design is made of stronger steel, and the hydraulic parts are sealed so they can work well in harsh circumstances. Anything from moving small parts to big palletised goods can be done with loads weighing between 150 kg and 1500 kg.

It saves even more money because these lifts are simple to move. A 20-foot container can hold up to 192 units of small types like the PT150. For sellers and big buyers, this means that shipping costs are a lot lower. Since they are small, they can be stored and sent out quickly because they can fit in the small spaces that are popular in modern stores.

Enhanced Mobility and Versatility

Hydraulic scissor lifts are the best choice when you need to move things around a lot and work with them in different ways. It's easy to get through small places and around things because it has four wheels with swivel feet. These mobile units are different from set lifting equipment because they can be moved around to fit different production line plans and changes in workflow throughout the year.

A lot of people can use power cords, so they can work in places that don't have electricity, like outdoor loading docks and temporary work sites. As the building grows or in an emergency, hydraulic lifts are very useful because they don't need to be plugged into an outside power source.

Comparing Manual Hydraulic Scissor Lifts with Other Lift Types

If you want to pick the right strategy tools, you should look at all the pulling technologies out there and figure out which ones will work best for each job. When buying teams use this comparison, they can make smart decisions that boost performance and bring back more money.

Hydraulic vs. Electric Scissor Lifts

Although electric scissor lifts can be set to work automatically, this can make them more complicated and less reliable, which may not be ideal for all needs. It's faster to use electric types because all you need is a push button, but they need to be plugged into a power grid and have their batteries maintained regularly. They also need specialised service support. The price at first is usually 30–50% higher than for hydraulic choices. Electrical and maintenance costs that keep coming up add to the total cost of ownership.

In rough places where dust, water, or changes in temperature could hurt electrical parts, hydraulic types work better. Since hydraulic systems are technically simple, there aren't many places where things can go wrong. They can also be fixed on the job site with common tools and new, easy-to-find parts.

Performance Comparison with Pneumatic Systems

For pneumatic scissor lifts to work, they need places to store compressed air. This makes them harder to install and costs more to run. For pneumatic systems to work more easily, the air quality and pressure must stay stable. This means that they need to be filtered and dried on a frequent basis.

Manual hydraulic scissor lift systems don't have these problems, but they still do a good job of lifting. You can fine-tune the speeds of lifting and lowering with the hydraulic system. Since the pressure doesn't change as it does in gas systems, it's safe to work with fragile materials.

Advantages Over Standard Hand Pallet Trucks

Traditional hand pallet trucks are great for moving things from side to side, but they can't lift things vertically, which makes them less useful for moving things around easily. This need is met by hydraulic scissor lifts, which can move around and change working heights. This makes them work better and keeps the user from getting tired.

Different types of hydraulic scissor lifts, like the PTD1500, can lift to 4000 mm. This lets you get to storage areas that are up high and work areas that have more than one level. With this feature, you don't need to carry around different moving tools, and you can still move things around easily by hand.

Choosing the Right Manual Hydraulic Scissor Lift for Your Business

Before you buy tools, you should carefully compare their technical specs to what you need for your job. This thorough approach will always give you the best results and the best return on your investment, no matter what market you're in.

Capacity and Dimensional Considerations

When you pick a load capacity, you should think about both the heaviest weights that could be used and the average weights that will be used. For light construction work and moving parts around, the PT150 type is good. It can hold up to 150 kg. On the other hand, the PTD1500 type can hold up to 1500 kg of heavy items on pallets. The working height is used to figure out the pulling range. The sizes range from 720 mm to 4000 mm, which is wide enough for most business needs.

When it comes to how safe loads are and how much room workers have, platform size is very important. Platforms that are 700x450mm on the PT150 model are big enough for small parts and tools. Platforms that are 1200x610mm on heavy-duty models can hold normal boxes and large materials. If you know how these measurements relate to each other, you can make sure that your standards are correct and that everything fits together well.

Technical Specifications and Model Selection

The PTS500A type has a pulling range of 280 to 850 mm and can hold up to 500 kg. It is the best example of well-balanced performance for medium-duty jobs. A low lifting height is enough for most storage and moving chores in a warehouse, so this measure works well for many of those jobs. The 815x500x50mm worktable can hold a lot of different container sizes and sets of tools.

These days' types, like the PTD350A, can lift to 1580 mm and still hold up to 350 kg, which makes them useful for jobs that need to reach higher. The reinforced construction and sealed hydraulic components ensure reliable performance in demanding industrial environments where manual hydraulic scissor lift equipment must operate continuously across multiple shifts.

Supplier Evaluation and Support Services

When you buy tools, you should not only look at the basic specs; you should also think about what the seller can do and what help services they offer. Manufacturers that have been around for a while offer full insurance, easy-to-find new parts, and expert help that keeps things going as easily as possible. Access to the service network is very important when you need to support processes in more than one place that need to follow the same rules.

Making sure their goods are effective and safe for users is important to the company, as shown by quality certificates and following international safety standards. With these certificates, procurement teams can be sure that the tools will work, and they also help different types of businesses meet their legal responsibilities.

Maintenance and Safety Tips for Manual Hydraulic Scissor Lifts

If you fix things the right way and follow safety rules, your tools will work better, last longer, and keep the people who use them safe. It is important that these guidelines cover both preventative maintenance and safety problems when working in an industrial setting.

Routine Maintenance and Inspection Procedures

As part of daily checks for a work platform maintenance hydraulic lift, the hydraulic parts, the condition of the platform, and the wheels' usefulness should all be checked. The amount of hydraulic fluid needs to be checked often to make sure it is right. To get the most out of your machine, you should use ISO VG32 hydraulic fluid. The sealed hydraulic system design keeps the pressure the same during operation and lowers the chance of leakage.

Parts that move are oiled, wheel bearings are checked, and structural parts are looked at for damage or signs of wear every month. It doesn't rust because it's made of stronger steel and has a powder-coated finish. But cleaning it often gets rid of dirt that could slow down the system or shorten the life of its parts.

Safety Protocols and Operational Guidelines

Following the load limit is still the most important safety measure, and overload escape valves keep the structure from becoming too weak from too much weight. When operators load, they need to know how to do it right so that the weight is spread out properly on the platform. In this way, the base stays stable during the lifting motion and doesn't fall over.

The person in charge needs to know how to use hand-release devices that are separate from the main hydraulic system so that emergency lowering can happen. This makes it safe for the platform to fall, even if the hydraulic system stops working. This keeps things and people on the platform safe from moving quickly.

As part of their training, workers should learn how to stand up straight, secure their loads, and look out for potential risks in a range of work environments. Safety training classes go over the right way to do things on the job and include things that have been learned from past jobs.

Conclusion

Manual hydraulic scissor lifts offer reliable, cost-effective vertical material handling without electrical dependency. With capacities from 150 kg to 1500 kg and lifting heights up to 4000 mm, they serve applications from light assembly to heavy industrial use. Proper selection, regular maintenance, and adherence to safety protocols ensure long service life and strong ROI.

FAQ

Q1: Do all scissor lifts use hydraulic systems?
No. Electric scissor lifts use battery-powered motors, and pneumatic models use compressed air. However, hydraulic systems dominate the market due to reliability, cost-effectiveness, and power independence.

Q2: What load capacities are available?
Manual hydraulic scissor lifts typically range from 150 kg to 1500 kg. Fortucky’s PT150 handles 150 kg; the PTD1500 and PTS1500 handle up to 1500 kg.

Q3: How do I determine the right lifting height?
Consider storage rack heights, work surface levels, and ergonomic needs. Standard models reach 720–850 mm; heavy-duty models like the PTD1500 reach up to 4000 mm for high-bay access.

Q4: What is the recommended maintenance schedule?

• Daily: Fluid level, platform, wheels

• Monthly: Lubrication, structural inspection, safety valve test

• Annual: Replace hydraulic fluid, inspect seals, full component examination

Q5: Can these lifts operate without electricity?
Yes. Manual hydraulic lifts require no electrical power, making them ideal for remote locations, power outages, or outdoor loading docks.

Partner with Fortucky for Advanced Manual Hydraulic Scissor Lift Solutions

Discover how Fortucky's comprehensive range of manual hydraulic scissor lift systems can transform your material handling operations. Our engineering team brings decades of experience serving Fortune 500 companies across automotive, electronics, and manufacturing sectors, delivering customised solutions that optimise efficiency and reduce operational costs. With load capacities from 150 kg to 1500 kg and lifting heights to 4000 mm, our product portfolio addresses diverse industrial requirements while maintaining the highest quality standards. As a trusted manual hydraulic scissor lift manufacturer, we provide rapid delivery, deep customisation capabilities, and localised support services backed by our global service network spanning Asia, Europe, and the Americas. Contact our specialists at sales@fortuckyrobot.com to explore how our proven solutions can enhance your warehouse automation and material handling efficiency.
