How a Hydraulic Scissor Lift Table Works

A manual hydraulic scissor lift converts human force into hydraulic pressure to raise heavy loads. The operator uses a hand pump or foot pedal to pressurize hydraulic fluid inside a sealed cylinder. This pressure extends a piston connected to a set of scissor-type linkages, which expand in a diamond pattern to lift the platform smoothly and safely. This completely power-independent design makes manual hydraulic scissor lifts essential for warehouses, production lines, and logistics operations where reliable vertical positioning is required without electricity.

What Is a Manual Hydraulic Scissor Lift and How Does It Work?

The basic structure consists of several interconnected components:

• Hydraulic pump – operated by a foot pedal or hand lever.

• Sealed hydraulic cylinder – contains oil that transmits pressure.

• Scissor arms – arranged in a diamond-shaped linkage pattern.

• Base and platform – with integrated wheels for mobility.

When the pump is activated, hydraulic oil flows into the cylinder, pushing the piston outward. This forces the scissor arms to spread horizontally, raising the platform. The design ensures stable, controlled motion and even load distribution across the base.

Hydraulic System Operation

Pascal's principle states that pressure applied to a confined fluid is transmitted equally throughout the system. When the hand pump operates, it creates a pressure differential that moves fluid into the cylinder. Release valves allow controlled lowering, giving operators precise load placement.

Modern designs include safety interlocks and pressure release devices in telescopic manual handling lift systems to keep the system from being overloaded and to make sure it works safely. For best performance in the wide range of temperatures found in industrial settings, these devices usually use ISO VG32 hydraulic fluid.

Benefits and Key Advantages of Manual Hydraulic Scissor Lifts

1. Cost-Effectiveness

Compared to battery-powered or electric lifts, manual hydraulic models offer:

• Lower initial purchase price (no electrical components)

• Reduced operating costs (no charging or power consumption)

• Minimal maintenance (only fluid checks and occasional lubrication)

They also operate independently of external power, ensuring functionality during blackouts or in remote areas with limited electricity infrastructure.

2. Operational Flexibility & Mobility

Compact dimensions and built-in casters allow easy movement between workstations. Unlike larger powered equipment, manual scissor lifts can navigate tight aisles and narrow doorways. Single-operator capability reduces labor costs, and intuitive controls require minimal training.

3. Safety Features

• Overload protection – prevents exceeding rated capacity

• Manual release valve – enables emergency lowering

• Stable platform – distributes load evenly

• Fewer failure points – compared to complex electrical systems

These features make manual hydraulic lifts especially valuable in high-frequency industrial environments where reliability directly impacts worker safety and productivity.

Comparing Manual Hydraulic Scissor Lifts with Other Lift Types

When buying lifting tools, it's important to carefully weigh the pros and cons of different technologies based on the needs of the business. Figuring out competitive benefits helps businesses choose the best ways to handle their material handling problems.

Manual vs. Electric Hydraulic Systems

Electric hydraulic systems can lift things faster and with less effort from the person, but they are more complicated because they need electrical parts and power. When power isn't always available or when straightforward maintenance procedures are desired, manual hydraulic scissor lift options shine.

When it comes to medium-duty uses, manual methods that can handle loads between 150 kg and 1500 kg are often the best choice. While electric versions may have better capacities, they come with much higher costs to buy and run.

Pneumatic and Forklift Alternatives

Pneumatic lifting systems need infrastructure for compressed air, which limits how they can be used compared to hydraulic units that can be used on their own. Pneumatic systems may have faster cycle times, but they are more complicated because they need to be supplied with air and have systems to control the pressure.

Forklifts are more mobile and can carry more, but they need to be operated by trained people and maintained regularly. They also need a lot of floor space to move around. For stable lifting tasks, hydraulic platforms are more accurate and take up less space in the building.

Space and Environmental Considerations

In warehouses and factories, space limitations often make it hard to choose the right tools. Hydraulic platforms can be easily added to current plans because they don't need their own working areas or special floor preparations. Because they don't make a lot of noise, they can be used in places where hydraulic or combustion-powered options would be too loud.

Fortucky's Manual Hydraulic Scissor Lift Series Specifications

Knowing what a product can do in particular helps you make smart purchasing choices that meet business needs. Fortucky's complete line of manual moving platforms can be used in a wide range of businesses to move different types of materials.

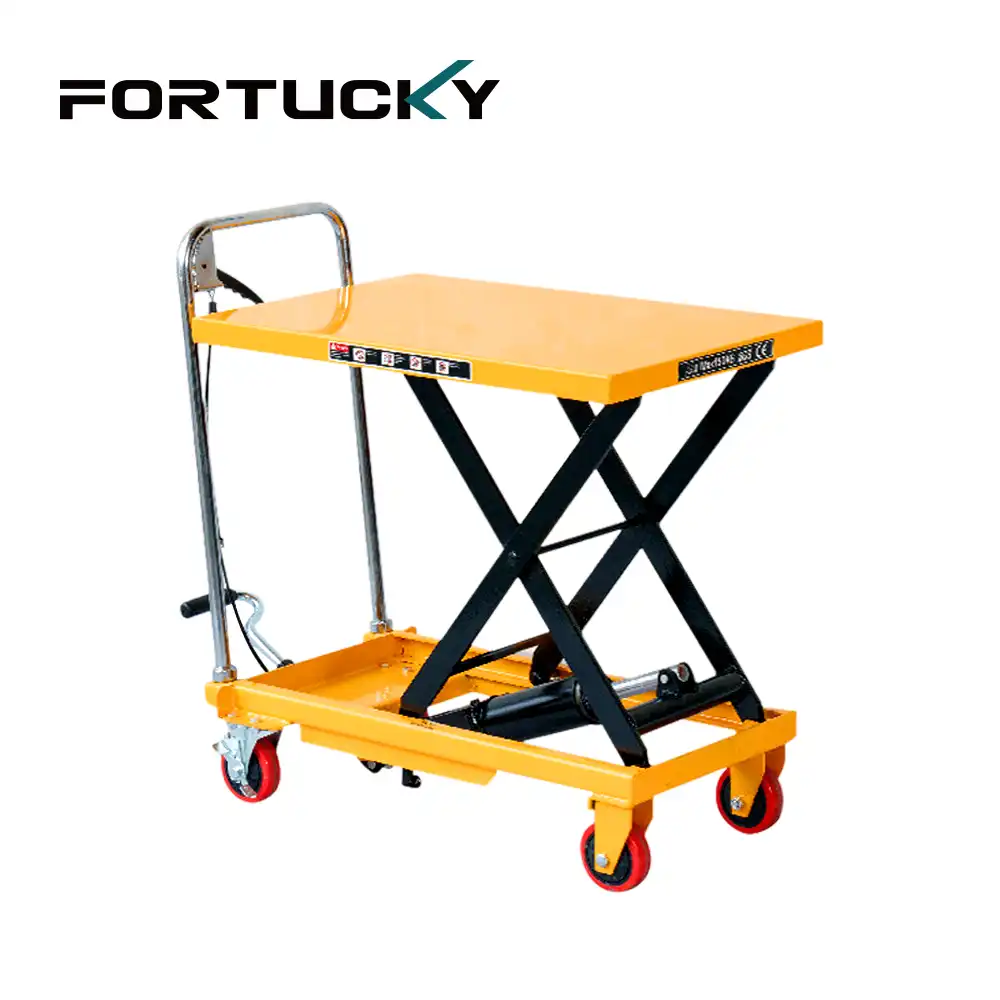

There are five different types in the line, each made to meet different load and height needs. The PT150 model can lift lighter loads of up to 150 kg and has a range of 210 to 720 mm, which makes it perfect for light packing and putting together small parts. Its small 700x450x35mm worktable size is good for users with limited space.

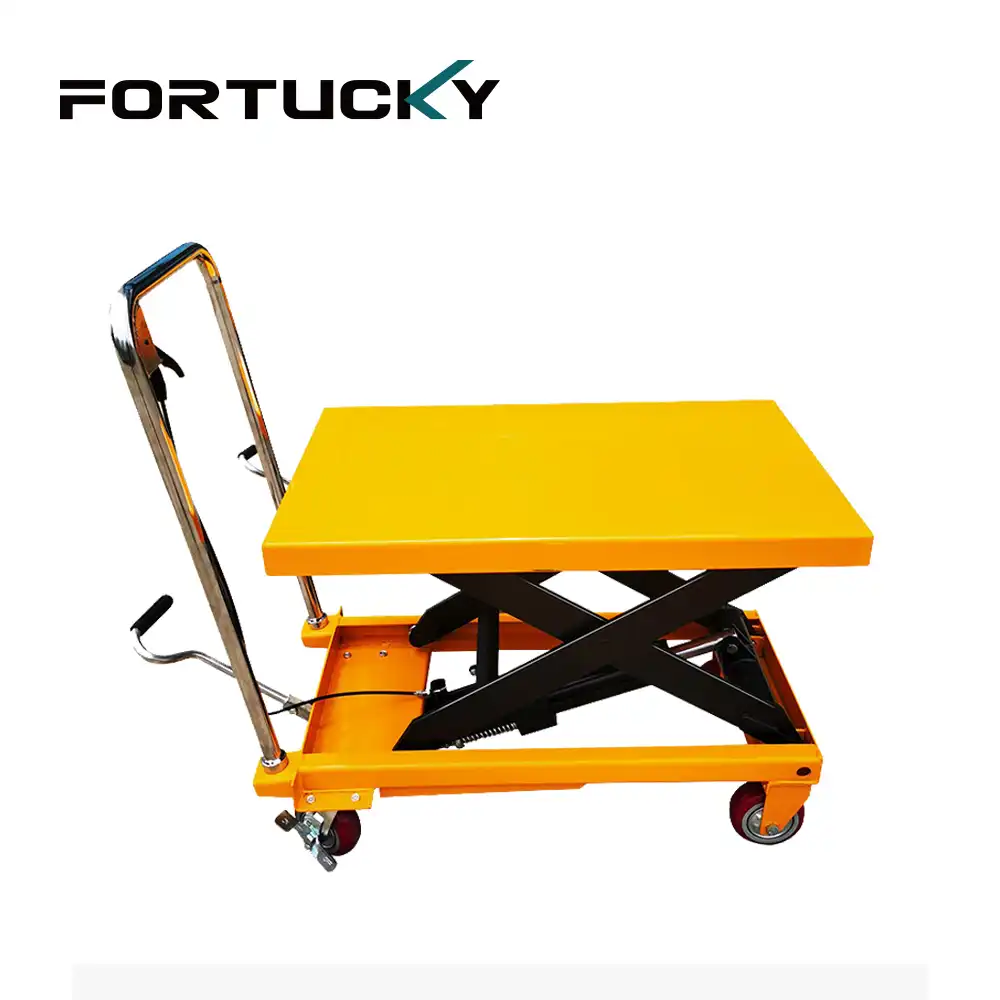

The PTS500A type is in the middle price band. It can lift to 500 kg and has a longer lifting range of 280 to 850 mm. The 815x500x50mm platform has more surface area for bigger parts while keeping the total size doable for facility integration.

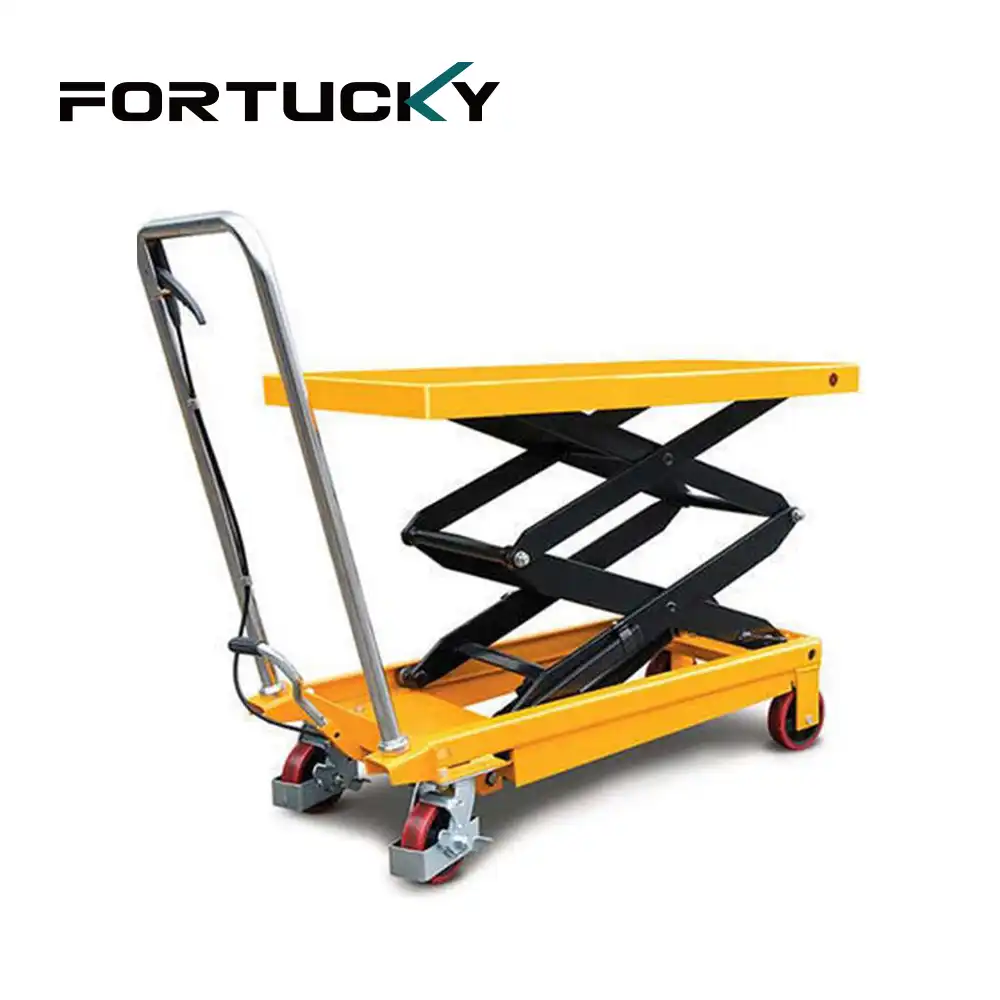

The PTD350A and PTD1500 types, which can hold 350 kg and 1500 kg, respectively, are good for heavy-duty uses. The PTD1500 can lift heavy things to amazing heights of up to 4000mm, giving you access to different levels for servicing on high-up equipment and putting things on high racks. The 1200x610x80mm bases of these units are strengthened to withstand harsh industrial conditions.

The PTS1500 model can lift to 1500 kg and has a moderate lifting height range of 500 to 1700 mm. This model strikes the best mix between load capacity and vertical reach for most warehouse uses. All types have sealed oil cylinders and wheels that don't wear down easily, so they can last in high-frequency work settings.

Maintenance, Safety Guidelines, and Troubleshooting Tips

Hydraulic lifting equipment works best and lasts as long as it's maintained properly and follows safety rules. Setting up processes for systematic repair cuts down on downtime and increases the reliability of machinery over its entire working lifecycle.

Preventive Maintenance Procedures

The most important part of upkeep is inspecting the hydraulic fluid, which needs to be done every month to check the amount and every six months to check the quality. ISO VG32 hydraulic fluid stays at the right viscosity level at normal industry temperature ranges. Fluids that are dirty or worn out should be changed right away to keep the system from getting damaged.

According to the manufacturer's instructions, lubrication points need to be checked. These points usually involve bearing systems and pivot links. Good industrial oils keep things running smoothly and make parts last longer. Visual checks should show any signs of wear, rust, or mechanical damage that needs to be fixed by an expert.

Safety Protocol

• Never exceed rated load capacity – structural failure risk

• Keep load centered – prevents tipping

• Stay clear of moving parts during operation

• Train all operators on emergency lowering procedure (manual release valve)

Common Troubleshooting Solutions

Problems with hydraulic systems usually show up as lifting problems, slow operation, or dropping that wasn't supposed to happen. When air gets into hydraulic fluid, it often makes it work in a strange way and needs to be bled to work normally again. When seals wear down, fluid can leak out, and the system needs to be fixed by a professional to keep it working right.

When there are mechanical problems with the scissor arms locking or the wheels not working, it's generally because of poor lubrication or too much wear, which means the part needs to be replaced. Professional service support makes sure that the right steps are taken to diagnose and fix problems so that equipment contracts and safety certifications are kept up to date.

​​​​​​​Buying Guide for Manual Hydraulic Scissor Lifts: What B2B Buyers Should Know?

When making strategic purchasing choices, it's important to look at a supplier's skills, product details, and long-term support promises. By understanding the most important selection factors, businesses can find the best lifting options that meet their needs and stay within their budget.

Supplier Evaluation

• Track record – request customer references and case studies

• Warranty terms – indicates product confidence

• Technical support & service network – ensure local availability

Customization Options

Common customizations include:

• Different platform sizes

• Special surface treatments (anti-slip, anti-corrosion)

• Additional safety features (guardrails, edge sensors)

Total Cost of Ownership Analysis

Calculate beyond purchase price:

• Operating costs (maintenance, training)

• Expected service life

• Productivity gains (throughput increase, labor reduction)

Higher-quality equipment often delivers better long-term ROI through reduced downtime and longer replacement cycles.

Conclusion

Manual hydraulic scissor lifts offer a reliable, cost-effective, and easy-to-use solution for vertical material handling across many industries. Their power-independent design enables precise load positioning for applications ranging from light assembly to heavy industrial maintenance. By understanding the operating principles, comparing against alternative technologies, and evaluating suppliers carefully, businesses can implement lifting solutions that improve productivity while meeting strict safety standards.

FAQ

Q1: What are the main components of a manual hydraulic scissor lift?
The main components are: hydraulic pump (foot or hand operated), sealed cylinder with piston, diamond-shaped scissor arm linkage, release valve for controlled lowering, and a mobile base platform with casters.

Q2: How much weight can these lifts handle safely?
Typical capacities range from 150 kg to 1500 kg. Fortucky’s PT150 handles 150 kg, while the PTD1500 and PTS1500 handle up to 1500 kg.

Q3: What maintenance is required?
Monthly fluid level checks, biannual fluid quality inspection, regular lubrication of pivot points and bearings, and visual inspections for damage or wear.

Q4: Can they operate without electricity?
Yes. Manual hydraulic lifts require no electrical power, making them ideal for remote locations, power outages, or facilities with limited electrical infrastructure.

Q5: What safety features are included?
Overload prevention, manual release valve for emergency lowering, load distribution platform, and mechanical interlocks to prevent unsafe operation.
