Drive-In Pallet Racking: A Simple Guide

If you need more storage space without expanding your building, drive-in storage racks are an excellent choice. These high-density storage systems eliminate unnecessary aisles, allowing forklifts to drive directly into storage lanes to load and unload pallets. Unlike traditional selective racking, this design maximizes cubic space by stacking pallets in deep lanes, achieving storage utilization rates of approximately 80%—far higher than conventional pallet racking. The system operates on a last-in, first-out (LIFO) basis, making it ideal for storing large quantities of similar items where stock rotation is not critical.

​​​​​​​Understanding the Core Design of Drive-In Systems

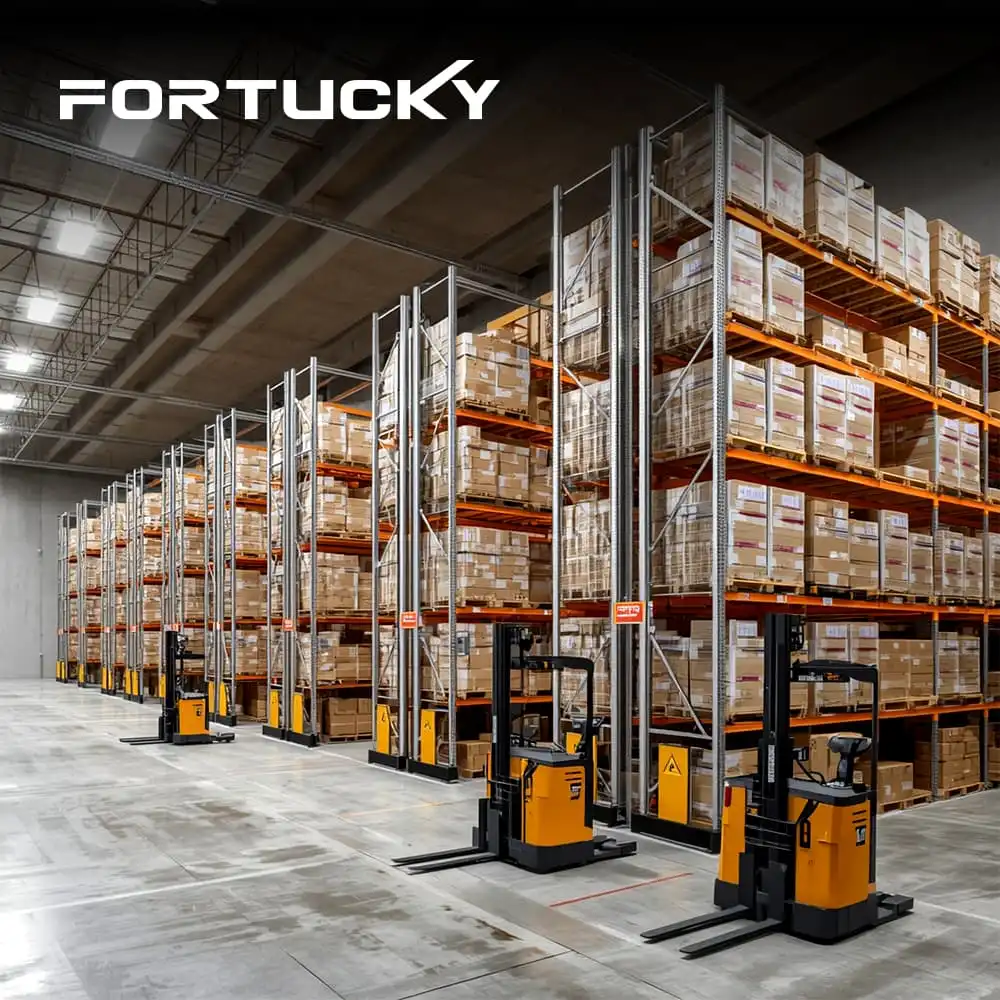

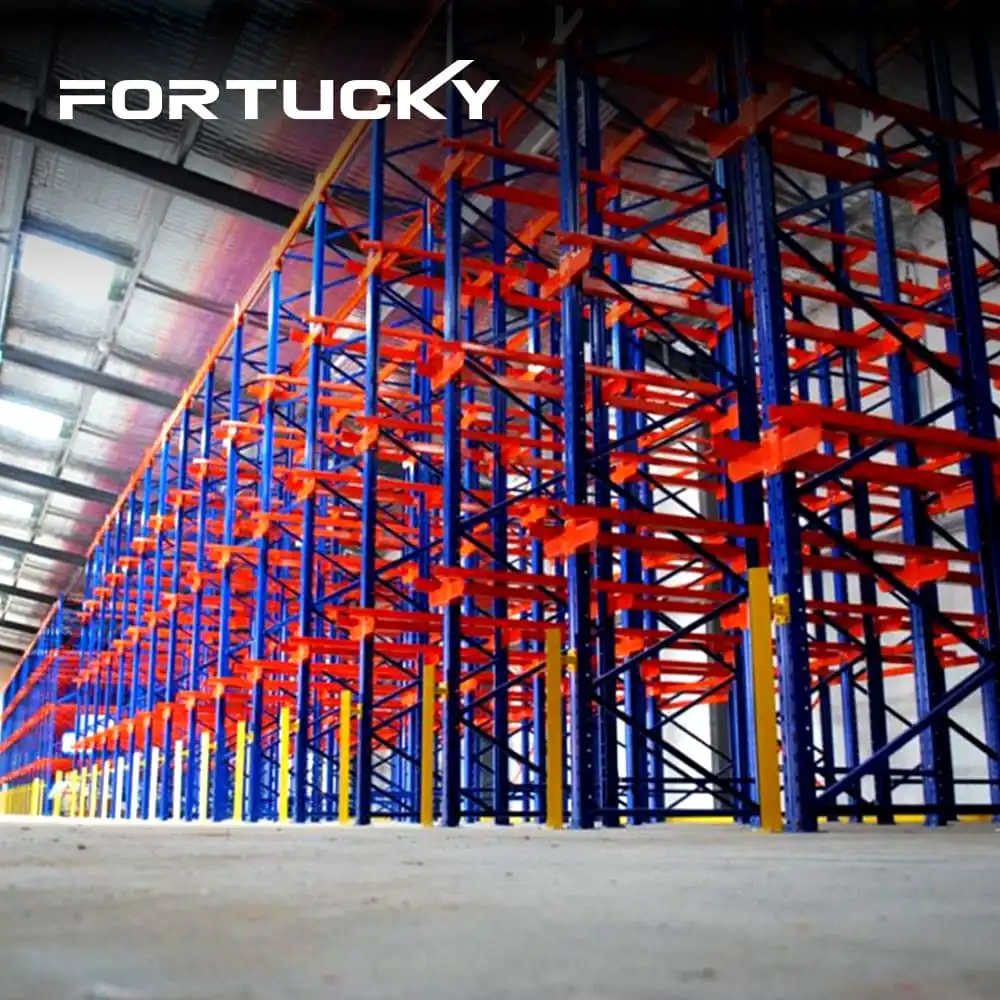

Drive-in storage racks are built to create continuous storage lanes instead of individual aisles for each load position. The frame is supported vertically by heavy-duty steel uprights that are larger than those used in selective racking to withstand lateral forces. Horizontal support rails at various heights run along both sides of each lane to hold pallets and guide forklift movement.

Guide rails, mounted at a height of approximately 500 mm, serve two purposes. They show truck drivers the safest entry and exit paths, and they protect the uprights from impact damage. Rear bracing at the back of each lane enhances structural stability and prevents forward movement. Top and bottom tie rods connect adjacent bays, turning individual units into a robust structure that can withstand seismic activity.

Lane depth typically ranges from three to ten pallets, depending on throughput requirements and forklift reach capabilities. Heights range from five to fifteen meters to accommodate different ceiling clearances and storage needs. This flexible design allows facilities such as cold chain warehouses storing dairy products and distribution centers handling automotive parts to manage seasonal inventory tailored to their requirements.

Industries Thriving with High-Density Storage Solutions

This storage method is highly beneficial for manufacturing industries with consistent, predictable stocking patterns. FMCG companies storing beverage cases or canned goods appreciate the space savings when handling SKUs with uniform packaging dimensions. Automotive suppliers storing similar engine components for assembly lines find that LIFO flow aligns well with their just-in-time production schedules.

Cold storage operators are constantly under pressure to reduce energy costs. By maximizing storage volume within the refrigerated envelope, these systems directly lower cooling expenses. Dairy producers like Mengniu and beverage manufacturers use this density to store finished goods until shipment, cutting refrigerated space requirements by 30% compared to traditional layouts.

Electronics manufacturers who need to manage components for large production runs benefit from bulk storage. In the new energy sector, battery manufacturers store identical cells in temperature‑controlled areas, saving space and reducing operating costs. Pharmaceutical companies use these racks to store raw materials and maintain large volumes of uniform packaging before processing.

Steel mills and heavy industries rely on last-in-first-out (LIFO) storage racks for handling bars, sheets, and pipes. Farms and food processing plants storing seasonal crops or bagged grains on pallets benefit from the simple entry and retrieval pattern offered by LIFO systems.

Calculating the Real ROI of Space Optimization

Warehouse decision‑makers compare operational gains to capital expenditures. In many scenarios, the economics of drive‑in systems are very compelling. The cost per pallet position is typically lower than that of automated storage and retrieval systems (AS/RS), while still using forklift operation. Compared to selective racks, the initial cost is slightly higher, but the increase in storage density is substantial.

Operational cost reductions come from several sources. Fewer aisles mean shorter travel distances for forklift operators, reducing labor hours. The compact footprint delays or eliminates building expansion, saving construction costs, avoiding permit delays, and maintaining operational continuity. For refrigerated applications, the smaller cubic volume reduces energy consumption, generating measurable monthly savings.

Throughput analysis is critical when evaluating fit. Facilities that manage ten or fewer SKUs with predictable turnover typically experience shorter payback periods. Operations that frequently access many SKU variants may see slower returns due to repositioning requirements. The "sweet spot" occurs where inventory volume is high enough to justify lane depth, but product variety remains manageable.

Lifecycle factors extend beyond the installation phase. A steel structure ensures decades of service with only periodic maintenance. The design is flexible enough to adapt to changing pallet sizes or load requirements without complete replacement. If business needs change, resale value remains high, providing exit options.

Addressing Common Implementation Challenges

The first problem is integrating with current warehouse management tools. Drive-in pallet racking setups need process control, unlike automated systems that are connected to a WMS automatically. To keep goods from getting mixed up, operators must strictly follow lane orders. Scannable barcodes at lane entry places help keep things accurate by connecting tracking by hand and digitally.

Forklift operator training is essential for both safety and efficiency. Drivers need good depth perception when navigating tight lanes with minimal clearance. Many companies implement certification programs specific to drive‑in operations, which reduce rack damage and boost productivity. Installing entry‑lane barriers reduces structural damage during the learning curve.

Because LIFO systems have inherent inventory rotation limitations, careful SKU selection is required. Products with expiration dates need alternative solutions unless storage depth and batch rotation are carefully aligned. Some operations reserve shallower lanes for time‑sensitive items, creating hybrid layouts that balance density with accessibility.

Engineering precision is needed for structural load calculations. Uneven traffic across lanes creates stress concentration points. Facilities must establish clear weight limits for each lane and enforce compliance. Regular structural inspections identify early signs of column or beam damage before safety margins are compromised.

Comparing Drive-In Versus Drive-Through Configurations

While drive‑in systems use single‑sided access, drive‑through variants allow entry from both ends of the storage lane. This distinction fundamentally changes inventory flow from LIFO to FIFO, addressing expiration concerns for perishable goods. Pharmaceutical operations and food processors often select drive‑through designs when production schedules require chronological inventory consumption.

The structural differences are subtle—end frames replace rear bracing to permit through access. Space requirements increase because both lane ends need aisle access, reducing overall density compared to true drive‑in layouts. Facilities with dock doors on opposite walls capitalize on this configuration, creating straight‑line flow from receiving to shipping.

Costs increase modestly for drive‑through systems due to additional structural components and space allocation. The decision hinges on whether FIFO justifies the density trade‑off. Operations storing temperature‑sensitive pharmaceuticals or fresh produce typically accept lower rack counts to maintain proper stock rotation.

Integrating Smart Technology with Traditional Storage

Digital transformation initiatives increasingly touch manual storage systems. Logistics planners now overlay smart capabilities onto drive-in storage racks without replacing the physical infrastructure. Wireless sensors monitor lane occupancy, feeding real-time data into warehouse management platforms. This visibility helps supervisors optimize put-away decisions and anticipate replenishment needs.

Load sensors embedded in support rails track weight distribution, alerting managers to overloading conditions before structural issues arise. Predictive maintenance algorithms analyze sensor data patterns, scheduling inspections based on actual usage rather than arbitrary timelines. This condition-based approach reduces downtime while extending rack lifespan.

Guided forklift systems use laser positioning to improve accuracy within lanes, reducing impact damage and operator fatigue. These semi-automated solutions preserve the cost advantages of manual operation while incorporating Industry 4.0 connectivity. Integration with MES and ERP systems creates data continuity from production through storage to shipment.

Digital twin technology enables operations teams to simulate layout changes before physical modifications. Logistics engineers model different lane depths or height configurations, predicting capacity changes and throughput impacts. This virtual testing reduces implementation risk for facility upgrades or process changes.

Building Long-Term Storage Infrastructure

Successful drive‑in implementations balance immediate density gains against future operational flexibility. Facilities experiencing growth should design lane depths that allow later subdivision if SKU variety increases. Modular construction permits section‑by‑section installation, spreading capital expenditure across budget cycles while incrementally validating the approach.

Foundation requirements deserve early attention. Concentrated loads from floor‑level pallets combined with vertical column forces demand proper slab specifications. Existing floors may need assessment before installation, potentially requiring reinforcement in designated areas. Planning these structural considerations during design prevents costly corrections later.

Aisle width calculations must account for specific forklift models and pallet dimensions. Tight tolerances maximize density but increase operational difficulty. Experienced system integrators balance theoretical capacity against practical usability, creating layouts that operators can navigate efficiently without constant corrections.

Safety compliance varies across jurisdictions but universally requires attention to seismic considerations, load ratings, and operator protection. Working with suppliers familiar with local codes ensures installations meet regulatory standards. Documentation packages, including engineering calculations and load capacity charts, support compliance audits and insurance requirements.

Conclusion

Drive‑in storage racks transform warehouse economics when inventory characteristics align with their strengths. Manufacturing sectors managing bulk quantities of uniform products achieve remarkable space efficiency gains, often unlocking capacity equivalent to facility expansions at a fraction of the cost. The simplicity of steel construction combined with heavy‑duty load capacity delivers reliable performance across demanding industrial applications. Success requires thoughtful SKU selection, proper operator training, and integration with inventory management processes. For logistics leaders pursuing operational excellence, these high‑density storage solutions provide a proven path to improved throughput and measurable ROI.

Partner with a Proven Drive-In Storage Racks Manufacturer

Fortucky delivers customized high-density storage solutions backed by over 1,000 successful installations across automotive, electronics, FMCG, and cold chain sectors. Our engineering teams design drive-in storage rack systems integrated with your existing WMS and material handling equipment, ensuring seamless deployment. With localized support across Asia, Europe, and the Americas, we provide rapid response times and competitive cost structures. Contact our specialists at sales@fortuckyrobot.com to discuss your warehouse optimization project.

References

1. Richards, Gwynne. Warehouse Management: A Complete Guide to Improving Efficiency and Minimizing Costs in the Modern Warehouse. Kogan Page Publishers, 2017.

2. Tompkins, James A., et al. Facilities Planning. Fourth Edition. John Wiley & Sons, 2010.

3. Frazelle, Edward. World-Class Warehousing and Material Handling. McGraw-Hill Education, 2016.

4. Bartholdi, John J., and Steven T. Hackman. Warehouse & Distribution Science. Supply Chain and Logistics Institute, 2019.

5. Mulcahy, David E. Warehouse Distribution and Operations Handbook. McGraw-Hill, 1993.

6. Berg, Jeroen P. van den, and Willem H.M. Zijm. "Models for Warehouse Management: Classification and Examples." International Journal of Production Economics, vol. 59, 1999.
