Why Use Drive-In Pallet Racking in Your Warehouse?

Pallet stacking systems are an important part of modern warehouse management for maintaining order. Businesses in the FMCG, automotive, cold chain transportation, and pharmaceutical industries are under increasing pressure to find cost‑effective ways to increase storage space. Drive‑in pallet racking stands out as a smart option for high‑density storage. By allowing forklifts to enter the rack structure directly, this method helps warehouses maximize both vertical and horizontal space, as it eliminates the need for multiple aisles that consume valuable floor area. Drive-in storage racks represent a significant departure from traditional selective shelving, offering warehouse managers a practical answer to the question: “How can we store more inventory without expanding our building?” This blog provides B2B procurement professionals with a comprehensive overview of drive‑in pallet racks, focusing on their practical benefits, design features, and suitability for various warehouse environments. We will discuss how this system supports improved safety standards, cost‑effective workflows, and optimal operations, helping businesses make informed purchasing decisions that meet the demands of global shipping and storage. Whether you manage a cold storage facility for Mengniu Dairy or handle auto parts for Mercedes‑Benz, understanding the capabilities of high‑density storage solutions is essential for success.

What Is Drive-In Pallet Racking and How Does It Work?

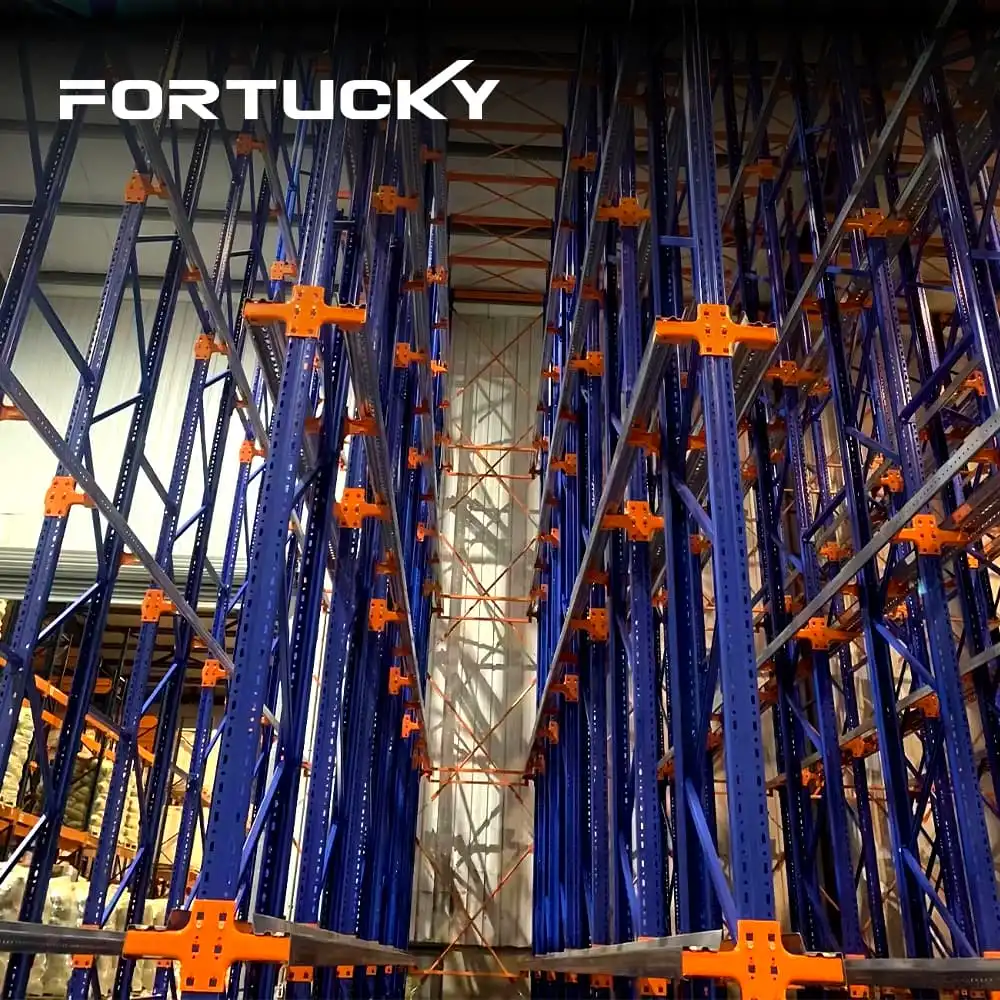

Understanding the Basic Structure

Drive‑in pallet racking is a type of high‑density storage that allows forklifts to enter the rack structure and place or remove pallets along continuous storage lanes. In conventional selective racks, each pallet position requires its own aisle access. This system, by contrast, lets forklifts drive directly into the bays, supporting multiple pallets in depth. The design relies on robust steel frames made from heavy‑duty materials capable of bearing substantial loads. Heights can range from 5 to 15 meters, depending on the building’s ceiling height and the forklift’s reach requirements.

The main structural components include vertical columns that support the rack, horizontal beams that hold each pallet, and guide rails that run along both sides of the storage lanes. These guide rails serve two purposes: they show forklift operators how to navigate the narrow channels safely, and they protect the vertical columns from impact damage. Back bracing at the rear of each storage bay provides lateral stability, while top and bottom tie beams connect the entire framework into a unified structure that can withstand horizontal forces.

LIFO vs. FIFO Configuration Options

The standard drive‑in setup operates on the last‑in, first‑out (LIFO) principle, meaning that pallets are stored and retrieved from the same entry point. This makes the system particularly suitable for storing large quantities of similar items when rapid inventory rotation is not required. This configuration works very well for businesses that need to store seasonal goods, raw materials, or products with long shelf lives.

Different types, like drive-through racks, give you more options because you can reach them from both sides, letting you use first-in, first-out (FIFO) inventory flow. This setup works great for cold storage facilities that handle fresh goods or businesses with a lot of inventory that need to make sure that the stock is rotated regularly. The choice between last-in-first-out (LIFO) storage racks and FIFO arrangements has a big effect on working efficiency. Knowing these basics helps B2B clients figure out if a system will work with their warehouse plans and how they run their businesses.

Advantages of Using Drive-In Pallet Racking in Warehouse Operations

Exceptional Space Utilization

When floor space is constrained but substantial storage capacity is needed, drive‑in pallet racking is the best solution for maximizing space. The system achieves approximately 80% space utilization in a warehouse—about 30% more than conventional selective pallet racking configurations. By eliminating the multiple aisles required by standard systems, this high‑density approach significantly increases the number of pallet positions that can fit within the same footprint.

This efficient space utilization delivers immediate cost savings. Companies can defer costly warehouse expansions, avoid renting external storage space, or repurpose freed‑up floor area for value‑added activities such as quality control stations or packing. The system occupies less warehouse space than selective or push‑back racks, reducing operating costs without compromising storage capacity. This benefit is especially important for procurement leaders at Fortune 500 companies who oversee multiple sites, where real estate costs have a direct impact on the bottom line.

Cost-Effectiveness and ROI

Among high‑density storage options, drive‑in racking offers the lowest total cost per pallet position. Compared to automated storage and retrieval systems (AS/RS) or robotic shuttle solutions, the initial capital investment remains relatively low. This makes warehouse modernization accessible to medium‑sized and large enterprises. The low capital requirement stems from the system’s simple design and standardized components, which also enable quick and straightforward operation.

The return on investment manifests in several ways. Forklift operators work more efficiently because they spend less time traveling between storage areas. In climate‑controlled spaces, energy costs decrease because consolidated storage reduces the volume that needs heating or cooling. Maintenance requirements remain manageable with proper protocols, and the system’s flexibility allows for phased expansion as storage needs evolve.

Operational Efficiency Gains

The method accelerates forklift operations by reducing pallet travel time and travel distances within the warehouse. When operators enter a storage lane, they can deposit multiple pallets in sequence, speeding up the receiving process. Retrieval becomes equally efficient when handling entire batches of products—a common scenario in manufacturing, where production runs consume full pallets of raw materials or components.

Drive‑in racking offers higher density but makes some items less accessible than selective racking, where every pallet is always within easy reach. This trade‑off is important to consider when comparing it with other options, such as cantilever racks for long items or pallet flow racks for frequently picked SKUs. By comparing these outcomes, procurement experts can select solutions that best meet their business goals and budget constraints, ensuring that the chosen system fits their process patterns rather than forcing operations to adapt to an unsuitable storage method.

Design and Safety Considerations for Effective Drive-In Pallet Racking

Structural Integrity and Load Management

When installing drive-in pallet racking systems that will support heavy loads and accommodate forklift traffic in tight spaces, safety and stability are paramount. Key design principles include selecting appropriate materials, following proper welding standards, and using correct connection methods to ensure a strong and stable structure. The integrated frame must be robust enough to handle heavy items commonly found in industries such as steel manufacturing, automotive parts, and battery production.

Proper installation is essential for effective load management and accident prevention. Although the system’s open, configurable design allows it to be tailored to different pallet sizes and weights, this also means it requires meticulous setup. Professional installation teams ensure that floor conditions provide adequate support, that columns are perfectly vertical, and that all connections meet the manufacturer’s torque specifications.

Safety Features and Compliance Standards

In drive‑in systems, guide rails are the most important safety feature. These rails are installed at a height of approximately 500 mm along the entry points and interior sections of storage lanes. They guide forklift operators and protect structural columns from impact damage. Even minor damage to a column can compromise the entire rack’s stability; therefore, safety measures are mandatory, not optional.

Welds, frames, and rails should be inspected regularly for defects so that potential issues do not become safety hazards. Weight distribution guidelines help prevent overloading and extend the system’s service life. This is especially important in environments with heavy loads or temperature‑sensitive goods, such as sub‑zero cold storage facilities, where metal fatigue characteristics differ from those in a standard warehouse. This section helps professionals establish safe, code‑compliant storage systems that minimize operational risks while meeting OSHA standards and best practices honed through years of material handling experience.

Environmental Considerations

Controlled temperature conditions present unique challenges for storage systems. Drive‑in layouts are highly beneficial for cold storage facilities because they significantly reduce energy consumption—there is less aisle space and therefore less cubic volume to cool. The steel frame construction can accommodate a wide range of temperatures, but thermal expansion and condensation management should be addressed during the planning phase.

For heavy‑duty applications in fields such as construction equipment or steel processing, specifications need to be more stringent. Engineers can customize dimensions and other parameters to create systems capable of handling extreme loads. Color coding can also help organize the warehouse and clearly mark safety zones. The system can be easily disassembled and reconfigured as operational needs change, protecting the initial capital investment through flexibility.

​​​​​​​How to Choose the Right Drive-In Pallet Racking for Your Warehouse

Assessing Your Warehouse Requirements

Before you can choose the best drive-in storage racks for your warehouse, you need to thoroughly evaluate product types, turnover rates, space constraints, and workflow patterns. These factors must all inform the rack design. Warehouse managers should first analyze their SKU profile. Drive‑in systems perform best when there are few distinct SKUs and large quantities per lane, making them ideal for storing large volumes of homogeneous goods in uniform pallet sizes.

Turnover rate significantly affects system performance. LIFO setups work well for products with low turnover rates. For operations that require strict date‑based rotation, drive‑through FIFO designs or alternative storage methods should be considered. Although high‑density solutions are initially appealing because of their space savings, procurement teams must verify ceiling heights, floor load capacities, and existing forklift fleet capabilities to ensure compatibility.

Evaluating Suppliers and Specifications

When making a purchase, buyers should evaluate manufacturers based on product quality, customization capabilities, lead times, and after‑sales support. Companies like Fortucky, with an annual production capacity of 150,000 tons and experience serving over 1,000 customers worldwide, demonstrate the scale needed to support large‑scale enterprise deployments. Their localized service networks in Asia, Europe, and the Americas ensure that expert assistance is always available regardless of a facility’s location.

Material quality must be carefully assessed. Systems made from high‑grade steel with proper surface treatment resist corrosion and maintain structural integrity over time. Adjustable features allow fine‑tuning of beam heights to accommodate different pallet sizes, and customizable specifications enable an exact match to building dimensions and load weights. Packaging that includes strapping, plastic film, wooden crates, and cartons protects components during international shipping—an important consideration for global companies planning warehouse upgrades at multiple locations.

Cost Analysis and Procurement Strategy

Budget considerations extend beyond the initial purchase price to include installation costs, potential building modifications, forklift fleet compatibility, and training requirements. For high‑capacity applications, procurement teams should request detailed quotes that break down component pricing, installation services, and any necessary structural engineering studies. Comparing total cost of ownership rather than just purchase price makes long‑term value easier to assess.

Custom manufacturing can align perfectly with specific needs, but lead times may be longer than for standard designs. This guidance helps global buyers negotiate terms with suppliers and make purchasing decisions that best serve their operational and financial requirements, balancing deployment speed against suitability for particular use cases. Payment terms, warranty coverage, and maintenance support packages are negotiable and can significantly impact project success.

Conclusion

Drive‑in storage racking is a proven, cost‑effective solution for facilities that need to maximize storage without compromising safety or throughput. The system achieves approximately 80% space utilization—substantially more than standard selective racking—and offers low initial costs that budget‑conscious procurement teams will appreciate. Its widespread use in tobacco, food storage, cold storage, pharmaceuticals, and heavy industry attests to its reliability and flexibility.

The strategic value extends beyond mere storage capacity to include operational efficiency gains, reduced energy costs in climate‑controlled environments, and future reconfigurability. B2B leaders evaluating warehouse optimization should consider drive‑in systems, especially when managing large inventories with similar turnover patterns and limited SKU diversity. By understanding the system’s capabilities and limitations, as well as proper implementation practices, you can make smart purchasing decisions that ensure your storage infrastructure aligns with broader supply chain goals and digital transformation efforts.

FAQ

1. What warehouse sizes work best with drive-in racking systems?

Drive‑in racking can be used effectively in warehouses of various sizes, but it is most beneficial in medium‑to‑large facilities where the space savings justify the investment. Smaller warehouses benefit when storing uniform goods that require dense stacking, while large distribution centers serving Fortune 500 companies often deploy extensive drive‑in layouts covering thousands of square meters. The system’s modular design allows phased implementation, starting with high‑volume SKUs and adding more product lines as benefits become evident.

2. How does the economy of drive-in racks compare to that of selected racks?

Selective racking offers easier access because every pallet is directly reachable, making it ideal for handling many different items and a wide range of SKUs. Drive‑in systems sacrifice some accessibility in return for storage densities that are approximately 30% higher than those of selective setups. The efficiency benefit becomes apparent when storing large quantities of identical items and loading or retrieving entire batches at once—a common scenario in manufacturing and wholesale distribution.

3. What maintenance protocols ensure long-term operational safety?

Regular inspections should check structural components for impact damage, including connections between beams, vertical columns, and guide rails. Any broken or bent parts must be repaired immediately, as weakened structural members threaten the safety of the entire system. Verifying guide rail alignment prevents forklifts from contacting columns, and checking connection torque ensures even load distribution. Along with routine operator observations, annual professional inspections establish thorough safety maintenance processes that protect both staff and goods.

Partner with Fortucky for Your High-Density Storage Solutions

A reliable drive-in storage rack maker who comprehends your business's challenges and provides custom solutions backed by years of experience is essential for warehouse optimization. Fortucky has worked with major companies like Huawei, CATL, Mercedes-Benz, and BYD for more than ten years and has completed more than 1,000 successful projects for customers in the FMCG, automobile, cold chain, and heavy industry sectors.

Our competitive benefits include a dedicated research and development team that is always coming up with new storage technologies, an intelligent production center that can handle large-scale production with 5G, and full international certifications that prove safety and dependability. We can make a lot of changes to meet your exact needs, from the size of the pallets to how much weight they can hold. Our 150,000-ton annual production capacity lets us deliver quickly. Localized rollout teams and quick responses through our Asia-Europe-Americas service network make sure that your project is a success from design to execution and beyond, all while staying within your budget.

Get in touch with us at sales@fortuckyrobot.com to talk about how drive-in box racking can make your warehouse run more smoothly. We'll look at how much storage you need, suggest the best configurations, and offer full support to make sure your investment gives you a clear return on investment (ROI) through better space utilization and operating excellence.
