How much weight can you put on pallet racking?

When figuring out how much room to store things in a warehouse, one question always comes up: how much weight can pallet racks hold? Heavy pallet racking systems are designed to hold a lot of weight; each level can usually hold up to 2000 kg. Steel frames, reinforced beams, and carefully measured uprights make up these strong structures. They work effectively as load-bearing walls in warehouses, factories, and distribution centers. Beyond just speed, you need to know how much your racking system can hold and what kind of structure it requires. Long-term operational costs are affected by this knowledge, as are worker safety and product protection.

Introduction

Pallet racks are the building blocks of modern warehouses and distribution centers. They make use of empty floor space by creating useful high-storage areas. It is easy to move things, store different types of goods, and change these designs as production needs evolve. To keep things safe and ensure storage works as efficiently as possible, it is important to understand weight limits. If you are a B2B buyer manager, expert, reseller, or OEM client wanting to know how much weight heavy pallet racking can hold, read this guide. We examine design concepts, safety rules, and real-world problems that matter for businesses around the world. This guide will help you manage your storage better, whether for car parts, cold chain logistics, or fast-moving consumer goods. It will assist you in choosing what to buy and where to place it.

Understanding Pallet Racking Weight Capacity

Heavy pallet racking is made to hold a lot of weight, more than regular or light shelving can. Heavy-duty systems are built with thicker steel profiles, stronger beam connections, and wider upright spacing compared to smaller systems designed for picking boxes or low-density items. Each component contributes differently to the total load-bearing capacity.

What Defines Heavy Pallet Racking?

Depending on how it is configured and shaped, heavy pallet racking can hold anywhere from 1,800 pounds to over 12,600 pounds per level. There are three main parts: welded upright frames, horizontal beams, and base plates. The upright frames provide vertical strength, while the horizontal beams distribute the weight of the load across multiple contact points. How much weight a single bay can safely hold depends on the strength of the material, the thickness of the walls, and the stability of the connections.

Key Components That Influence Load Capacity

Frames are the vertical supports. Most of the time, they are made of steel that has been coated to prevent rust. To connect beams to uprights, you can use either step-style or clip-in connections. The beam's depth determines its maximum load rating. The distance between uprights affects lateral stability. Cross-bracing and vertical supports keep the rack from moving when the load shifts. In warehouses, planners also have to consider the sizes of the loads, how the weight is distributed, and the types of equipment used to move goods. Forklifts, reach trucks, and load jacks of different types apply varying impact forces that can weaken structures over time.

Comparing Heavy-Duty and Standard Racking Variants

As a general rule, standard rack systems can hold up to 800–1000 kg per level. This is sufficient for smaller items like electronics, fabrics, or packaged goods. On the other hand, heavy pallet racking holds heavy things such as steel bars, automotive parts, battery cells, and bulk chemicals. The differences lie in the size of the beams, the width of the uprights, and the strength of the connections. When purchasing, warehouse operators should consider the weight of the goods, how quickly inventory changes, and expected load growth. This basic knowledge will help you make smart decisions when selecting racks for your facility.

Heavy Pallet Racking Safety Standards and Design Guidelines

It is very important to make sure that heavy pallet racking systems meet international safety standards when they are planned or built. Rules like ISO 14122, EN 15512, and OSHA guidelines set the minimum requirements for building materials, how they must be tested, and how licenses must be issued. These heavy pallet racking frames make sure that rack installations can withstand operating or seismic stresses as well as expected loads and impact forces.

Relevant Certifications and Regional Safety Margins

Different regions have different rules. In the European Union, businesses usually use EN 15512 to plan and set up pallet racks. In North America, warehouses follow RMI (Rack Manufacturers Institute) guidelines and OSHA general duty rules. Safety margins typically range from 1.5 to 2.0, ensuring that actual working loads are much lower than the theoretical failure point of the structure. Strict tests back up capacity claims, including static load tests, beam deflection measurements, and seismic modeling methods. Reputable companies provide complete test results and certification documentation that can help with insurance compliance and purchasing audits.

Design Principles for Load Calculation and Structural Integrity

You have to be very careful to get the load on each beam and the total rack capacity correct. For each load level, engineers check the load weight, the beam span length, and the stiffness of the upright frame. Distributed loads behave differently from concentrated loads. Uneven loading creates stress concentrations. Custom designs can handle different types of loads; for example, you might place heavy car engines on lower racks and smaller packaged items higher up. These examples show how customized plans can solve specific warehouse problems and help with purchasing decisions that put safety first without losing efficiency.

Comparing Heavy Pallet Racking Types and Their Load Capacities

Heavy pallet rack frames come in different styles, and each one works best for a certain set of tasks. With selective racking, you can access loads quickly and arrange your items in multiple ways. Drive-in and drive-through systems maximize space but are less selective. Long or irregularly shaped items such as steel bars, lumber, and pipes can be stored on cantilever racks.

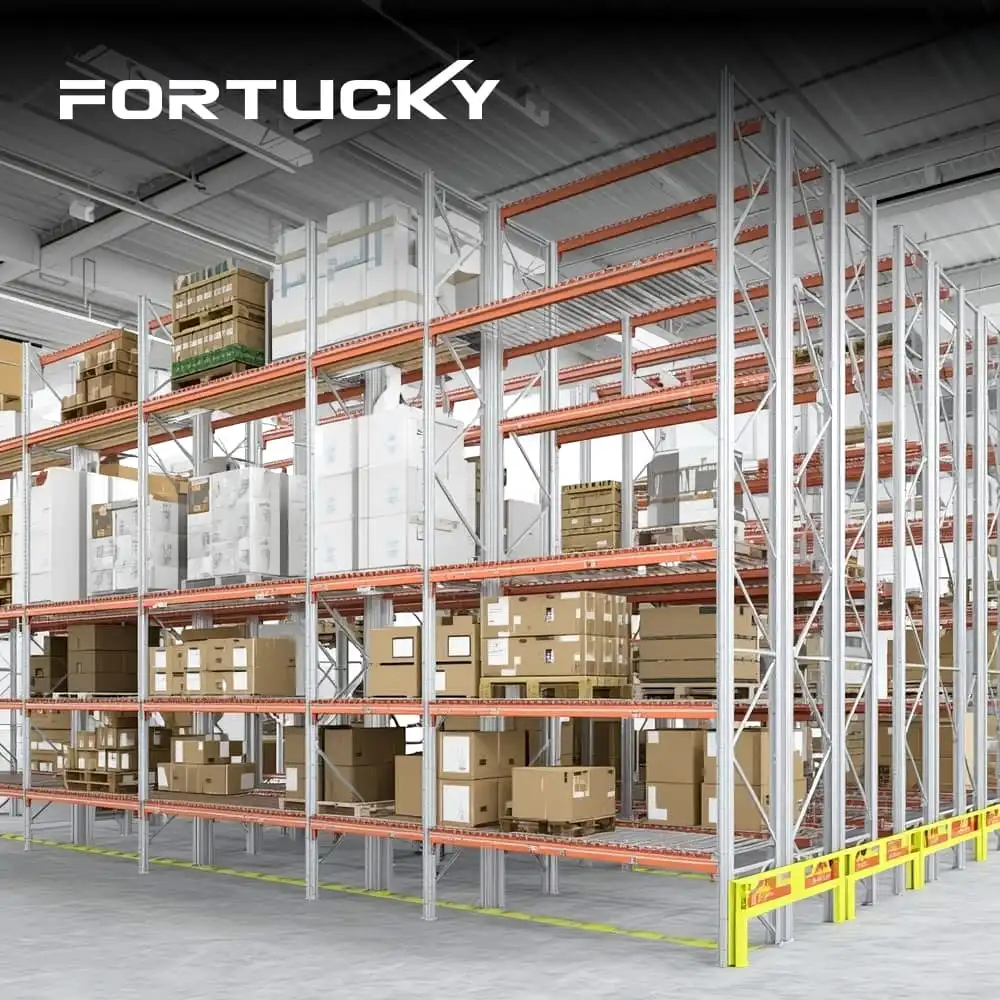

Selective Beam Racking for Maximum Accessibility

Selective beam racking is the most common type because it allows trucks to access every load position directly. Typically, each beam level can hold 1,800 to 4,500 pounds. You can increase capacity by adding more profiles. This system works well in places with many SKUs and high product turnover, such as distribution centers for consumer goods or automotive parts. The open design makes it easy to see inventory and supports the FIFO system, which moves perishable goods efficiently.

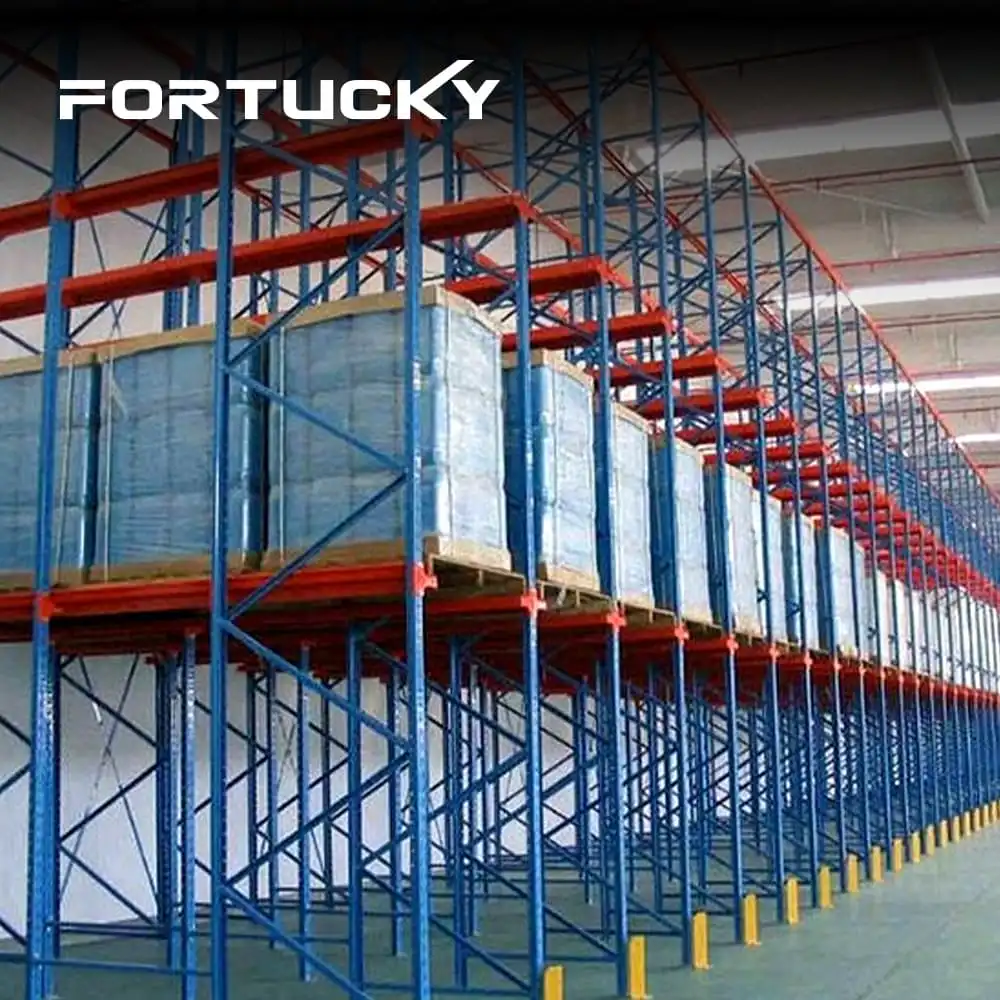

Drive-In and Drive-Through Systems for High-Density Storage

Forklift trucks can enter drive-in racks and place loads on elevated rails without traveling through all the aisles. This method is best for storing similar items that do not change often because it makes the best use of cubic space. The load capacity remains similar to that of selective systems, but the frame must be designed to absorb forklift impacts and allow for less lateral support. Drive-through systems allow access from both ends, which is helpful for FIFO processes in cold storage and pharmaceutical warehouses.

Pros and Cons of Heavy-Duty Versus Standard Systems

Heavy pallet racking is more durable, lasts longer, and costs less to keep over time than other choices, especially for high-capacity pallet storage systems. It costs more upfront, but the value is clear when you deal with many high-value items or work in an environment requiring fast material flow. Maintenance includes regularly checking bolt tightness, beam alignment, and upright frame safety. If a business customer wants to understand the difference between long-term value and initial investment, they should look at total cost of ownership, including installation, maintenance, and downtime.

Installation, Maintenance, and Load Optimization Practices

Proper placement and regular maintenance of pallet racks are essential for achieving their rated load capacity and keeping people safe. Even the most durable design can fail if it is installed incorrectly or poorly maintained.

Best Practices for Professional Installation

Professional installation begins with checking whether the ground is level, how thick the floor slab is, and how much weight it can support for high-capacity pallet storage systems. Anchor bolts must be embedded into the concrete to the correct depth and tightened to the proper torque. Tall frames also need to be perfectly aligned vertically. Common mistakes include misaligned beams, poor grounding, and insufficient horizontal bracing. These errors reduce safety and effectiveness. Qualified installers follow the manufacturer's directions, test the system's load after setup, and record the information for future reference.

Routine Inspection and Load Redistribution Techniques

Periodic inspections can catch early signs of wear, such as bent beams, broken welds, or loose support bolts. Warehouse managers should arrange for a third-party inspection once a year and conduct visual checks every month. Redistributing loads by moving heavy items to lower levels and spreading weight evenly across bays helps maintain racks over time. Digital load monitoring systems linked to warehouse management software show workers real-time weight distribution and alert them to overloads. By following these rules, managers and engineers can lower risks, extend system life, and maximize load efficiency.

How to Choose the Right Heavy Pallet Racking for Your Needs?

You should consider the size of your facility, the types of loads you expect, and your budget when picking heavy pallet racks. Engineers and procurement managers must work through a complex set of decisions that balance cost, speed, and scalability.

Critical Decision Criteria for Procurement

To begin, create a map of your current and planned inventory profiles. This map should show how much each load weighs, its dimensions, and what types of SKUs are included. The warehouse layout determines aisle widths, roof height, and the flexibility of material handling equipment. The budget must cover more than just the rack components. It also has to cover installation labor, safety accessories like column guards and row spacers, and the ability to connect to warehouse control systems. New racking comes with a warranty and meets the latest safety standards. If you buy used or refurbished systems that have been thoroughly inspected and approved, they can save you money.

Leveraging Supplier Expertise and Customized Solutions

Global companies with a good name, such as Interlake, Milwaukee, Steel King, and Advance Storage Products, make a lot of different items, including heavy-load warehouse racking, and have been making them for decades. Getting custom quotes, load predictions, and 3D layout models is easy if you work with these partners early on in the planning process. Racking systems can grow with your business because they come with full technical help that includes repairs and checks to make sure they are compliant. This part helps customers make sure that the things they buy will help them reach their business goals and that the money they spend now will be worth it in the long run.

Conclusion

To keep your warehouse safe and running well, you need to understand the weight capacity of heavy pallet racks. Heavy pallet racking systems that can hold up to 2,000 kg per level and reach heights of 30 meters are what you need in tough industrial settings. If you install these systems properly, follow international safety standards, and maintain them well, they will perform reliably for decades. When procurement professionals compare load capacities, racking types, and work with experienced sellers, they can increase storage density, reduce organizational risks, and support digital transformation.

FAQ

1. How do I calculate the maximum load capacity for my pallet racking?

To find the maximum supported weight, you need to look at the number of load levels, the beam span length, and the stiffness of the upright frame. Consult the load tables provided by the manufacturer to determine how much weight can be safely distributed across each pair of beams. Consider the load weight, the type of material, and how forklift operations might affect loading conditions.

2. What safety certifications should I look for?

The supplier should comply with ISO 14122, EN 15512, RMI, and OSHA regulations. Trustworthy manufacturers will demonstrate adherence to local safety rules by providing test results, certification documents, and assembly instructions.

3. Can I mix different racking types or brands in the same warehouse?

It is not usually a good idea to mix brands or types unless a structural engineer confirms they are compatible. Load ratings, upright shapes, and beam connections vary by manufacturer. Using incompatible components can damage the structure and void warranties.

Partner with Fortucky for Your Heavy Pallet Racking Solutions

We at Fortucky know that when you choose the right Heavy Pallet Racking provider, you need to find a partner who wants your business to succeed. As part of our large selection of goods, we offer beam racking systems that can be tailored to your needs and can hold up to 2,000 kg per level at heights of up to 30 meters. All of these systems are made to meet the tight needs of the electronics, cold chain, car, and fast-moving consumer goods businesses. We serve people in Asia, Europe, and the Americas, and have more than 1,000 customers all over the world. We have quick turnaround times, let you make big changes, and offer helpful technology support. Smart production sites that work with 5G make sure that our goods are made correctly, and our competitive R&D team is always coming up with new ideas to keep up with how the industry is changing. Are you ready to make your business work better for you? Send an email to sales@fortuckyrobot.com with your needs for Heavy Pallet Racking, and we'll make a plan that works for your business.
