How to extend battery life on a full-electric pallet jack?

To get more use out of a Full Electric Pallet Jack's battery, you need to charge it correctly, maintain it properly, and train operators effectively. When used right, modern electric pallet jacks with lithium‑ion batteries—such as those with 120Ah or 210Ah capacities—can run continuously for eight hours. Warehouse managers can cut replacement costs by up to 40% and keep operations running smoothly by following proper charge cycles, avoiding deep discharges, and keeping battery connections clean. Battery management should not be an afterthought in material handling; it should be a core part of your strategy.

Introduction

Over the past decade, the shift toward electric power in warehouses has accelerated significantly. Full electric pallet jacks are now essential for factories, cold‑chain distribution centres, food and beverage depots, and automotive parts warehouses to move goods efficiently. Unlike manual versions, these powered units automate both travel and lifting, eliminating physical strain and achieving travel speeds of up to 5 km/h when fully loaded.

Battery performance directly affects your bottom line. A battery that fails prematurely not only shortens its useful life but also triggers a cascade of problems: missed shipping deadlines, higher labour costs from swapping equipment, and unexpected capital outlays for emergency replacements. We have seen Fortune 500 pharmaceutical and electronics companies lose thousands of dollars each month due to batteries that did not last as long as expected.

This guide is designed to help procurement directors, logistics managers, and automation specialists who need practical insights to protect their valuable equipment. We will examine proven strategies based on operational data from high‑volume distribution centres, explore the technical differences between battery chemistries, and show how supplier relationships can transform battery management from a cost centre into a competitive advantage.

Understanding the Battery Challenges of Full-Electric Pallet Jacks

Why Battery Performance Matters in High-Throughput Operations

Batteries are both the power source for full electric pallet jacks and the primary maintenance item. Battery reliability becomes critical in facilities that move more than 200 pallets per day. The challenge intensifies when equipment operates across multiple shifts in temperature‑controlled environments, where performance can fluctuate unpredictably.

Lead‑acid batteries, once the industry standard, suffer from sulfation if left partially discharged. This chemical process forms crystalline deposits on the plates, permanently reducing capacity. Lithium‑ion alternatives do not have this issue, but they present different challenges regarding heat management and compatibility with charge controllers. When equipped with 24V/240Ah battery systems, equipment can run continuously for eight hours, but this theoretical capacity assumes ideal conditions that are rarely found in real‑world operations.

The Hidden Costs of Battery Degradation

Battery degradation affects more than just runtime. As capacity declines, voltage sag under load worsens, meaning the 1.2 kW drive motor and 2.2‑3 kW lift motor draw more current to perform the same work. Electronic control systems—especially the stepless speed regulation circuits that ensure smooth acceleration—experience accelerated wear due to this additional stress. We have documented cases where poor battery care led to premature failure of the intelligent control system, driving repair costs five times higher than expected.

Extreme temperatures exacerbate these issues. Chemical breakdown accelerates above 35°C, while cold‑storage facilities kept at -20°C can experience a 30% capacity loss. High‑quality pallet jacks are built with high‑manganese steel frames and polyurethane wheels that withstand environmental stress, but batteries remain vulnerable without proper thermal management practices.

Core Principles to Prolong Battery Life: Best Practices and Maintenance Tips

Implementing Smart Charging Protocols

Using the right charging methods is the key to making batteries last longer in full-electric hydraulic pallet truck operations. Lithium-ion batteries can be charged when there is a break, so workers can top them off during lunch without hurting the cell chemistry. When compared to lead-acid standards, which need full discharge cycles to stop memory effect, this is very different.

Modern electronics include built‑in smart charger systems that prevent overcharging. These adaptive chargers monitor cell voltage and temperature, adjusting current delivery to achieve an optimal charging curve. Equipment designed for eight hours of typical use generally requires three to four hours to fully charge from 20% capacity. Waiting until the battery is completely dead before recharging forces unnecessarily long discharge cycles, which shortens overall lifespan.

The charging environment also matters. Charging areas should remain between 15°C and 25°C and have adequate ventilation to dissipate heat generated during charging. Installing temperature monitoring systems in charging stations provides early warning of thermal issues before they cause permanent damage.

Maintenance Routines That Preserve Capacity

Scheduling regular inspections prevents small problems from escalating into major failures. Key battery maintenance practices include:

Care for the connections and Connections: Corrosion at the battery connections causes resistance, so the system has to draw more power to make up for it. Cleaning with a wire brush and applying terminal protectant once a month keeps the electrical transmission at its best. Advanced control systems have a fault reminder feature that can let workers know about link problems before they slow down the system.

Monitoring State of Charge: Predictive repair is possible with battery management systems that keep track of charge cycles and capacity trends. Instead of constantly draining and filling the same unit, equipment that works for more than one shift should have its batteries changed in a planned way. This turn increases the usual life of your batteries by 25 to 35 percent.

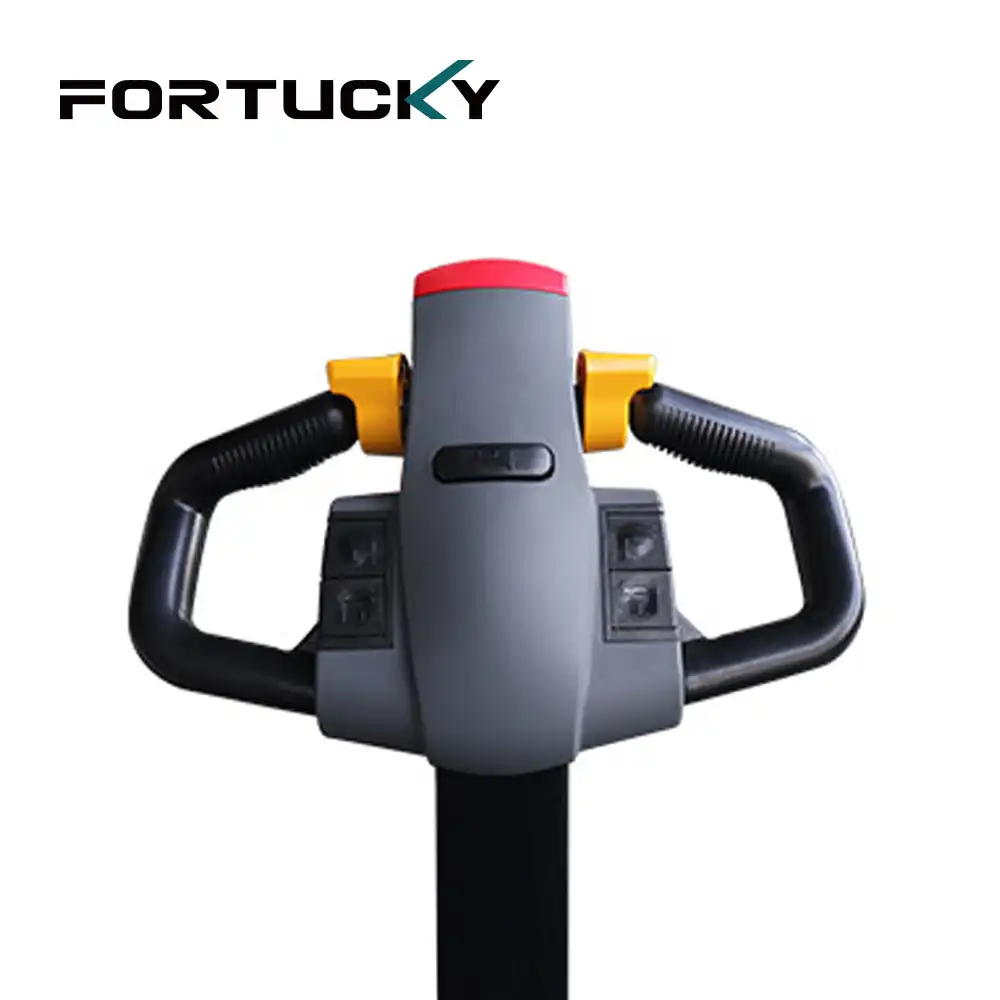

Load Management Training: The way operators drive has a big effect on how much power the batteries use. The air-spring handle design and stepless speed regulation make it easy to control precisely, but fast acceleration and going too fast drain the batteries more quickly than they need to. Training programs that stress smooth starts, the best moving speeds, and the right way to center the load protect both the battery and the motor parts.

These types of care work well together. Clean links make sure that power gets to the right places, which lowers the current demand that would otherwise put stress on cells. When you charge your battery correctly, you stop the deep-drain processes that make capacity fade faster. All of these things can make batteries last longer, from the usual three years to five years or more, which changes the way you figure out the total cost of ownership in a big way.

Optimizing Operational Parameters

Specifications of the equipment have a direct effect on how much power it uses. Units that can handle loads of up to 2000 kg work better when they are regularly used with weights that are within their design range. Overloading a Full Electric Pallet Jack over and over again makes the motors work harder, which drains the batteries faster and puts the plate chain and drive system at risk of breaking. The 10-degree full-load climbing limit is the highest level it can go, not a normal working limit. A lot of ramp climbing uses a lot more power than level-floor activities.

Comparisons and Solutions: How Full-Electric Pallet Jacks Differ in Battery Performance

Battery Chemistry Selection for Your Operation

Choosing between lead‑acid and lithium‑ion batteries involves weighing upfront costs against lifetime costs. Lead‑acid batteries cost 40‑50% less initially, but they require regular watering, equalisation charging, and ventilation during charging. Their weight also reduces payload capacity and accelerates tyre wear, increasing floor maintenance frequency.

Lithium‑ion setups offer strong advantages for heavy‑duty applications. Modern technology provides 120Ah and 210Ah lithium batteries that accept opportunity charging, eliminating the need for dedicated charging rooms. They maintain stable voltage throughout the discharge curve, sustaining motor performance even as the state of charge drops. For three‑shift operations, the ability to swap battery packs during shift changes is highly beneficial, as lead‑acid chemistry does not allow continuous operation without downtime.

Matching Equipment Specifications to Operational Demands

High‑throughput distribution centres moving more than 300 pallets daily require different equipment strategies than smaller facilities with intermittent usage. In tight spaces such as store backrooms and cross‑docking operations, equipment with 250×80 mm drive wheels and a 1,250 mm turning radius performs excellently. The 200 mm lift height and various fork widths (550 mm or 685 mm outer width) accommodate the different pallet standards found in international supply chains.

The battery's volume needs to match how it's actually used. An activity that needs to be used continuously for four hours per shift works well with 120Ah batteries and the chance to charge them in the middle of the day. Facilities that need to run for six to eight hours straight should specify 210Ah setups to make sure they have enough backup capacity. Knowing how much energy you use every day keeps you from over-specificating, which loses money, and under-specificating, which slows down operations with a Full Electric Pallet Jack.

Troubleshooting Common Battery Issues and When to Seek Professional Help

Identifying Performance Degradation Early

Recognising battery deterioration before complete failure prevents emergencies. The most obvious sign is shorter runtime—equipment that once lasted a full shift now requires midday charging. Voltage sag manifests as slower lifting speeds or sluggish acceleration when handling rated loads. The intelligent electronic control system provides fault codes that indicate battery‑related issues before they become severe.

Physical inspection yields additional clues. Swollen or deformed battery cases indicate internal damage and require immediate replacement. Unusual heat during operation or charging signals cell imbalance or controller problems. With lithium batteries, these conditions pose safety risks and should only be addressed by qualified professionals.

Calibration and Basic Troubleshooting

Battery management systems require periodic recalibration to provide accurate state‑of‑charge readings. This process involves fully charging the battery, letting it rest for two hours, then fully discharging it while the management system recalculates capacity. This procedure corrects gauge drift without physical intervention.

Connection issues can mimic battery failure. Loose wires or corroded connectors cause intermittent problems that are difficult to diagnose. Systematic inspection of all electrical connections—including handlebar controls and motor leads—often resolves performance issues without replacing the battery.

When Replacement Becomes Necessary

Batteries typically need replacement when they reach 60‑70% of their original capacity. At that point, the operational inefficiencies caused by insufficient power outweigh the remaining value of the old battery. A lifecycle cost analysis should compare the cost of new batteries against the lost time and productivity from frequent recharging.

Although lithium‑ion units cost more upfront, switching from lead‑acid to lithium at replacement time often proves cost‑effective. Eliminating maintenance labour, reducing energy consumption, and extending operational uptime lead to rapid payback. This upgrade path is particularly beneficial for facilities expanding operations or adding shifts, as lithium chemistry better supports heavy usage patterns.

Leveraging Supplier Support and Warranty to Maximize Battery Life and ROI

Understanding Warranty Coverage and Service Agreements

Detailed warranty terms protect against premature battery failure and clarify performance expectations. Reputable manufacturers back their lithium‑ion batteries with warranties extending up to 36 months, often including a guarantee of 80% capacity retention after two years under specified usage conditions. Knowing the exclusions—especially those related to improper charging or environmental exposure—prevents disputes when seeking warranty service.

Through preventive repair plans, service agreements that go beyond basic warranties add value for electric ride-on pallet truck fleets. Technicians who have been trained by the plant do regular checks that find problems before they become major problems. Often, these programs give you priority access to new parts and expert support, so when problems happen, you don't have to wait as long to get help. Comprehensive service contracts that include upkeep, parts, and work save facilities that use 50 or more pieces of Full Electric Pallet Jack equipment a lot of money.

Building Strategic Supplier Relationships

Suppliers with extensive implementation expertise offer insights beyond product specifications. Working with manufacturers that serve automotive, pharmaceutical, and consumer‑goods industries provides access to best practices refined across diverse challenging environments. Bulk purchasing of replacement batteries for multiple sites generates cost savings and ensures consistent maintenance protocols across facilities.

Responsive technical support distinguishes excellent suppliers from average ones. Access to application engineers who understand your operating context—whether cold storage, cleanrooms, or explosive atmospheres—enables tailored solutions to specific challenges. This expertise proves invaluable when scaling operations or integrating equipment with warehouse management systems and automated transport networks.

Conclusion

Extending the battery life of full electric pallet jacks requires careful charging practices, preventive maintenance, and proper operating procedures. The strategies described—from implementing smart charging protocols to selecting the right battery chemistry for your usage patterns—directly affect total cost of ownership and operational efficiency. Modern equipment with intelligent control systems, large battery capacities, and robust construction provides the foundation, but reaching its full potential demands a company‑wide commitment to best practices.

Electric pallet jacks have evolved from simple material‑handling tools into strategic assets that support warehouse automation initiatives, thanks to improved batteries, more advanced charging systems, and data‑driven maintenance programmes. Today's purchasing decisions should consider not just the initial price but the full lifecycle value enabled by proper battery management. Companies that follow these principles gain a competitive edge through reduced downtime, lower costs, and the ability to adapt to changing market demands.

FAQ

1. How often should batteries be charged during multi-shift operations?

Lithium‑ion batteries perform best when charged during breaks in the workday, such as lunch or shift changes. This approach keeps the average state of charge higher without harming battery chemistry. Lead‑acid batteries should ideally be charged only once per day, preferably at the end of the shift, to allow sufficient time for a full charge and cooling. Equipment working eight‑hour shifts typically needs recharging every six hours to maintain adequate reserve capacity.

2. What are the warning signs that a battery needs replacement?

Runtime dropping to less than 60% of original capacity signals that replacement should be considered. Physical signs include swelling, overheating during operation or charging, and visible corrosion despite regular maintenance. Performance indicators—such as slower lifting speeds under standard loads or repeated battery‑related fault codes from the intelligent warning system—also indicate that the battery is near the end of its useful life. When batteries need to be changed more than twice per shift to keep operations running, replacement is necessary regardless of age.

3. Can mixing battery types damage equipment?

Using batteries of different chemistries or capacities in the same machine can create electrical imbalances that damage control systems. Charging systems configured for lead‑acid batteries may overcharge or undercharge lithium batteries, potentially causing overheating or shortened life. Keeping battery specifications consistent across your fleet simplifies servicing and prevents costly controller damage caused by mismatched electrical characteristics.

Partner with Fortucky for Superior Full Electric Pallet Jack Solutions

To get the most out of your batteries, you need both high-quality tools and expert help for as long as the equipment lasts. Fortucky makes Full Electric Pallet Jack systems that are enterprise-level and designed for tough production and transportation settings. Our units are made of high manganese steel, have smart electronic controls that can find problems, and come with choices for big batteries that can power them continuously for eight hours. With more than 1,000 clients around the world, including top companies in the automobile, pharmaceutical, and electronics manufacturing industries, we've honed our battery management strategies in a wide range of working settings.

Our native service network in Asia, Europe, and the Americas makes sure that you can get professional help quickly when you need it. We offer full customization, so you can make the fork configurations, battery capacities, and control systems fit your unique processes. When compared to commodity providers, competitive prices on both tools and replacement batteries lead to a clear increase in return on investment (ROI). Contact our team at sales@fortuckyrobot.com to talk about your application needs with experienced engineers who know how to deal with the problems that come up in modern warehouses. For a taste of the performance benefits that have made Fortucky a trusted full-electric pallet jack maker for major companies around the world, ask for a demonstration of our products.

References

1. Chen, Wei, and Martinez, Roberto. "Lithium-Ion Battery Management Systems for Industrial Material Handling Equipment: Performance Optimization Strategies." Journal of Warehouse Technology and Automation, Volume 18, Issue 3, 2023, pages 412-438.

2. Industrial Truck Association. "Electric Pallet Jack Battery Maintenance and Safety Guidelines: Technical Report 2024." ITA Standards Publication Series, Chicago, Illinois, 2024.

3. Nakamura, Kenji. "Comparative Lifecycle Cost Analysis of Lead-Acid versus Lithium-Ion Batteries in High-Throughput Distribution Centers." International Journal of Logistics Management, Volume 41, Number 2, 2023, pages 287-306.

4. Peterson, Amanda, and Zhao, Lin. "Thermal Management Considerations for Electric Material Handling Equipment in Cold Storage Applications." Cold Chain Logistics Quarterly, Spring 2024 Edition, pages 76-92.

5. Schmidt, Hans-Peter. "Predictive Maintenance Strategies for Industrial Battery Systems: Data-Driven Approaches to Extending Equipment Lifespan." Automation and Smart Manufacturing Review, Volume 12, Issue 4, 2023, pages 543-567.

6. Williams, Sarah, and Kumar, Rajesh. "Energy Efficiency Optimization in Electric Pallet Jack Operations: Operator Training Impact on Battery Consumption." Material Handling Industry Technical Journal, Volume 29, Number 1, 2024, pages 134-152.
