How to integrate a two-way shuttle with warehouse management systems (WMS)?

To connect a Two Way Shuttle to your Warehouse Management System, you need to carefully consider how they will communicate, share data, and work together in real time. The integration typically uses middleware or direct API links to transmit information about the Shuttle's location, load status, and tasks between the WMS and the Shuttle's control system. This allows your automated storage environment to move inventory more efficiently and maintain accurate stock records. Two Way Shuttle technology is quickly changing the way warehouses are automated by enabling higher storage density and faster material movement. To get the most out of WMS, it needs to be seamlessly integrated so that data can be shared in real time, supplies can be tracked accurately, and operations can be adjusted quickly. This guide is for procurement managers, warehouse engineers, dealers, and original equipment manufacturers (OEMs) who want to use smart automation solutions to improve order processing, streamline warehouse processes, and achieve the best return on investment (ROI). We have worked with more than 1,000 customers around the world, ranging from large FMCG companies to automakers, so we understand the challenges of deploying automated storage technologies in high-throughput environments.

Understanding the Two-Way Shuttle and Its Role in Modern Warehouses

What Makes Two-Way Shuttles Different from Traditional Automation

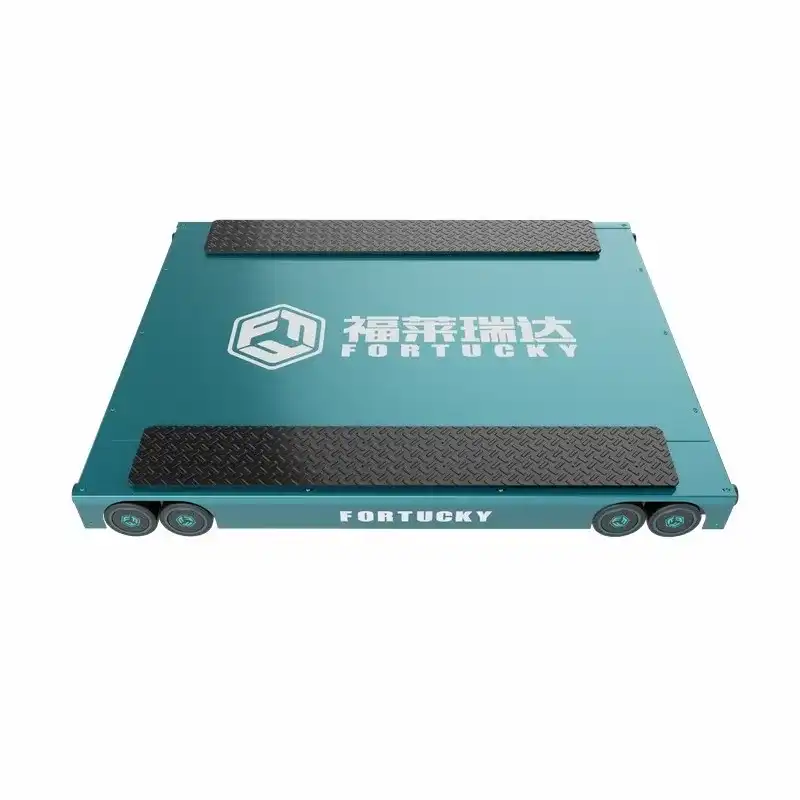

Two Way Shuttle systems are compact, self-propelled carriers that can travel in either direction within racking structures. They offer several advantages over conveyor systems and standard ASRS options. Because they increase storage density and throughput while maintaining flexibility, they are the best choice for a wide range of warehouse layouts, from bulk stacks to smaller boxes and bins. Two Way Shuttles excel at linear operations compared to four-way systems, which can move freely across multiple lanes. They provide faster speeds and more stable load handling for high-volume, low-SKU batch storage environments. These Shuttles improve operational safety by reducing physical labor. They work well in medium- to large-sized warehouses that want both flexibility and efficiency.

Technical Specifications That Matter

Modern Two Way Pallet Shuttles can carry a maximum weight of 1500 kg to 2000 kg. They can move at speeds of up to 1.5 m/s when empty and 0.6 to 1 m/s when fully loaded. The systems work with standard pallet sizes and fork entry directions ranging from 1000 mm to 1400 mm, making them compatible with most North American and international pallet standards. Power systems use lithium iron phosphate batteries, which provide 8–10 hours of continuous operation and support fast charging. Positioning accuracy is typically within ±2 mm to ±3 mm, achieved with laser and photoelectric sensors sourced from Germany, ensuring correct pallet placement even in dense racking configurations. These technical capabilities directly translate into practical benefits, such as reduced forklift travel distances, less accidental structural damage, and the ability to store pallets up to 40 positions deep without slowing retrieval.

Application Scenarios Across Industries

Normal-temperature storage and retrieval tasks are common in industries like consumer goods, automotive parts distribution, and electronics manufacturing. Standard and networked models can handle these tasks. Low-temperature versions, with full sealing and dedicated battery heating elements, operate consistently in cold storage environments as low as -25°C, making them ideal for pharmaceutical storage and refrigerated logistics. Heavy-duty models with built-in stackers support automated warehouse systems where Shuttles work with vertical stacker cranes to create fully automated storage and retrieval systems (AS/RS) capable of handling high-throughput needs in places such as steel distribution centers and new energy battery production facilities.

Challenges of Integrating Two-Way Shuttles with Warehouse Management Systems (WMS)

Data Synchronization and Real-Time Accuracy

Adding Two Way Shuttle systems with an existing WMS can be challenging because you must ensure data alignment, real-time inventory accuracy, and system compatibility. When a Shuttle deposits a pallet deep inside a lane, the WMS must immediately update the product location record to reflect the exact position. Delays or errors in this data exchange can lead to phantom inventory, incorrect picks, or order fulfillment delays. In multi-shuttle environments, where several units operate simultaneously across different lanes, the challenge grows because the WMS must track and coordinate dozens of moves at the same time without conflicts or data collisions.

Communication Protocol Compatibility

Many failed integrations are caused by non-standard communication protocols, insufficient customization options, and an incomplete understanding of warehouse workflows. Some legacy WMS platforms use outdated protocols such as serial communication or proprietary interfaces, while newer Shuttle systems typically communicate using industry standards like MQTT, OPC-UA, or RESTful APIs. Bridging this gap often requires middleware or custom interface development, increasing project complexity and cost. Because there is no standard message format for Shuttle commands like "move pallet from position A12 to B23," each integration must define its own data model, error codes, and exception handling methods.

Workflow and Operational Alignment

Overcoming these challenges is important for B2B operations and procurement because integrated systems improve supply chain visibility, accelerate order fulfillment, and enhance responsiveness to market demands. Operational teams need to understand how the Shuttle's FIFO or LIFO modes align with the WMS's inventory movement rules. When a Shuttle encounters a damaged pallet, a blocked lane, or a low battery, the system must handle it by sending appropriate alerts and executing the correct recovery steps within the WMS workflow. Without proper alignment, automation can create new bottlenecks instead of eliminating old ones.

Step-by-Step Approach to Integrate Two-Way Shuttle Systems with WMS

Phase One: Assessment and Architecture Design

The first step to successful integration is a thorough assessment of system functions and identification of key data exchange points. List all the touchpoints where the Two Way Shuttle interacts with your WMS, such as pallet intake, lane assignment, location tracking, retrieval requests, and fault reporting. Logistics managers, automation experts, and IT teams should all participate in this assessment to ensure a shared understanding of the system interfaces. Communication protocols like MQTT or OPC-UA help determine the right integration architecture, such as direct API links or middleware. Direct API integration offers lower latency and a simpler design but requires good API documentation and development tools. Warehouse control systems (WCS) and other middleware solutions provide a buffer layer that handles protocol translation, queue management, and retry logic, making them suitable for complex environments with multiple automation devices.

Phase Two: Implementation and Data Synchronization

Real-time data exchange ensures that the status of the Two Way Shuttles matches the inventory records in the WMS, and robust exception handling minimizes downtime. Configure the Shuttle controller to send position updates, battery status, and error codes to the WMS at defined intervals, typically every 1 to 3 seconds, whether controlled by remote terminals, the WCS, or forklift interfaces. To avoid race conditions, the WMS must acknowledge these messages and update its data transactionally. Establish exception handling procedures for common scenarios. For example, what should happen if a Shuttle encounters an unexpected obstacle? What does the system do if the Wi-Fi connection drops temporarily? By building these safety mechanisms into the interface, minor issues do not escalate into system shutdowns.

Phase Three: Testing, Validation, and Training

The rollout phase ends with thorough testing, validation, and end-user training, which ensures a smooth handoff to operations. Do combined testing in stages, starting with operations involving one two-way pallet shuttle in one lane and working up to situations with multiple Two Way Shuttles and lanes. Test the system's stability by simulating edge situations like multiple retrieval requests at the same time, pallet dimensions that don't match, and network breaks. Forklift workers and warehouse managers use Shuttle controls every day, so they need to be trained too. Make sure they know the different operating modes, how to fix errors, and when to call technical support.

Evaluation of Integration Impact and Performance Optimization

Key Performance Indicators to Monitor

Measuring success after integration is helped by tracking key performance indicators (KPIs) such as inventory accuracy, Shuttle throughput, downtime, and labor utilization. When Two Way Shuttles eliminate manual errors, inventory accuracy should rise significantly, often reaching 99.5% or higher. Shuttle throughput, measured as the number of pallets moved per hour, directly reflects system efficiency and should match the original capacity estimates. Tracking downtime, including both planned and unplanned stops, reveals reliability patterns and helps prioritize software or component upgrades. Labor utilization metrics show how technology transforms worker roles from repetitive tasks like pallet moving to higher-value activities such as quality control and process optimization.

Continuous Improvement Through Analytics

Using WMS analytics to identify bottlenecks and improve workflows enables ongoing growth. Heat maps showing Shuttle activity by lane can reveal traffic imbalances, indicating a need to reorganize goods or add more Two Way Shuttles. Cycle time analysis identifies specific process steps that take too long, such as excessive wait times for forklift handoffs at lane ends. Regular software and hardware updates—including vendor releases, security patches, and new features—improve system reliability and adaptability over its lifetime.

Real-World Impact: A Case Study Snapshot

A major automotive parts distributor faced problems with inaccurate inventory and long wait times in its high-bay warehouse serving just-in-time production lines. By using deeper lanes, the company increased storage density by 40%, reduced its forklift fleet by 30%, and raised inventory accuracy from 96% to 99.7% after integrating networked Two Way Shuttles with its existing SAP EWM platform. The integration enabled real-time visibility of part locations, allowing production planners to instantly check part availability and adjust assembly plans on the fly. This case study shows how a major company overcame integration challenges and achieved measurable business gains, demonstrating the importance of proper planning and execution in Shuttle automation.

Selecting and Procuring Two-Way Shuttle Systems with Integration in Mind

Evaluating Supplier Compatibility and Customization

When evaluating a Two Way Shuttle supplier, you need to check compatibility with popular WMS systems like SAP EWM or Oracle WMS, as well as the supplier's ability to customize for future growth. Look for suppliers that offer standard API documentation, pre-built connectors for common WMS platforms, and the ability to adapt to your operation's unique processes. The Shuttle control system should support multiple communication protocols and allow configuration changes without full system reprogramming. Long-term success depends on the supplier's reputation and after-sales service, especially for companies with multiple locations that require consistent support, fast response times, and spare parts availability.

Total Cost of Ownership and ROI Forecasting

To accurately predict ROI, it's important to look at the total cost of ownership, which includes buying, renting, installing, and maintaining the item. Besides the original cost of buying a high-density two-way shuttle system, you should also think about the costs of integration engineering, ongoing software licensing fees, and training your operating staff. Usually, batteries should be replaced every 3–5 years, sensors should be calibrated, and software should be updated as part of maintenance contracts. Leading providers offer ROI calculators that estimate payback times, which are usually between 18 and 36 months for high-volume operations and take into account labor savings, better room usage, and throughput gains.

Fortucky's Differentiated Approach

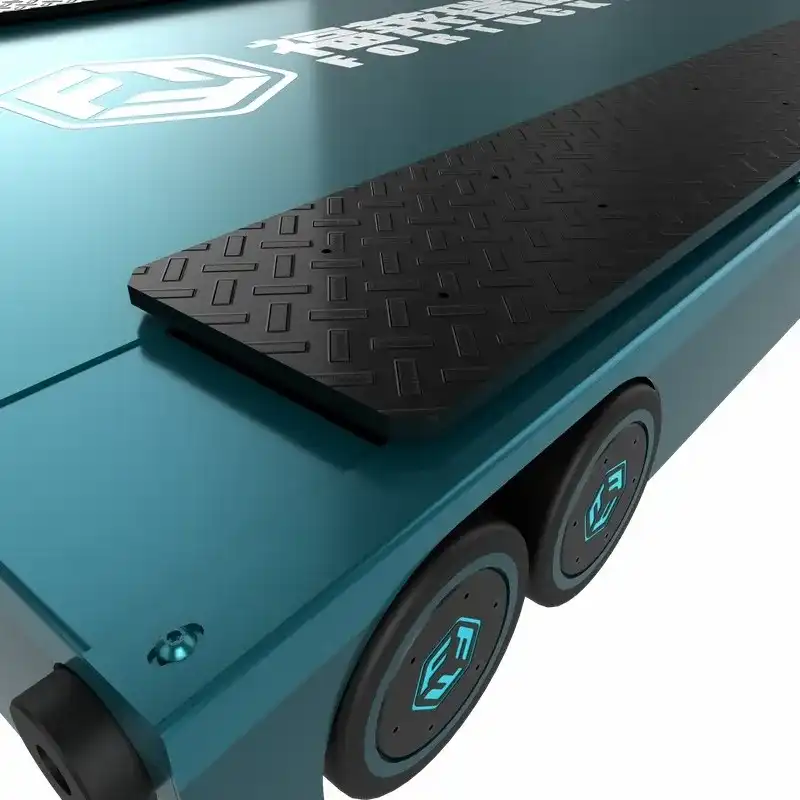

For your specific storage and retrieval needs, Fortucky offers a wide range of model options for normal-temperature, low-temperature, heavy-duty, and stacker-integrated environments. Our Two Way Shuttles feature high-performance brushless motors and German laser tracking systems, delivering speed and accuracy within 3 mm. Lithium iron phosphate batteries provide reliable, long-lasting power. Sealed components and imported parts ensure stability and low maintenance. Our networked models and stacker-integrated versions support seamless system docking via wireless modules, making WMS integration easy and enabling automated warehouse upgrades. We bring deep project implementation experience and regional service networks across Asia, Europe, and the Americas to every deployment. We have worked with over 1,000 businesses worldwide, including automotive leaders, FMCG giants, and electronics manufacturers.

Conclusion

Integrating Two Way Shuttles with your WMS is a strategic investment that pays off in storage density, throughput, and inventory accuracy. Communication protocols, real-time data synchronization, and operational workflow alignment must all be carefully considered for success. By following a structured approach—from initial assessment through testing and ongoing optimization—you can overcome common integration challenges and maximize the value of automated storage technology. Success depends on choosing suppliers who understand both the technical and operational requirements of your industry, ensuring that the system can grow and adapt with your business.

FAQ

Q1: What type of WMS works best with two-way shuttles?

Enterprise-level WMS tools such as SAP Extended Warehouse Management (EWM), Oracle WMS, Manhattan Associates, and Blue Yonder support multi-system integration and common communication protocols like OPC-UA and RESTful APIs. These systems offer the transactional accuracy, real-time processing, and flexibility needed to manage automated Two Way Shuttle operations in high-throughput environments.

Q2: How long does a typical integration project take?

Integration timelines depend on system complexity and customization requirements, but most projects take between 8 and 16 weeks from planning to go-live. This includes 2–3 weeks for assessment and architecture design, 4–6 weeks for development and configuration, 2–3 weeks for integrated testing, and 1–2 weeks for training and rollout. Projects with extensive custom process rules or many Two Way Shuttles may take longer.

Q3: Are software updates and firmware upgrades covered under supplier agreements?

It depends on the supplier and the contract terms. Standard maintenance agreements from many suppliers cover minor software updates and bug fixes, but major feature releases or system upgrades may incur additional costs. During procurement, clarify these terms and ensure the final agreement includes details about update frequency, remote support availability, and handling of emergency patches for critical business issues.

Partner with Fortucky for Seamless Two Way Shuttle Integration

To get great warehouse automation, you need more than just tools. You also need a trusted partner who knows how complicated integration can be and can help you from start to finish. Fortucky has competitive research and development skills and a history of helping over 1,000 companies around the world in the automobile, electronics, fast-moving consumer goods, and cold chain logistics industries. We can make a lot of changes to make sure that every Two Way Shuttle supplier option works perfectly with your operational processes and WMS design. We offer quick lead times, localized deployment knowledge, and quick technical help when you need it most. Our 5G-enabled intelligent production facility and extensive industry certifications back this up. Email our engineering team at sales@fortuckyrobot.com to talk about your specific integration needs, set up a facility trial, or ask for a thorough ROI analysis that is tailored to your warehouse.

References

1. Richards, G. (2022). Warehouse Management: A Complete Guide to Improving Efficiency and Minimizing Costs in the Modern Warehouse. Kogan Page Publishers.

2. Frazelle, E. (2021). Supply Chain Strategy: Unleash the Power of Business Integration for Bottom Line Success. McGraw-Hill Education.

3. Tompkins, J.A., White, J.A., Bozer, Y.A., and Tanchoco, J.M.A. (2020). Facilities Planning. John Wiley & Sons, Fifth Edition.

4. Manzini, R., Gamberi, M., and Persona, A. (2019). "Design and Control of Automated Storage and Retrieval Systems: State-of-the-Art and Future Directions." International Journal of Production Research, 57(12), pp. 3824-3847.

5. Bartholdi, J.J. and Hackman, S.T. (2021). Warehouse & Distribution Science. Supply Chain and Logistics Institute, Georgia Institute of Technology.

6. Rushton, A., Croucher, P., and Baker, P. (2022). The Handbook of Logistics and Distribution Management: Understanding the Supply Chain. Kogan Page Publishers, Seventh Edition.
