What is push back storage racks?

When warehouse managers face mounting pressure to store more inventory in less space, traditional racking systems often fall short.  Push-back storage racks offer a powerful solution to this challenge. These high-density storage systems utilize inclined rails and nested carts that automatically reposition pallets as you load and unload them. Unlike conventional selective racking that requires a dedicated aisle for every row, push-back pallet racking maximizes cubic space by storing multiple pallets deep while maintaining reasonable access speeds. This design makes them invaluable for operations juggling limited floor space with growing inventory demands.

The Critical Problem Push Back Storage Systems Solve

Every warehouse worker knows how frustrating it is when your space is full to the brim, but you can't afford to add more square footage. When you use traditional selective shelving, the extra lanes take up important floor space. While drive-in methods make things more crowded, they also make things less safe and take longer to get back.

This gap is wonderfully filled by industrial push-back rack storage. The method takes care of three problems at the same time. It makes much better use of space and can store up to 90% more than selective shelving in the same area. Forklift workers don't have to go into the rack structure, which cuts down on trip time and the chance of injuries. The last-in, first-out (LIFO) rotation pattern makes inventory management better. It works great for non-perishable items or those with flexible expiration dates.

Big companies that make car parts, electronics, and steel all have to deal with similar problems. Their parts usually come in large groups of the same SKUs. A company that sells drinks might get 40 boxes of the same product line every week. Instead of spreading these out over several selective rack positions, push-back systems group them together into deep lanes that can be reached from a single aisle position. This focus leads to a measured return on investment (ROI) through lower real estate costs and faster putaway operations.

Understanding the Engineering Behind Push Back Racking Systems

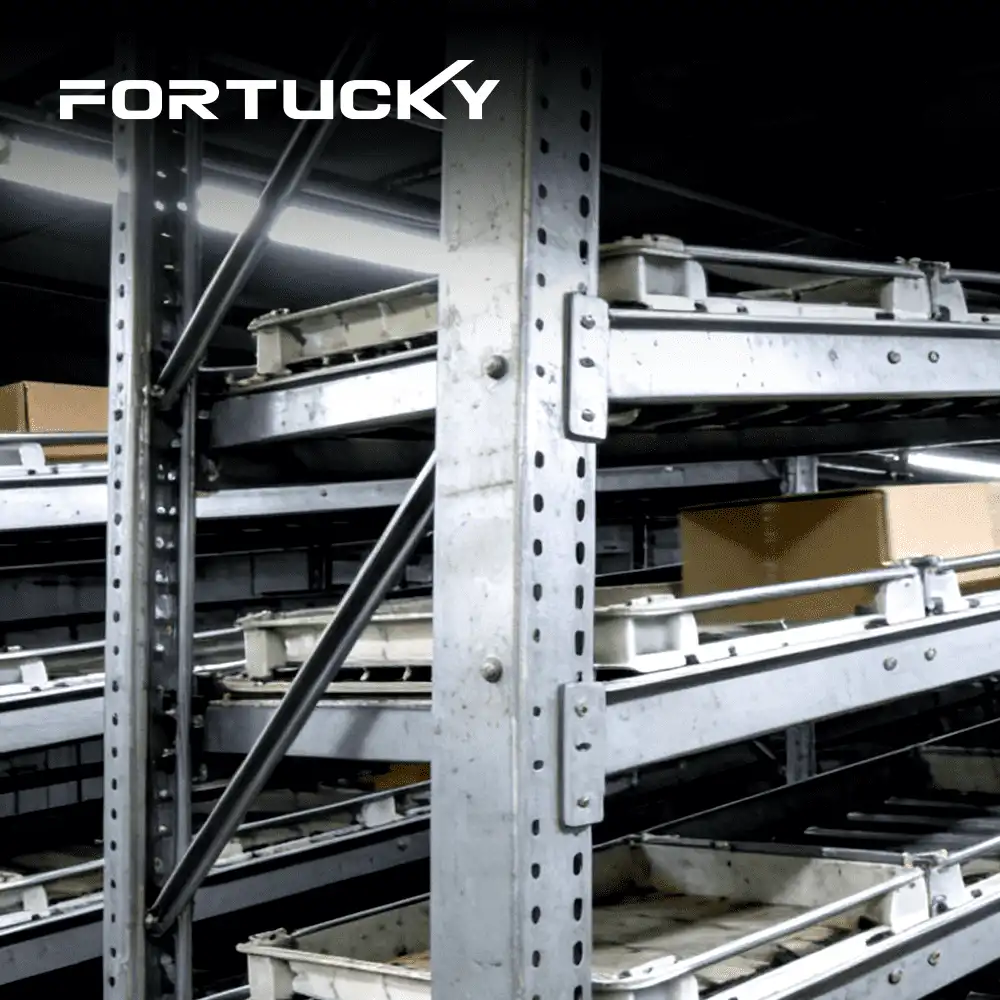

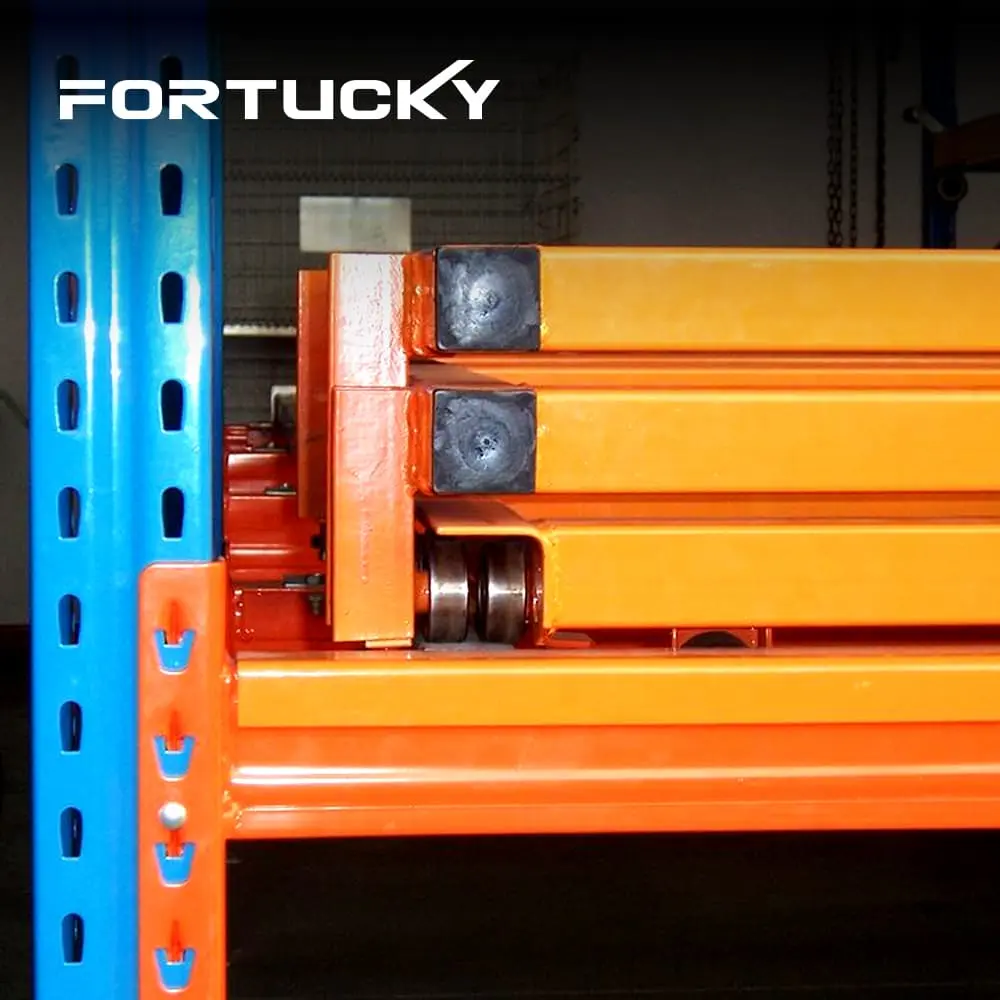

The physics are beautifully simple, but they work amazingly well. The main structure is made up of upright frames and horizontal beams that form strong lanes. There are a number of nested carts on slightly sloped steel tracks in each lane. Usually, a 3-5% grade works best.

The front-most cart is where the first pallet rests while the forklift loads it. The first cart and pallet are pushed back along the rails as the second pallet is loaded. This process is repeated for each new pallet, which pushes the whole row deeper into the rack structure. Most layouts can fit between 2 and 6 pallets deep per lane, but special designs can go even further if that's what the business needs.

The genius shows up when you retrieve. When you remove the front load, the other carts move forward on their own. This movement is controlled by built-in dampening devices, which stop rapid slips that could damage goods. These shock dampers, usually hydraulic or spring-loaded, ensure smooth and controlled movement. Safety backstops in the back keep pallets from rolling off, and front stops make sure that incoming pallets are in the right place so that forklifts can access them.

With this self-replacing pick face, you don't have to keep moving things around as you do with other dense storage methods. Operators spend less time repositioning items, and throughput increases measurably. The system doesn't need any electrical parts or complicated settings, making it very reliable and low-maintenance.

Core Advantages That Drive Warehouse Performance

Space efficiency stands as the most compelling benefit of push-back pallet racking. By eliminating multiple aisles and storing pallets 2-6 deep, warehouse push-back racks can increase storage density by 60-90% compared to selective systems. A 50,000-square-foot facility might gain the equivalent of 30,000 additional square feet without construction costs.

Operational safety improves substantially over drive-in alternatives. Forklift operators never enter the rack structure, drastically reducing collision risks. The enclosed lane design also provides lateral support for pallets, minimizing the tip-over hazards common in selective racking when loads shift. Damage rates to both racking and inventory typically drop 40-60% after conversion from drive-in systems.

Labor productivity gains are equally impressive. The automatic pallet advancement means operators complete picking cycles faster. Time studies consistently show 15-25% improvement in putaway and retrieval speeds compared to traditional methods. Over a year, this efficiency compounds into significant cost savings, particularly in high-volume operations running multiple shifts.

The system's adaptability deserves emphasis. Push-back rack design accommodates various pallet sizes, weight capacities up to 4,000 pounds per pallet position, and works equally well in ambient, refrigerated, or freezer environments. Cold storage facilities particularly value the density advantages since refrigerated space costs 3-4 times more per square foot than ambient warehousing.

Installation and reconfiguration remain straightforward. Most systems use bolt-together construction, allowing layout modifications as inventory profiles change. This flexibility protects your capital investment across shifting business requirements.

Important Considerations and Potential Limitations

Being honest about limitations helps people set realistic goals. The LIFO storage cycle isn't good for all items. Flow racks are one way to handle perishable goods that need strict first-in, first-out (FIFO) control. Push-back setups may make it hard for pharmaceuticals that need batch tracking to meet compliance standards.

SKU count is very important. Each lane usually holds one SKU, so businesses that handle thousands of different items might not get the most out of their space. Facilities that handle between 50 and 200 SKUs in moderate to high volumes are the sweet spot. It's more likely that selective shelving would work better in a storage center with 5,000 slow-moving items.

The initial investment is typically 60–80% more per pallet position than with basic selective systems. But the ROI estimate needs to take into account saved space, reduced labor waste, and lower building costs. Most businesses with the right kind of inventory get their money back within 18 to 36 months.

Operational headaches can be avoided by carefully matching loads. Placing much smaller pallets behind heavy ones can stop the cart from moving forward properly. Training handlers in consistent loading practices ensures smooth system operation.

Ceiling height has a direct effect on volume. Standard layouts can work in buildings with clear heights of 20 feet, but to maximize vertical space, buildings need to be at least 28 feet tall. When planning, you should assess your building's dimensional constraints.

How Push Back Storage Compares to Alternative Solutions

Drive-in racking offers similar density but requires forklifts to enter the rack structure. This creates safety risks and slower cycle times since operators must navigate tight spaces. Industrial push-back pallet storage systems eliminate these concerns while maintaining comparable storage density. Damage rates in drive-in systems often run 2-3 times higher than push back configurations due to forklift-rack collisions.

Pallet flow racks provide FIFO rotation using roller conveyors. They excel for perishable goods but cost 40-60% more than push-back systems and require more maintenance due to moving parts. The push-back system offers a middle ground—better density than selective racking, lower cost than flow systems, and appropriate for many inventory types.

Selective racking remains the most flexible solution for diverse SKU profiles. You can access any pallet immediately without moving others. However, the space penalty is severe in land-constrained markets. Combining selective racks for fast-moving, diverse items with push-back zones for bulk storage often creates optimal layouts.

Automated storage and retrieval systems (AS/RS) deliver ultimate density and speed but require substantial capital investment—often 5-10 times the cost of push-back solutions. For mid-sized operations or those testing high-density concepts, push-back racking provides an excellent stepping stone before committing to full automation.

​​​​​​​Ideal Applications and Target Users

Large manufacturers in the automotive, electronics, and construction machinery sectors gain immediate value. These operations typically manage components arriving in full truckload quantities. Storing 30 pallets of identical parts in a single push-back lane streamlines inventory management and floor space utilization.

Cold chain logistics operators find compelling economics. When refrigerated warehousing costs $25-40 per square foot monthly, the 60-90% space savings translate directly to bottom-line impact. Beverage distributors, frozen food processors, and pharmaceutical cold storage facilities represent prime candidates.

Third-party logistics providers (3PLs) serving clients with concentrated SKU profiles deploy push-back systems strategically. A 3PL managing multiple brands of similar products—different labels on identical items—can dedicate lanes to each variation while maintaining excellent space efficiency.

Operations with seasonal demand spikes benefit substantially. Retailers building inventory before holiday periods need temporary high-density storage. Push-back shelving accommodates the surge without requiring facility expansion, then remains efficient during lower-volume periods.

Companies pursuing Industry 4.0 initiatives discover that push-back racks integrate well with warehouse management systems. While mechanically simple, the systems pair effectively with WMS software tracking inventory by lane and depth position. This combination delivers both physical density and digital visibility.

Looking Forward: The Future of Dense Storage Solutions

Push-back storage technology continues evolving alongside broader warehouse automation trends. The fundamental mechanical advantages ensure ongoing relevance even as facilities adopt more sophisticated systems. Smart warehouses increasingly combine push-back zones for bulk storage with automated solutions for high-velocity picking, creating hybrid layouts that optimize both cost and performance.

Material science improvements are producing lighter yet stronger components. Recent innovations in damping technology provide smoother cart movement with less maintenance. These incremental enhancements compound over system lifecycles, improving ROI and reliability.

The push toward sustainability amplifies push-back advantages. Maximizing existing building footprints reduces construction waste and embodied carbon. Energy efficiency improves when refrigerated facilities store more inventory per conditioned cubic foot. As environmental considerations influence procurement decisions, these factors gain weight alongside traditional financial metrics.

Manufacturers pursuing digital transformation find push-back systems integrate effectively with WMS, WCS, and even digital twin technologies. Real-time inventory tracking by lane position provides visibility without requiring the capital investment of fully automated systems. This positions push-back racking as a pragmatic step in multi-phase automation roadmaps.

For operations seeking measurable improvements in space utilization, safety, and throughput, push-back storage racks deliver proven results. The technology balances sophistication with simplicity, offering industrial-grade performance without complexity. As warehouse real estate costs continue rising and operational excellence becomes increasingly competitive, these systems provide a practical pathway to improved performance.

Frequently Asked Questions

Q1: What weight capacity can push-back storage systems handle?

A: Standard configurations support 2,000-4,000 pounds per pallet position, with heavy-duty designs accommodating up to 5,500 pounds. The total lane capacity depends on the number of pallet positions and structural specifications. Our engineering team calculates load ratings based on your specific pallet weights, rack depth, and height requirements to ensure safe, compliant operation.

Q2: How many pallets deep should I configure each lane?

A: Most operations find that 3-5 pallets deep offers an optimal balance between density and inventory turnover. Deeper configurations increase space savings but extend the time to cycle through all positions. We analyze your SKU velocity data and order patterns to recommend the ideal depth. Fast-moving items typically work best at 2-3 deep, while slower movers can extend to 6 positions.

Q3: Can push-back racks work in freezer environments?

A: Absolutely. We manufacture cold-resistant models specifically for freezer applications down to -40°F. Special materials prevent brittleness, and damping systems use cold-tolerant fluids. Many food processors and cold storage providers rely on our freezer-rated push-back racking to maximize their expensive refrigerated space. The system's mechanical simplicity actually makes it more reliable than electronic alternatives in extreme cold.

Q4: What maintenance do push-back systems require?

A: Minimal upkeep keeps these systems running reliably. Quarterly inspections should check damper function, cart wheel condition, and rail alignment. Annual lubrication of moving parts prevents wear. Unlike automated systems with complex controls, push-back racks have few failure points. Most operations report maintenance costs 60-70% lower than comparable automated solutions, with downtime virtually eliminated.

Partner with a Proven Push Back Storage Racks Manufacturer

Finding the right high-density storage racks supplier transforms your warehouse efficiency. Fortucky brings decades of specialized experience serving Fortune 500 manufacturers and logistics leaders globally. Our engineering team designs custom push-back rack solutions optimized for your specific SKU profiles, throughput requirements, and facility constraints. With production capacity exceeding 150,000 tons annually and localized service networks across three continents, we deliver fast implementation and responsive support. Contact our solution specialists at sales@fortuckyrobot.com to discuss how push-back storage racks can solve your space challenges while improving operational safety and throughput.

References:

1. Material Handling Industry of America. (2023). Storage Systems Design Guidelines for High-Density Warehousing. Charlotte: MHIA Publications.

2. Richards, G. (2022). Warehouse Management: A Complete Guide to Improving Efficiency and Minimizing Costs in the Modern Warehouse. London: Kogan Page Publishers.

3. Bartholdi, J.J. & Hackman, S.T. (2021). Warehouse & Distribution Science: Release 0.98. Atlanta: Supply Chain and Logistics Institute.

4. Frazelle, E. (2023). World-Class Warehousing and Material Handling, 3rd Edition. New York: McGraw-Hill Education.

5. International Storage Systems Federation. (2022). Safety Standards for Push Back and High-Density Storage Racking. Berlin: ISSF Technical Committee.

6. Tompkins, J.A. & Smith, J.D. (2021). The Warehouse Management Handbook: Practical Approaches to Warehouse Planning and Operation. Raleigh: Tompkins Press.
