Moving Made Easy: Use Heavy duty dolly for stairs for Heavy Furniture

It doesn't have to be bad to move big items up and down stairs. Through engineered design principles that place a premium on user safety and load stability, a heavy duty dolly for stairs makes this difficult job doable. The tri-wheel systems and strengthened alloy steel construction of these specialised stair-climbing hand trucks spread the weight evenly across each step, reducing physical strain and keeping goods and property safe. Whether you're in charge of warehouse planning, business setups, or facility moves, knowing how these tools work has a direct effect on how well they work and how well your employees are doing.

Understanding Heavy Duty Dollies for Stairs

What Makes Stair Dollies Different from Standard Hand Trucks？

Compared to conventional two‑wheeled hand trucks, stair‑climbing dollies represent a significant advancement. Their defining feature is the multiple‑wheel arrangement that provides a mechanical advantage on inclined surfaces. While flat‑surface dollies roll continuously, stair dollies move in a sequential manner: each set of wheels engages a different stair tread, effectively breaking a steep slope into manageable steps. This design prevents the sudden weight shifts that cause ordinary dollies to tip over or slide backwards during ascent.

Material composition directly affects performance and durability. Alloy‑steel frames offer the structural strength needed to secure loads under stress, while aerospace‑grade aluminium frames reduce operator fatigue during prolonged use. Powder‑coated finishes resist corrosion in humid environments, extending service life beyond that of unprotected steel. The technical challenge lies in balancing weight capacity with manoeuvrability: heavier frames can support greater loads but require more effort to move on level ground.

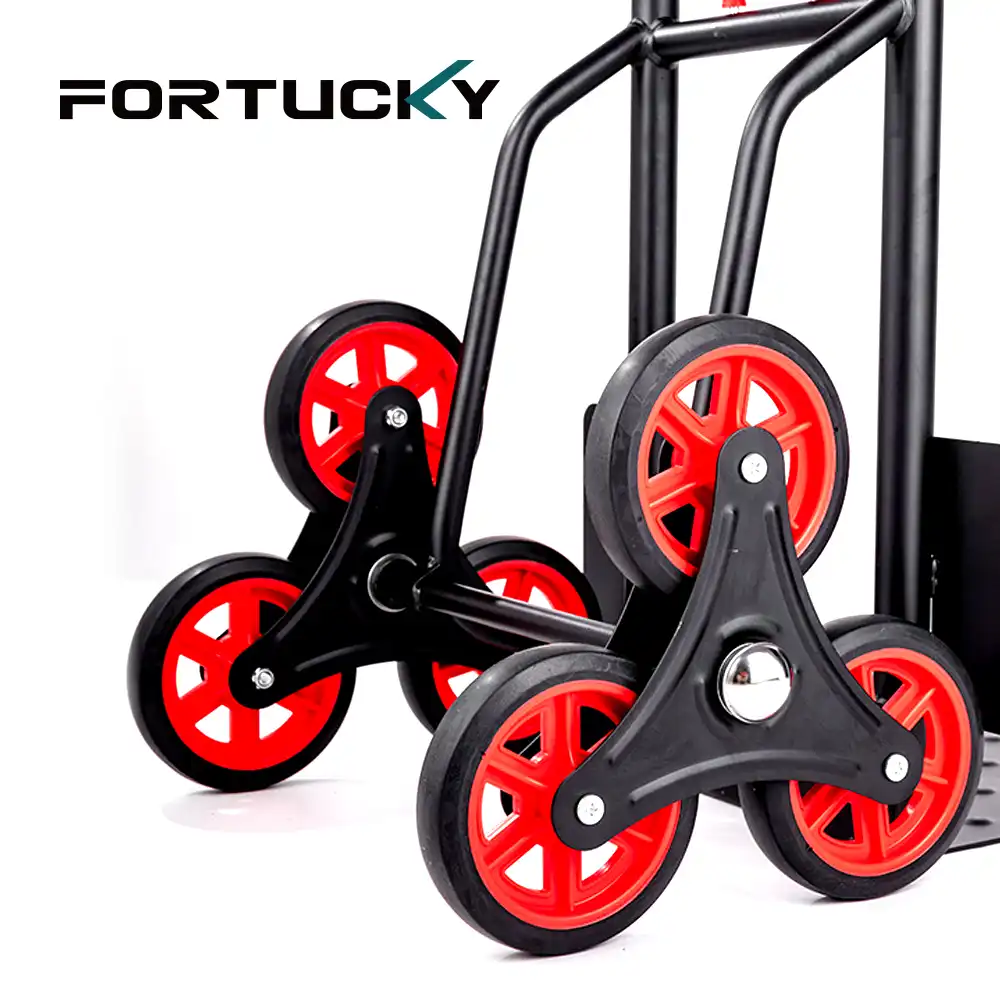

The Engineering Behind Tri-Wheel Stair Navigation

The three‑wheel configuration solves a specific mechanical problem. To prevent rotation around a single axis during stair climbing, a heavy‑duty stair dolly must maintain three points of contact. With a conventional two‑wheel design, the load’s centre of gravity can shift beyond the base of support, causing a tip‑over. Tri‑wheel groupings distribute the load over a wider area, keeping the centre of gravity aligned with the frame throughout the climbing cycle. Each wheel set moves forward independently, creating a continuous support pattern that prevents cargo from shifting.

This geometric advantage substantially reduces the force required from the user. Independent tests show that tri‑wheel systems demand approximately 40% less pulling force than two‑wheel dollies when ascending stairs. This reduction results from controlled descent angles that maintain consistent leverage ratios. Polyurethane and rubber wheels also absorb shocks, protecting sensitive equipment during transport. When evaluating options, procurement teams can compare designs based on actual load‑handling performance rather than relying solely on manufacturer claims.

Load Capacity Classifications and Material Specifications

Professional stair dollies are available in various capacity classes for commercial use. Entry‑level models rated for 150‑200 kg suit light commercial and residential moves. Mid‑range units capable of 200‑300 kg are used for general warehouse tasks such as moving machinery and boxed goods. Heavy‑industrial models exceeding 600 kg are reserved for specialised applications, including machine relocation and bulk material storage in construction zones.

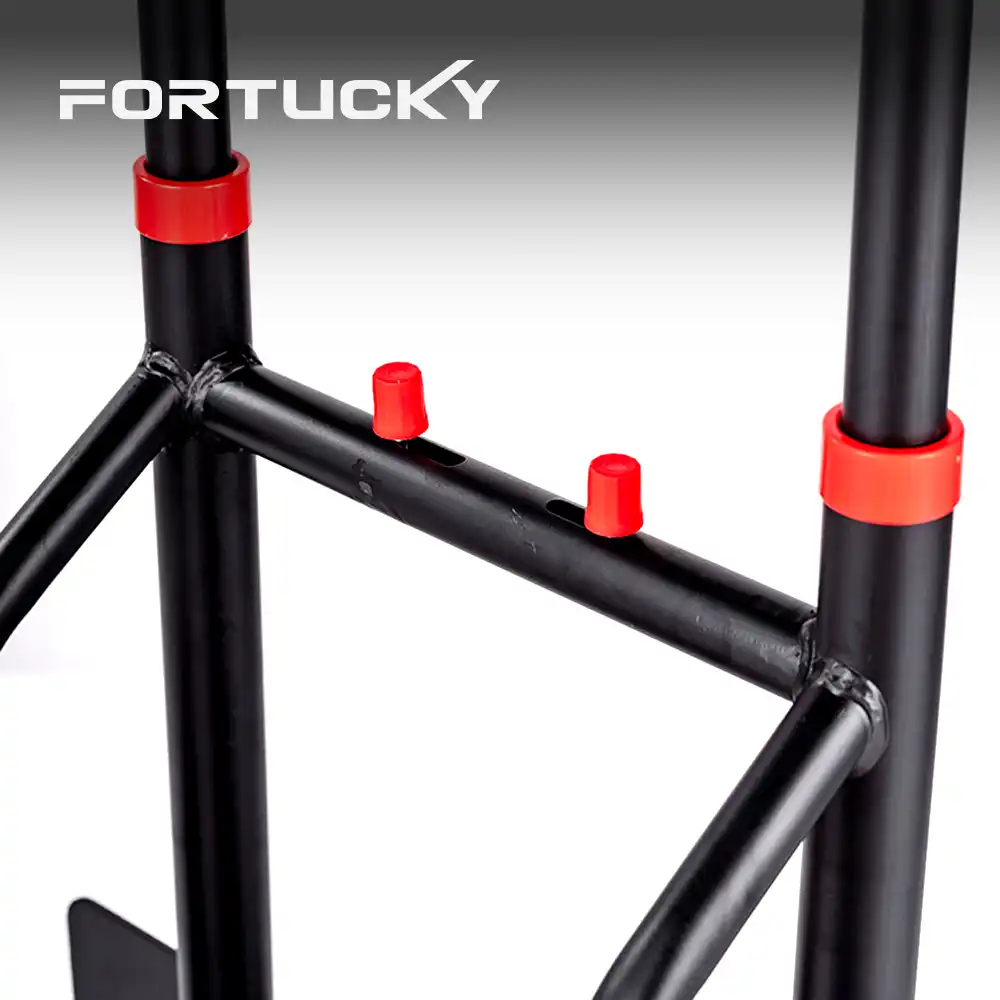

The model in question supports up to 440 lb (200 kg) on flat ground and 300 lb (136 kg) on stairs. This difference reflects the additional stress imposed by vertical movement. The frame is constructed from reinforced steel tubing with thicker cross‑sections to maintain structural integrity under repeated heavy loading. At 25 lb operating weight, the unit offers a good balance between robustness and portability for single‑user operation. Its compact folded dimensions (15" x 18.5" x 29") allow storage in standard service vehicles, benefiting mobile installation teams with limited space.

Benefits and Safety Advantages of Using Heavy-Duty Stair Dollies

Injury Prevention Through Ergonomic Load Distribution

Work‑related musculoskeletal disorders are costly for logistics‑dependent industries. Repeated heavy lifting damages lower‑back structures, and stair climbing compounds the risk due to awkward postures. Stair‑climbing hand trucks eliminate the need for direct lifting by turning the task into a controlled rolling operation. Ergonomic handle designs allow operators to maintain neutral spinal alignment while guiding loads, reducing torque on intervertebral discs.

Here are the main safety benefits this gear provides:

• Reduced labour requirements: a single person can safely move items that previously needed two or three workers, cutting labour costs and minimising coordination errors that cause load drops.

• Property protection: non‑marking polyurethane wheels prevent scratches on finished stair treads and walls, avoiding repair costs associated with dragging or slipping.

• Controlled descent mechanics: the sequential contact pattern of the tri‑wheel system prevents uncontrolled acceleration on downward slopes, giving users precise speed control throughout the movement.

These benefits directly address the problems that facilities managers have identified as being the most important ones: lowering workers' compensation claims, protecting valuable assets during moves, and keeping to schedules during equipment installations. In the real world, injury rates drop by 60% when crews switch from carrying things by hand to using heavy-duty dollies for stairs and stair dolly systems.

Enhancing Operational Efficiency in Commercial Settings

Beyond safety, stair dollies accelerate tasks that affect bottom‑line performance. For example, delivery teams manually carrying an appliance to a second‑floor location typically take 15‑20 minutes, whereas using a properly configured stair‑climbing cart reduces this to 8‑12 minutes—almost doubling throughput capacity. This efficiency gain accumulates over daily route schedules, allowing service providers to add more customer appointments without increasing headcount.

The equipment is especially valuable in industries with frequent vertical transport. White‑goods delivery services moving refrigerators and washing machines into multi‑storey buildings without lifts see immediate ROI through reduced crew fatigue and faster turnaround. Construction material suppliers transporting cement bags, HVAC units, and tile pallets to upper floors avoid bottlenecks that delay projects. Specialised industrial relocations involving server racks and photocopiers benefit from smooth climbing action that protects sensitive electronics from shock damage.

Best Practices for Efficient Use of Heavy-Duty Stair Dollies

Pre-Move Load Assessment and Securing Techniques

Effective stair dolly operation begins with proper load preparation. Operators must confirm that the item weight falls within the device’s stair‑climbing capacity, not its flat‑ground rating. The 300‑lb stair limit reflects increased stress during vertical movement; exceeding this risks frame failure or loss of control. Asymmetric loads require extra attention to centre‑of‑gravity positioning. Heavy items with uneven weight distribution should be placed so that the mass centre aligns with the dolly’s central spine.

Securing cargo prevents shifting during movement. Ratchet straps create a positive attachment between the load and the frame, especially important when navigating landings where direction changes. Corner protectors on bulky furniture distribute strap pressure without crushing upholstery or finished wood surfaces. Appliances with protruding parts, such as refrigerator door handles, need strategic padding to avoid snagging on handrails or door frames.

Staircase Geometry Considerations and Team Coordination

Different stair types present varying challenges. Straight flights allow continuous climbing, but L‑shaped and U‑shaped stairs with landings require repositioning mid‑move. Narrow stairs (under 36 inches wide) demand careful angle management to prevent frame contact with walls, while spiral staircases may exceed the equipment’s turning capability, necessitating alternative rigging methods. Smart procurement teams conduct site surveys before selecting equipment, ensuring dolly specifications match workplace conditions.

For grades steeper than 40 degrees, a two‑person operation is safer. The lead operator at the top controls direction, while the trailing operator at the bottom manages descent speed with controlled braking. Clear verbal communication protocols keep both operators synchronised, especially when visual contact is lost due to load size. Training programmes should include practice runs with various load types before teams undertake critical cargo moves.

Comparing Heavy-Duty Stair Dollies: Choosing the Right Solution for Your Business

Manual vs. Powered Stair Climbing Systems

The choice between manual tri‑wheel dollies and motorised track systems depends on frequency and load types. Manual units, like the one described, excel in applications where portability and cost‑effectiveness are paramount. With no battery systems, they require no charging and are easier to maintain. At 25 lb, technicians can move the dolly unassisted, which is vital for mobile service operations.

Powered options with 48V brushless motors and tank‑track climbing systems justify their higher cost for high‑volume operations. These units can move 600 kg or more daily with minimal operator effort. However, their 20‑30Ah lithium‑ion batteries support only 800‑1200 steps per charge, so procurement managers must plan daily recharging. The manual tri‑wheel design avoids this constraint, enabling operation for as long as the operator can sustain physical effort.

Key Selection Criteria for Industrial Procurement

When looking at different stair dollies and multifunctional heavy-duty stair-lifting vehicle options, make sure that the specifications match your needs. For example, if the weight of the items being moved sometimes reaches 280 pounds, choosing a 300-pound stair capacity model gives you enough of a safety margin. The quality of the frame construction determines how long it will last when it is loaded and unloaded many times. Reinforced tube joints and thickened cross-sections are better at withstanding repeated stress than thin-wall welded designs that are more likely to fatigue crack.

Compact foldability aids storage in service vehicles and equipment closets. Units under 30 inches in length fit standard van cargo areas without removing passenger seats. Tool‑free quick‑fold mechanisms allow rapid deployment, saving setup time. A one‑year warranty reflects manufacturer confidence in build quality and supports classifying the product as capital equipment rather than consumable supplies.

Procuring Heavy-Duty Dollies for Stairs: A B2B Buyer's Guide

Supplier Evaluation and Custom Order Capabilities

Evaluating industrial‑grade stair dolly suppliers requires a multi‑faceted approach. For fleet‑wide outfitting, vendors must demonstrate capacity to fulfil large orders within procurement timelines. Supplier location affects shipping costs and lead times, particularly for replacement parts during maintenance cycles. After‑sales support infrastructure distinguishes true partners from commodity vendors; prompt technical assistance resolves operational questions that arise during deployment.

Customisation adds value beyond standard configurations. Colour coding enables fleet management systems where different dolly types serve specific roles. Handle‑length adjustments accommodate operator height for better ergonomics. Wheel material choices balance floor protection with outdoor durability. Buyers should request specification sheets listing all possible modifications during initial discussions.

Total Cost of Ownership and Volume Pricing Strategies

Equipment price is only one component of true cost. Maintenance requirements over the useful life significantly affect ROI calculations. Manual tri‑wheel dollies with solid polyurethane wheels require little beyond periodic frame inspections and fastener tightening. With no hydraulics, batteries, or motors, they avoid the regular consumable replacements needed by powered alternatives.

When buying a portable foldable stair-climbing vehicle in bulk, you can get price breaks that make your capital work better. For multi-site deployments, bulk orders usually get 15–25% off unit prices. When negotiating, you should focus on building long-term partnerships with suppliers, as they like customers who can predict their reorder and growth patterns. Lease-to-own agreements are good for businesses that want to try out equipment before committing fully, but rental options are usually too expensive for longer-term projects.

Conclusion

In summary, the tri‑wheel design principle transforms vertical transport from a high‑risk manual task into a controlled mechanical process, reducing injury rates while accelerating task completion. By understanding load capacities, stair geometry, and proper usage techniques, organisations can protect their workforce and assets, improve operational throughput, and make informed procurement decisions that deliver lasting value.

FAQ

1. What weight capacity should I choose for commercial appliance delivery?

Capacity selection should be based on your heaviest regular loads plus a safety margin. Commercial refrigerators and large washing machines typically weigh between 250 and 350 lb. For these applications, a dolly rated for 440 lb on flat ground and 300 lb on stairs provides sufficient headroom. The difference between flat‑ground and stair ratings reflects the added structural stress during vertical movement. Always verify actual product weights, including packaging, before finalising capacity requirements.

2. Can stair dollies navigate spiral staircases or outdoor steps?

Different staircase shapes affect tri‑wheel dolly performance. Tight spiral designs with an inner radius below 24 inches may prevent proper wheel engagement. Outdoor concrete steps with deep treads are manageable, but caution is needed when wet due to reduced grip. On‑site surveys before equipment selection help avoid compatibility issues.

3. What maintenance extends stair dolly service life?

Regularly inspect frame welds for cracks, check wheel attachment points for looseness, and tighten all fasteners to correct torque. Polyurethane wheels are durable but eventually require replacement after thousands of steps. Clean wheel mechanisms monthly to prevent debris binding, and store units in dry locations to prevent corrosion. With proper care, commercial‑use stair dollies typically last 5‑7 years.

Enhance Your Material Handling Operations with Fortucky

Fortucky's engineering expertise meets the complex needs of modern logistics environments. Our portfolio includes everything from specialised stair-climbing equipment to full warehouse automation systems, all of which have been used in over 1,000 installations around the world. As a leading heavy duty dolly for stairs supplier, we offer deep customisation capabilities that adapt standard designs to your specific operational requirements. This could mean custom load geometries, special wheel materials for sensitive flooring, or built-in tracking systems for fleet management.

Our competitive advantages include the ability to make rapid prototypes using our 5G-enabled intelligent production facility, which lets us make changes to designs more quickly. Localised service networks across Asia, Europe, and the Americas ensure responsive technical support no matter where the robot is deployed. Contact our procurement specialists at sales@fortuckyrobot.com to talk about volume pricing options, custom engineering specifications, or to set up product demonstrations. We meet the strict quality standards expected by Fortune 500 partners while also meeting the needs of logistics managers.

References

1. National Institute for Occupational Safety and Health (2018). "Ergonomic Guidelines for Manual Material Handling." DHHS Publication No. 2018-152.

2. Materials Handling Industry Association (2022). "Safety Standards for Hand Truck Design and Operation." MHIA Technical Report TR-47.

3. Journal of Safety Research, Vol. 64 (2020). "Musculoskeletal Injury Rates in Logistics Workers: Impact of Assistive Devices."

4. International Journal of Industrial Ergonomics, Vol. 78 (2021). "Load Distribution Mechanics in Multi-Wheel Stair Climbing Systems."

5. Occupational Health & Safety Magazine (2023). "Cost-Benefit Analysis of Material Handling Equipment in Commercial Moving Operations."

6. American Society of Mechanical Engineers (2019). "Testing Protocols for Load-Bearing Capacity in Portable Material Handling Equipment." ASME Standard B20.1-2019.
