Push-back vs drive-in racking: which to choose for your warehouse?

When deciding between push back storage racks and drive-in racking, the answer depends on your operational priorities. Push-back systems excel in warehouses requiring frequent access and faster throughput, utilizing nested carts on inclined rails for smooth pallet rotation. Drive-in racking maximizes space utilization through deep-lane storage but demands careful forklift navigation. Both follow last-in-first-out inventory management, yet push-back configurations offer enhanced safety and operational simplicity. Your choice ultimately hinges on inventory turnover rates, available floor space, product variety, and the balance between storage density and access efficiency your facility requires.

Understanding Push-back and Drive-in Racking Systems

Warehouse managers are always looking for ways to store things that make the most of space without slowing down operations. When people talk about high-density storage, they mostly talk about two systems: push-back storage racks and drive-in racking. Each has its own operating features that affect how things get done every day.

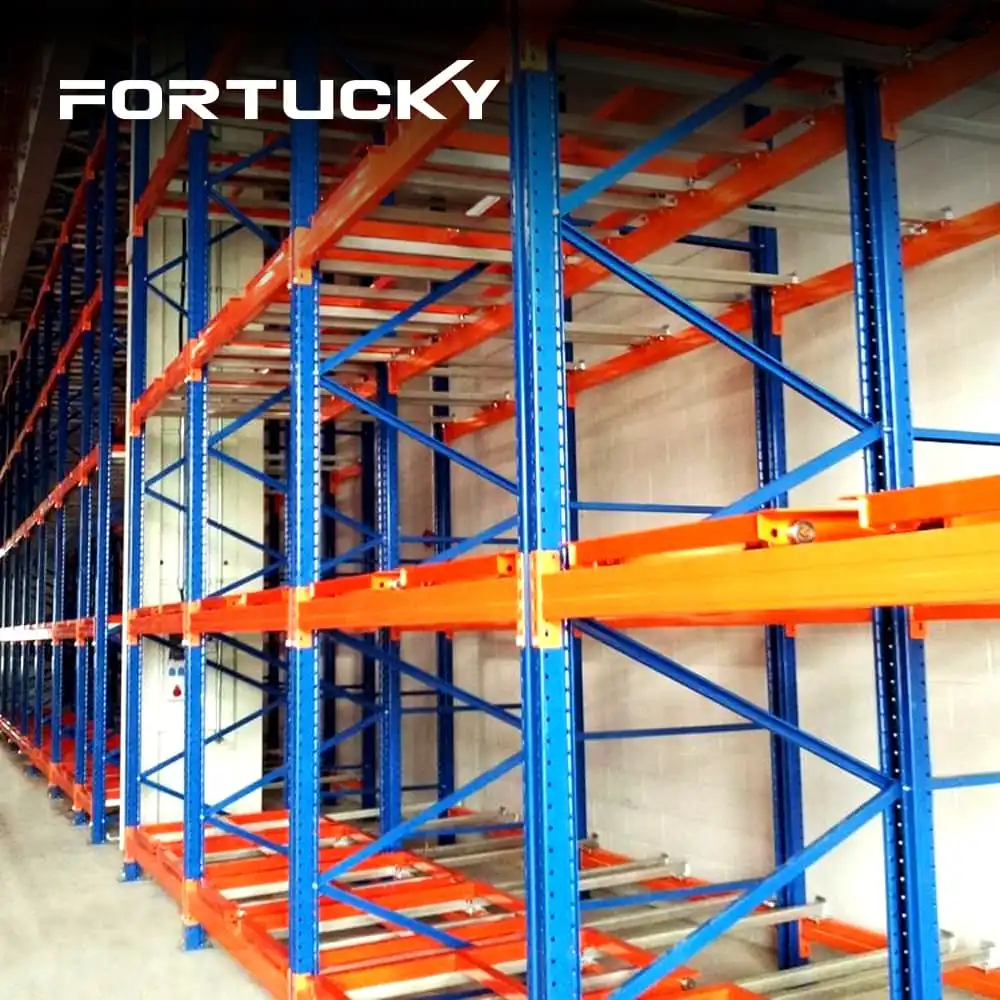

How Push-back Racking Operates

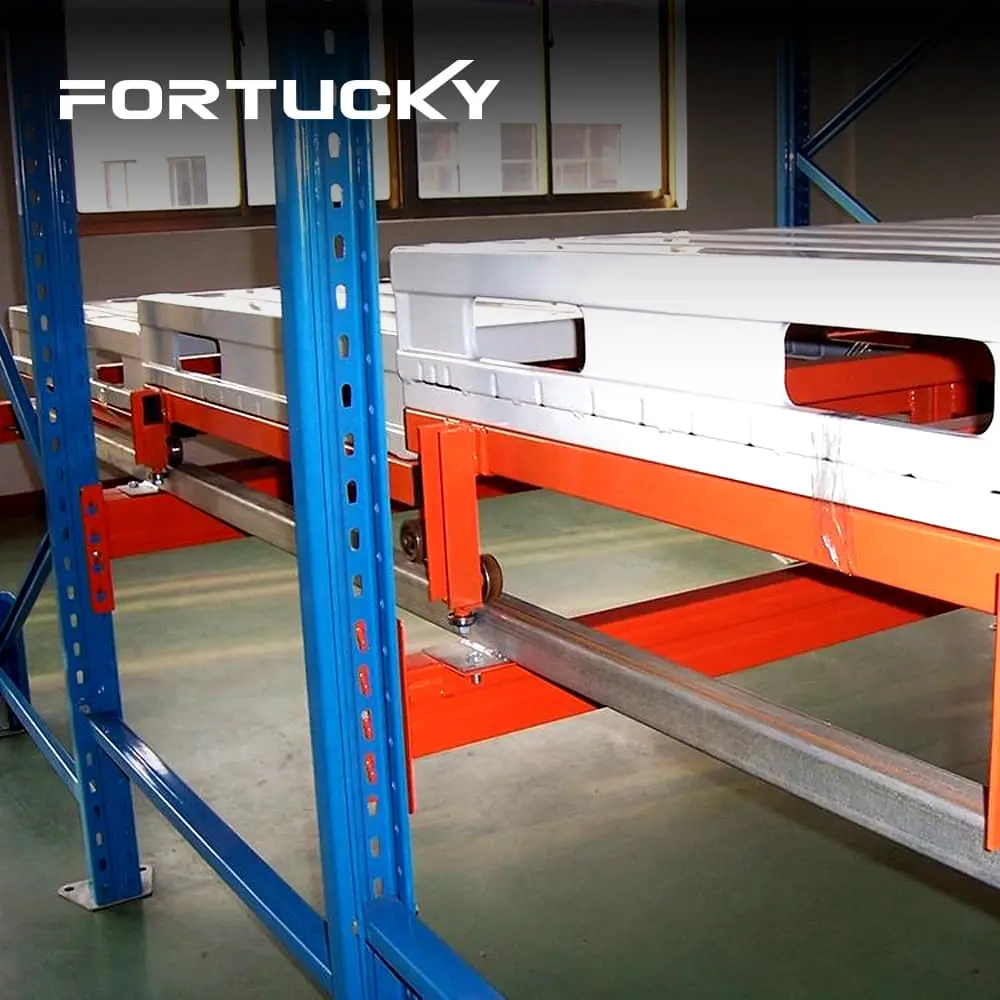

Push-back storage racks are an improvement over traditional pallet racks. They use frame structures, slanted rails, and mobile carts to create storage lanes that are always changing. Using gravity to help movement, when workers load a new pallet, it moves the current items further into the lane. The nested carts roll along steel rails that are set at an angle. This lets them be automatically retrieved as the front pallets are taken off. Forklifts don't have to go into storage lanes with this design, so there is less chance of accidents and good access to many SKUs. The system can handle two to six pallets deep per lane, which is a good mix of quantity and selection. Damping devices control the speed of descent, which keeps the product from getting damaged while it slides automatically. The steel construction and movable parts make it possible to customize the height up to ten meters, making it suitable for heavy-duty uses in industries such as beverage distribution, automotive parts manufacturing, and electronics production.

Drive-in Racking Configuration Explained

Drive-in systems allow forklifts to drive right into storage lanes made of vertical frames and horizontal rails, making the best use of the space. The pallets rest on extended rails and are stacked several positions deep and several levels high. This arrangement cuts the number of aisles needed by a huge amount, turning unused floor space into useful storage. The trade-off is that workers can only reach the frontmost pallet in each lane. This method is best for storing large amounts of similar goods. Drive-in shelving is often used in cold storage buildings because the savings in refrigerated space are worth it. Because the structure is simpler, it costs less to set up than mechanized options. However, it needs more upkeep because forklifts could hit uprights and rails when entering and exiting the building.

Performance and Efficiency Comparison

To choose the right shelving system, you need to know how each one performs on key operational measures. Storage density, retrieval speed, and the ability to handle goods all have a direct effect on how much a warehouse makes and how much it costs.

Storage Density Analysis

By cutting down on the number of aisles, push back storage racks use about 85–90% of the available space compared to selective shelving. In a normal setup, four pallets can be stacked on top of each other across multiple vertical levels. This essentially doubles the space available within the same footprint. The cart-based system keeps the structure strong and makes the best use of the cubic space. Drive-in systems achieve even higher density by getting rid of most of the aisles and increasing efficiency to 90–95%. Forklifts can access storage from a single point, so each lane can hold six or more pallets deep. This setup works really well for situations where there is a large quantity of the same item in stock, such as in food processing and pharmaceuticals. But the density benefit goes away as the number of SKUs increases, since each lane should store the same SKU to keep things running smoothly.

Accessibility and Throughput Considerations

Push-back storage racks help with medium to high-turnover inventory by making it easier to manage multiple SKUs per lane. Operators only work from aisle positions; they never go inside the racking system. Positioning time is cut down by the automatic pallet progression, which makes loading and unloading go faster. With this method, facilities that move 15 to 30 pallets per hour per lane usually get the best results. Drive-in shelving is useful for low-turnover situations where whole lanes of the same product move together during replenishment rounds. The requirement for forklift entry slows down the retrieval of individual pallets and raises the skill level needed by operators. Because it saves space, this is acceptable for warehouses that handle large seasonal goods or production parts. Due to the careful movement required, throughput rates are usually between 8 and 15 pallets per hour per lane.

Load Capacity and Structural Integrity

Both systems can handle heavy-duty tasks, but the way the weight is distributed differs because of their designs. Push-back storage racks spread loads among cart units and slanted rails. Each pallet position can usually hold between 1,500 and 3,000 pounds. To ensure the mechanical parts move smoothly even when fully loaded, they need to be carefully designed. The steel frame design and adjustable beam placement make it possible to fit pallets of different heights and weights. Drive-in structures put most of the weight on cantilevered rails attached to vertical uprights. Strong steel profiles handle the same range of loads. The lack of moving parts makes calculating weight easier, but it's important to pay attention to forklift impact on safety. Both systems have specifications that can be changed to fit the needs of each product and the handling equipment available.

Safety, Maintenance, and Operational Considerations

Workplace safety and equipment longevity rely on how well the system is designed, how often it is maintained, and how well operators are trained. Because push-back and drive-in racks are built differently, they have different safety features.

Safety Features and Risk Mitigation

By keeping forklifts outside the storage structure, push-back storage racks naturally lower the risk of accidents. During all loading tasks, operators maintain stable working positions and clear lines of sight. Pallet movement is controlled by built-in damping devices that stop rapid accelerations which could shift loads or damage goods. The automatic retrieval method cuts down on mistakes made by people during unloading. Misalignment can be prevented even more with safety rails, backstops, and pallet stops. Drive-in shelving increases the risk of accidents because forklifts have to go through narrow lanes. Poor vision, tight clearances, and overhead obstructions make it more likely that an accident will happen. Guide bars and floor markings help workers keep everything in the right place, and impact-resistant upright protectors absorb minor contacts. For drive-ins to be safe, they need thorough training programs that stress slow, measured movements.

Maintenance Requirements and Schedules

Maintenance for high-density push-back racks focuses on mechanical parts that are moved over and over again. Rail alignment, cart wheel condition, and damper performance should all be checked regularly. Moving parts don't wear out as quickly when they are lubricated according to the manufacturer's instructions. Structures need to be checked on a regular basis to ensure the frame is level and the beams are strong. Because of the complexity, maintenance budgets need to include funds for specific parts and technical expertise. Drive-in systems require close attention to ensure that forklifts don't damage the structure. Every month, the rails should be checked for straightness, the uprights for plumb, and the connections for solidity. The simpler design means lower routine maintenance costs, but fixing damage can get pricey if essential parts need to be replaced. Load limit compliance tracking and prompt repairs benefit both platforms.

Cost, ROI, and Procurement Guidance

A financial analysis looks at more than just the initial cost of the equipment. It also examines installation difficulty, operational improvements, and the total cost of ownership over the lifecycle of the system. When considering racking options, procurement teams have to look at a number of factors.

Initial Investment Considerations

Because of the engineered cart systems, precise rails, and damping components, push-back storage racks usually cost more up front. Depending on the requirements, the material and labor cost for a four-deep, three-level system with 12 pallet positions could be between $4,000 and $6,000 per lane. Customization for specific sizes, heavy-duty uses, or non-stock styles costs more. For perfect rail angles and cart movement, installation needs to be done by a professional. Drive-in layouts are cheaper to implement because they have fewer structural requirements. With no moving parts, setups with the same capacity might cost $2,500 to $4,000 per lane. Drive-in systems are a good choice for projects with limited funds or low turnover, where the extra efficiency doesn't justify the additional investment.

Return on Investment Calculation

When doing an ROI study, you have to compare system costs to the benefits gained in speed, space, and labor savings. In places with medium to high product turnover, push-back storage racks usually pay for themselves in 18 to 36 months. When storage space is increased and handling cycles are sped up, throughput costs improve directly. A distribution center that moves 500 pallets every day might be able to cut labor hours by 15 to 20 percent by making entry more efficient, saving the company a lot of money every year. Drive-in systems primarily provide ROI by making the best use of space in expensive locations. When cold storage companies pay more per square foot, they often get their money back in 12 to 24 months by converting aisle space into useful storage. The lower operational efficiency is acceptable when compared to the costs avoided by not expanding the building.

Which System Should You Choose? Decision-Making Framework

To choose strategic shelving, you need to carefully examine operational factors, growth forecasts, and integration needs. A structured decision process helps procurement professionals make this hard choice.

Inventory Characteristics Assessment

Start by looking at product variety and turnover frequency. Drive-in density works best for facilities that handle 50 or fewer SKUs with high volume per item. This profile is exemplified by beverage distributors who store whole truckloads of specific products. Push-back racking's flexibility is helpful for operations that handle 100 to 500 SKUs with moderate turnover rates per item. This group usually includes auto parts sellers that keep a wide range of parts in stock. Product fragility also plays a role in the choice. For example, push-back racks are better for handling delicate electronics or pharmaceuticals, while drive-in systems are better for sturdy goods like building materials.

Facility Constraints and Scalability

Physical limitations often restrict the choices available. Warehouses with limited floor space but sufficient height tend to favor options that use vertical space well. With the right material handling equipment, both systems can be installed at multiple levels and can reach heights of ten meters or more. Feasibility depends on factors like ceiling clearances, floor load capacities, and existing infrastructure. Plan for growth by thinking about future space needs and how the system might be modified. Push-back rack setups let you add lanes over time without major structural changes. Drive-in systems can also be expanded, but adding lanes might need careful coordination with current traffic patterns. Facilities that expect changes to their product mix should give flexibility significant weight in decision-making.

Integration with Warehouse Management Systems

Physical storage and digital inventory management need to work together smoothly for modern businesses to run. Both types of shelving work with warehouse management systems as long as they use the right location mapping and tracking methods in real time. With separate places for each SKU, push back storage racks allow for more detailed inventory control, making it easier to rotate stock and keep track of lots. First-in-last-out (FILO) storage systems also integrate seamlessly with warehouse management systems when configured to match their specific inventory rotation logic. Better visibility is helpful in regulated fields like pharmaceuticals, where strict compliance documentation applies. To handle inventory at the lane level without tracking each pallet's precise location, drive-in setups need careful WMS design. Barcode reading at lane entry points keeps accuracy high enough for bulk storage applications. When choosing shelving systems, companies that already have a WMS should consider configuration needs and possible software changes.

Conclusion

Which system you choose between push-back and drive-in racks will depend on how your facility operates. Push-back storage racks are great for medium-turnover facilities that deal with a wide range of goods because they improve safety, speed, and inventory selectivity. The larger initial investment pays off through operational efficiency and reduced labor costs. Drive-in layouts make the best use of space for bulk storage applications where access isn't needed very often. The lower cost appeals to projects that prioritize cost over selectivity and value density over accessibility. Many modern warehouses use a mix of methods, with push-back in high-activity areas and drive-in for slower-moving bulk storage. This smart combination makes the best use of both space and efficiency throughout the building.

FAQ

Q1: Are push-back racks suitable for cold storage environments?

Push-back storage racks work great for storing items that need to be kept cold or frozen. The steel construction can handle high and low temperatures without breaking down, and the simple design makes upkeep easier in tough conditions. Due to the high cost of cold storage, the space economy is especially useful. Many large food manufacturers and cold chain logistics companies have installed push-back racks in freezers operating at -20°F and have found that they work reliably for many years.

Q2: What are typical lead times for customized racking systems?

Depending on specification complexity and manufacturing capacity, custom push-back and drive-in rack projects usually take between 6 and 10 weeks from order confirmation to delivery. This schedule includes design review, material sourcing, fabrication, quality inspection, and shipping preparation. Expedited production may be available for urgent needs. Adding one to three weeks to the installation schedule depends on system size and site readiness. Working with experienced manufacturers who can produce 150,000 tons of products every year ensures on-time deliveries, even for big projects.
