The Fundamentals of Drive-In Rack

Drive-in storage racks offer a revolutionary way to maximize warehouse space utilization. They enable facilities to use up to 80% of their available space—far more than traditional selective pallet racking. These high-density storage systems typically feature no more than two guide rails per lane, allowing forklifts to drive directly into the storage lanes to load and unload pallets. For environments such as FMCG distribution centers, cold chain facilities, and beverage warehouses—where large volumes of similar products with low SKU variation are handled—this design is particularly valuable. Understanding how these systems work and when to apply them can significantly increase operational throughput while lowering capital costs.

What Are Drive-In Storage Racks and How Do They Work?

Understanding the Core Functionality

Drive-in storage racks operate on a last-in, first-out (LIFO) principle. Forklifts enter continuous storage lanes and place pallets onto horizontal rails. Unlike conventional shelving, which requires dedicated aisles between each row, this configuration creates uninterrupted storage blocks that maximize space utilization per square foot. Upright frames are installed around the perimeter of each lane, while horizontal load beams and guide rails are placed on both sides to support pallets and protect the structure from forklift impact.

This method is effective because it allows storage of multiple pallets in depth—typically three to ten pallets per lane. Forklifts drive into the lane, lift pallets to the appropriate height, and place them onto the supporting rails. This approach works particularly well for handling batches of goods that are sold at regular intervals, as accessing the newest items first aligns with standard operational practices.

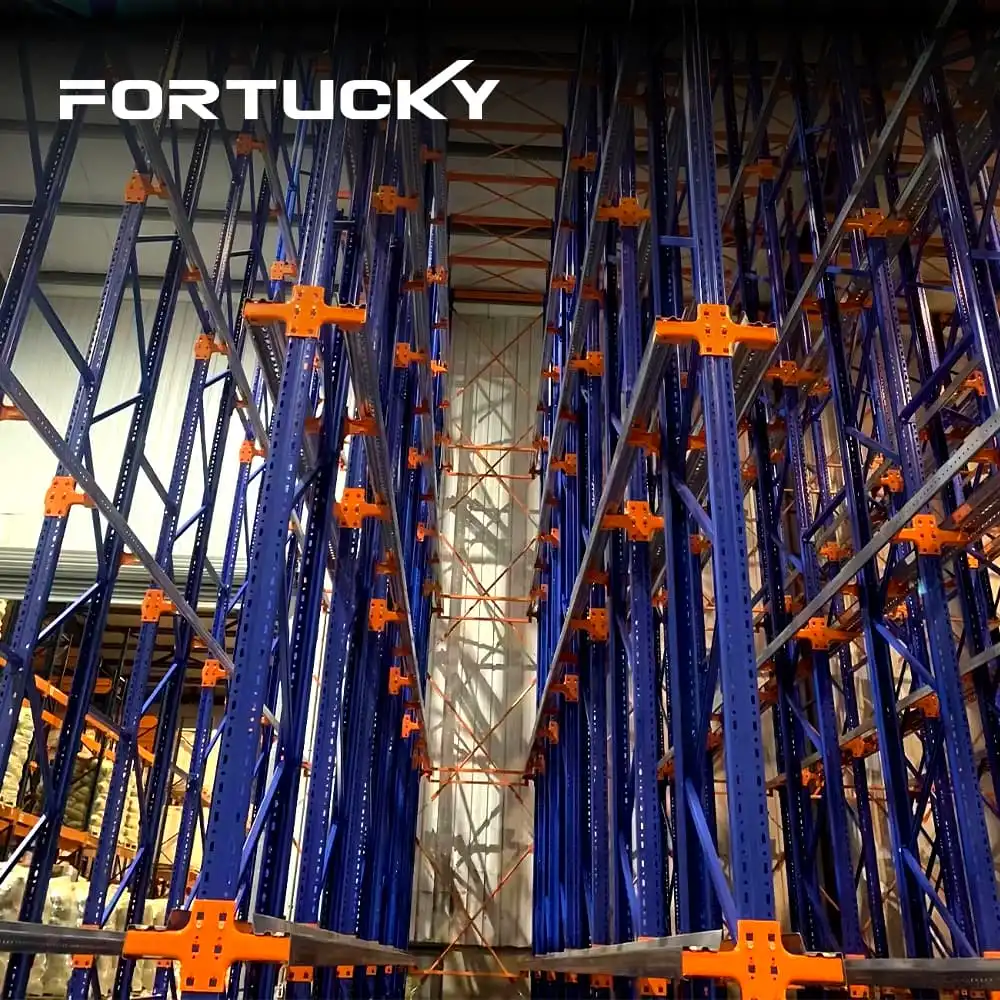

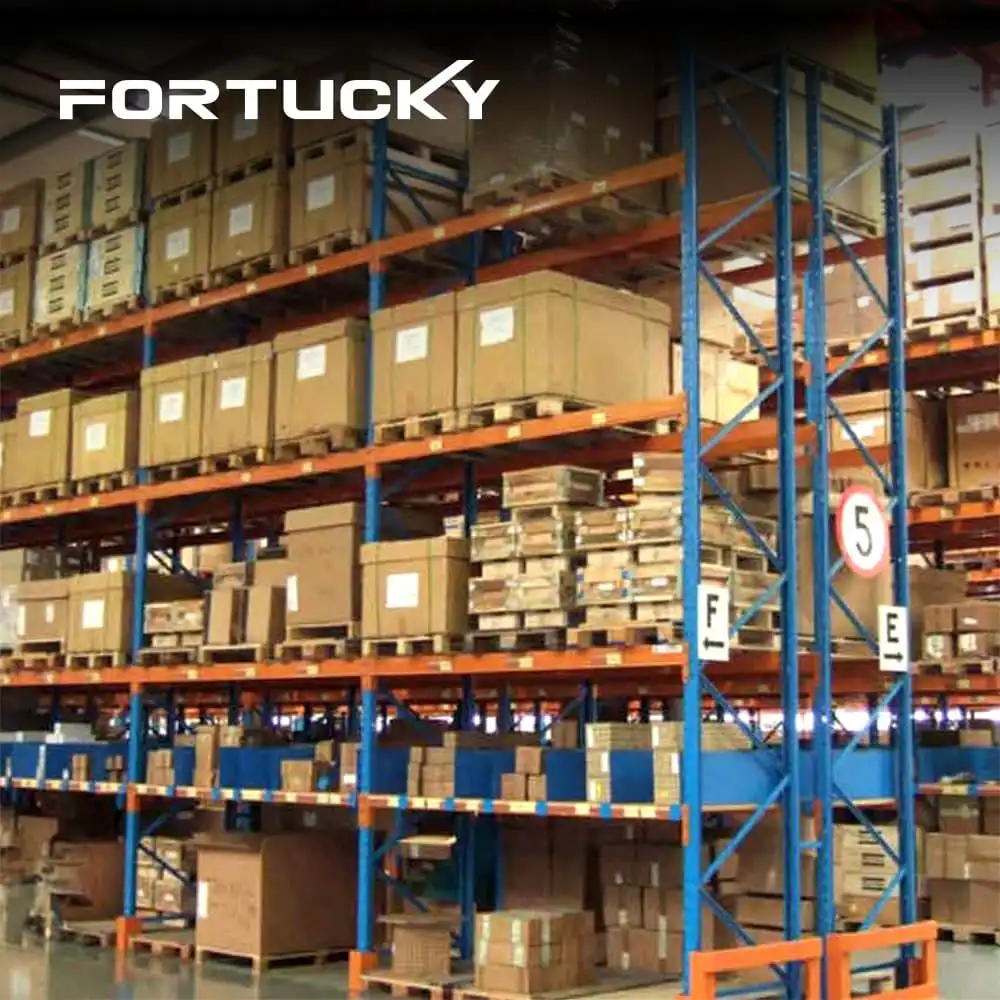

Key Structural Components and Design Elements

The frame-type structure incorporates several critical components to ensure safety and stability. Heavy-gauge steel uprights support the entire system and carry vertical loads. Because they must withstand both vertical weight and lateral forces from forklifts moving through the lanes, these uprights are considerably stronger than those used in selective racking. Horizontal beams connect the uprights and form the framework for each storage level.

The primary safety feature is the guide rails, installed on both sides of each entry lane at a height of approximately 500 mm. These rails guide the forklift mast and prevent direct contact between the uprights and the forklift during loading. Rear supports at the back of each lane provide lateral stability, preventing the racks from swaying or collapsing. Multiple rack sections are joined by top and bottom tie bars, creating a unified structure that distributes horizontal forces evenly across the entire system.

Modern systems offer flexible layouts, allowing warehouse operators to adjust beam heights and lane lengths to accommodate changing inventory profiles. The open design permits airflow, which is critical in cold storage environments, while maintaining structural integrity at heights ranging from 5 to 15 meters.

Drive-In vs. Drive-Through Configurations

Drive-in storage racks have only one entry point per lane, necessitating LIFO retrieval. In contrast, drive-through systems are accessible from both ends, enabling first-in, first-out (FIFO) inventory management. Drive-through layouts are well-suited for operations requiring rapid throughput, with entry on one side and exit on the other. This design requires more aisle space at both ends but helps prevent product spoilage in industries where expiration dates are critical, such as pharmaceuticals or food processing.

The choice of which of these options you choose relies on the types of items you have in stock and how your operations run. When handling seasonal goods, special items, or any other inventory where quick access to specific pallets isn't necessary, industrial drive-in pallet racks offer the highest level of density. Drive-throughs are better for things that go bad quickly or when strict recycling rules are needed to follow the law.

Benefits and Design Principles of Drive-In Storage Racks

High-density drive-in storage racks transform warehouse economics in several interrelated ways. The primary benefit is storage density: facilities can store far more pallets per square foot than with selective racking, eliminating the need for multiple aisles. This density advantage directly improves the bottom line by delaying or eliminating facility expansion costs, especially when warehouse real estate prices are rising or expansion is not feasible.

Space Utilization and Economic Advantages

By utilizing approximately 80% of available warehouse space, businesses can store significantly more goods within their existing footprint. This efficiency leads to lower cost per stored pallet, reduced energy consumption for temperature-controlled environments, and better labor utilization. Compared to other high-density solutions, the initial investment remains moderate, offering the most cost-effective cost per pallet position over the system’s total lifespan.

Customizable specifications—including dimensions, color, and load capacity—allow procurement teams to tailor configurations precisely to their needs. With top manufacturers achieving annual production capacities of up to 150,000 tons, scalability and lead times are rarely constraints, even for large-scale deployments.

Load Capacity and Structural Integrity

Heavy-duty load classifications are used for demanding applications in industries such as steel processing, automotive manufacturing, and construction materials storage. The integrated frame structure provides excellent stability, and the engineered load distribution prevents dangerous stress concentrations. Good design accounts for dynamic loading conditions that occur when forklifts move within the lanes, ensuring structural strength under real-world conditions.

Engineered clearances between pallets and structural components prevent product damage and maintain safe working margins. Vertical clearances between load levels are typically 150–200 mm above pallet height. Horizontal clearances allow forklift masts to travel through lanes without contacting the structure. When properly specified during procurement, these design factors minimize accident risks and product loss.

Safety Protocols and Maintenance Requirements

Routine inspections of guide rails, uprights, and beams are essential for high-density drive-in storage systems, as frequent forklift interaction introduces wear and tear. Monthly visual checks can identify bent rails, damaged columns, or loose connections before they compromise structural integrity. Operator training on lane entry, speed limits, and load placement, along with clear signage for maximum load and lane depth, minimizes operational errors.

How to Choose and Procure the Right Drive-In Storage Rack System

Evaluating Warehouse Layout and Inventory Characteristics

A thorough analysis of your facility’s physical features and operational requirements is the first step in selecting the right system. Installations can range from 5 to 15 meters in height, depending on building constraints and forklift capabilities, directly affecting usable storage volume. Building column spacing, floor load capacity, and seismic considerations all influence system design and must be addressed early in the planning process.

Inventory analysis should include data on SKU diversity, pallet dimensions, weight ranges, and turnover rates. Drive-in storage racks perform best when each lane handles five or fewer SKUs, with each SKU representing a large number of pallets. Hybrid approaches—combining drive-in blocks for slow-moving reserve inventory with selective racking for active picking—are beneficial for businesses with a wide product range or frequent access to specific bins.

Forklift Compatibility and Operational Requirements

Equipment compatibility is a critical procurement factor often overlooked until implementation. Most drive-in storage rack applications can use standard counterbalance forklifts, but lane width and lift height may require specialized equipment. Reach trucks and turret trucks are typically unsuitable for drive-in rack lanes due to mast design, limiting system usefulness for sites that rely exclusively on these machines.

Forklift turning radius at lane exits must be considered when determining aisle width, and adequate clearance must be provided for safe movement. Working with experienced system designers during the development phase prevents costly post-installation modifications and ensures seamless equipment integration.

Sourcing Strategies and Supplier Selection

Identifying reliable suppliers requires evaluating their production capabilities, customization services, and post-installation support. Leading manufacturers maintain certifications demonstrating compliance with industry safety standards and quality control processes. Deep system customization is available to meet specific operational needs, such as non-standard pallet sizes, unusual building layouts, or special load requirements.

Localized deployment services shorten project timelines and facilitate on-site meetings during the planning stages. Suppliers with established networks across the Americas offer responsive support, reducing downtime risk when repairs or expansions are needed. Request project portfolios showing similar installations in your industry, and check references from businesses facing comparable challenges to validate claimed capabilities.

When negotiating a purchase, pay close attention to volume pricing and lead times. Production capacity or raw material supply constraints can cause longer-than-expected wait times, potentially disrupting warehouse operations if not properly anticipated. Obtain firm delivery commitments and build contingency time into project schedules to account for unforeseen delays.

Practical Applications and Case Studies in Drive-In Rack Implementation

Real-world examples show that smart drive in storage rack implementation can have real benefits. These systems help FMCG distribution centers handle seasonal sales goods and adapt to changes in demand without having to build bigger facilities. One liquor wholesaler added 45% more storage space to their current 200,000-square-foot building. This meant that they didn't have to spend $8 million on an expansion, and the cost of storing each pallet went down by 28%.

In cold storage, maximizing density is especially valuable because cooling costs are a significant operational expense. After installing drive-in storage racks, a frozen food processor consolidated inventory from two refrigerated buildings into a single facility, reducing annual energy consumption by 35% while maintaining the same storage volume. Temperature control requirements demanded precise material specifications to ensure steel components could withstand thermal cycling without losing strength.

Automotive parts operations use drive-in rack layouts for service parts and repair kits that do not require rapid movement and need long-term storage before dispatch. These applications benefit from the system’s ease of reconfiguration, allowing rearrangement as product lines change or building usage evolves over time.

ROI calculations should track both labor efficiency improvements and space utilization gains. Forklifts traveling shorter distances in high-density layouts consume less fuel and experience less wear, increasing productivity. Combined with deferred facility expansion costs, these operational savings typically generate payback in less than three years for properly executed installations.

Conclusion

Drive-in storage racks offer the highest storage density and lowest per-pallet costs for businesses managing uniform goods with moderate SKU variation. Their robust steel frames, flexible layouts, and customizable options enable precise tailoring to diverse industry needs, including FMCG, cold chain, automotive, and heavy industries. By carefully evaluating warehouse layouts, inventory profiles, and operational workflows, procurement teams can leverage these high-density solutions to delay facility expansions, reduce per-pallet storage costs, and improve overall warehouse efficiency. Understanding the core principles, design considerations, and real-world applications is essential for making informed investments that deliver returns throughout the system’s operational life.

Frequently Asked Questions

1. What load capacities do drive-in storage racks typically support?

Heavy-duty drive-in storage racks can support up to 2,500 kg per pallet position, depending on the structure and placement height. Manufacturers design systems to precise specifications, with capacity affected by beam size, column thickness, and spacing between structural components. Even load distribution across the system prevents stress concentration, ensuring adequate safety margins throughout the installation's life.

2. Can drive-in racks accommodate non-standard pallet sizes?

Yes, dimensions and specifications can be customized to accommodate various pallet types, including European pallets (1200×800 mm), standard North American pallets (1200×1000 mm), and industry-specific sizes. Deep customization allows manufacturers to adjust lane widths, beam spacing, and guide rail positioning to fit different dimensions while maintaining structural integrity and operational efficiency.

3. How does maintenance differ from selective racking systems?

Drive-in storage racks require more frequent inspections because forklifts regularly contact guide rails and structural components during loading. Monthly visual checks for damage are recommended, along with an annual professional inspection of structural integrity and connection tightness. This additional maintenance prevents minor issues from escalating into safety risks or operational problems, protecting both personnel and material investments.

Partner with Fortucky for High-Density Storage Solutions

For warehouse optimization to work, you need to know more than just how to sell tools. You also need to know how to create systems, help with deployment, and provide ongoing service. Fortucky has worked for decades with over 1,000 customers around the world in the automobile, consumer goods, electronics, medicines, and heavy industry sectors. These customers include Huawei, CATL, Mercedes-Benz, and BYD, which are all world-renowned companies. Our excellent research and development team is always improving the drive in storage rack technology, and our smart production facilities that are connected to 5G keep up with their 150,000-ton-a-year ability to meet tight delivery dates.

If you need high-density shelving for cold storage growth, distributing car parts, or storing drinks, we can help. Our localized deployment capabilities and deep customization knowledge make sure that the solutions we provide are exactly what your business needs. Our method for client partnerships is characterized by quick delivery, prompt reaction, and exceptional cost-effectiveness.

Get in touch with our tech team to learn more about how drive-in storage racks can improve the storage efficiency in your building. We're dedicated to providing solutions that produce measurable return on investment (ROI) through better operational performance and space usage as a reputable drive-in storage rack maker serving the Americas. Get in touch with sales@fortuckyrobot.com right away to talk about your warehouse optimization goals and get a personalized review of how our systems can help your logistics.
