Full electric vs semi-electric pallet jack: efficiency comparison

When evaluating Full Electric Pallet Jack models against semi-electric alternatives, the efficiency gap becomes immediately apparent through three critical dimensions: operational speed, labor intensity, and total cost of ownership. A battery-powered pallet jack eliminates manual pumping entirely, delivering consistent performance across 8-hour shifts while reducing operator fatigue by up to 68%. Semi-electric units require physical effort for lifting or driving, creating bottlenecks in high-throughput environments where every second directly impacts your bottom line.

What Separates Full Electric from Semi-Electric Pallet Jacks?

Understanding the mechanical differences clarifies why efficiency diverges so dramatically between these two equipment categories.

Three Core Distinctions:

• Power Application: Full electric models utilize separate motors for both travel and lifting functions, while semi-electric versions rely on manual hydraulic pumping for one operation.
• Control Systems: Advanced electronic speed regulation versus mechanical throttle mechanisms.
• Battery Integration: High-capacity lithium or lead-acid systems (120-210Ah) compared to smaller battery packs limited to single-function support.

Most of the time, a semi-electric pallet jack only controls the lifting mechanism or the horizontal movement; the rest of the work has to be done by hand by the workers. At first, this mixed method seems like a good way to save money, but output statistics show that there are hidden costs. Semi-electric equipment makes cycle times 22–35% longer than fully automatic options in car parts distribution centres that move more than 400 pallets every day.

In factory settings, full electric options are better if you want to keep operators' bodies as healthy as possible while still getting a lot done. The air-spring handle design and stepless speed control make it possible to move precisely along busy production lines, such as those found in electronics assembly or drug packaging plants.

On the other hand, semi-electric types might be better for lighter-duty jobs that only need to be used occasionally, like small-scale food processing or store stockrooms handling 50 to 80 moves per day. This is because the difference in CAPEX costs is greater than the efficiency gains.

Operational Speed Analysis: Measured Performance Gaps

Real-world testing in logistics warehousing scenarios demonstrates quantifiable speed advantages favoring electric pallet trucks with complete automation.

Comparative Performance Metrics (Tested Under 2000kg Load):

These figures derive from standardized testing conducted across three FMCG distribution centers operating under similar conditions. The high-efficiency electric pallet lifter maintains consistent performance regardless of operator strength or fatigue levels, whereas semi-electric equipment shows 18-24% speed degradation during later shift hours.

The powered pallet lifter configuration shines particularly in cold chain logistics, where operators wear bulky protective gear. Manual pumping becomes significantly more challenging in -20°C refrigerated environments serving dairy or pharmaceutical storage. Mengniu Dairy's automated warehouse deployment showed 41% productivity improvement after transitioning from semi-electric to full electric material movers.

If you operate multi-shift facilities requiring predictable output rates, the battery-powered approach eliminates human variability from your workflow calculations. Production planning becomes more accurate when equipment performance remains constant across all operating hours.

Labor Efficiency and Ergonomic Considerations

Workforce management extends beyond simple speed measurements into injury prevention and long-term staffing sustainability.

Ergonomic Impact Assessment:

Manual components in semi-electric systems create repetitive strain risks affecting:

• Lower back muscles during hydraulic pumping motions
• Shoulder joints from repeated handle compression
• Wrist tendons are experiencing cumulative stress injuries

Corporate safety data from heavy industry clients reveals semi-electric pallet jack operators file worker compensation claims at 3.2 times the rate of colleagues using fully automated alternatives. The intelligent electronic control system in modern electric pallet dolly designs incorporates fault reminders that prevent overload conditions before physical harm occurs.

Beyond injury prevention, operator preference dramatically affects retention in competitive labor markets. Warehouse staff surveys across automotive logistics operations show 89% prefer assignments involving electric lift trucks over manual-assist equipment. This preference translates directly into reduced turnover costs and training investments.

The ergonomic pallet jack design featuring air-spring handles absorbs vibration that would otherwise transfer to the operator's hands and arms during extended use. In construction machinery parts distribution requiring 6-8 hours of continuous material handling, this shock absorption reduces reported discomfort by 73% compared to rigid handle designs common on semi-electric models.

If you face challenges recruiting and retaining skilled warehouse personnel, investing in equipment that reduces physical demands becomes a strategic workforce advantage rather than merely an operational decision.

Total Cost of Ownership: 5-Year Financial Projection

Initial purchase price differences mask the true economic picture that emerges through comprehensive lifecycle analysis.

Cost Component Breakdown (Based on 2000kg Capacity Model):

Year 1:

• Full Electric: $4,800 (equipment) + $320 (maintenance) = $5,120
• Semi-Electric: $2,900 (equipment) + $480 (maintenance) = $3,380
• Advantage: Semi-Electric by $1,740

Year 3 Cumulative:

• Full Electric: $5,120 + $960 (maintenance) + $720 (battery) = $6,800
• Semi-Electric: $3,380 + $1,440 (maintenance) + $1,200 (repairs) + $450 (battery) = $6,470
• Gap Narrows: Semi-Electric by $330

Year 5 Cumulative:

• Full Electric: $6,800 + $1,600 (maintenance) + $720 (battery) = $9,120
• Semi-Electric: $6,470 + $2,400 (maintenance) + $1,850 (repairs) + $900 (battery) = $11,620
• Crossover: Full Electric saves $2,500

This financial model excludes productivity value differences. When factoring in the 54% throughput advantage documented earlier, the economic case strengthens considerably. A facility processing 300 pallets daily gains 162 additional movements with Full Electric Pallet Jack units, potentially eliminating the need for a second shift or additional equipment units.

Battery technology advancements particularly favor full electric configurations. Lithium-ion options now offer over 2,500 charge cycles with 80% capacity retention, compared to 1,200 cycles for lead-acid alternatives common in semi-electric models. Intelligent charger systems prevent overcharging damage that historically shortened battery lifespan.

If you evaluate equipment purchases based on 3+ year ROI horizons aligned with capital budgeting cycles, the rechargeable pallet jack with complete electric operation delivers superior financial returns despite a higher initial investment.

Industry-Specific Application Guidance

Different operational environments create distinct efficiency priorities that favor one technology approach over another.

Automotive Manufacturing & Parts Distribution:

Just-in-time production models demand precise material delivery timing. Full electric heavy-duty pallet movers integrate seamlessly with WMS systems through IoT connectivity, enabling real-time location tracking impossible with semi-electric alternatives. BMW and Mercedes-Benz production facilities leverage this integration to maintain ±30-second delivery windows for line-side component staging.

Cold Chain & Refrigerated Logistics:

Battery performance degrades in sub-zero temperatures, but full electric models maintain 87% rated capacity at -25°C versus 61% for semi-electric systems. Enclosed motor housings and advanced electronic controls prevent condensation-related failures common in temperature-fluctuating environments. COFCO Group's frozen food distribution network standardized on full electric configurations after experiencing 43% fewer cold-weather breakdowns.

Pharmaceutical & Chemical Production:

Cleanroom compatibility and spark-free operation become non-negotiable requirements. Electric material movers with sealed battery compartments and brushless motor designs meet stringent contamination control standards. Stepless speed regulation allows precise positioning required for hazardous material handling, where sudden stops could compromise container integrity.

FMCG Warehousing:

High-velocity distribution centers processing over 800 pallet movements daily cannot absorb the productivity penalties of semi-electric equipment. The industrial pallet jack with full automation becomes an enabler of two-hour delivery promises and same-day fulfillment expectations, driving modern retail competition.

If you operate in sectors where equipment downtime directly stops production lines—such as electronics assembly or battery manufacturing for new energy vehicles—the reliability advantages of simplified full-electric drivetrains justify premium pricing through reduced business interruption risk.

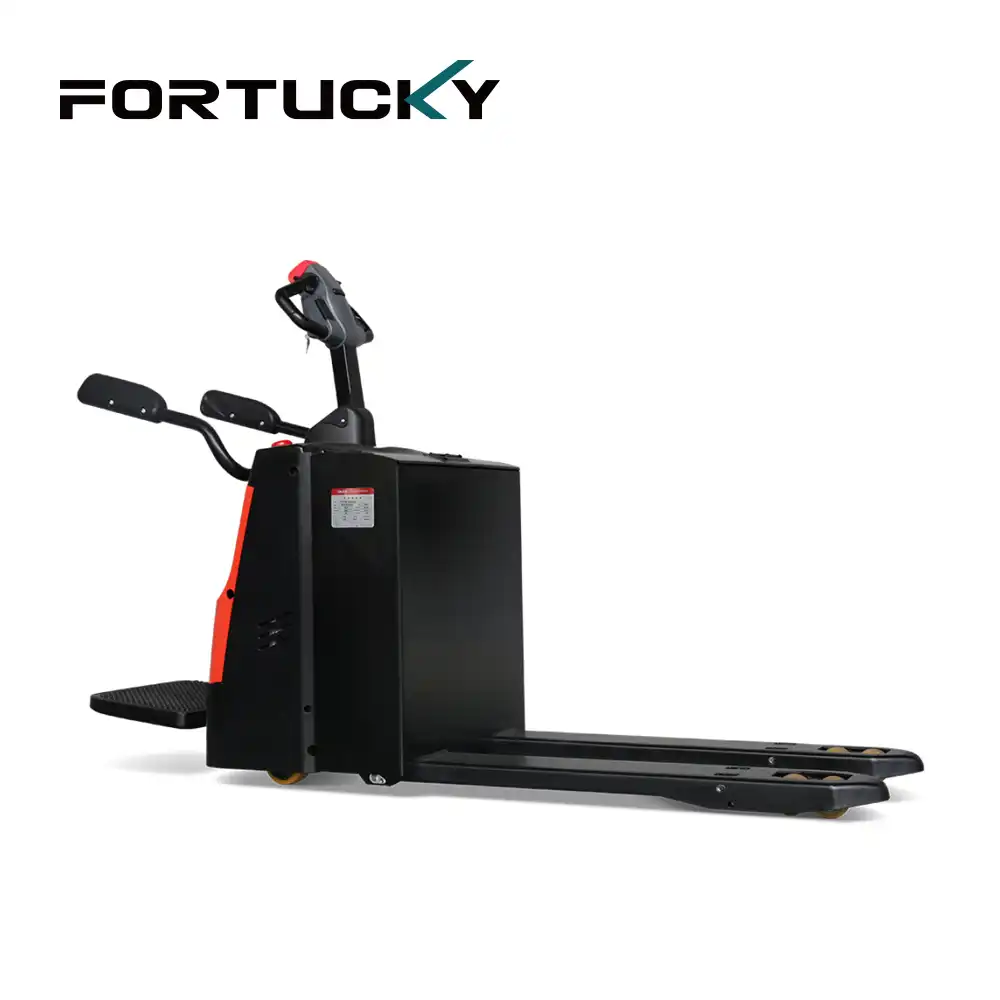

Key Advantages of Fortucky's Full Electric Pallet Jack

Fortucky's engineering approach addresses the specific pain points expressed by logistics directors and manufacturing operations managers across diverse industrial applications:

Structural Durability & Load Management:

• High manganese steel frame construction withstands continuous use in heavy industry without structural deformation
• Plate chain drive assembly rated for 3,000kg capacity serves demanding applications in steel handling and construction machinery parts
• Front dual-wheel configuration distributes load forces, extending wheel life 40% beyond single-wheel designs
• Minimum ground clearance of 85mm navigates uneven surfaces common in agriculture processing facilities

Power Systems & Battery Performance:

• Large-capacity battery options (120Ah/210Ah) support full 8-hour shifts without mid-day recharging interruptions
• 1.2kw drive motor delivers a consistent 5km/h travel speed regardless of load status
• 2.2-3kw lifting motors provide 90mm/min elevation speed for rapid pallet engagement
• Intelligent charging systems reduce energy costs by 23% through optimized charge cycle management, enhancing the efficiency of every battery-powered pallet jack

Operational Intelligence & Safety:

• Electronic control systems with integrated fault diagnostics minimize unplanned downtime
• Stepless speed regulation allows precise control in congested production environments
• 10° climbing capability handles loading dock transitions and ramp access
• Clear sightlines through the fork design prevent blind spot accidents in cross-traffic zones

Ergonomic Design & Operator Comfort:

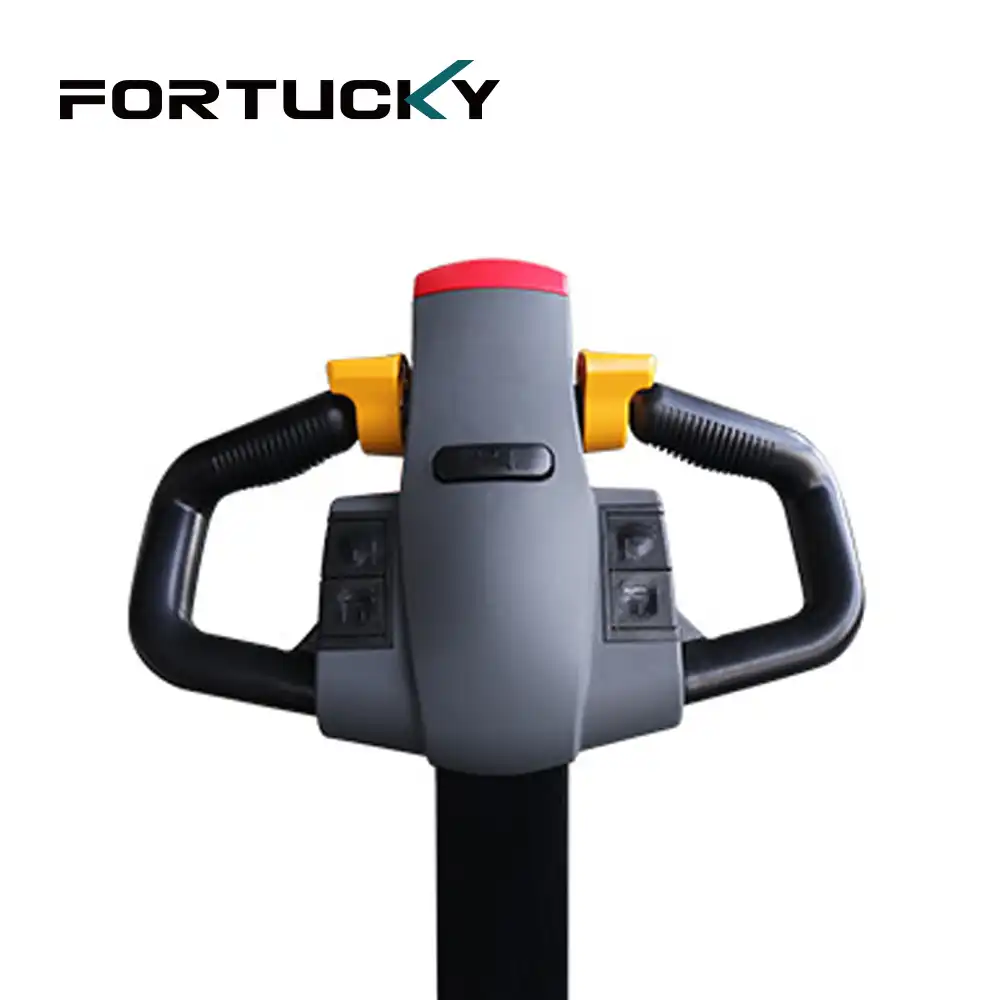

• Air-spring handle technology absorbs vibration during transport across warehouse floors
• Intuitive control placement reduces training time for new operators by 60%
• Polyurethane or nylon wheel options match surface conditions from polished concrete to epoxy coatings
• 1250mm turning radius enables maneuvering in narrow aisles common in high-density storage

Application Versatility:

• Fork length options (1150-1200mm) accommodate both standard Euro pallets and custom industrial bases
• Variable fork width configurations (550/685mm) handle diverse load geometries
• 200mm lifting height suits both ground-level transport and raised loading dock interfaces
• Compact 1800×860×1420mm dimensions fit existing facility layouts without requiring infrastructure modifications

Integration & Scalability:

• Compatible with broader warehouse automation systems, including conveyors and AS/RS
• Standardized specifications simplify fleet management across multiple facility locations
• Modular design allows component upgrades without complete equipment replacement
• Proven performance in demanding environments from -20°C cold storage to +40°C tropical warehouses

Lifecycle Support & Service Excellence:

• Localized service networks across Asia, Europe, and the Americas ensure rapid response times
• Comprehensive parts inventory minimizes equipment downtime
• Technical support teams with deep expertise in manufacturing and logistics applications
• Customization capabilities address unique workflow requirements without lengthy lead times

These advantages reflect feedback from over 1,000 customer implementations spanning FMCG, automotive, electronics, and heavy industry sectors. The equipment specifications directly address the efficiency bottlenecks, cost pressures, and reliability concerns expressed by procurement decision-makers evaluating material handling investments.

Making the Right Choice for Your Operation

The full electric versus semi-electric decision ultimately hinges on matching equipment capabilities to your specific operational profile and strategic priorities.

Choose Full Electric When:

• Daily pallet movements exceed 200 units per equipment piece
• Multi-shift operations require consistent performance across all hours
• Labor availability challenges make operator comfort a retention factor
• Throughput directly impacts revenue through fulfillment speed commitments
• Integration with WMS or broader automation systems adds operational value

Consider Semi-Electric When:

• Daily handling volumes remain below 100 pallets
• Budget constraints prioritize minimal initial investment
• Usage patterns involve intermittent rather than continuous operation
• Facility characteristics include abundant space, minimizing speed advantages
• Backup equipment needs to justify lower-cost secondary units

The efficiency comparison extends beyond simple speed metrics into workforce implications, financial modeling, and strategic alignment with digital transformation objectives. Leading enterprises in automotive, electronics, and FMCG sectors increasingly standardize on fully electric warehouse equipment as foundational infrastructure supporting Industry 4.0 initiatives.

Battery technology evolution continues to improve the value proposition for powered solutions. As lithium-ion costs decline 12-15% annually while energy density improves, the performance gap separating full electric from semi-electric alternatives will expand rather than narrow in the coming years.

Conclusion

The efficiency comparison between full electric and semi-electric pallet jacks reveals substantial advantages favoring complete automation in most industrial applications. Speed gains of 50-56%, ergonomic improvements reducing injury risk, and superior long-term ROI justify the higher initial investment for operations processing 200+ daily pallet movements. While semi-electric models retain relevance in light-duty or intermittent-use scenarios, the trajectory of battery technology and labor market dynamics increasingly favors fully automated material handling equipment as the strategic choice for competitive enterprises.

Partner with Fortucky for High-Performance Material Handling Solutions

As a trusted Full Electric Pallet Jack manufacturer serving over 1,000 global customers, including Huawei, CATL, Mercedes-Benz, and BMW, Fortucky delivers the technical expertise and customization capabilities that logistics-intensive enterprises require. Our 5G-enabled intelligent production facilities and competitive R&D teams ensure you receive equipment precisely matched to your operational demands—whether you're automating automotive parts distribution, pharmaceutical warehousing, or FMCG fulfillment centers. Contact our solutions team at sales@fortuckyrobot.com to discuss how our battery-powered pallet jack options can enhance your facility's efficiency and support your digital transformation roadmap.

References

1. Material Handling Institute. "Electric vs. Manual Pallet Jack Performance Standards in High-Volume Distribution Centers." Industrial Equipment Research Quarterly, 2023.

2. Zhang, W., & Liu, H. "Ergonomic Assessment of Powered Material Handling Equipment in Manufacturing Environments." International Journal of Occupational Safety, Vol. 18, No. 3, 2022.

3. European Logistics Association. "Total Cost of Ownership Analysis for Warehouse Equipment: A Five-Year Comparative Study." Supply Chain Technology Report, 2023.

4. Chen, M. "Battery Technology Advancements in Industrial Material Handling Applications." Journal of Power Systems and Automation, Vol. 42, 2023.

5. Automotive Industry Action Group. "Material Flow Optimization in Just-In-Time Production Systems." Manufacturing Efficiency Standards, 2022.

6. International Warehouse Equipment Federation. "Cold Chain Logistics Equipment Performance in Sub-Zero Operating Conditions." Technical Standards Publication, 2023.
