How does push back storage racks work

When running a big warehouse, how well you use your space decides how much money you make. With their high storage density and ease of use, push back storage racks are a beautiful option. These systems use nested carts mounted on slanted rails, allowing pallets to move backward as new loads are added and roll forward automatically when front pallets are removed. This gravity-driven system operates on a last-in, first-out (LIFO) basis, making it ideal for businesses that need to store large quantities of similar products. Understanding how these racks work helps procurement teams make informed decisions about investments that will optimize warehouse operations.

What Are Push Back Storage Racks and How Do They Work?

Push back storage racks are an advanced pallet storage system designed to maximize storage capacity without sacrificing accessibility. Unlike standard selective shelving, where each row requires its own aisle, these systems allow multiple pallets to be stored in a single lane depth.

Operating Principle of Push Back Systems

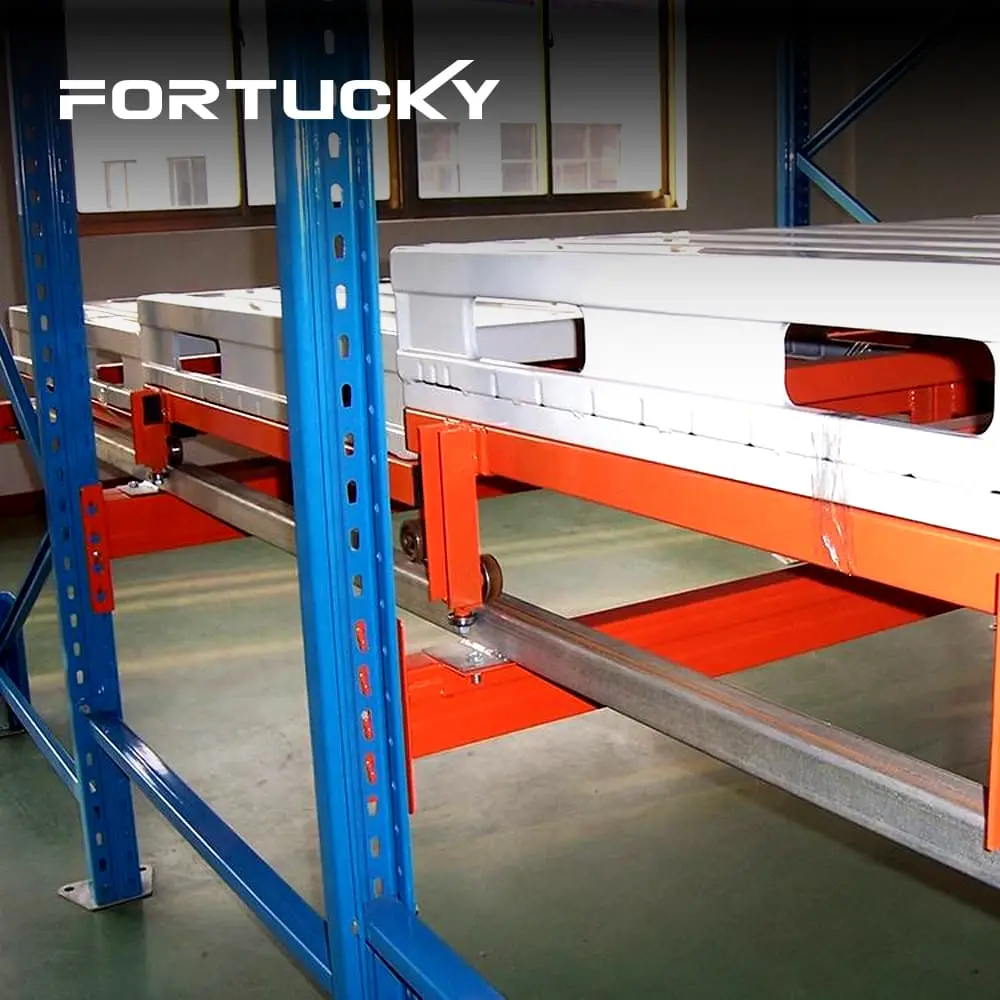

The core mechanism relies on specially designed carts that rest on inclined steel tracks. The forklift places the first pallet onto the cart. When a second pallet is added, the first cart moves backward up the slope, creating space at the loading face. This process repeats for each new pallet, with each lane typically accommodating two to six pallets. Forward and backward movement is controlled by gravity and regulated damping devices, ensuring smooth transitions without damaging goods. Because forklifts no longer need to enter storage lanes, the system significantly reduces equipment wear and operational risks.

Types and Configurations

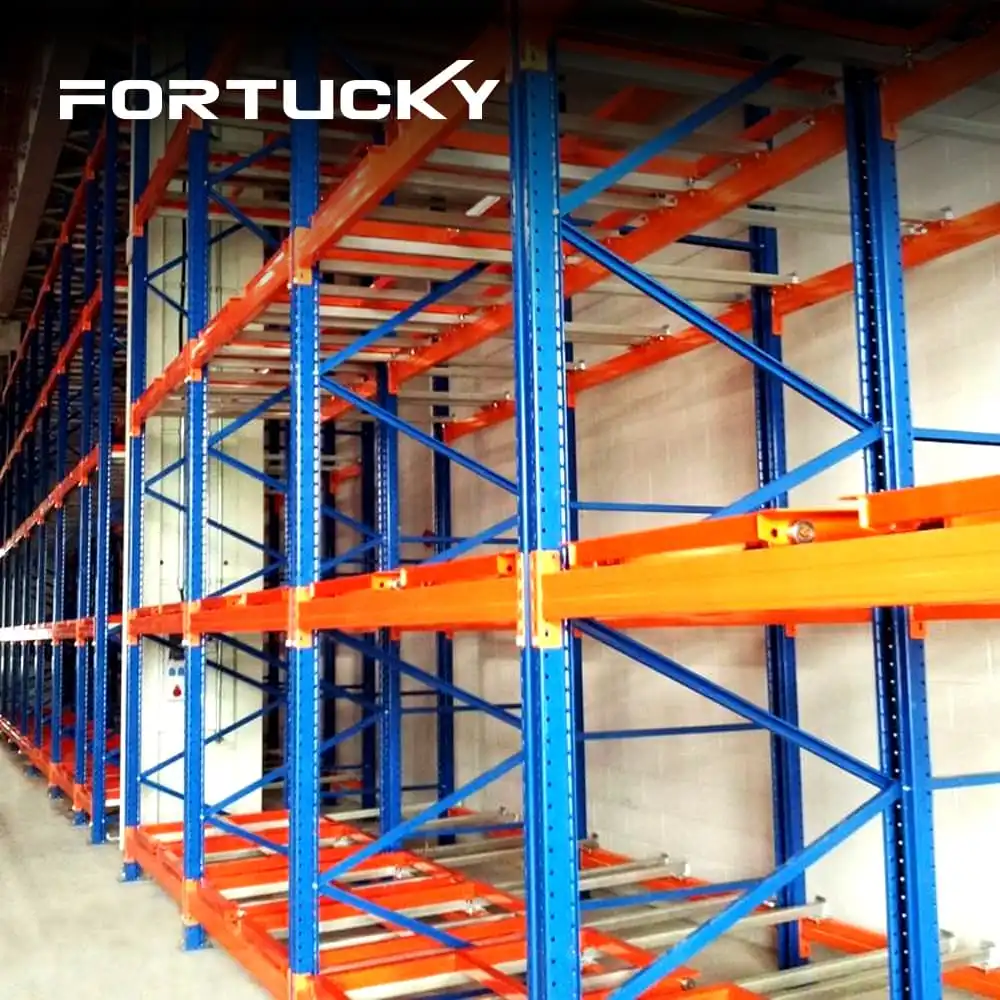

Manufacturers offer different designs suited to various tasks. Single-sided systems fit well against building walls, while double-sided configurations maximize open floor space. Depth options range from shallow two-pallet systems, suitable for fast-moving inventory, to deeper six-pallet systems, better for bulk storage. Some advanced designs feature adjustable components, allowing warehouses to change depth settings as their product profiles evolve. Cold storage facilities benefit particularly from push back racks because minimizing aisle space saves energy in temperature-controlled environments.

Ideal Applications in Manufacturing and Logistics

Push back storage racks are highly valuable for high-volume operations dealing with standard pallet sizes. FMCG companies storing beverages, dairy products, and packaged foods use these racks to achieve a good balance between storage depth and access speed. Auto parts distribution centers use them to manage fast-moving components. Electronics manufacturers appreciate how the system protects their goods while occupying minimal space. The tobacco industry has also adopted push back racks because they improve safety and space utilization. These applications typically involve a limited number of SKUs per lane, large quantities of identical products, and consistent inventory turnover patterns.

Key Design Features and Benefits of Push Back Storage Racks

Structural Components and Engineering

The foundation consists of heavy-duty steel frames designed to support substantial loads while maintaining structural stability. Nested carts feature precision-machined wheels that roll smoothly on hardened rails, ensuring consistent performance with each use. Careful engineering determines the optimal balance between gravity-assisted movement and controlled descent speeds. Damping devices prevent sudden impacts, protecting both products and equipment. The frame structure can reach heights of up to 10 meters, making use of vertical space often wasted in other configurations. Adjustable beam configurations accommodate different pallet sizes and weights, with systems capable of handling loads exceeding 1,500 kilograms per pallet position.

Space Utilization and Efficiency Gains

The most important gain is that storage efficiency has been greatly increased. Push-back storage racks improve capacity by 60 to 90 percent within the same area by getting rid of the need for various aisles that are needed in selective racking. This directly leads to lower real estate prices, which is especially helpful in high-rent industrial areas or places that need to keep a certain temperature, where building costs are much higher. When warehouses are almost full, they can avoid expensive expansions by adding push back storage racks to the room they already have. The small size of pushback storage racks is especially helpful for sites that can't physically grow because of landlines or zoning rules.

Operational Speed and Safety Advantages

Forklift operators never enter the racking system; they work only from the loading aisles. This operational pattern reduces travel distances, speeds up loading and unloading cycles, and minimizes traffic congestion during peak periods. Automatic pallet advancement eliminates manual repositioning, saving time and improving accuracy. Safety improves significantly compared to drive-in systems, where equipment must maneuver through tight spaces. Because operators remain at a distance from the rack framework, the risk of structural damage from forklift impacts drops substantially. Safe operation requires less skill, reducing training time and increasing staffing flexibility during periods of workforce fluctuation.

Push-Back Storage Racks vs. Other Pallet Racking Systems

Selective Racking Comparison

Selective systems provide direct access to every pallet position but consume significantly more floor space due to aisle requirements. Push back storage racks trade some selectivity for double or triple the storage density. Push back racks become more cost-effective when inventory consists of multiple pallets per SKU rather than single pallets of many different products. Although the initial cost per square foot of racking is higher, the cost per pallet position decreases substantially. Warehouses handling 500 or fewer SKUs with multiple pallets per product typically achieve better ROI with push back racks than with selective systems.

Drive-In and Drive-Through Systems

Drive-in racks offer similar density benefits but require forklifts to enter the structure, which complicates operation and raises safety concerns. Because operators load and retrieve from the same access point, push back racks provide comparable storage capacity with significantly faster cycle times. Structural damage is much less likely because equipment never contacts the main framework. This difference shows up in maintenance costs: push back racks require repairs less frequently. Drive-in systems work best for operations with many products and low turnover, while push back racks are better suited for medium-turnover operations.

Pallet Flow Rack Considerations

Gravity flow racks use roller conveyors and first-in, first-out (FIFO) rotation, making them ideal for perishable goods requiring strict rotation. Push back racks are much simpler to install and maintain, and they provide sufficient rotation for products with longer shelf lives. Manufacturing companies serving production lines often prefer push back racks over roller-based systems because of their ease of use and lower maintenance requirements. The choice depends on whether FIFO rotation justifies the additional cost and maintenance complexity.

How to Choose and Procure the Right Pushback Storage Rack System？

Critical Assessment Factors

To start analyzing warehouse structure, you need correct floor plans that show the distances between columns, the heights of the ceilings, and any obstacles. The exact measurements of the pallet must be measured, including any overhang from normal measures that could change the way the cart is built. When figuring out weight, the worst-case situations should be taken into account, such as goods that absorb water easily or differences in the packaging. Turnover speed determines the best lane depth. Products that move faster need deeper layouts to make them easier to get to, as in first-in-last-out (FILO) storage systems. Facilities that want to make big additions should think about flexible systems that let them add on in small steps as the business grows.

Customization and Integration Capabilities

Modern push back storage racks offer extensive customization to suit different operational needs. Frame colors can match corporate branding or safety coding systems. Dimensional specifications can be adjusted to accommodate pallet sizes common in specialized industries or international supply chains. Rail inclines can be tuned to suit different product weights and glide speeds. Integration with warehouse management systems enables real-time inventory tracking through sensor technology embedded in rail structures. Standardized designs make it easier for multi-site companies to train maintenance staff and manage spare parts.

Supplier Selection and Procurement Process

Working with manufacturers who have experience in your industry reduces implementation risks. Reviewing case studies from similar companies helps establish realistic performance expectations and potential challenges. Lead times typically range from six to twelve weeks, depending on design complexity and current factory workload. Installation requires specialized expertise, so determine whether suppliers offer turnkey deployment or can connect buyers with qualified contractors. Warranty terms should cover structural components for extended periods as a sign of confidence in build quality. Ongoing support is essential, especially for operations running continuous shifts where downtime has an immediate financial impact.

​​​​​​​Best Practices for Maintaining and Ensuring Safety of Push Back Storage Racks

Routine Inspection Protocols

Monthly visual checks of frame integrity should look for deformation, corrosion, or loose connections. Every three months, cart wheels need to be inspected for wear patterns that could indicate alignment problems or overloading. Rail surfaces require cleaning to remove debris that might impede smooth movement. Damping devices should be tested under load to ensure proper function. Annual professional inspections by qualified engineers identify structural issues requiring attention before system damage occurs. Maintaining records of all inspections creates useful maintenance history for insurance purposes and safety audits.

Preventive Maintenance Tasks

Lubrication schedules depend on usage frequency and environmental conditions, typically performed every three to six months. Using manufacturer-recommended lubricants preserves warranty coverage and prevents premature component failure. Bolt tension checks prevent loosening from vibrations and repeated loading cycles. Cart alignment adjustments compensate for floor settling or minor structural changes over time. Replacing worn components before they fail completely prevents damage from spreading to adjacent parts and avoids emergency downtime during critical operating periods.

Safety Compliance and Training

The people who work in the warehouse need to know the maximum load rates and how to spot signs of overloading, such as extra glide speed or strange noises. Clear weight limit signs at each lane keep people from accidentally going over the allowed weight. Forklift drivers need to be taught the right way to load so that the weight is spread out properly across the cart's sides, especially when using industrial push-back pallet storage. Emergency plans should cover things like carts getting stuck or parts of buildings falling down. Regular safety meetings that go over proper usage encourage best practices and give workers a place to talk about new problems before they get worse.

Conclusion

Push back storage racks represent an excellent solution when storage density, operational speed, and safety are priorities. Their gravity-driven mechanism streamlines operations while significantly increasing capacity within the same footprint. With robust steel construction, reasonable maintenance requirements, and proven success across diverse industries, they are a smart investment for companies aiming to optimize warehouse operations. Procurement professionals who understand operating principles, structural benefits, and selection criteria can choose systems that meet their specific needs and avoid costly mismatches between capabilities and requirements.

FAQ

1. What weight capacity do pushback racks support?

Heavy-duty push back storage racks typically support between 1,500 and 2,500 kilograms per pallet position. However, maximum weight varies depending on frame design, cart specifications, and rail strength. Because manufacturers engineer systems to meet specific load requirements, providing accurate weight data during procurement is essential to ensure correct specifications. Always maintain margins below maximum ratings to ensure structural safety and longevity.

2. Can push back racks operate in cold storage environments?

These systems work excellently in freezer and refrigerated storage. Their compact footprint requires less conditioned space, resulting in significantly lower energy consumption compared to selective racking alternatives. Cold-rated lubricants and corrosion-resistant finishes ensure reliable operation across wide temperature ranges. Many food and pharmaceutical companies use push back racks for their cold chain operations.

3. How long does installation typically require?

Standard installations typically take two to four weeks to complete, depending on system size and building complexity. This timeline includes frame assembly, cart installation, and safety verification. Larger projects with many lanes or extensive customization may take up to six weeks. Scheduling installation during off-peak hours minimizes disruption to warehouse operations.
