Drum Lifting Equipment: Mechanism Explained

When you walk into a chemical mixing plant or a pharmaceutical warehouse, you will see workers constantly moving large drums filled with liquids, powders, or hazardous materials. The Mobile Drum Lifter and other drum handling tools were designed to solve exactly this problem. These specialized machines can hold, move, tilt, and lift industrial drums – typically 55-gallon steel or plastic containers – eliminating the physical strain and safety risks associated with manual handling. The mechanism consists of a hydraulic or mechanical lifting system and a self-locking clamping head that grips the drum's rim or body, allowing workers to move loads up to 350 kg with minimal physical effort while maintaining full control over the load's orientation.

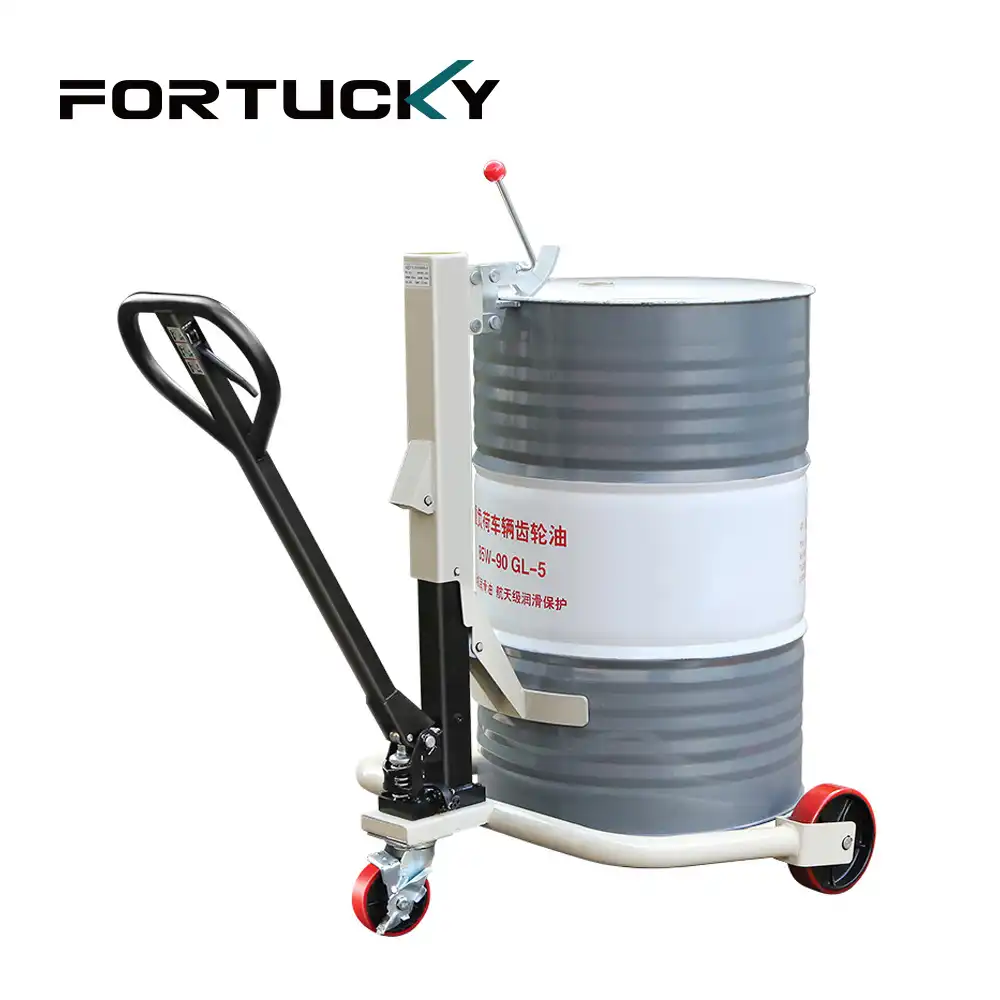

Understanding Mobile Drum Lifters: Mechanism and Types

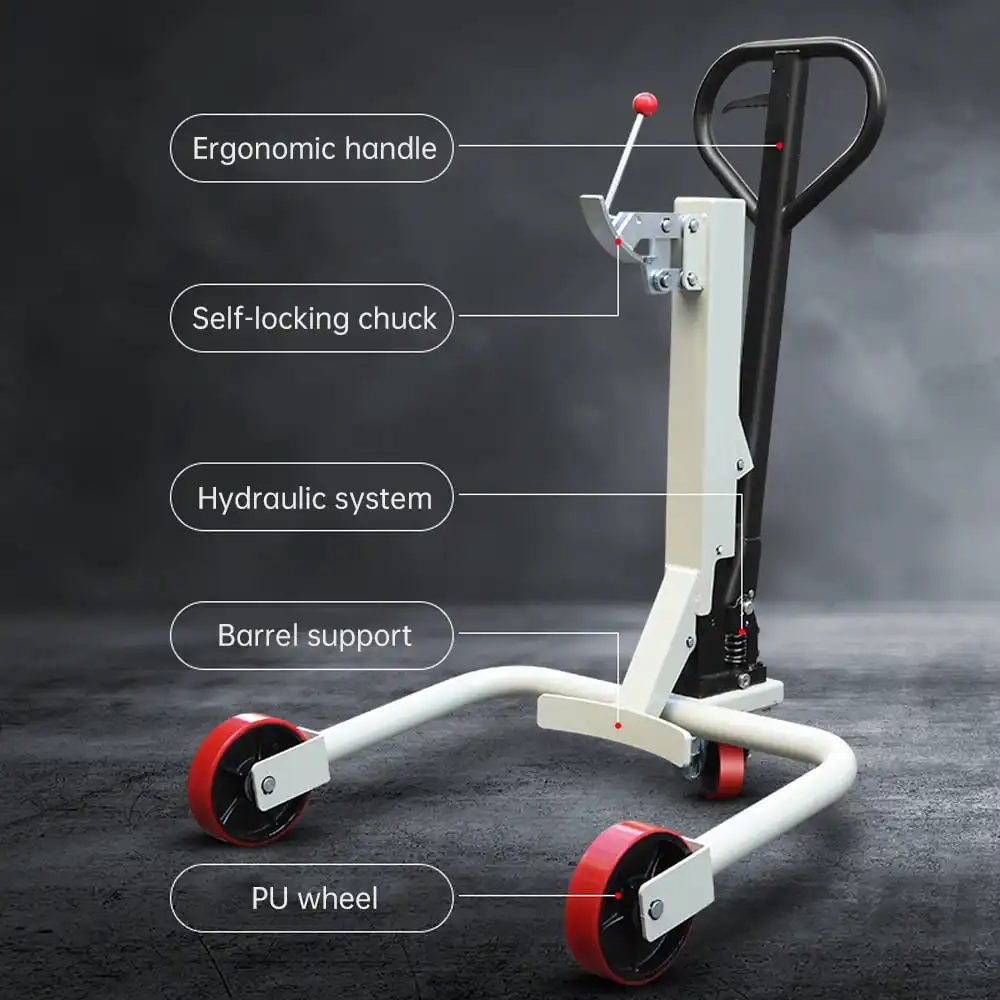

Core Operational Mechanism

The main way drum handling equipment works involves three interconnected systems. The lifting device uses either a foot-operated hydraulic pump or an electric motor to raise the drum vertically. Reinforced springs in hydraulic types have high tensile strength, allowing them to extend quickly and steadily while maintaining a constant lifting speed. The ergonomic handle design gives workers safe and comfortable control during movement, making the process intuitive and efficient on warehouse floors.

The locking method is what makes these tools unique. The eagle beak automatic buckle features a spring self-locking device that tightens as the weight increases, creating a fail-safe grip that prevents accidental release during transport. The chuck is made of high-quality forged steel, meaning it resists wear even after thousands of lifting cycles, giving it a much longer service life than conventional material handling tools.

Classification of Drum Lifters

For facilities handling modest volumes, manual hydraulic drum lifters offer the most cost-effective entry point. A foot button activates the lifting function, raising the drum by pressurizing the hydraulic cylinder. These units typically lift between 300 kg and 500 kg, with lifting heights varying from 250 mm to 375 mm depending on the model.

Electric versions feature battery-powered lifting systems, eliminating the need for muscular effort during vertical movement. These mobile drum lifter units are highly useful in operations where drums need to be moved frequently during long shifts, maintaining steady workflow while reducing operator fatigue.

Pneumatic options suit environments where explosion hazards exist. Air-driven devices produce no electrical spark, meeting the ATEX Zone 1 and Zone 2 standards common in petrochemical and solvent handling facilities.

Mobile Versus Stationary Solutions

Mobility greatly affects operational flexibility. Mobile units can navigate narrow aisles and adapt to changing work patterns, while stationary lifters remain fixed. Your facility's layout and procedures determine this choice. Mobile drum lifters are useful for moving between receiving docks, mixing rooms, and distribution stations. Stationary types work well in decanting areas where drums are brought in and remain for the entire cycle.

Mobile hydraulic drum lifters cost 20–30% more than stationary units because they require additional wheel assemblies, steering systems, and stronger frame structures to withstand transport loads. Different equipment requires different maintenance. Mobile machines need regular lubrication of wheel bearings and pivot points, whereas stationary machines generally require hydraulic seal checks and frame stability inspections.

Mobile Drum Lifter Safety Features and Capacity Guidelines

Critical Safety Mechanisms

Proper equipment design reduces industrial drum handling dangers. Hydraulic load-holding valves prevent the drum from dropping if hydraulic pressure diminishes. The drum remains lifted until the user intentionally lowers it. This functionality is important when workers need to pause mid-task to reposition or meet process requirements.

Wheeled variants include automatic brakes that prevent movement on sloping floors when the handle is released. The triangular base (730 mm to 760 mm wide) provides stability even when carrying drums with high centers of gravity. Anti-slip handle grips keep users in control even on slick surfaces caused by oil residue and mist.

Capacity Specifications and Selection

Understanding load ratings helps prevent workplace injuries and catastrophic equipment failures. Standard commercial models offer 300–350 kg capacity, sufficient for full 55-gallon steel drums. With a maximum drum diameter of 600 mm, the clamping mechanism works with various container types, from narrow pharmaceutical drums to wide-body chemical containers up to 915 mm tall.

Lifting height directly affects operational efficiency. A 250 mm lift capacity is sufficient for pouring from ground level into low hoppers. For pouring into higher mixing vats, 375 mm or more vertical travel may be needed. The minimum lifting height (265 mm) indicates whether the machine can raise drums from stillages or containment sumps.

Operational Best Practices

Safe handling starts with proper drum positioning. Before engaging the grip, the mobile drum lifter should be placed squarely in front of the drum, with the locking mechanism aligned with the drum's center of gravity. Gradual lifting prevents hydraulic shock and gives time to verify secure attachment before horizontal movement.

The environment significantly impacts operational safety. Floors must have adequate load-bearing capacity and remain clear of obstacles that could interfere with wheel movement or cause sudden stops. The maneuvering space must accommodate the unit's overall length (typically 1,080 mm to 1,250 mm) plus enough room for the user to walk behind and still see the load path ahead.

Maintenance Tips for Long-Term Performance of Mobile Drum Lifters

Routine Inspection Protocols

Daily pre-use checks form the basis of reliable equipment operation. Visually inspecting the hydraulic cylinder for fluid leaks reveals seal wear before failure occurs. The lifting mechanism should be cycled through its full range of motion without a load, and operators should listen for unusual noises that could indicate hydraulic system contamination or worn mechanical parts.

Wheel condition checks focus on tread wear patterns, bearing play, and axle stability. Uneven wear signals alignment problems that increase rolling resistance and accelerate component wear. Caster wheels should swivel freely without sticking; if they do not, operators must exert excessive steering force, potentially destabilizing the heavy unit during turns.

Preventive Maintenance Strategies

Hydraulic fluid quality directly affects system longevity. Using ISO VG32 grade hydraulic oil maintains proper viscosity in most warehouse environments. Contaminated fluid scores cylinder walls, causing the "lift droop" effect where drums slowly lower under pressure. These problems can be prevented by annual fluid replacement and seal inspection, especially in high-cycle environments where equipment operates multiple shifts daily.

For electric models, battery management involves monitoring charge cycles and maintaining proper electrolyte levels in flooded lead-acid batteries. Lithium-ion models require regular firmware updates to optimize charging routines, extending battery life and ensuring consistent​​​​​​​ Mobile Drum Lifter performance throughout the workday.

Troubleshooting Common Issues

A noticeable drop in lifting speed usually indicates air entering the hydraulic system. Normal function is restored by bleeding the system through the designated release valve. Persistent problems may mean pump components are worn and need replacement.

Most clamping system failures result from worn springs in the self-locking device. Replacement springs are wear items that should be kept in maintenance supplies to enable quick field repairs and minimize downtime. The forged high-quality steel chuck rarely breaks, but if the unit is struck by falling drums, the chuck should be inspected for propagating cracks.

How to Choose the Best Mobile Drum Lifter for Your Industrial Needs?

Capacity and Ergonomic Assessment

Matching equipment capabilities to operational demands starts with accurately weighing your largest drum combinations. Even when containers are the same size, chemical solutions, metal powders, and liquid resins have very different load characteristics. Adding 20% extra capacity above your heaviest load maintains a safety margin, even if drums are filled to varying levels.

Lifting height requirements are directly linked to the geometry of your process equipment. Measure the height from floor to the top of any hoppers, mixing vessels, or dispensing platforms where drums will be emptied. Adding 100 mm of clearance to this measurement provides the working space needed for controlled pouring without risk of overfilling.

Ergonomic considerations go beyond basic functionality. When the drum is in the transfer position, the handle height should align with the user's shoulder to prevent neck and back strain during extended use. When the mobile drum lifter must travel long distances, steering effort becomes critical. Electric power steering or larger-diameter wheels significantly reduces initial turning effort.

Evaluating Power Source Options

For intermittent drum movement, manual hydraulic systems are most reliable. Without batteries, motors, or electrical components, all failure sources are eliminated, and purchase cost is reduced. Facilities moving 10 to 15 drums per shift find manual units sufficient without operator fatigue.

Electric models justify their higher cost in high-volume locations. Moving more than 40 drums daily pays for itself through lower labor costs and increased productivity. Choosing the right battery technology matters. Standard lead-acid systems require dedicated charging facilities and longer recovery times, whereas lithium-ion packs can be charged during breaks.

Supplier Partnership Considerations.

Equipment purchase represents a long-term supplier relationship. Warranty coverage reflects the manufacturer's confidence in product reliability. High-quality units offer 24-month warranties on hydraulic components, structural frames, and electrical systems. Fast after-sales service affects how long issues persist; vendors with regional distribution centers can supply replacement parts the same or next day.

Certification compliance ensures equipment meets regulations without costly modifications. OSHA, ANSI, and CE markings indicate third-party testing of safety and performance. Industry-specific credentials – such as FDA-compliant stainless steel construction for pharmaceutical use or ATEX ratings for hazardous areas – help buyers avoid mistakes that hinder project implementation.

Benefits and Value of Mobile Drum Lifters in B2B Industrial Operations

Safety and Efficiency Enhancement

Manual drum handling poses a serious risk of injury. The Bureau of Labor Statistics consistently ranks material handling as the primary cause of workplace musculoskeletal disorders, with back injuries being the most common and costly type. Using drum lifting equipment eliminates the lifting, carrying, and awkward postures that cause these injury claims. Workers move drums using mechanical advantage instead of physical strength, reducing workers' compensation costs and improving employee retention.

Operational speed improvements are seen immediately after adoption. A single operator using a mobile drum lifter can move drums 60% faster than two-person teams handling them manually. This directly boosts throughput in operations such as receiving, staging, and dispensing. The controlled tilting mechanism enables precise pouring that reduces product waste and spills – an important factor when handling expensive pharmaceutical ingredients or hazardous chemicals that are costly to dispose of.

Cost-Effectiveness and ROI Analysis

Good drum handling tools cost $2,000–$8,000, depending on size, power supply, and capabilities. Several strategies can make this investment profitable. When single-operator operations replace multi-person manual handling, labour costs drop immediately. A facility that processes 30 barrels per day may save over $40,000 by hiring one full-time worker for value-added activity.

Preventing injuries is expensive. The average back injury workers' compensation claim costs $25,000 to $75,000. This includes medical expenditures, missed work, and administrative fees. Stopping one mishap every two years saves team members from unpleasant ailments that might end their careers, making the equipment worth the cost.

Built-in scales improve ROI for ingredient measurement operations. Real-time load cell input eliminates separate weighing steps, speeding batch preparation and reducing measurement errors that could affect product quality or waste expensive raw materials.

Operational Flexibility and Scalability

Today's manufacturing and logistics environments demand flexibility. Mobile drum lifters can serve multiple workstations without infrastructure modifications. A single unit moves between receiving docks, production floors, and warehouse staging areas based on real-time needs, giving far higher equipment utilization than fixed installations.

Multi-location firms benefit from standardised tool rentals. Uniform portable drum handling truck platforms make it easy to train workers, stock repair parts, and share equipment during demand adjustments and maintenance. This standardisation covers warehouse management system usage. Weighing models can link to inventory software to rapidly record material usage and start restocking.

Scalability matters as businesses grow. Start with manual hydraulic units for low volumes to keep initial costs low. As throughput increases, facilities can install electric versions in high-traffic areas while retaining manual units for low-traffic zones, creating a tiered equipment strategy that optimizes capital deployment across operations.

Conclusion

Heavy industrial material handling used to be a source of injuries. Drum lifting equipment has made it safe and efficient. This analysis shows how hydraulic lifting systems, self-locking clamping devices, and ergonomic movement features address the daily challenges of manufacturing, pharmaceutical, chemical, and distribution centers. To choose the right tools, consider your capacity requirements, operating environment, and long-term service needs. Buyers of proven drum handling systems realize immediate safety benefits, measurable productivity gains, and long-term cost reductions that increase their competitiveness in increasingly demanding markets.

FAQ

Q1: Can the equipment handle both steel and plastic drums safely?

Standard rim-clamp designs are reliable when used with steel drums that stay rigid when clamped. Plastic containers need special wide-beak grippers or belt-style clamping systems that spread force over a bigger surface area. This stops the drum from deforming, which could cause it to slip off the mechanism while it's being moved.

Q2: What causes hydraulic lift droop, and how can it be prevented?

Lift droop occurs when hydraulic seals degrade, allowing pressurized fluid to bypass back to the reservoir. This problem can be prevented through regular fluid quality checks, annual seal replacement, and keeping release valves clean. Using the manufacturer-recommended ISO VG32 hydraulic oil ensures proper seal lubrication.

Q3: How much aisle space does the operation require?

The mobile drum lifter's overall length ranges from 1,080 mm to 1,250 mm, plus room for the operator to walk behind. This means facilities should provide aisles 1.5 to 2 meters wide to allow easy maneuvering. Measuring your tightest aisles before purchasing prevents buying equipment that cannot operate effectively in your facility.

Q4: Do units include overload protection?

Professional-grade units feature hydraulic release valves that bypass fluid when users attempt to lift loads exceeding the machine's rated capacity. This safety feature prevents structural damage and protects the user by preventing overload conditions that could lead to equipment failure.

Partner with Fortucky for Your Drum Handling Solutions

To achieve operating success in drum handling, you need more than just tools. You need a Mobile Drum Lifter supplier that knows the problems your industry faces and can provide solutions that will work for a long time. Fortucky has over 1,000 successful applications of its knowledge in the pharmaceutical, chemical, food processing, and heavy manufacturing industries around the world. Our tech team makes sure that the drum lifting equipment we sell fits perfectly with your current processes and warehouse management systems.

Fortucky has many benefits over its competitors, such as quick deployment times, full technical support through our regional service network that spans Asia, Europe, and the Americas, and cost-effective solutions backed by our 5G-enabled intelligent production centre. You can choose from manual hydraulic types for rare use or electric units for high-volume tasks. Our range of products meets all of your drum handling needs. Get in touch with our application engineers at sales@fortuckyrobot.com to talk about how Fortucky's material handling solutions can lower your risk of harm, speed up your work, and give you a measured return on investment (ROI) within the first year of operation.
